Built-in Fan Version
High Brightness Outdoor Digital Signage 75 Inch Wall Mounted for Bus Station Wayfinding
Temperature Control System:Precise air conditioner Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass Installation:Floor standing or customized
Specifications
- SKU
- ZXTLCD-OUTFHW750TP
High Brightness Outdoor Digital Signage 75 Inch Wall Mounted for Bus Station Wayfinding
75 Inch Wall Mounted Outdoor LCD Display for Large Drive-Thru Menus
A 75-inch menu board gives a restaurant room to keep the main product categories visible at the same time. That can reduce waiting for a rotating playlist, but only when the screen is installed at the correct height and the menu does not become overloaded. This 75 Inch Wall Mounted Outdoor LCD Display is intended for high-capacity drive-thru lanes that need a large daylight-readable menu surface.
The published configuration includes 2500-nit brightness and IP65 protection. Its listed working-temperature range is −40°C to 50°C. Enclosure materials include aluminum alloy, a metal case and toughened glass.
75 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

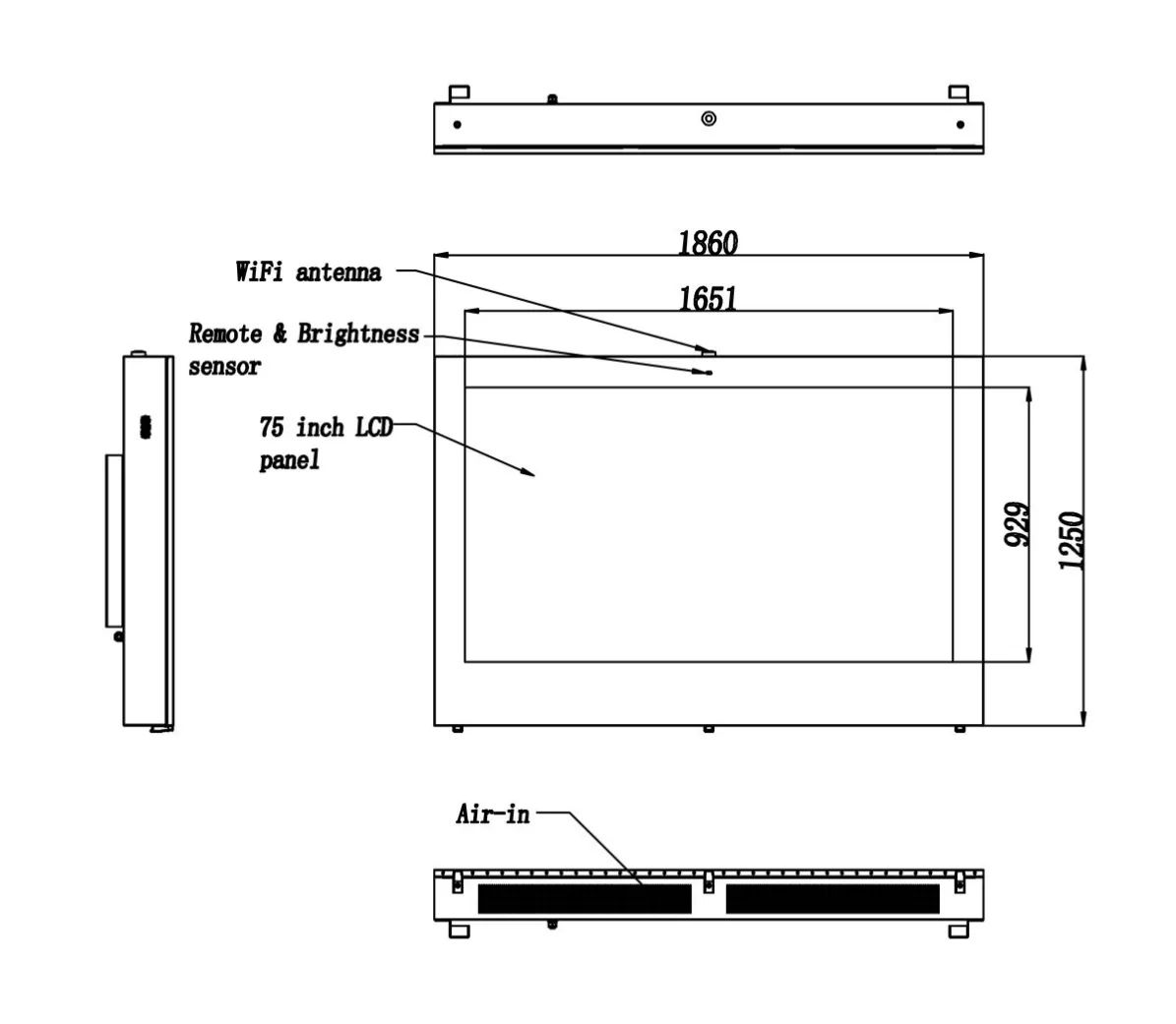

Mechanical Para | Machine seize H*W*D(mm) | 1860*1250*170 |
Net weight(Kg) | 180 | |
Package size H*W*D(mm) | 1520*2010*320 | |
Gross weight(Kg) | 220 | |
Why a Restaurant May Need 75 Inches
A smaller display can handle one promotional menu or a limited product range. A 75-inch screen is more appropriate where customers need to compare several categories before reaching the speaker.
The extra area can separate meals, beverages and limited promotions without forcing each item into a small box. It may also reduce the number of individual displays required beside the ordering lane.
Screen size does not solve poor menu hierarchy. Core products and prices should remain stable, while animated offers can run on a separate pre-order screen or within a controlled promotional area.
Check the View from Cars and SUVs
Installation drawings should be tested against real vehicles. The driver views the menu through a windscreen, often from an angle, and another car may partially block the lower part of the screen.
A useful site test is to mark the full 75-inch display area on the proposed wall. Staff can then drive through the lane in vehicles of different heights and check the text position before the bracket is manufactured.
The display should appear early enough for customers to understand the menu before reaching the microphone. If the screen first becomes visible at the speaker, the larger format may not improve ordering speed.
Wall Load and Outdoor Materials
A 75 Inch Wall Mounted Outdoor LCD Display requires a supporting structure designed for its total weight and wind exposure. Decorative restaurant cladding is not automatically suitable for mounting.
Aluminum alloy can provide a practical enclosure structure with corrosion resistance. Toughened glass protects the display surface from impact and cleaning. Site cable routes must prevent water from entering the enclosure or collecting behind the product.
The listed −40°C to 50°C operating range covers demanding climates, but project teams should still provide the actual minimum temperature, direct-sun conditions and daily operating schedule. A screen mounted against a sun-heated wall may experience higher internal temperatures than the reported outdoor air.

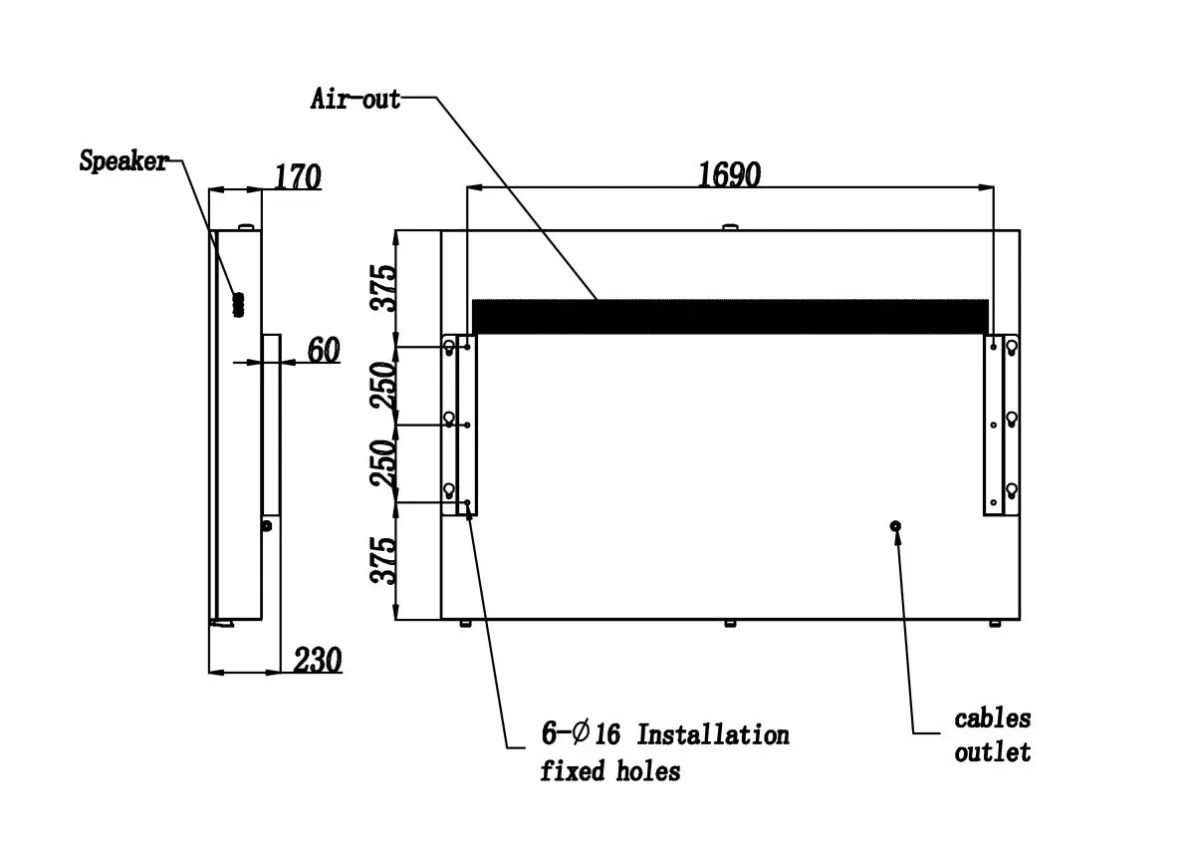

The design drawing of rear display
Daylight Output and Nighttime Control
The 2500-nit panel supports daytime menu visibility. Content should use large product names, consistent price positions and strong contrast.
After dark, maximum brightness can create glare through a windscreen. A timed brightness schedule or light-sensor strategy should lower output while keeping the menu readable.
Restaurants near homes may also need to manage nighttime light as part of local planning conditions. This requirement should be considered before the screen is commissioned.
Service Access During Restaurant Hours
The enclosure needs access to the player, cooling system and power components. A menu board that requires the surrounding façade to be dismantled for routine service will increase downtime.
Cleaning and ventilation inspection should account for grease, road dust and vehicle residue. The maintenance team should know which areas store staff may clean and which require technical service.
Before ordering a 75 Inch Wall Mounted Outdoor LCD Display, provide the wall structure, viewing distance, lane direction, temperature range and content-control method. The screen performs best when the menu, mounting position and restaurant workflow are planned together rather than treating it as a large television installed outdoors.
