Built-in Fan Version
High Brightness Outdoor Digital Signage 43 Inch Floor Standing for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP430LB
43 Inch High Brightness Outdoor Digital Signage for Street-Level Information
Outdoor information screens are often installed where available floor space is limited but visibility cannot be compromised. This 43 Inch High Brightness Outdoor Digital Signage uses a narrow portrait cabinet that fits naturally beside exterior entrances, pedestrian routes and covered outdoor service areas.

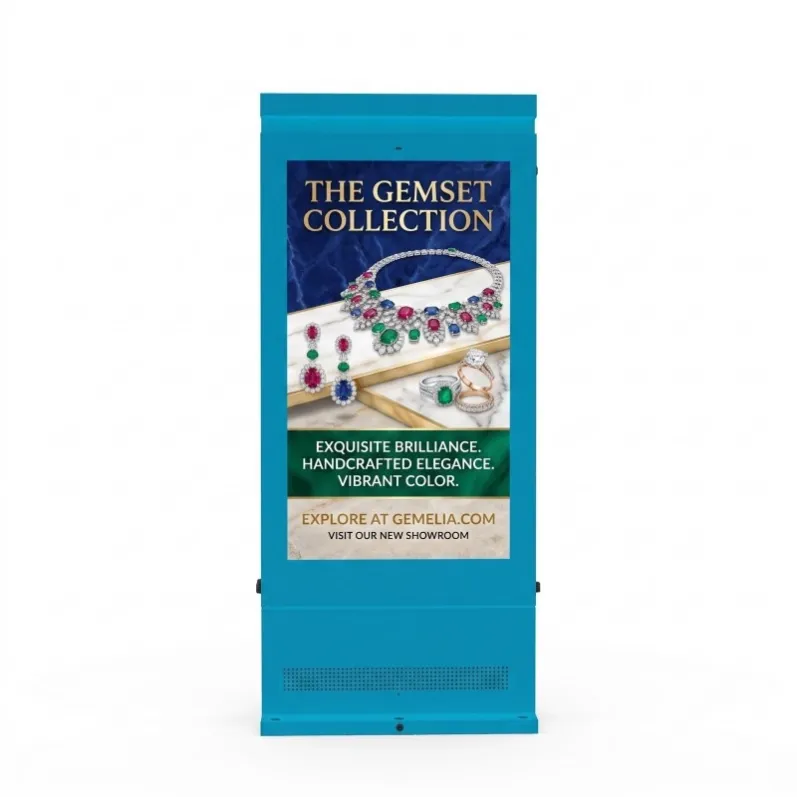

The product image shows a slim turquoise-colored lower enclosure with a vertically oriented display. Its restrained footprint makes the unit suitable for locations where a larger 55-inch or 65-inch kiosk could obstruct circulation. The cabinet color shown in the image is a presentation option and should be confirmed according to the project’s branding requirements.
43 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel para | Backlight type | ELED |
Display size( mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

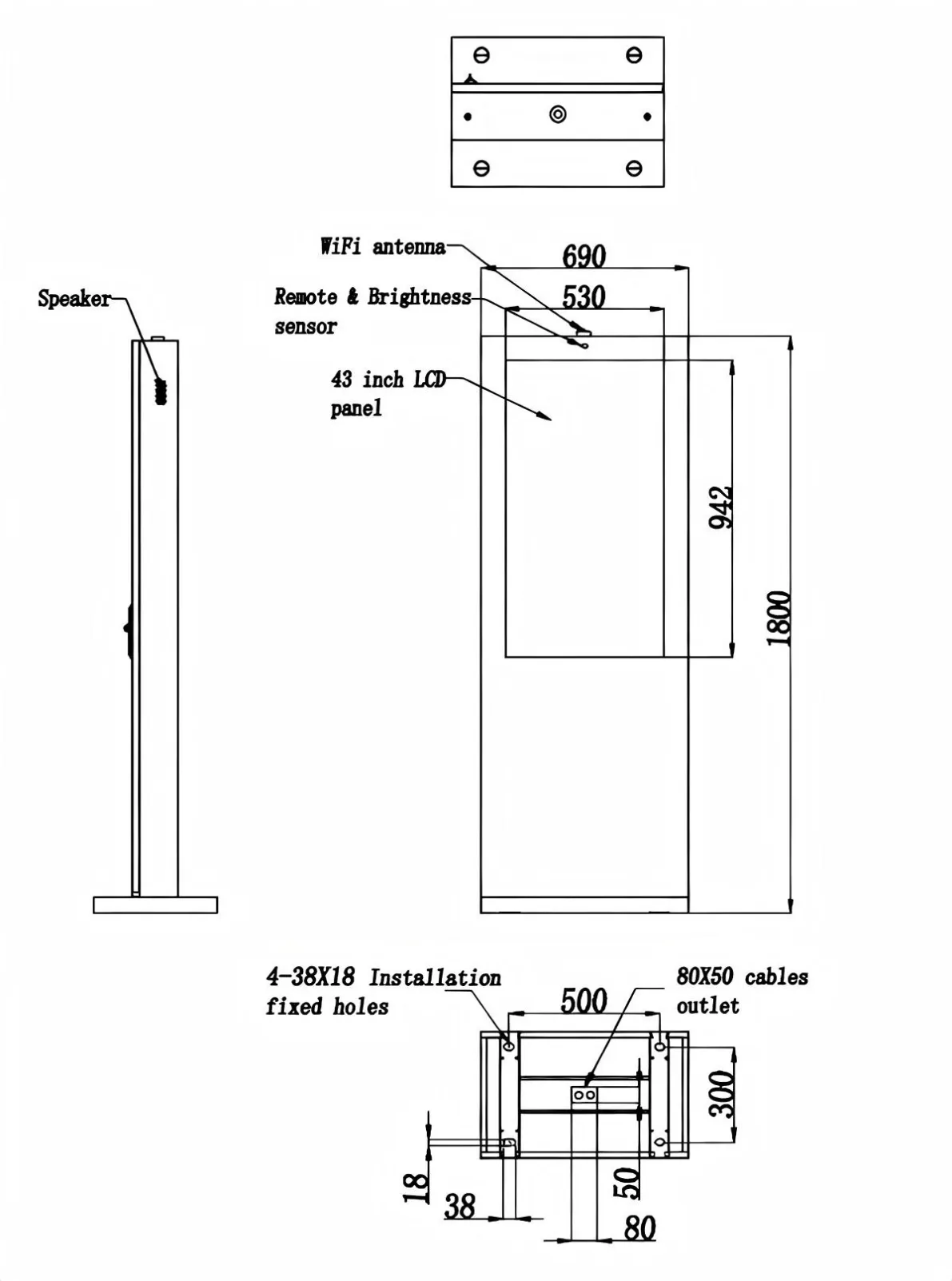

Mechanical Para | Machine seize H*W*D( mm) | 1800*690*150 |
Net weight | 80 | |
Package size H*W*D( mm) | 920*1950*470 | |
Gross weight(Kg) | 115 | |
A Compact Outdoor Display for Pedestrian Viewing
A 43-inch portrait screen is well suited to information viewed at relatively short distances.
Instead of trying to dominate a large open plaza, it can be positioned close to the point where a visitor needs to make a decision.
Suitable outdoor applications include:
- Exterior retail entrances
- Open-air shopping streets
- Outdoor ticketing and service areas
- Covered transit platforms
- Visitor routes outside public buildings
- Pedestrian entrances to parking facilities
The upright screen format provides space for directional arrows, opening hours, promotional posters, public notices and vertically designed campaign content.
High Brightness for Daytime Content Visibility
Conventional indoor LCD screens can become difficult to read once they are placed near direct daylight. The 43 Inch High Brightness Outdoor Digital Signage is designed for outdoor commercial communication, where ambient light levels may change throughout the day.
A high-brightness panel helps keep text, prices and graphics visible in daylight. Content still needs to be designed correctly: bold typography, strong color contrast and short messages normally perform better outdoors than detailed layouts intended for close indoor viewing.
IP65 Cabinet Protection for Outdoor Placement
The IP65-rated enclosure helps protect internal components against dust and water entering from normal outdoor exposure. This makes the display more appropriate for weather-exposed installations than an indoor screen placed inside a basic metal shell.
IP65 does not remove the need for professional site preparation. Installers should still consider:
- Drainage around the installation point
- Secure anchoring to the supporting surface
- Outdoor-rated electrical connections
- Cable entry sealing
- Local wind-load requirements
- Access space for future servicing
These details can have a greater effect on long-term reliability than the screen specification alone.

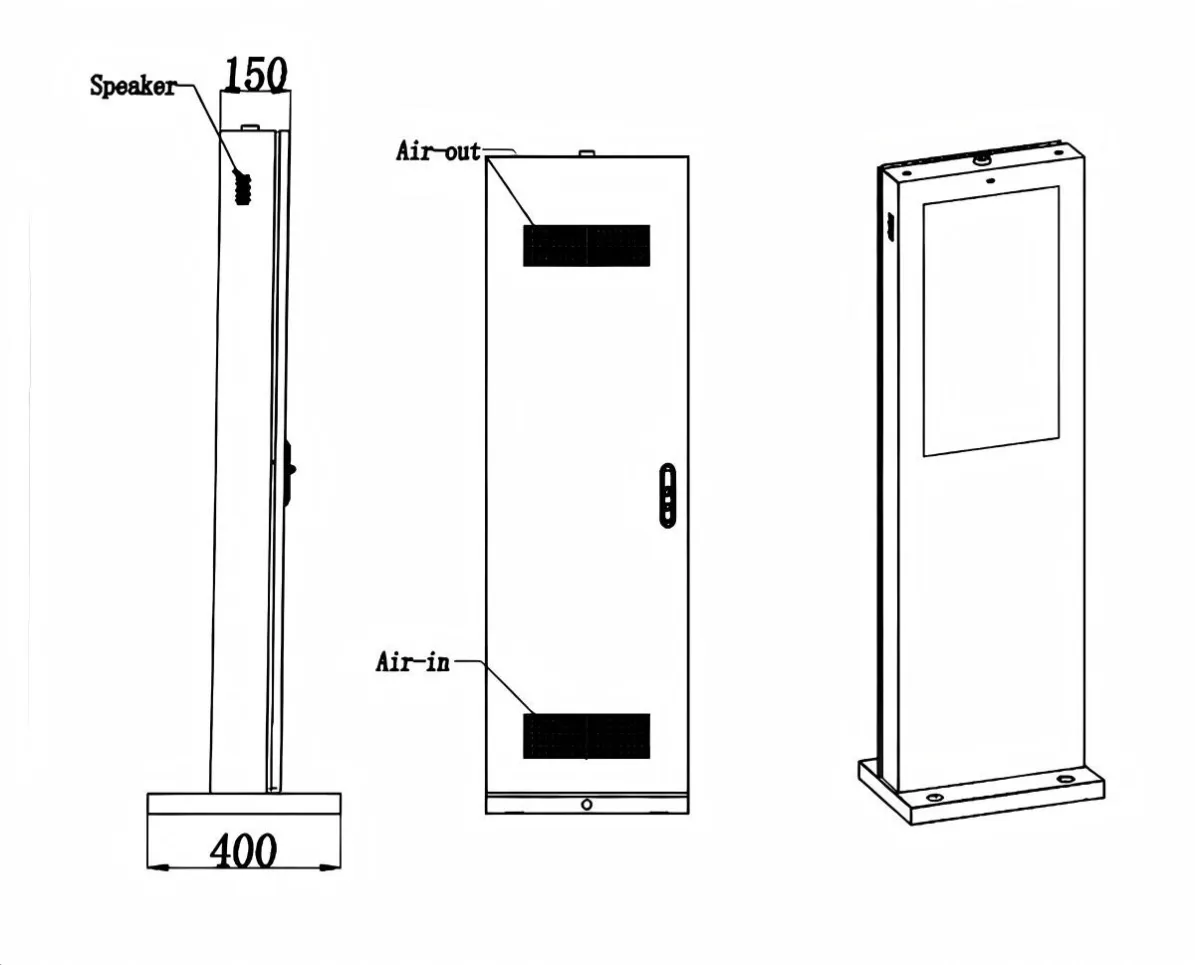

Fan Cooling in a Slim Floor-Standing Cabinet
The backend category identifies this unit as a built-in fan version. Internal airflow helps remove heat generated by the high-brightness panel and electronics while keeping the enclosure comparatively slim.
The ventilation path should remain unobstructed after installation. Leaves, dust accumulation and nearby walls can restrict airflow, so ventilation areas should be included in the routine inspection schedule.
Why the 43-Inch Format Can Be the Practical Choice
Bigger is not automatically better for every outdoor signage project. The 43 Inch High Brightness Outdoor Digital Signage can be more suitable when viewers pass close to the display or when installation space is restricted.
Its narrow upright form can be integrated beside a doorway or pedestrian path without creating the visual weight of a large-format advertising kiosk. That makes it useful for targeted messages delivered at a specific point in the visitor journey.
Information to Confirm Before Ordering
Provide the installation location, expected sunlight direction, required media player, power standard, cabinet color and content-management method when requesting a quotation. Installation drawings and local engineering requirements should also be reviewed before the site foundation is prepared.
