Built-in Fan Version
High Brightness Outdoor Advertising Kiosk 86 Inch Floor Standing for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP860I
High Brightness Outdoor Advertising Kiosk 86 Inch Floor Standing for Smart City Media
86 Inch Floor Standing Outdoor Advertising Kiosk for Public Media Networks
An outdoor media network must account for more than screen visibility. Cabinets become part of the public environment, affecting pedestrian movement, maintenance access and the appearance of the surrounding streetscape.
The 86 Inch Floor Standing Outdoor Advertising Kiosk provides a large portrait display for city information and commercial media. Its specifications include 2500-nit brightness, IP65 protection and built-in fan cooling.
86 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

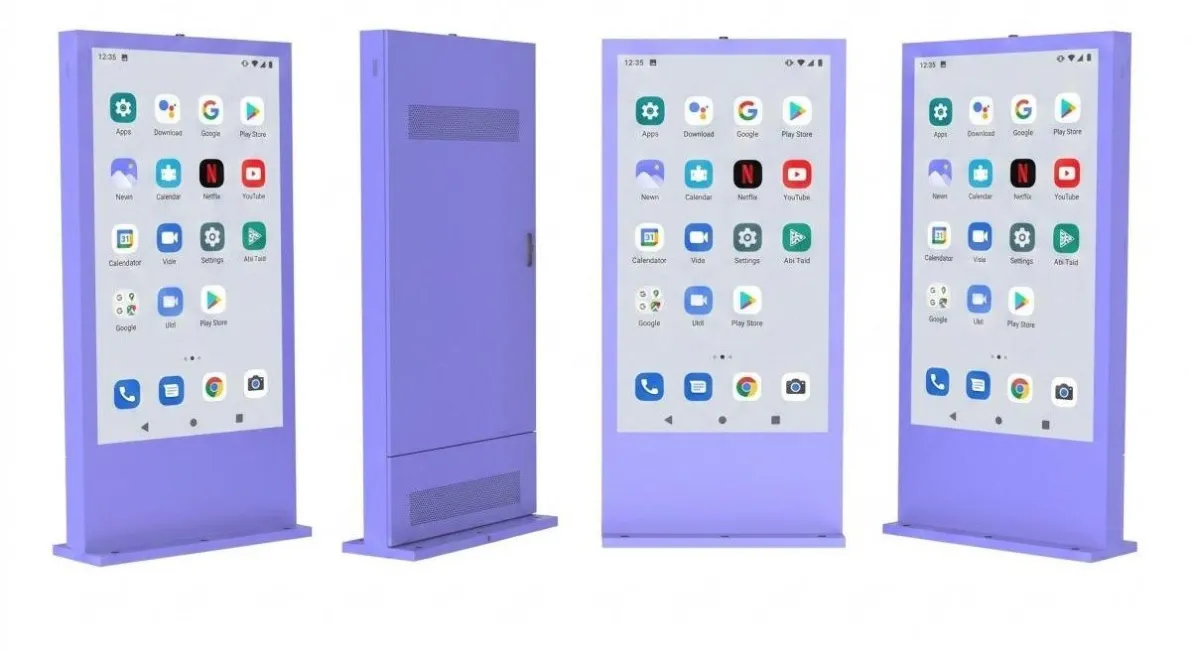

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

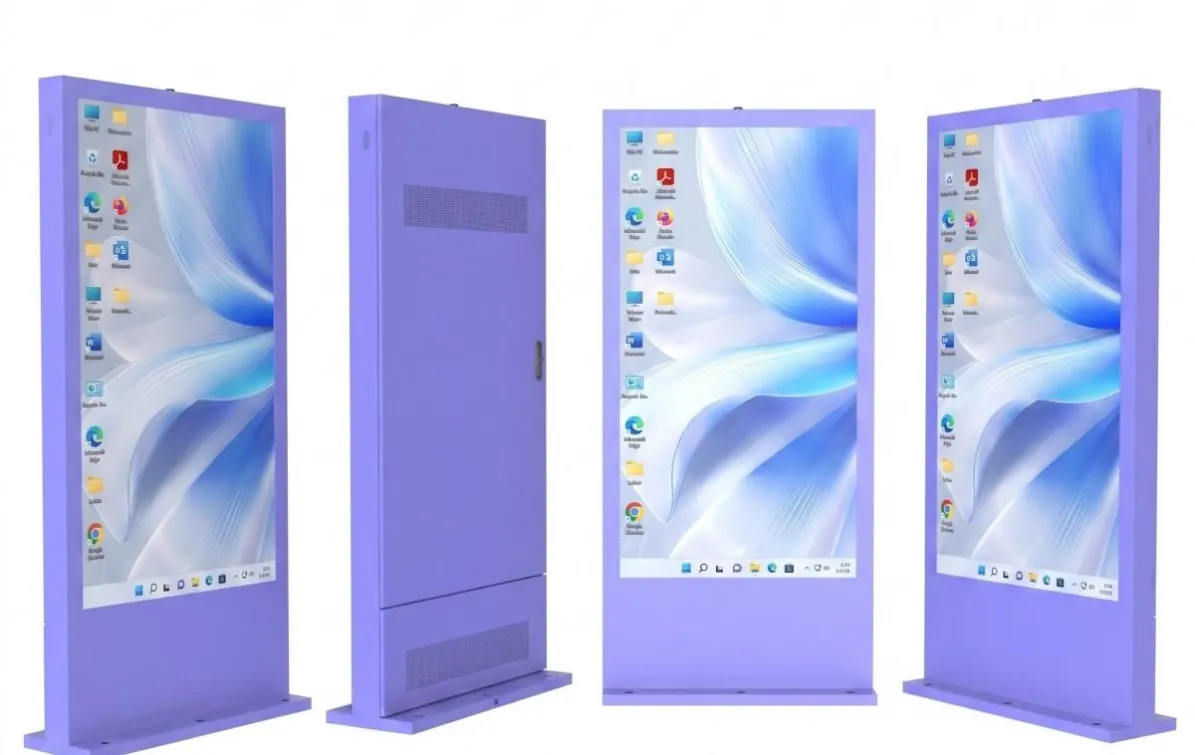

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

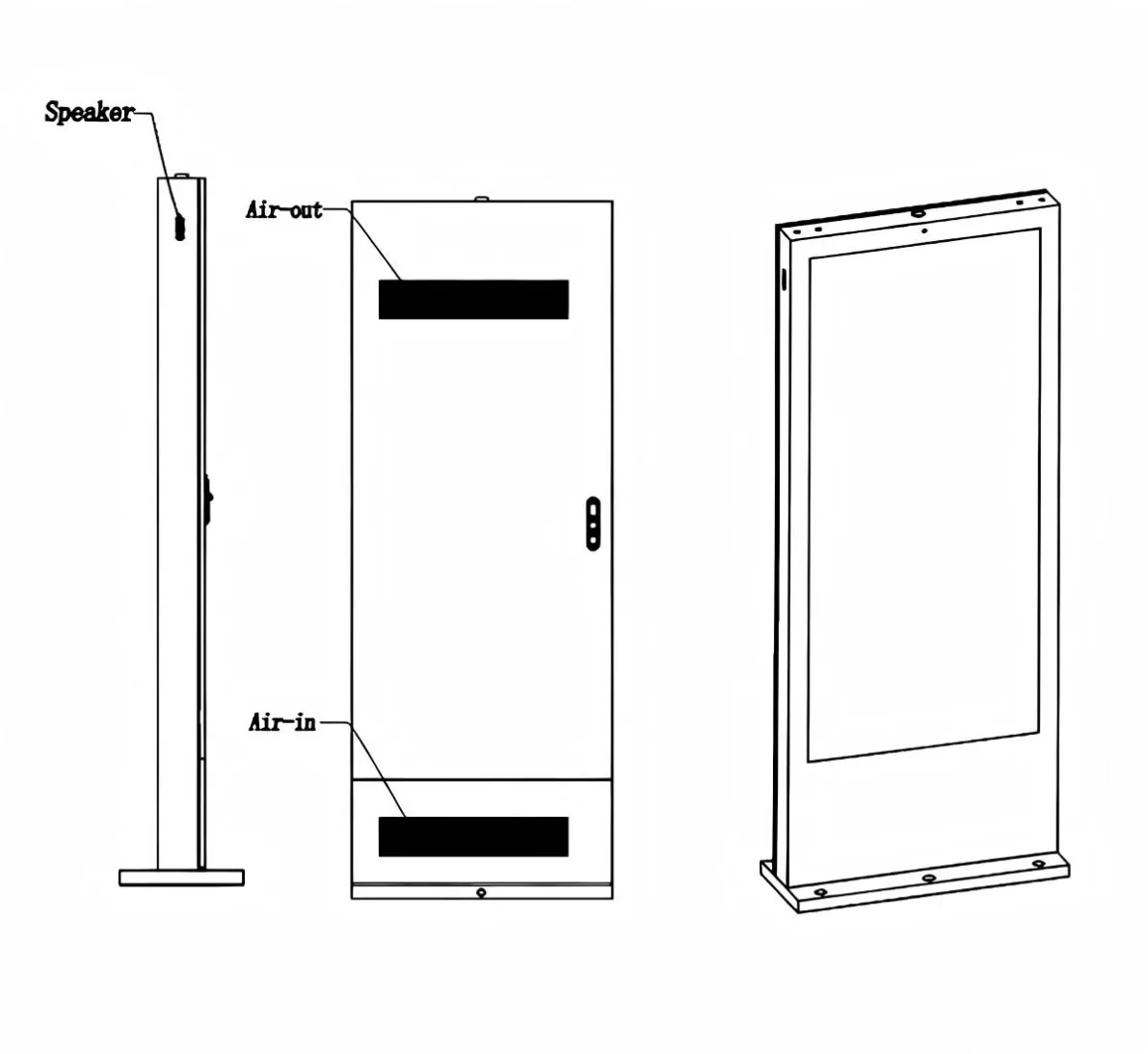

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

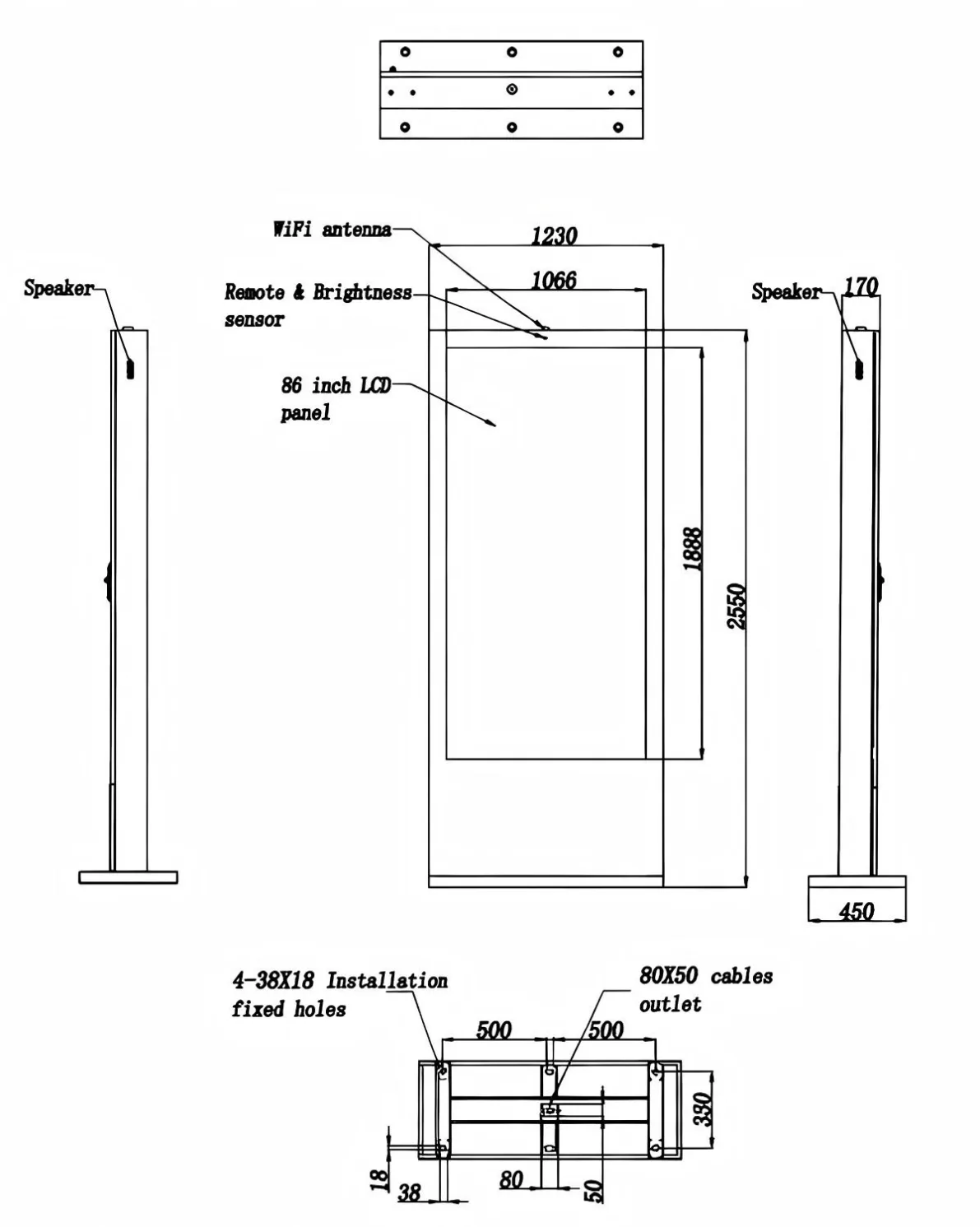

Mechanical Para. | Machine seize H*W*D( mm) | 2550*1230*170 |
Net weight(Kg) | 230 | |
Package size H*W*D( mm) | 1460*2700*520 | |
Gross weight(Kg) | 290 | |
A Large Screen Needs a Clear Role
The display can support municipal campaigns, public notices, event promotion, tourism information and commercial advertising. It should not be expected to present all these functions simultaneously.
Each location should have a defined communication priority. A screen near a transport entrance may require more wayfinding, while a screen in an open civic plaza may support larger campaign imagery.
Content Governance Matters
A city display network can quickly lose credibility when expired campaigns and outdated public notices remain visible. Operators should establish who approves content, how emergency messages are published and when old material is removed.
The hardware platform and content workflow should be planned together. Remote management, monitoring and scheduling depend on the selected player and software rather than the LCD panel alone.
Structural Planning for an 86-Inch Cabinet
The cabinet’s size increases wind exposure and foundation requirements. Project teams should obtain exact dimensions, weight and anchor drawings before construction.
Its location must preserve emergency routes, accessibility clearance and sightlines. Protective measures may be required in areas exposed to service vehicles or heavy pedestrian traffic.
Environmental Operation
The 2500-nit panel supports daylight visibility, but screen direction and nearby reflective structures should still be reviewed.
IP65 protection helps defend the enclosure against dust and water jets. Built-in fan cooling manages internal temperature, and the cooling path should be inspected according to local pollution and dust conditions.
Service access must remain available after landscaping, paving and surrounding street furniture are completed.
A Better Fit for Open Public Areas
The 86 Inch Floor Standing Outdoor Advertising Kiosk is better suited to open environments with sufficient viewing distance than narrow pedestrian passages.
It provides the scale needed for high-visibility public communication, but that scale should be justified by the site. When placement, content and maintenance are planned together, the 86 Inch Floor Standing Outdoor Advertising Kiosk can become a reliable part of a wider outdoor media network.
