Built-in Fan Version
High Brightness Outdoor Advertising Kiosk 65 Inch Pole Mounted for Bus Station Wayfinding
Material:Metal Case + Toughened Glass Panel Material:304 Stainless steel/SGCC Galvanized plate Touch screen:Mesh metal touch/G+G cap touch Surface:Spraying,frosted aluminum
Specifications
- SKU
- ZXTLCD-OUTFHN650O
65 Inch Pole Mounted Bus Station Display for Transfer Decisions
A passenger arriving at an unfamiliar bus station usually has three questions: which platform, which direction and how long the transfer will take. This 65 Inch Pole Mounted Bus Station Display provides enough landscape space to answer those questions within one visible layout.

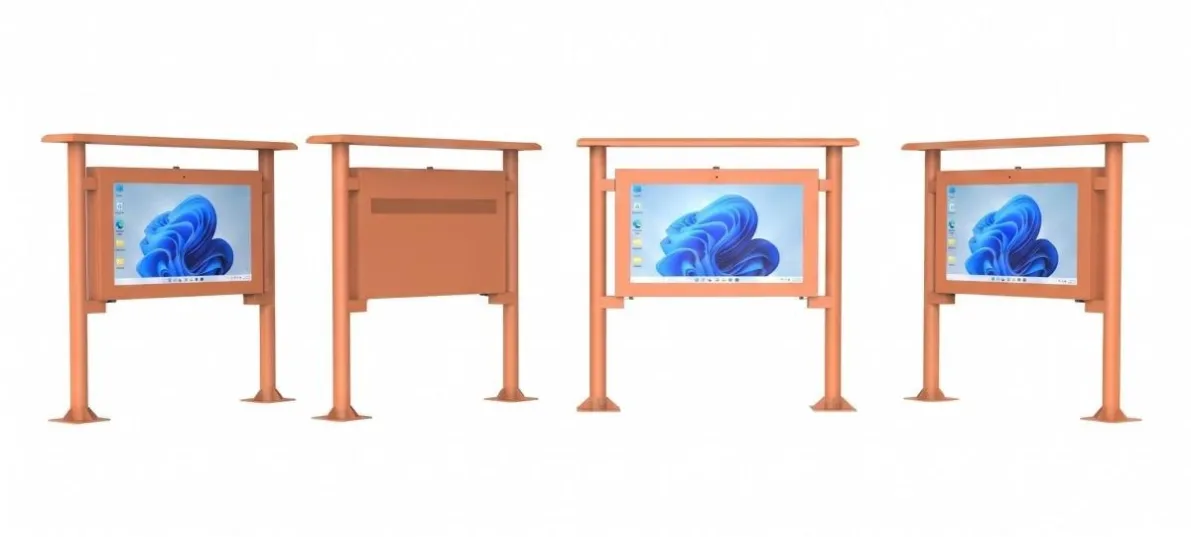

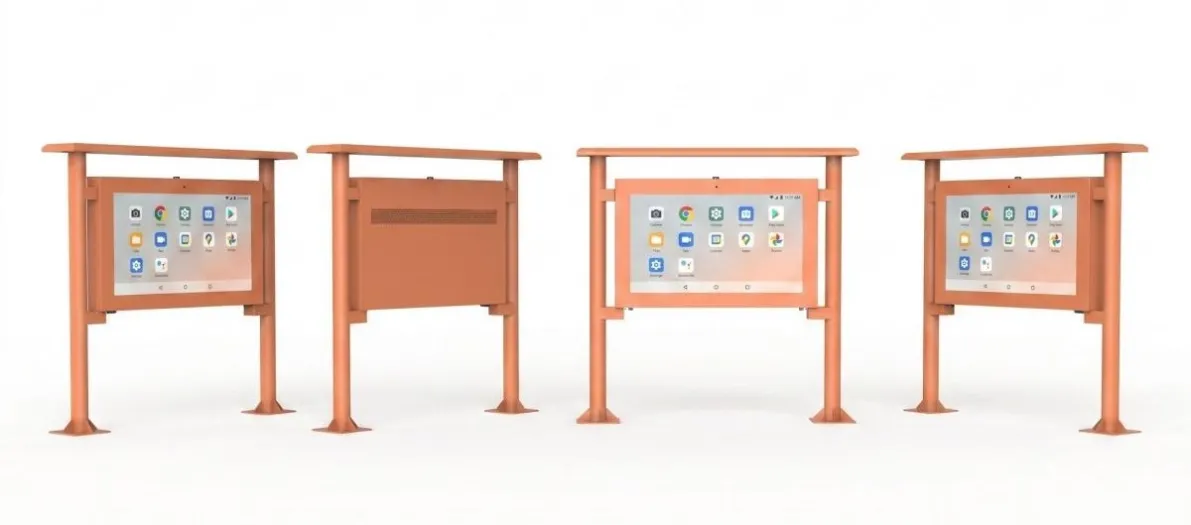

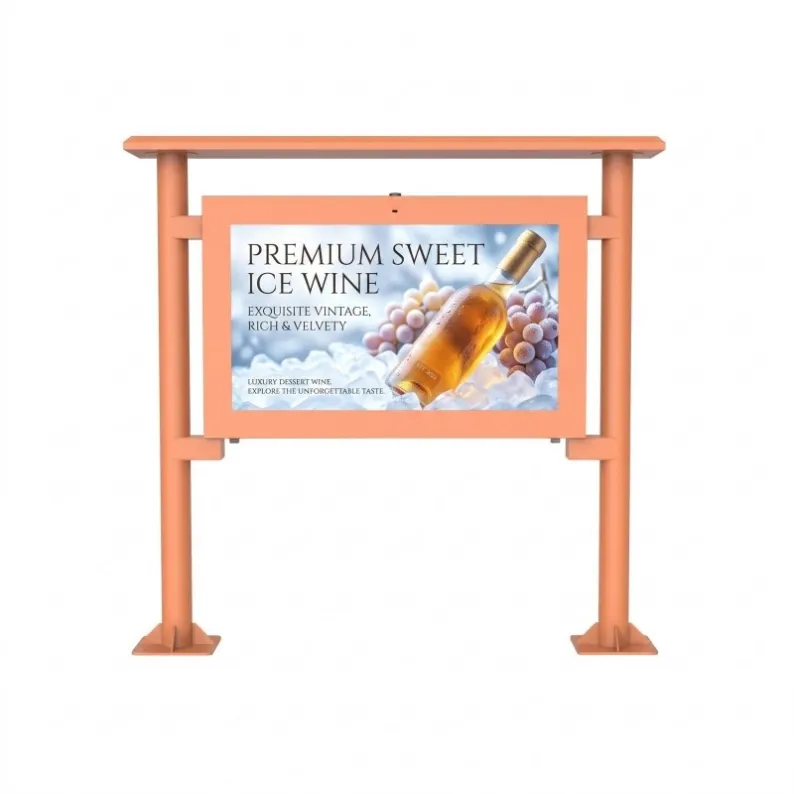

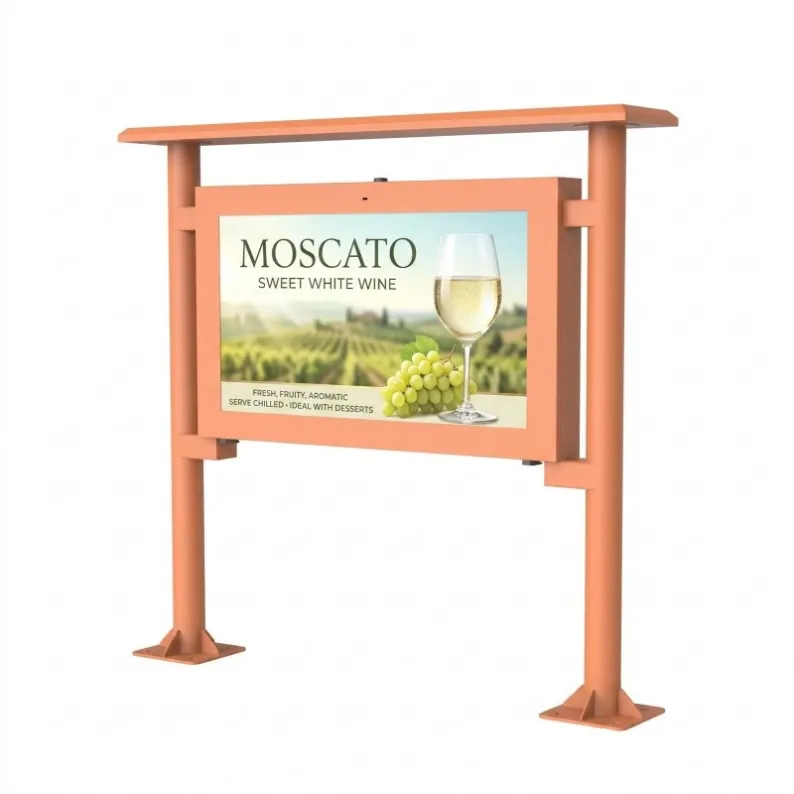

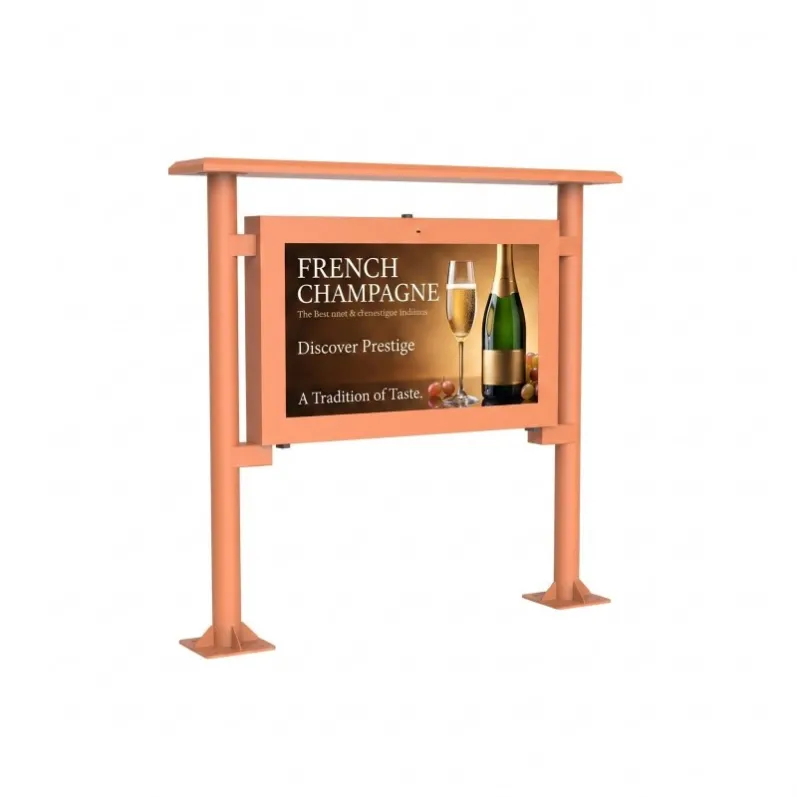

The image shows an orange-brown two-post structure. Unlike a small stop-level timetable display, this format can communicate with several passenger groups across an outdoor interchange.
65 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

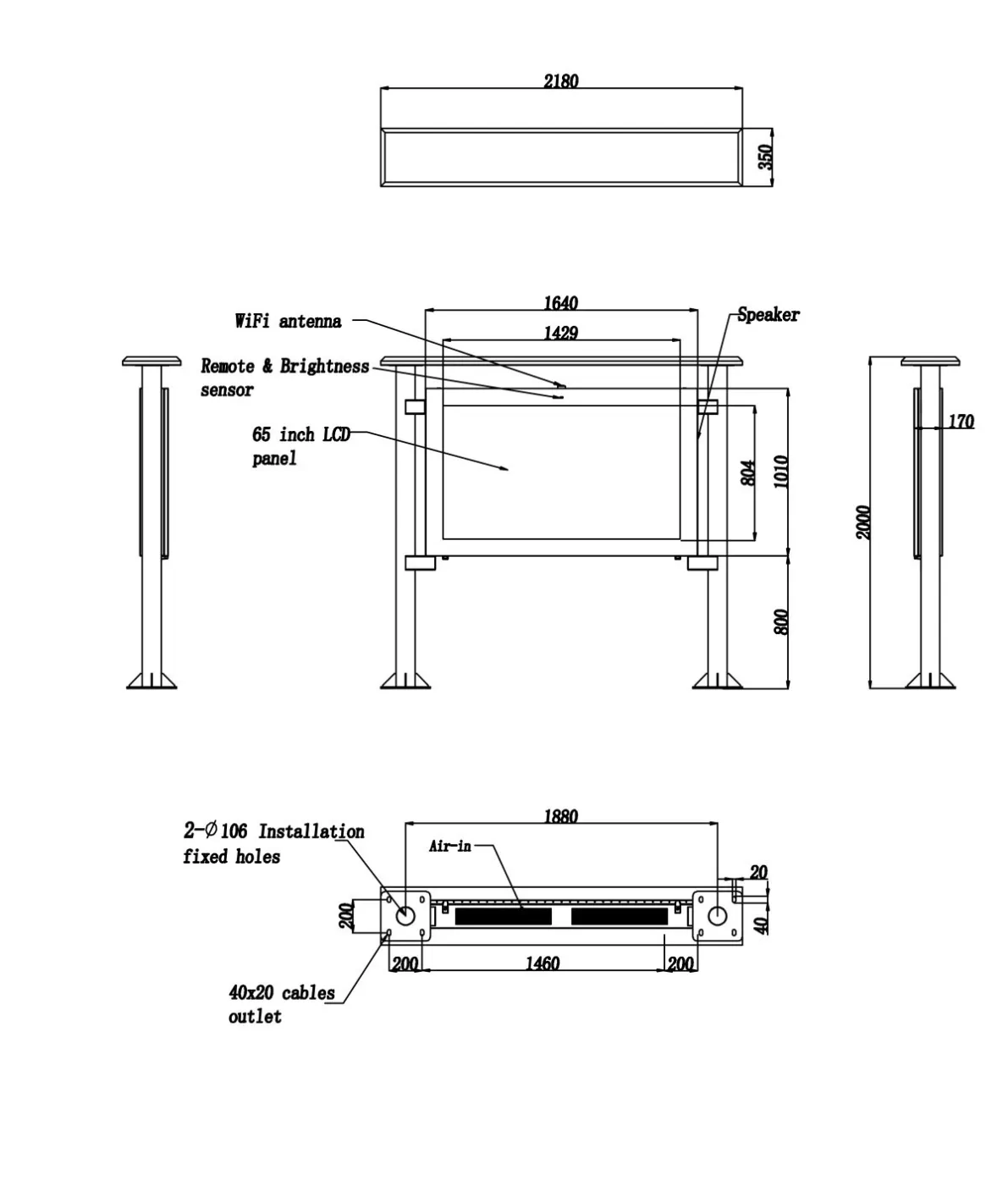

Mechanical parameters | Whole device dimension H*W*D | 2000*2180*350mm |
Whole device net.weight | 190kg | |
Package dimension H*W*D | 1280*1790*320mm | |
Stand pole package dimension H*W*D | 570*2430*510mm | |
Mechanical parameters | Whole device gross weight | 145kg |
Stand pole gross weight | 135kg | |
Build the Page Around the Transfer
The central section can show a station or platform map. Supporting areas may carry:
- Route numbers
- Transfer arrows
- Accessible paths
- Temporary boarding changes
- Nearby streets and landmarks
- Service disruption notices
Advertising can appear in scheduled sections, but essential navigation should remain available.
Visibility Without Signage Confusion
The 65 Inch Pole Mounted Bus Station Display should use colours and symbols consistent with the transport operator’s official system. Commercial campaigns must not imitate safety signs or route-colour conventions.
Mounting height should keep the screen visible above normal pedestrian movement without creating an uncomfortable viewing angle.
Reliability at an Outdoor Station
The enclosure provides high-brightness output, IP65 protection and fan cooling. Road dust and vehicle pollution can accumulate around ventilation areas, so inspection frequency should reflect the transport environment.
A local fallback page should remain available during network failure. At minimum, the station map and core route information should continue to display.
The 65 Inch Pole Mounted Bus Station Display is most useful when it supports real passenger decisions rather than functioning as a general advertising board with a small map added later.
