Built-in Fan Version
High Brightness Outdoor Advertising Kiosk 55 Inch Floor Standing for Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVX550S

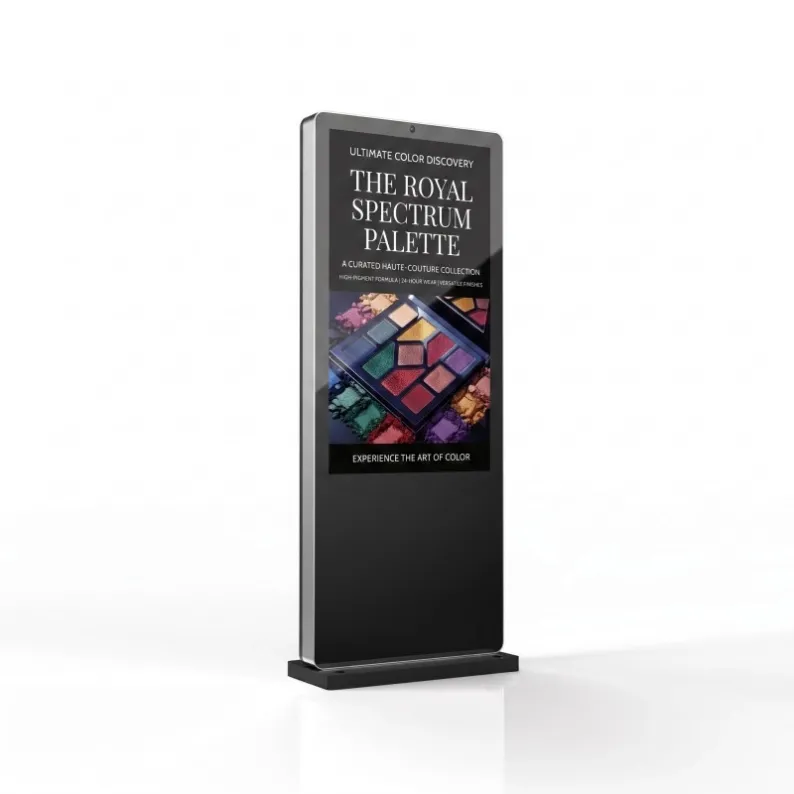

High Brightness Outdoor Advertising Kiosk 55 Inch Floor Standing for Mall Promotions
55 Inch Outdoor Advertising Kiosk for Shopping Center Promotions
Promotional screens placed near shopping centers face a different viewing environment from indoor retail displays. Sunlight changes throughout the day, pedestrians approach from several directions, and the cabinet may remain exposed to dust and rain long after stores have closed.
This 55 Inch Outdoor Advertising Kiosk combines a high-brightness screen with a floor-standing outdoor enclosure. The product page identifies three core specifications: 2500-nit brightness, IP65 protection and a built-in fan cooling system. Together, these features make the unit suitable for displaying retail campaigns in open commercial areas.
55-inch Vertical Fan cooling Outdoor Advertising Display Specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | BOE |
Backlight type | DLED | |
Display size | 681*1210mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～50℃ |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 500W | |

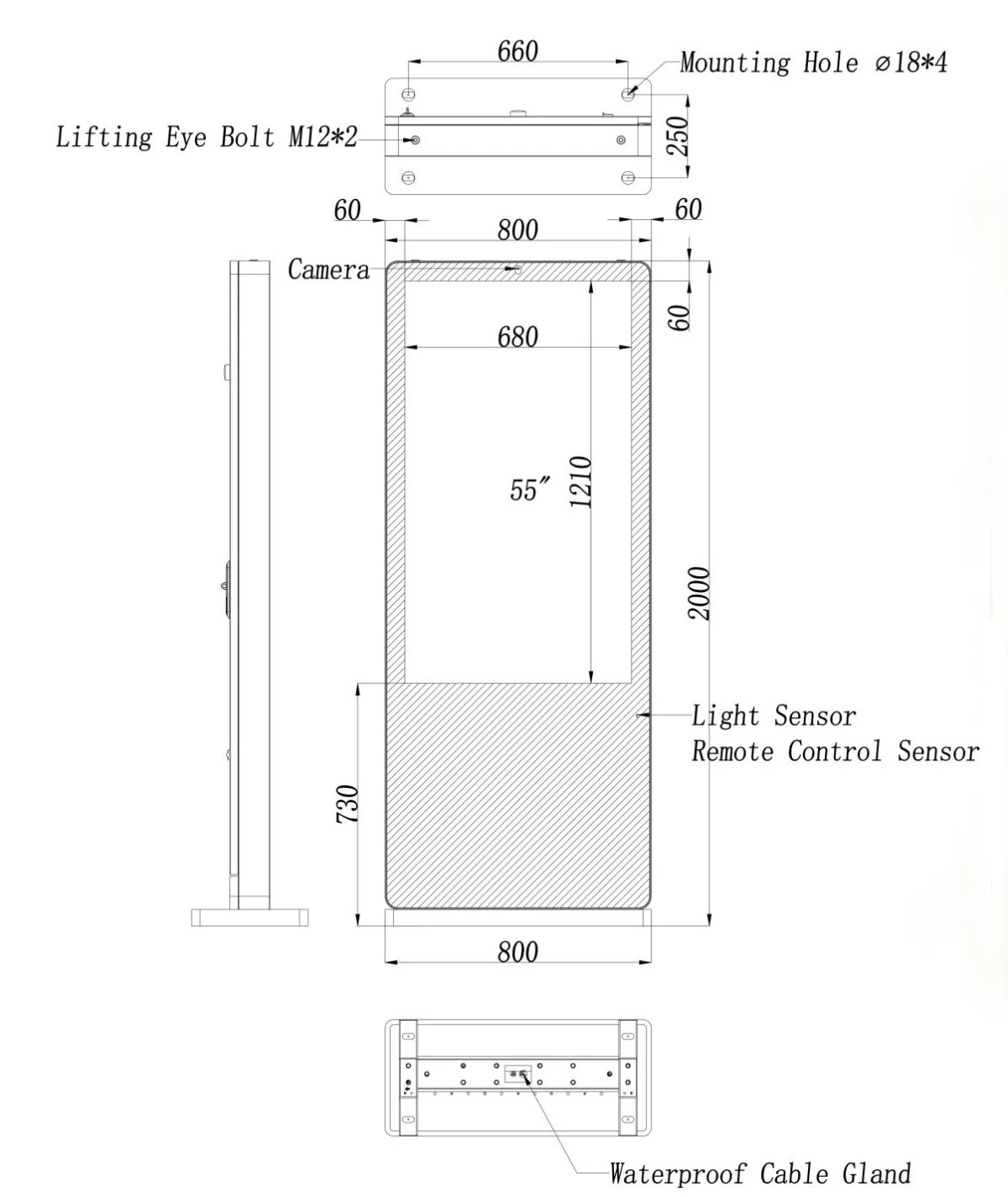

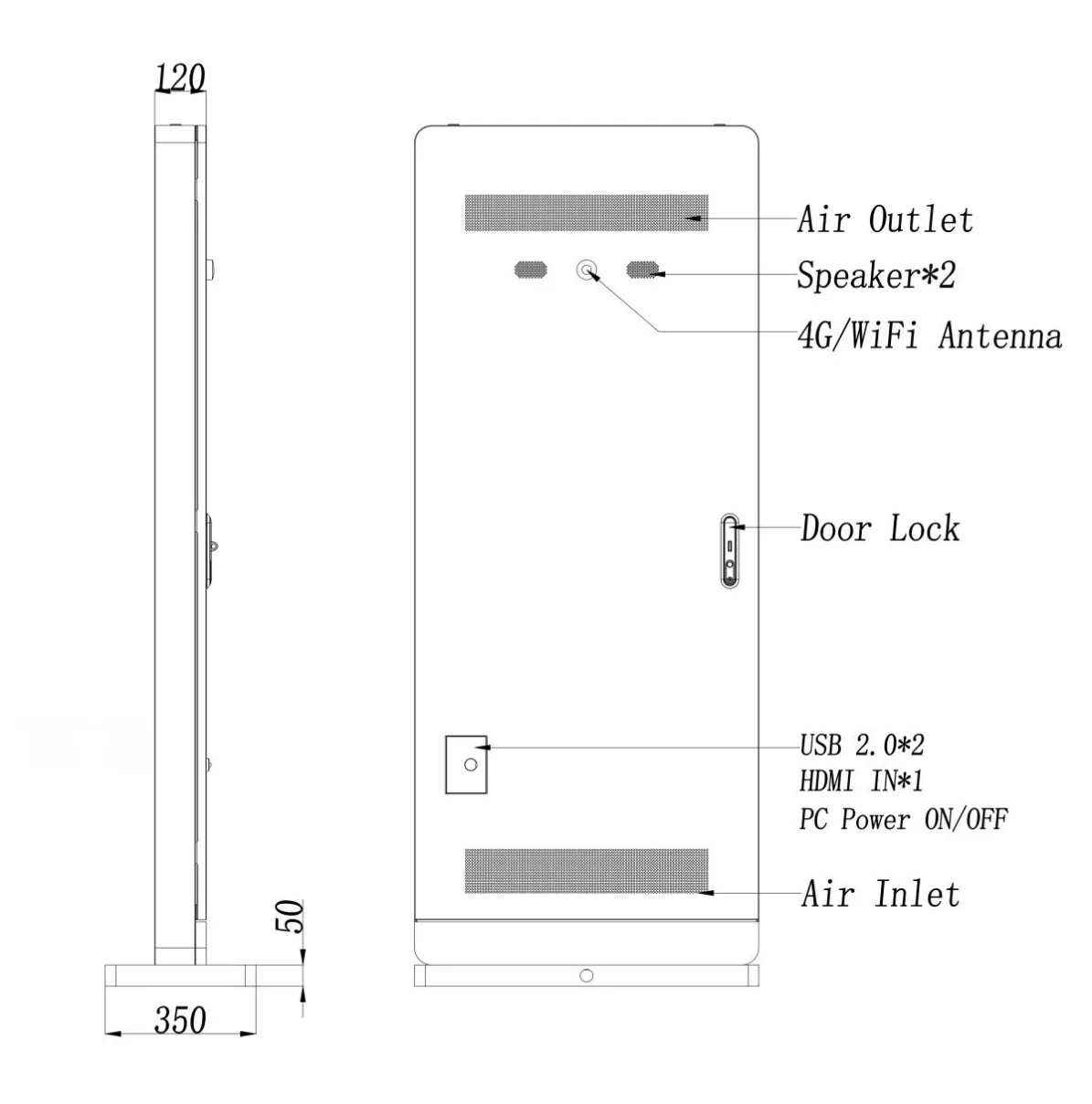

Machine size and weight | Machine size(H*W*D) | 800*2000*120mm |
Net weight | 103KG | |
Package size and weight | Package material | Honeycomb Carton Packaging |
Package size H*W*D | 900*2110*420mm | |
Gross weight | 120KG | |
A Screen Size Made for Pedestrian Viewing
A 55-inch portrait screen provides enough space for a full-height product photograph, a short headline and a clear promotional message. It can be positioned near shopping-center entrances, pickup zones, pedestrian approaches or exterior retail walkways.
The screen is large enough to attract attention without requiring the installation footprint of a 65- or 75-inch kiosk. This makes it useful where visitors pass relatively close to the display.
Campaign designs should remain simple. Small pricing tables, long descriptions and multiple competing offers may be difficult to understand while a customer is walking.
2500-Nit Brightness in Outdoor Retail Areas
The panel is specified at 2500 nits, allowing it to produce substantially more brightness than a typical indoor commercial screen. This helps promotional images and text remain visible in high ambient light.
Brightness alone does not solve every visibility problem. Installers should evaluate the direction of direct sunlight, nearby glass surfaces and the angle from which visitors approach. A well-positioned screen normally performs better than one installed without a daylight assessment.
Content should also be prepared for outdoor use. Strong contrast, larger type and clearly separated colors are more effective than designs copied directly from online advertising.
IP65 Protection for Exposed Locations
The IP65-rated enclosure provides protection against dust ingress and water jets. It is intended for commercial environments where an indoor display and a basic metal cabinet would not provide suitable protection.
The final installation must preserve that rating. Cable entries, access doors and foundation connections require appropriate sealing. Water drainage around the base should also be included in the site plan.
Fan-Assisted Thermal Management
The built-in fan system moves heat away from the LCD panel and internal electronics. This is important for a high-brightness display operating through warm afternoons or for extended retail hours.
Maintenance teams should periodically inspect ventilation paths and fan operation. Local dust conditions will determine how frequently these checks are required.
Planning Promotional Content
A 55 Inch Outdoor Advertising Kiosk can support seasonal campaigns, new-store announcements, restaurant promotions, event schedules and shopping-center directions. When paired with an appropriate media player, content can be scheduled according to the time of day or campaign period.
Before ordering, buyers should verify the required operating system, content-management method, power supply, network connection, foundation drawing and service-access direction.
For outdoor retail projects that need a visible but manageable freestanding screen, the 55 Inch Outdoor Advertising Kiosk provides a practical combination of screen size, daylight brightness and weather-resistant construction.
