Built-in Air conditioner
High Brightness Outdoor Advertising Kiosk 49 Inch Floor Standing for Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP490BB
55 Inch Outdoor Advertising Kiosk for Open-Air Mall Promotions
Outdoor shopping centres often have plenty of promotional space but little tolerance for bulky equipment. Walkways must remain open, storefronts cannot be obscured, and campaigns change frequently. The tall black cabinet of this 55 Inch Outdoor Advertising Kiosk provides a neutral visual frame that can support different retail brands without competing with their artwork.
Its dark, rectangular body is less decorative than the coloured models elsewhere in the range. That is useful when the same unit must move from a fashion campaign to restaurant advertising and then to a seasonal event.
49 Inch Outdoor floor standing digital signage with air conditioner specification-B style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 941*530mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

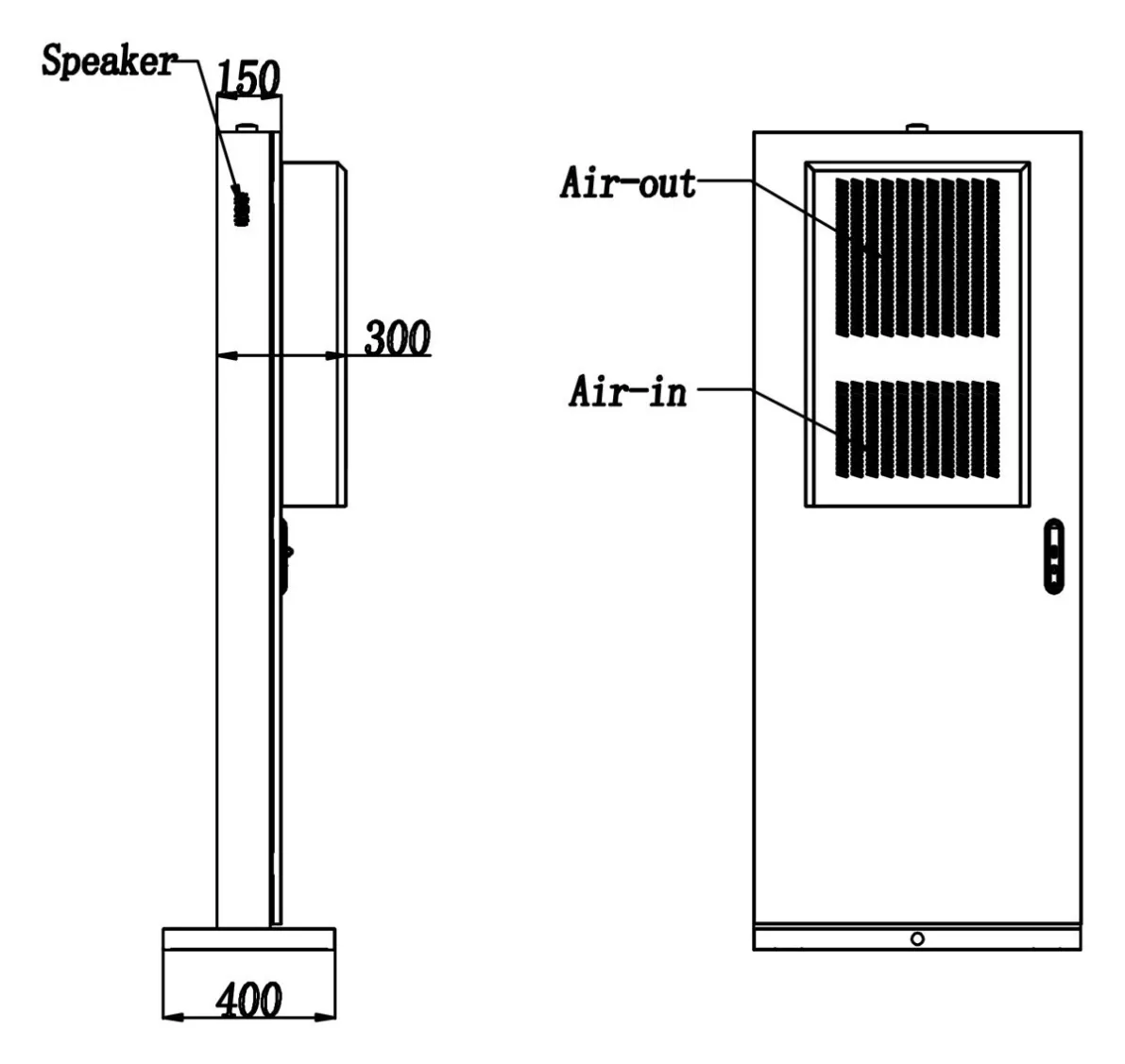

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 570W | |
Mechanical Para | Whole device dimension H*W*D | 1800*690*150mm |
Whole device net.weight(kg) | 95kg | |
Package dimension H*W*D(mm) | Machine 780*1850*520mm AC700*600*310mm | |
Gross packing(kg) | Machine 110kg AC23kg | |
A Neutral Cabinet Lets the Campaign Lead
Highly branded enclosures can look impressive in a single project but become restrictive when the content changes. A black kiosk generally works with a wider range of campaign colours.
In an open-air mall, the unit may be positioned near:
- Exterior store entrances
- Covered pedestrian arcades
- Outdoor dining zones
- Cinema approaches
- Seasonal event spaces
- Car-park pedestrian connections
Campaign owners should leave visual space around headlines instead of filling the entire portrait canvas with products and price labels.
Plan Content Around Movement
The 55 Inch Outdoor Advertising Kiosk may be seen from several directions as visitors move between stores. A short animation can reveal the message progressively, but the promotion should still make sense if a viewer sees only one frame.
Five- to eight-second content sequences are often more useful than long promotional videos. Each sequence can introduce the brand, show one offer and close with a store location or simple call to action.
Outdoor Construction Is More Than a Bright Panel
The IP65 cabinet is designed for outdoor exposure, while the high-brightness screen supports visibility in daylight. Built-in air conditioning controls the cabinet environment during changing outdoor temperatures.
Installation teams should check drainage, shade patterns, power isolation and maintenance access. A kiosk placed directly beneath a roof edge may receive concentrated runoff even though the general walkway is covered.
Maintenance Between Campaigns
The period when new artwork is loaded is also a useful time for physical inspection. Operators can clean the front glass, check door seals, inspect the cooling system and confirm that the cabinet remains firmly anchored.
A clean screen is important for both presentation and readability. Dust and water marks can reduce apparent contrast even when panel brightness remains unchanged.
The 55 Inch Outdoor Advertising Kiosk is a practical option for operators who need a reusable exterior media position rather than a cabinet designed around only one advertiser.
