Built-in Fan Version
High Brightness Outdoor Advertising Display 86 Inch Floor Standing for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP860Y
86 Inch Floor Standing Outdoor Advertising Display for Exterior Retail Campaigns
The product image shows a tall orange lower cabinet supporting a dark portrait screen filled with a red campaign image. The contrasting cabinet and display face give the unit a strong retail appearance in outdoor commercial areas.
This 86 Inch Floor Standing Outdoor Advertising Display is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
86 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

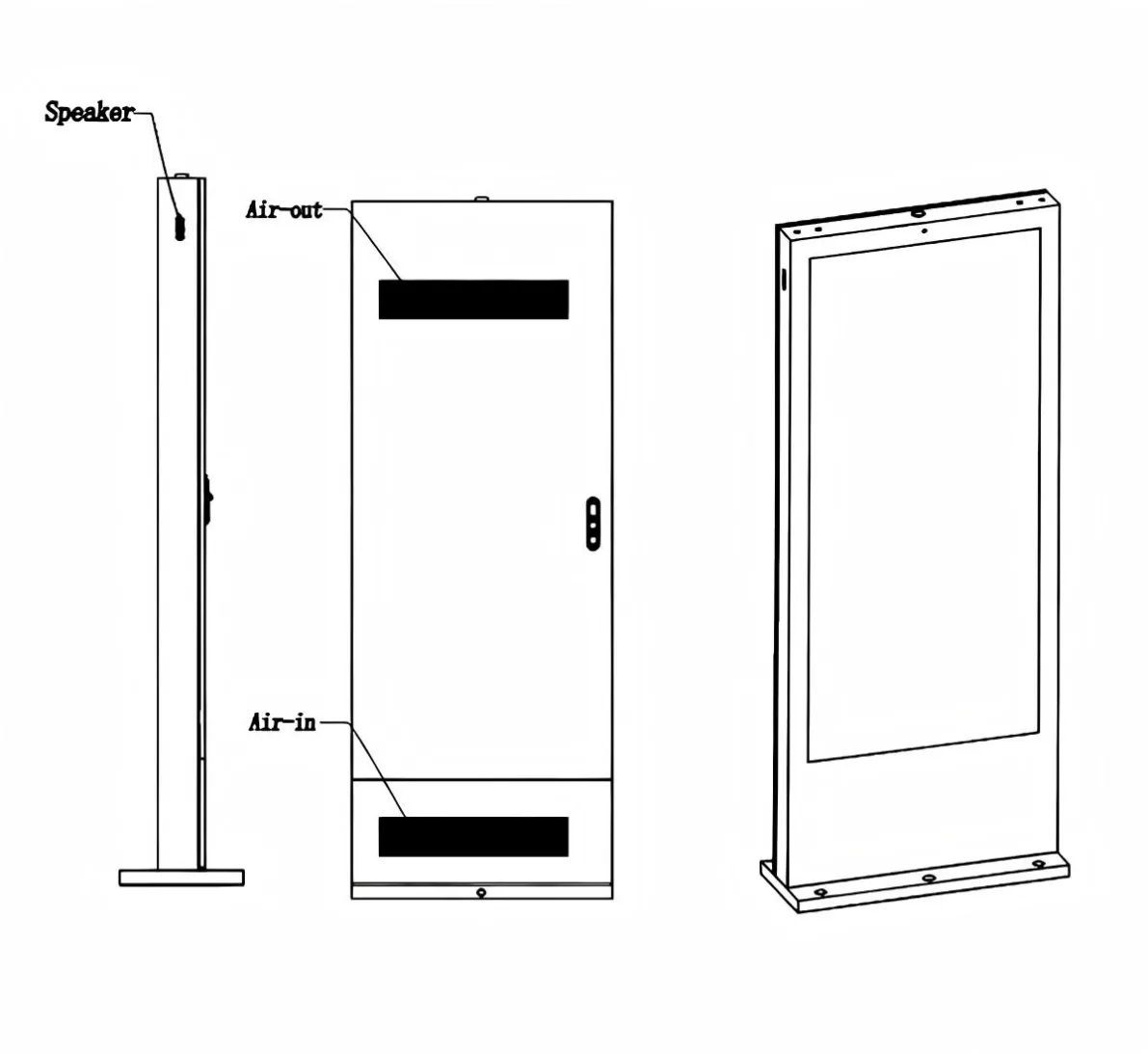

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

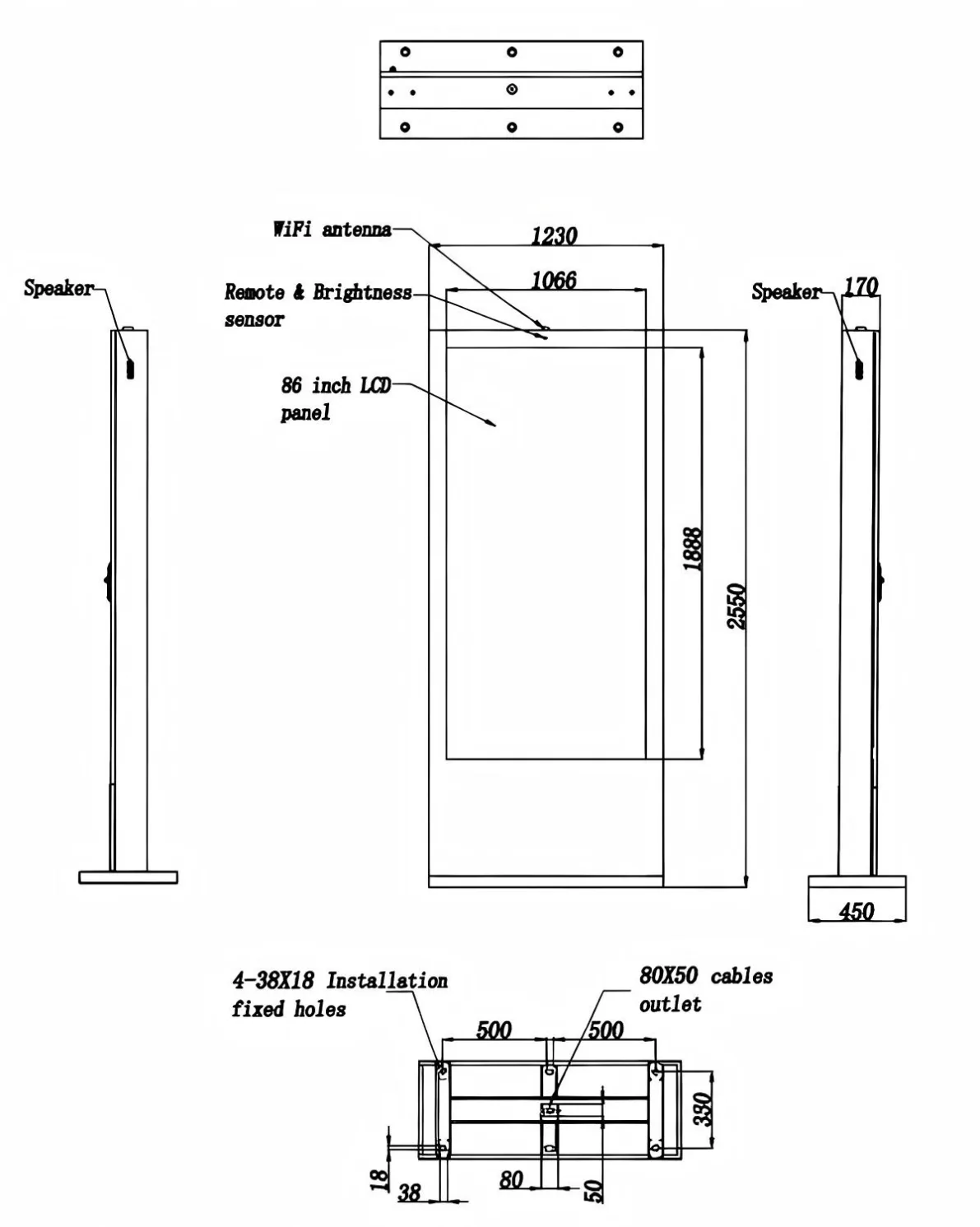

Mechanical Para. | Machine seize H*W*D( mm) | 2550*1230*170 |
Net weight(Kg) | 230 | |
Package size H*W*D( mm) | 1460*2700*520 | |
Gross weight(Kg) | 290 | |
Large Enough for Destination Advertising
The 86-inch format can attract attention across an exterior retail plaza or open-air shopping approach. It works with full-height fashion imagery, entertainment promotion and major seasonal campaigns.
The content should be recognizable before the visitor reaches the cabinet. Small pricing grids and long descriptions reduce the impact of the large format.
Orange Cabinet as a Visual Feature
The orange base shown in the image makes the enclosure part of the campaign environment. It may support a branded site or provide contrast against a neutral façade.
The product image does not establish the standard production color. Finish, logo treatment and outdoor coating should be confirmed.
Installation at Exterior Retail Windows
The cabinet needs a structural foundation and enough space for service access. It should not block the view into a storefront or reduce the accessible pedestrian route.
The 2500-nit panel supports exterior daylight. Reflections from retail glass, direct sunlight and nighttime brightness require site review.
IP65 protection helps defend against dust and water jets. Built-in fan cooling should be inspected according to operating hours and local dust conditions.
FAQ
Is 86 inches necessary for every storefront?
No. It is most useful at large exterior retail sites with adequate viewing distance. Smaller entrances may be better served by a 55- or 65-inch screen.
Can the orange cabinet be changed?
Potentially, but final color and coating options must be confirmed before ordering.
The 86 Inch Floor Standing Outdoor Advertising Display provides a large outdoor campaign surface for retail developments that can make proper use of its screen size and visually distinctive cabinet.
