Built-in Fan Version
Floor Standing Weatherproof Digital Signage 98 Inch 2500 Nits IP65 for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP980WO
98 Inch Floor Standing Weatherproof Digital Signage for Major Public Sites

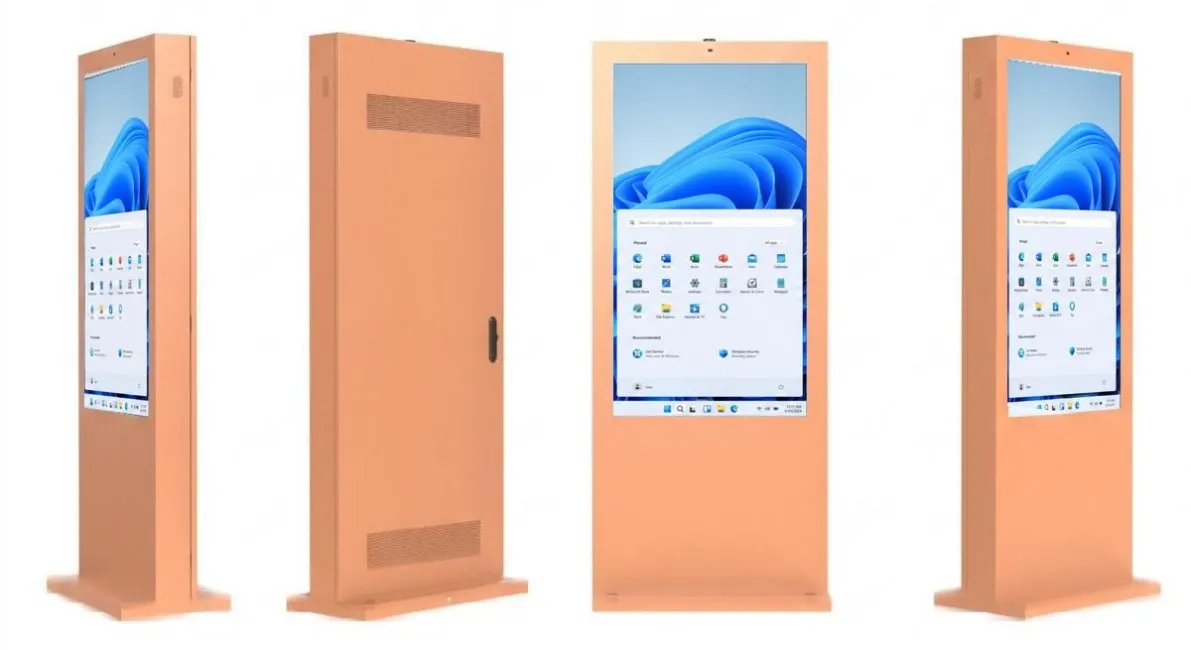

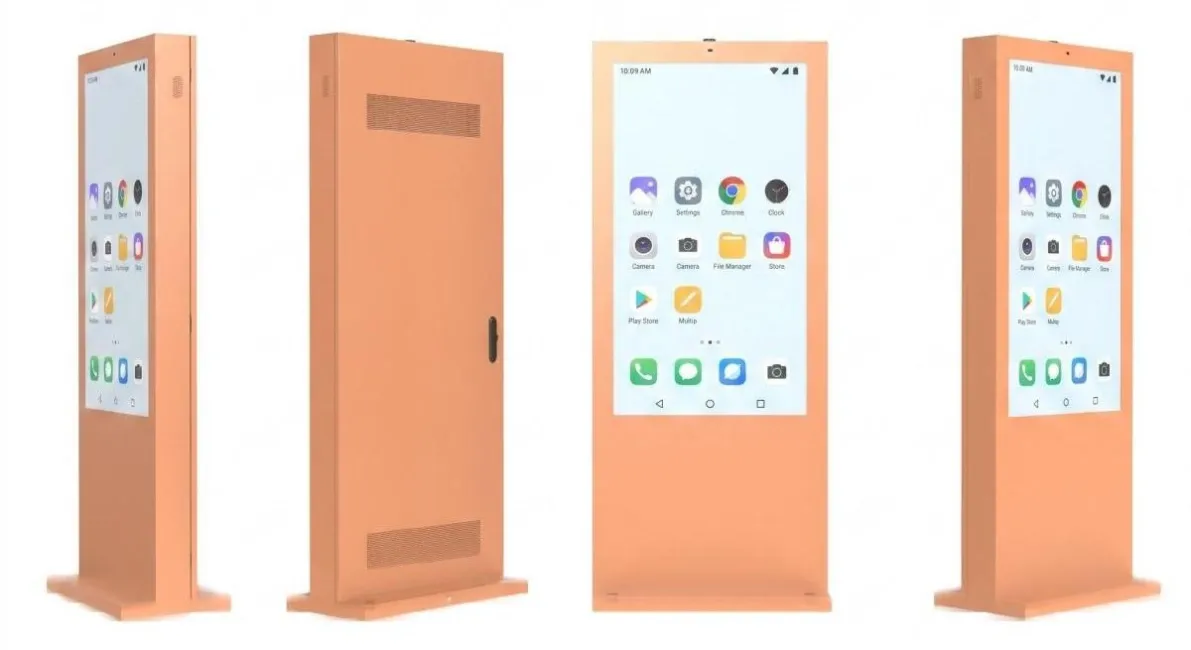

The product image shows a tall beige or pale orange cabinet with a wide lower body and substantial vertical proportions. It is clearly designed as a permanent freestanding outdoor installation rather than a portable advertising screen.
The 98 Inch Floor Standing Weatherproof Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
98 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 2159*1380 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |
Mechanical Para. | Machine seize H*W*D( mm) | 2800*1380*170mm |
Net weight(Kg) | 360kg | |
Package size H*W*D( mm) | 1610*2950*570mm | |
Gross weight(Kg) | 430kg | |
A Display That Becomes Part of the Site
At 98 inches, the cabinet can function as a major public information landmark. Suitable locations include large outdoor civic plazas, exterior transport entrances, visitor attractions and event forecourts.
The screen requires sufficient viewing distance. It should not be placed in a narrow pedestrian passage where visitors cannot see the complete content.
Foundation and Delivery Planning
The wide lower body shown in the image provides a visually stable appearance, but structural stability depends on the engineered foundation and anchors.
Buyers should confirm:
- Cabinet weight and dimensions
- Foundation drawing
- Wind-load requirements
- Lifting points
- Delivery access
- Service-door direction
- Power and network routes
These details should be resolved before paving is completed.
Public Information at Large Scale
The screen can show outdoor event notices, major directions, maps and emergency information. Large size should be used to improve reading distance, not to add excessive detail.
The 2500-nit brightness supports daylight viewing. IP65 protection and built-in fan cooling address outdoor exposure and heat management.
The 98 Inch Floor Standing Weatherproof Digital Signage model is appropriate only where the site can justify and support its scale.
