Built-in Fan Version
Floor Standing Weatherproof Digital Signage 65 Inch 2500 Nits IP65 for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVPD650BR
65 Inch Double Sided Weatherproof Digital Signage for Drive-Thru Sites
The old title describes a floor-standing menu display but does not identify its double-sided construction. The product image shows a deep, fully enclosed cabinet appropriate for two display faces rather than a thin single-panel screen.
This 65 Inch Double Sided Weatherproof Digital Signage model can serve two viewing directions within an outdoor restaurant or roadside service area. It is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
65 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1429*804mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300w | |
Mechanical Para. | Machine seize H*W*D( mm) | 2300*1010*300mm |
Net weight(Kg) | 240kg | |
Package size H*W*D( mm) | 1240*2450*570mm | |
Gross weight(Kg) | 310kg | |
How Two Sides Can Be Used
A double-sided display should not necessarily show a complete ordering menu on both faces. The content can be matched to the position of each viewer.
At a drive-thru location:
- The approach-facing side can show promotional items.
- The ordering-facing side can present the main menu.
- One face can direct vehicles into the correct lane.
- The reverse face can show exit information.
- A roadside-facing screen can carry brand advertising.
Traffic safety and driver attention must remain the priority. The cabinet should not be positioned where content distracts road users outside the restaurant site.
Cabinet Depth and Lane Clearance

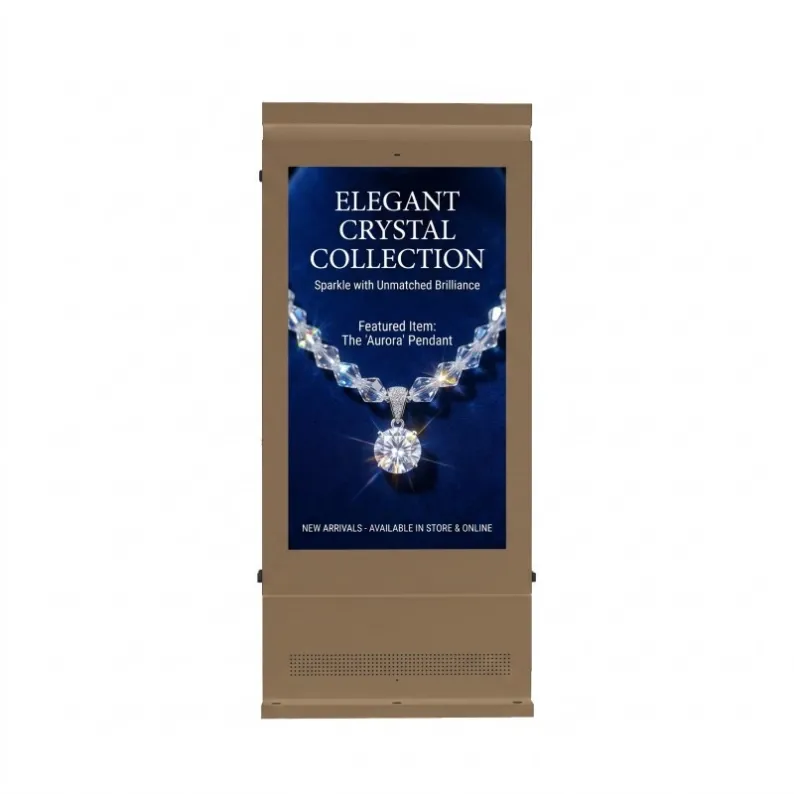

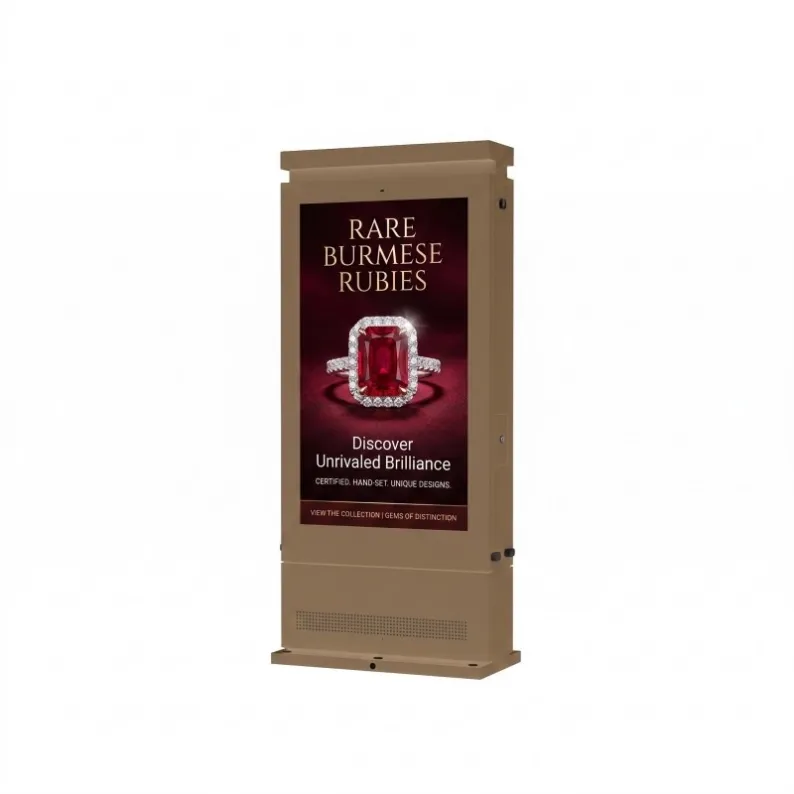

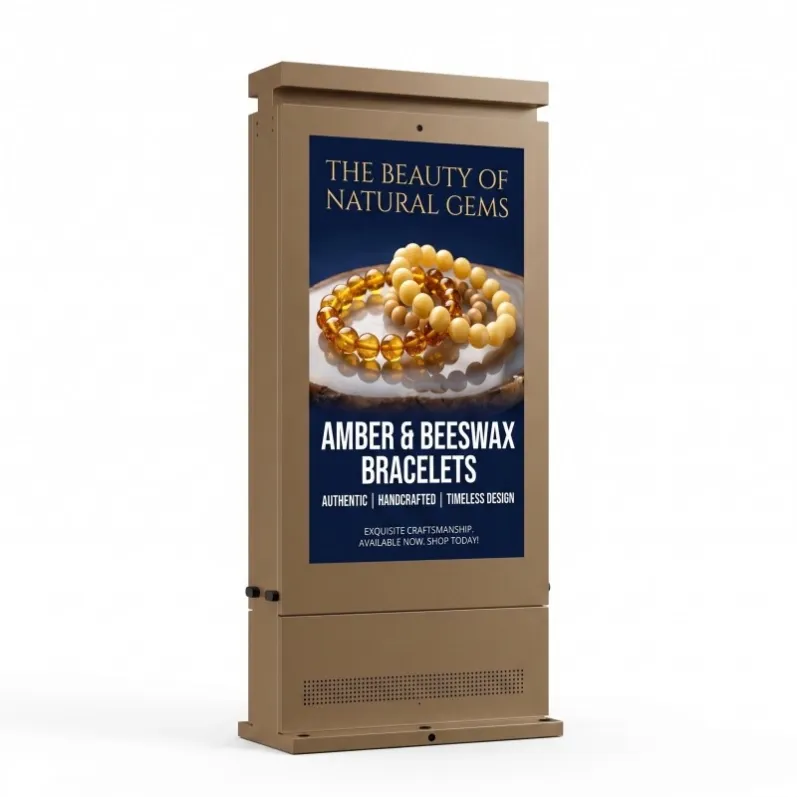

The brown-toned cabinet shown in the product image has a substantial vertical body. Double-sided construction increases the required depth compared with a single-face display.

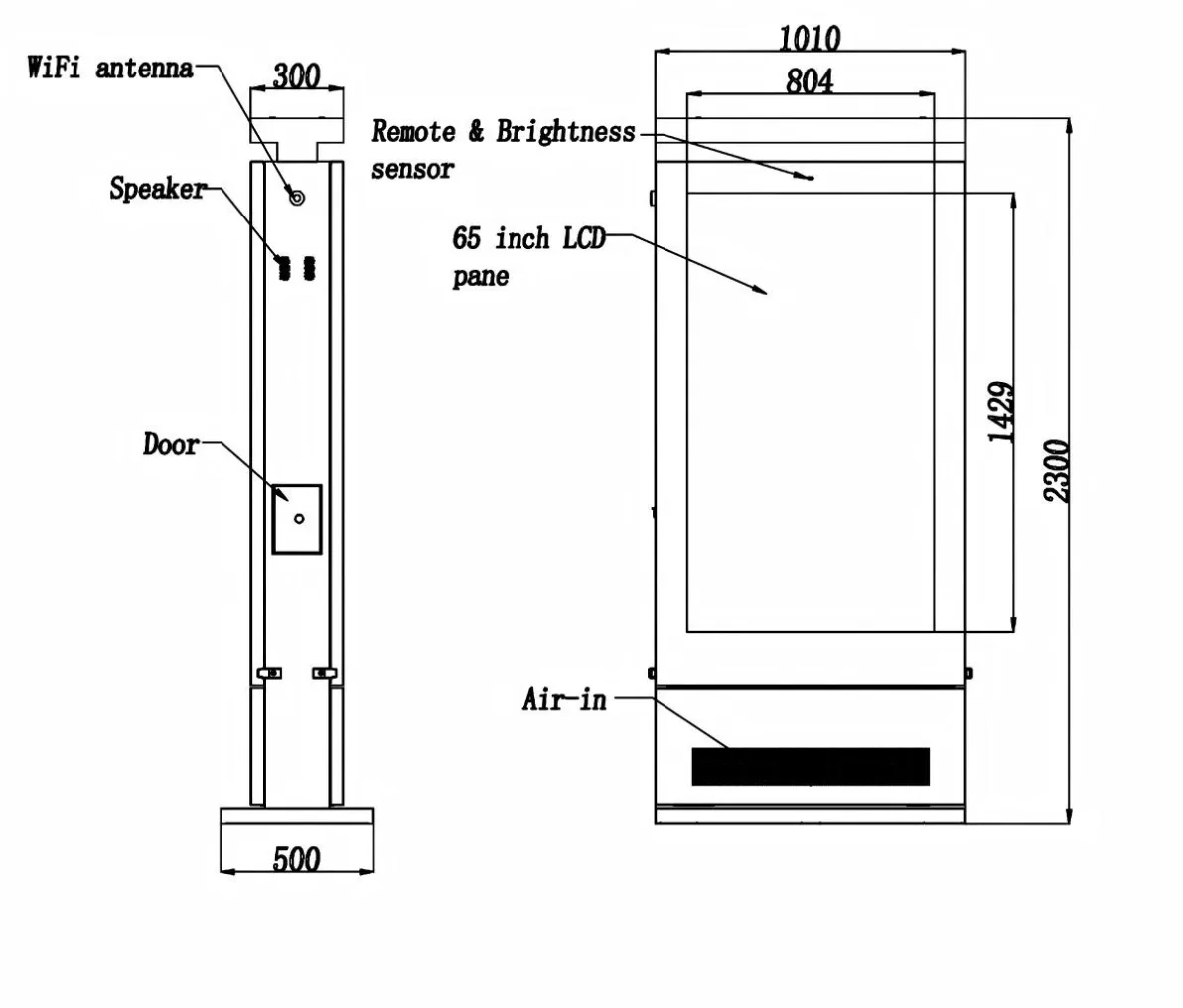

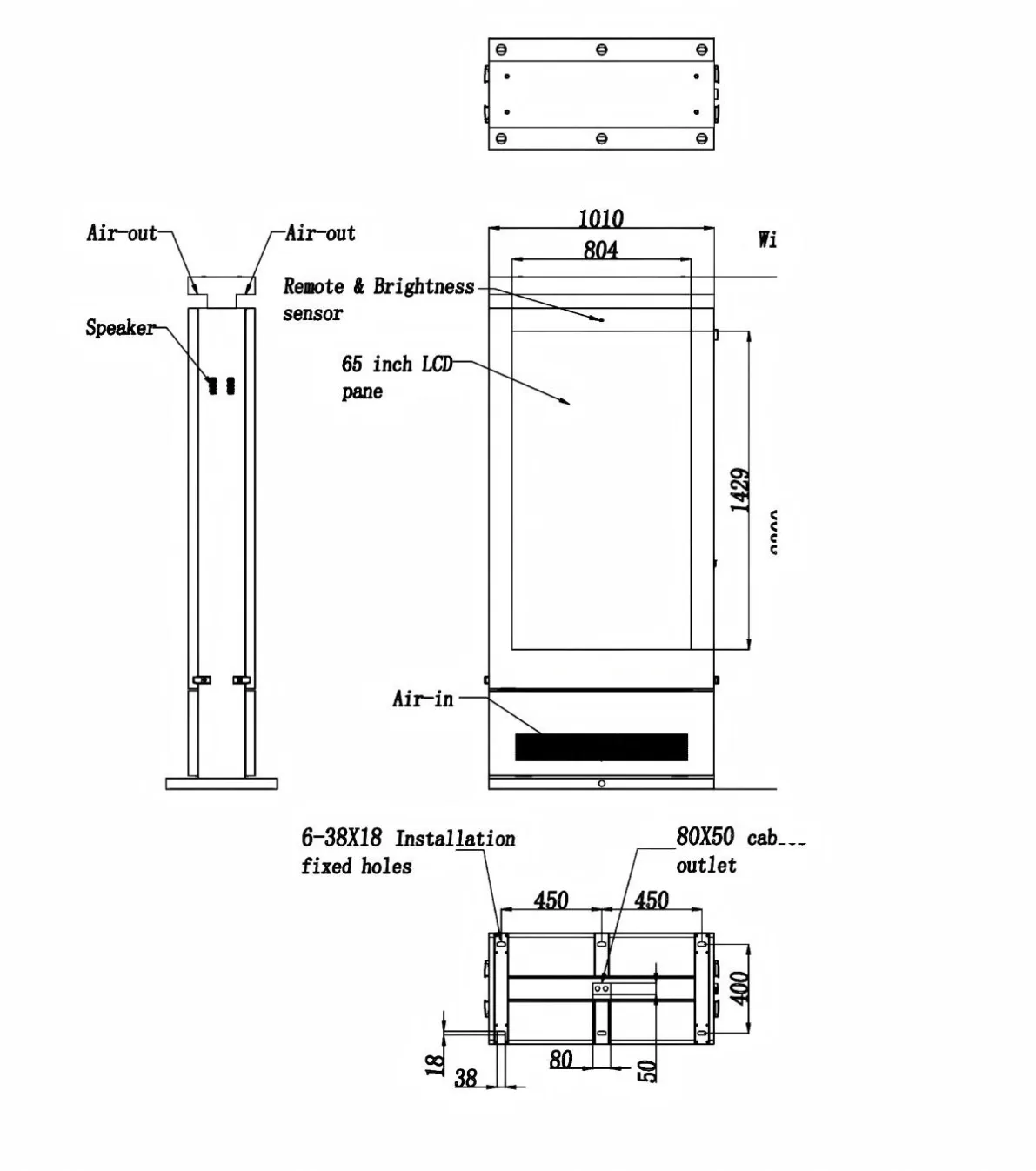

The technical drawing should be used to establish curb clearance, foundation position and maintenance space. Both screen faces need protection from accidental vehicle impact without being hidden by barriers.
Outdoor Menu Visibility
The 2500-nit brightness specification supports daytime use. Menu text should still be tested from the vehicle’s actual stopping distance.
Product images, prices and category headings require strong contrast. A larger screen cannot compensate for small lettering or an overcrowded menu.
FAQ
Can both sides display different content?
This may be possible with the correct player and output configuration. Independent playback should be confirmed before ordering.
Does the product include POS integration?
No POS function is confirmed by the listed specifications. Integration requires compatible software and project testing.
Is the complete cabinet IP65?
The product is listed with IP65 protection. Installation work must preserve the seals around cabinet joints and cable entries.
The 65 Inch Double Sided Weatherproof Digital Signage unit can replace two separate outdoor cabinets where a restaurant needs communication in opposite directions around the same vehicle route.
