Built-in Fan Version
Floor Standing Outdoor LCD Display 49 Inch 2500 Nits IP65 for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP490BL
49 Inch Floor Standing Outdoor LCD Display for EV Charging Information

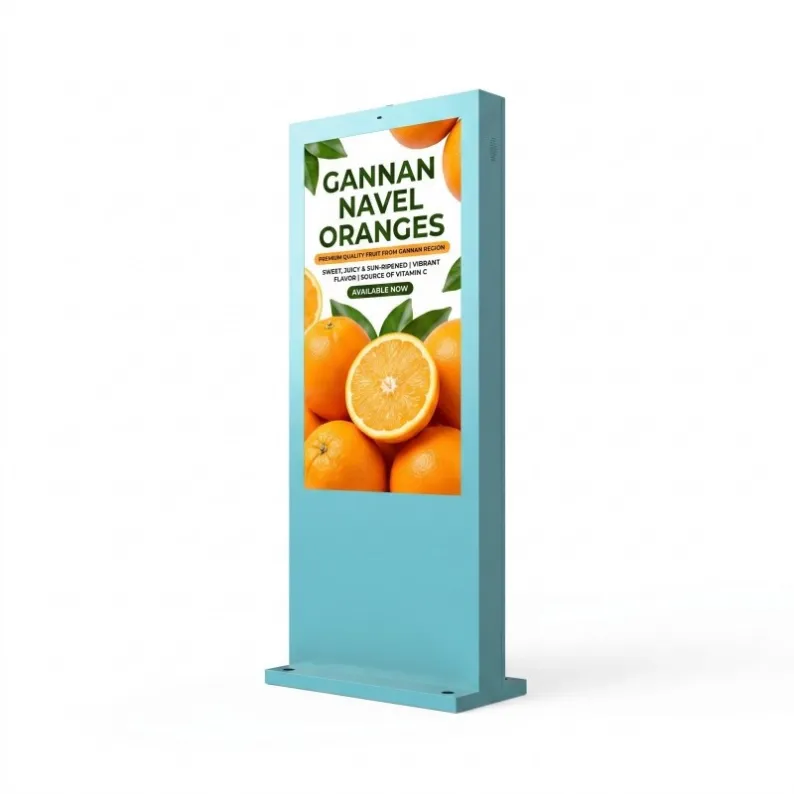

The product image shows a light cyan or white lower enclosure supporting a colorful portrait display. The compact body offers a softer visual alternative to large dark charging-site kiosks.
This 49 Inch Floor Standing Outdoor LCD Display is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
49 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel para | Backlight type | ELED |
Display size( mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

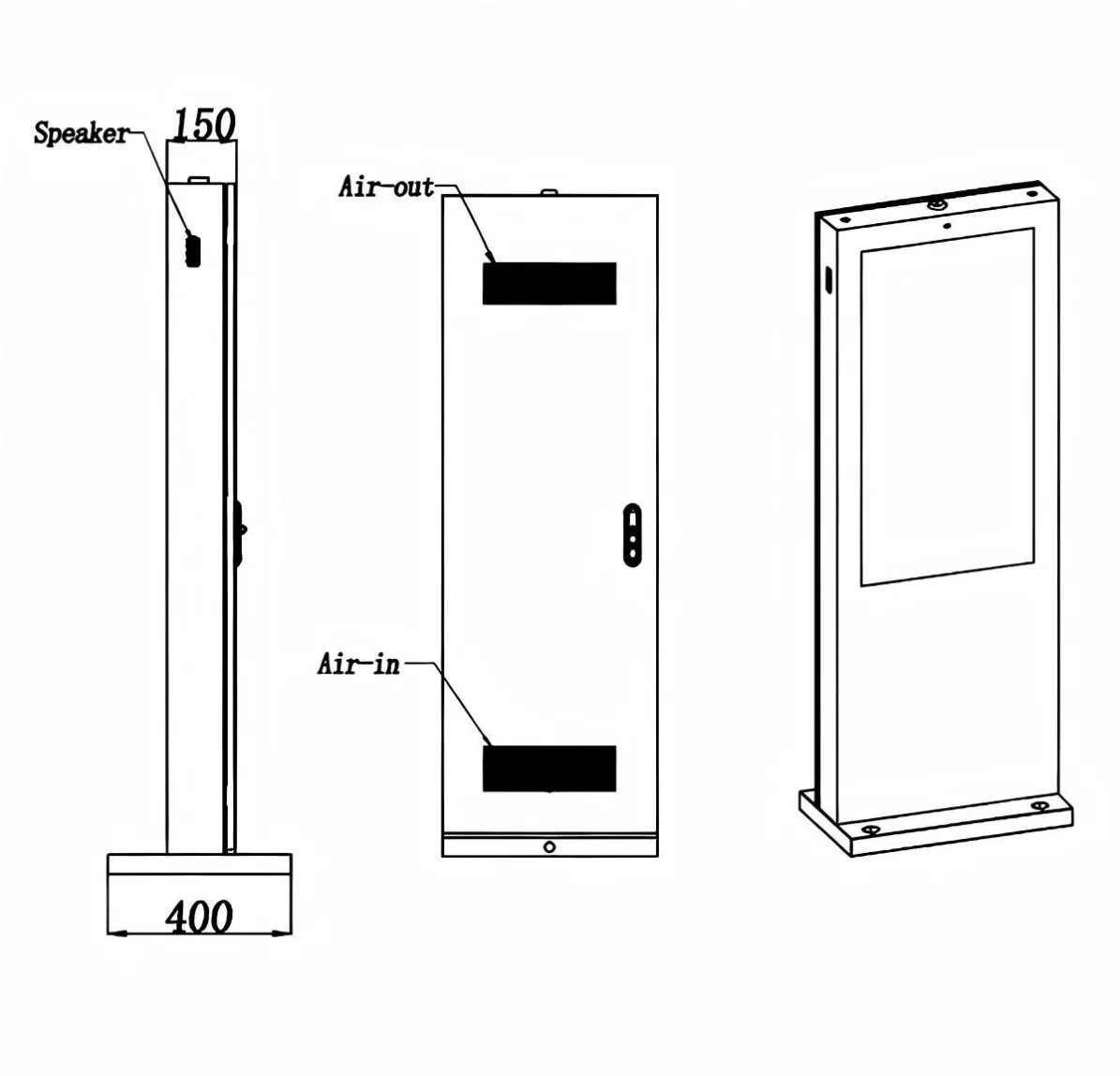

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

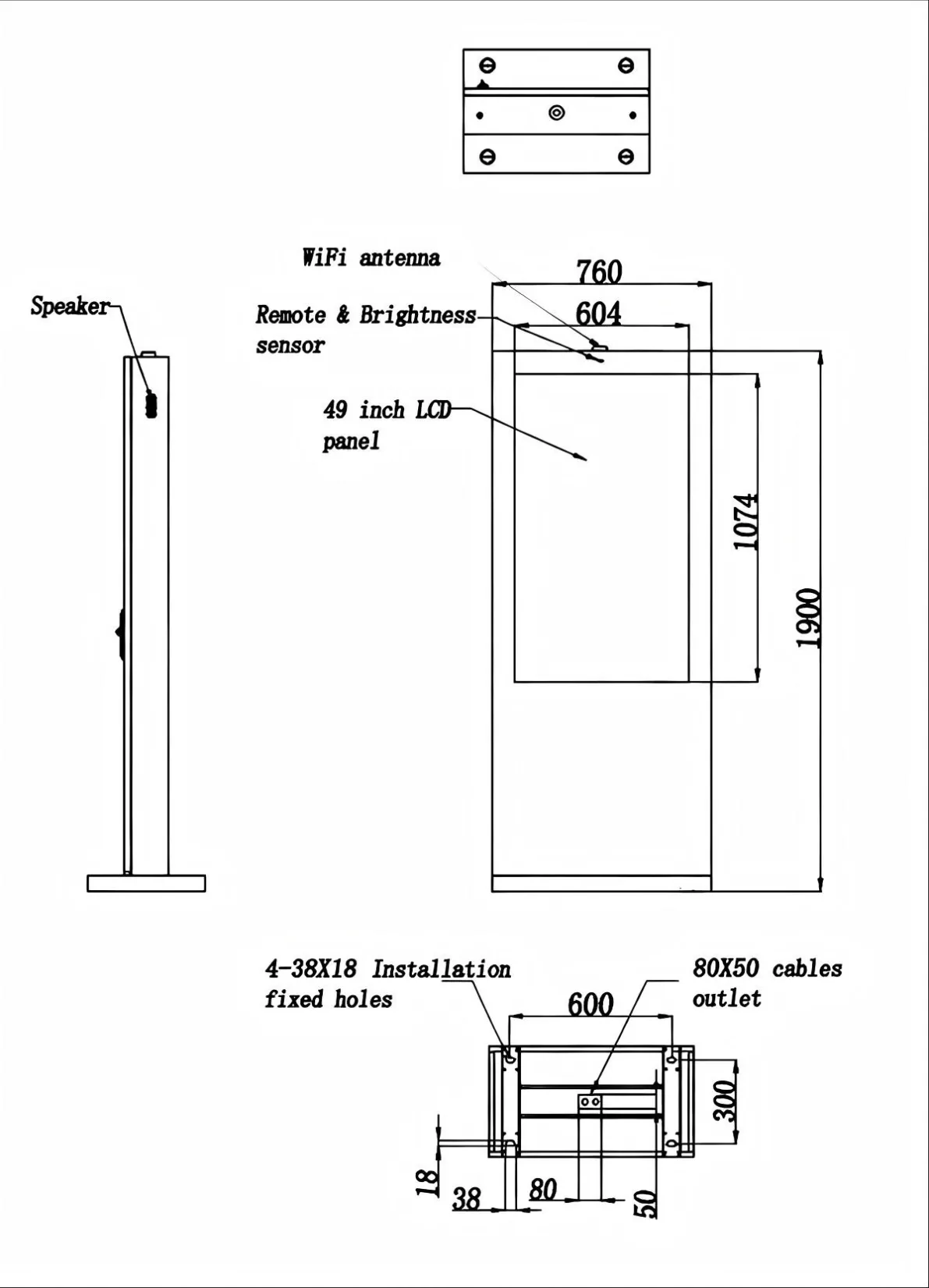

Mechanical Para | Machine seize H*W*D( mm) | 1900*760*150 |
Net weight | 90 | |
Package size H*W*D( mm) | 990*2050*470 | |
Gross weight(Kg) | 130 | |
Close-Range Information Near the Charging Bay
The 49-inch screen can show safety instructions, nearby outdoor services and local promotions to drivers who have left their vehicles.
It should not block charger access, charging cables, accessible bays or vehicle movement. The cabinet is a separate media system and should not be described as controlling the charger.
Light-Colored Exterior
The pale cabinet shown in the image may coordinate with contemporary charging equipment and reduce the unit’s visual weight.
Final color, outdoor coating and branding need confirmation. Because the lower body is relatively compact, the foundation drawing remains essential for safe anchoring.
Content With Practical Value
Drivers may respond better to location-specific information than generic advertising. Nearby food, restrooms, shopping and travel services are natural subjects during charging dwell time.
The 2500-nit panel supports daylight viewing. IP65 protection helps defend against dust and water jets, while fan cooling requires access for maintenance.
The 49 Inch Floor Standing Outdoor LCD Display suits EV locations that need a compact, independent outdoor communication point rather than a large-format advertising monument.
