Built-in Fan Version
Floor Standing Outdoor Advertising Display 65 Inch 2500 Nits IP65 for Transit Hub Ads
Brightness:2500nits Response Time:5ms Color:16.7M Input Voltage:AC100~240V 50 /60 HZ
Specifications
- SKU
- ZXTLCD-OUTFHP650P
65 Inch Outdoor Transit Advertising Display for Passenger Media Networks
The value of a transit screen is determined as much by its position and audience flow as by its technical specification. This 65 Inch Outdoor Transit Advertising Display is intended for exterior station entrances, sheltered passenger areas and pedestrian transfer routes.

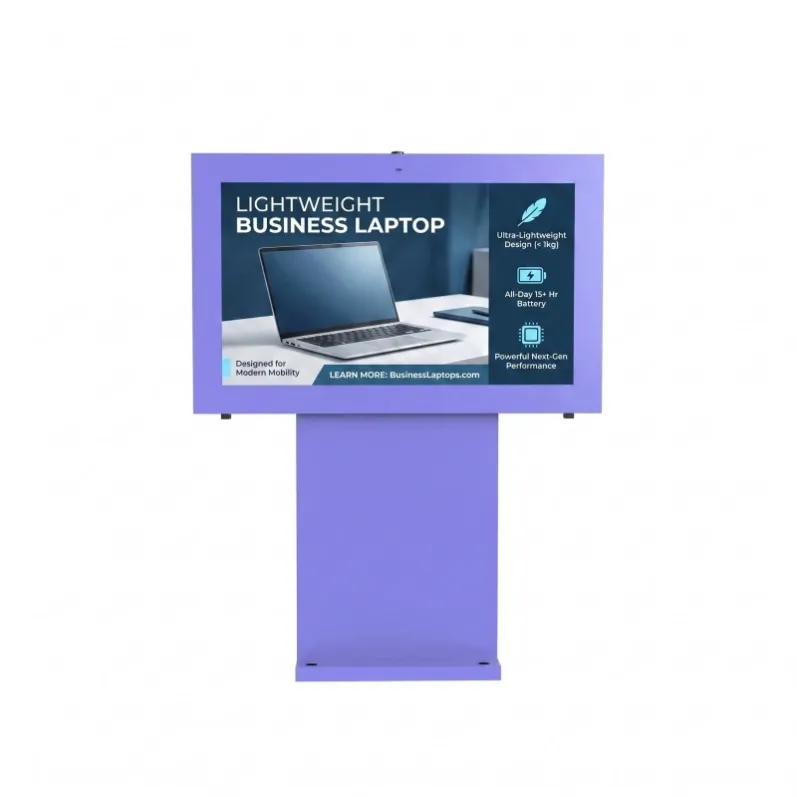

The product image shows a wide screen supported by a distinctive purple upright base. Its landscape format makes it suitable for video and commercial artwork already produced for conventional widescreen media.
65 Inch Outdoor floor-standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

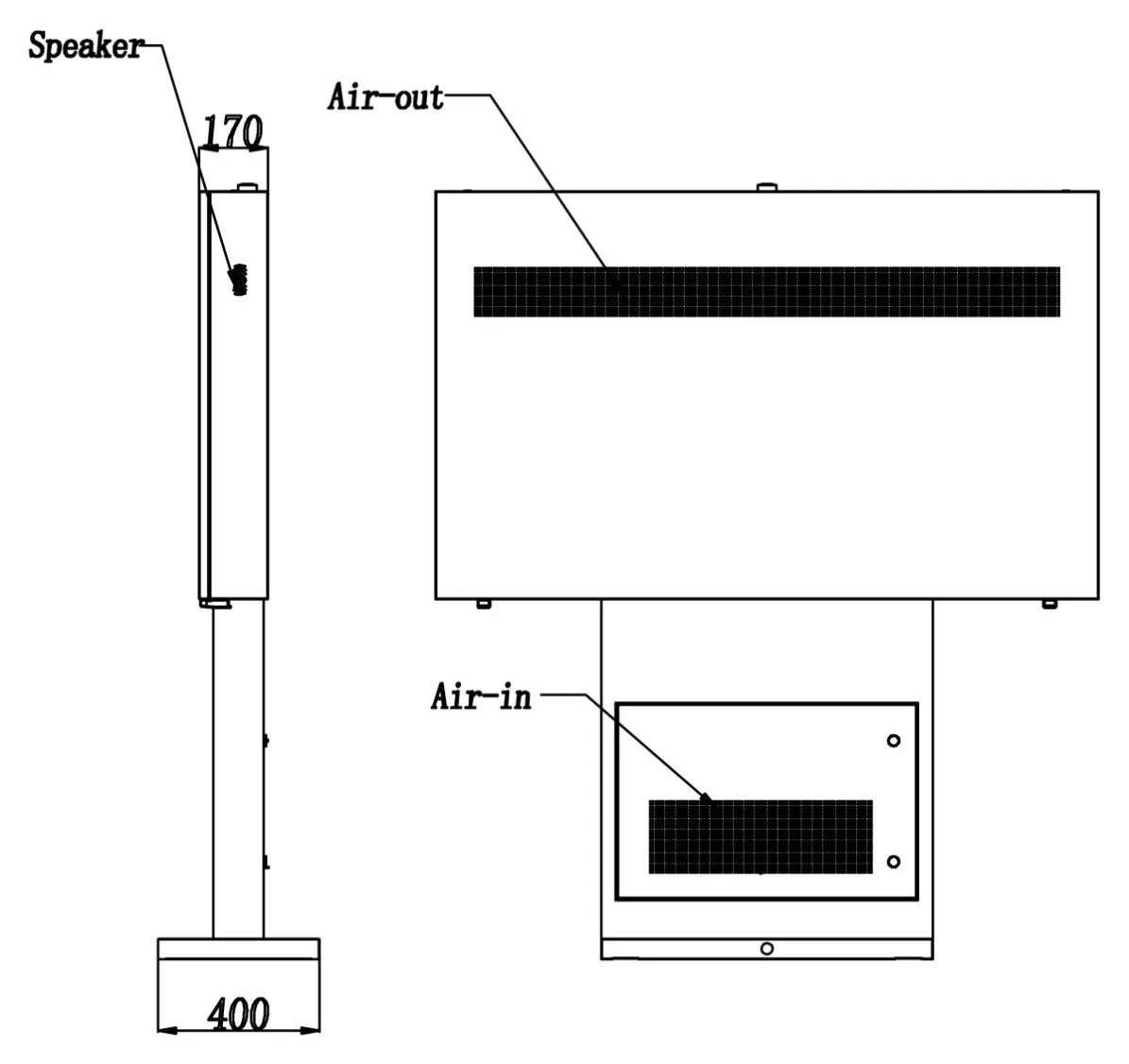

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

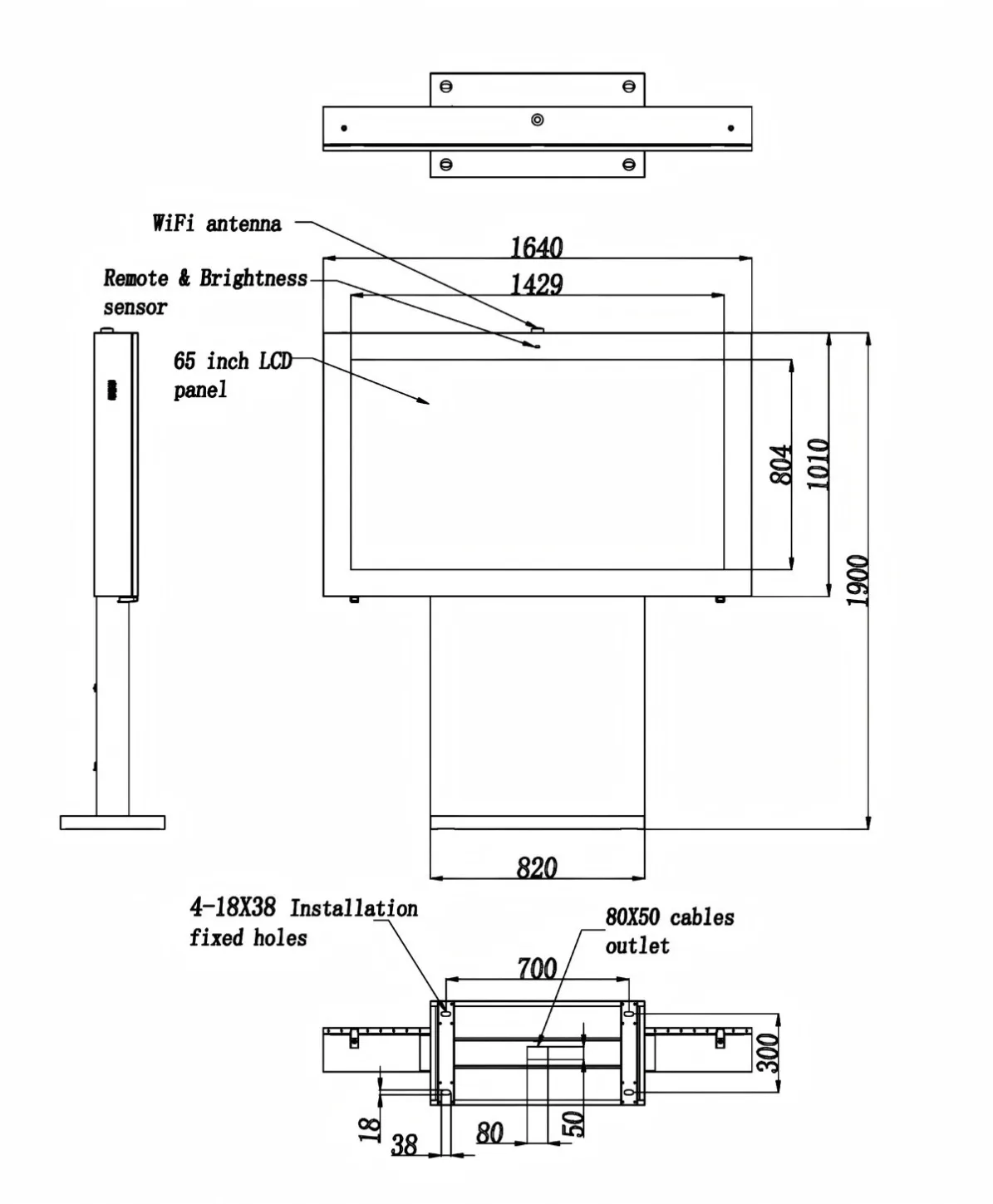

Mechanical parameters | Machine size(H*W*D) | 1900*1640*170mm |
Net machine weight | 145kg | |
Package size(H*W*D) | 2130*1790*420mm | |
Package weight | 190kg | |
Media Planning Starts with Passenger Behaviour
A display beside an entrance reaches people differently from one near a waiting area. Passengers entering a station may have only seconds to see a message, while those waiting for a connection may engage with a longer sequence.
Short-exposure positions are suitable for:
- Brand recognition campaigns
- Event announcements
- Nearby retail directions
- One-product promotions
Waiting areas can support destination advertising, local guides and campaigns with a QR-based follow-up action.
A Landscape Screen Needs a Clear Focal Point
The 65 Inch Outdoor Transit Advertising Display should not be divided into several small advertisements unless the audience stands close to it. One main advertiser or one dominant message generally creates stronger recognition.
Audio should not be essential. Stations are noisy, and operators may restrict sound in outdoor passenger areas.
Protecting Media Availability
The 2500-nit panel provides outdoor daylight visibility. IP65 protection and fan cooling support weather-exposed operation.
For a commercial network, maintenance affects revenue. Operators should monitor:
- Screen online status
- Internal temperature
- Media-player connectivity
- Scheduled playback
- Fault response time
A blank screen does more than interrupt one campaign; it reduces confidence in the whole advertising network.
Reporting to Advertisers
The 65 Inch Outdoor Transit Advertising Display should retain playback records when used for contracted media. Date, time and campaign identifiers provide a basic audit trail and help sales teams support repeat bookings.
