Built-in Fan Version
Floor Standing Outdoor Advertising Display 65 Inch 2500 Nits IP65 for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP650DG
65 Inch Floor Standing Outdoor Advertising Display for Drive-Thru Menus

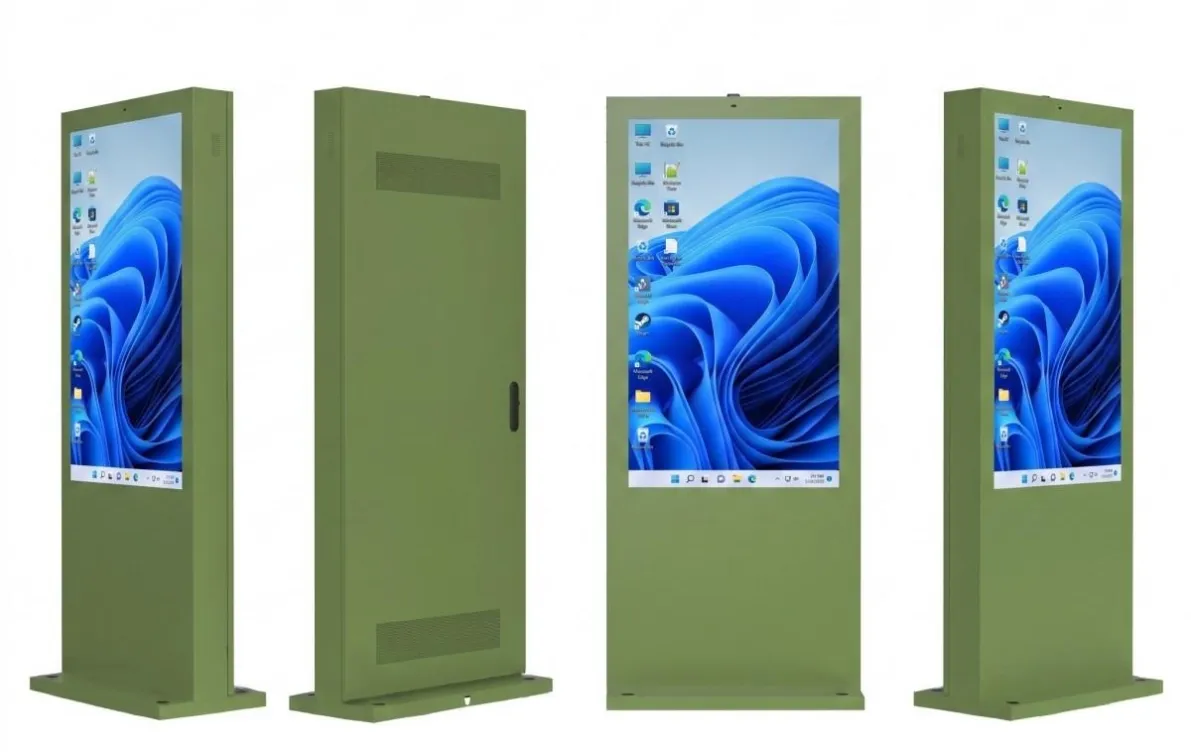

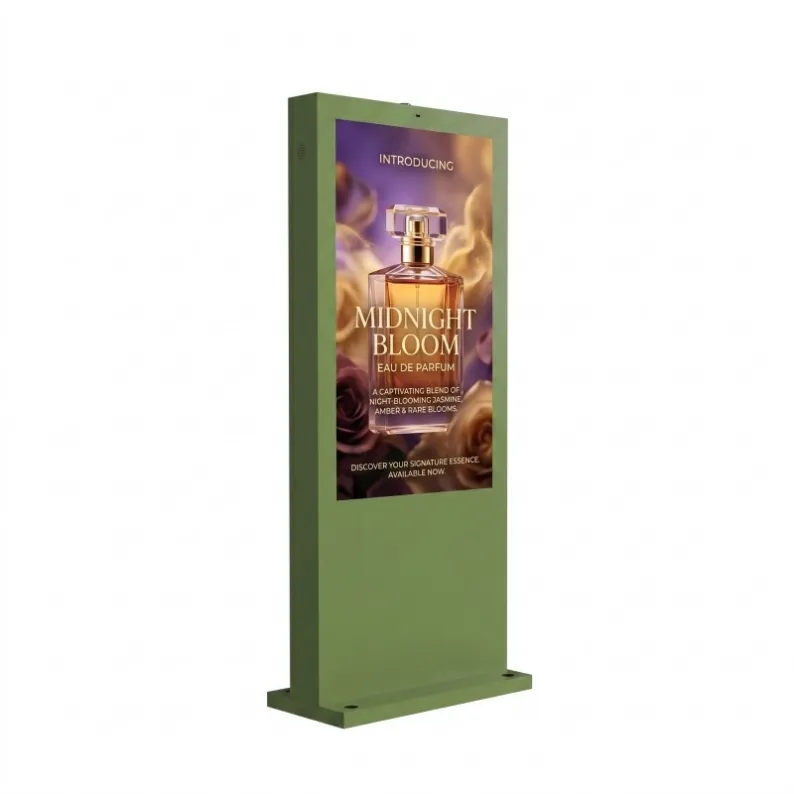

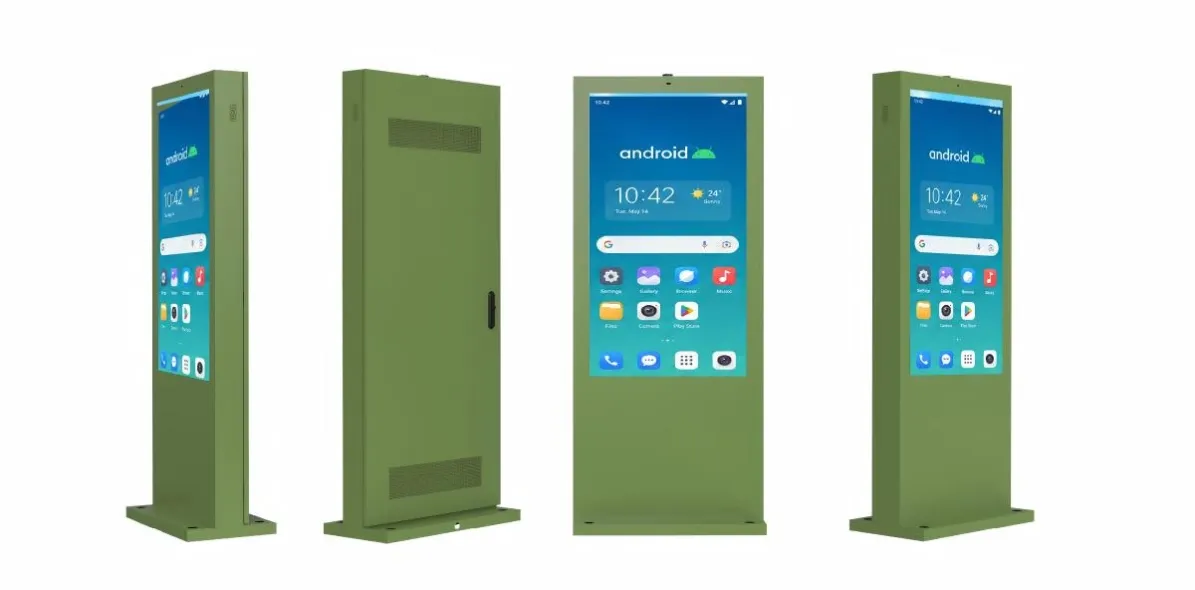

The product image shows a dark-green cabinet with a full-height portrait screen and an enclosed lower body. The color gives the unit a softer visual appearance than a standard black menu kiosk while retaining the proportions of permanent outdoor equipment.
This 65 Inch Floor Standing Outdoor Advertising Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
65 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

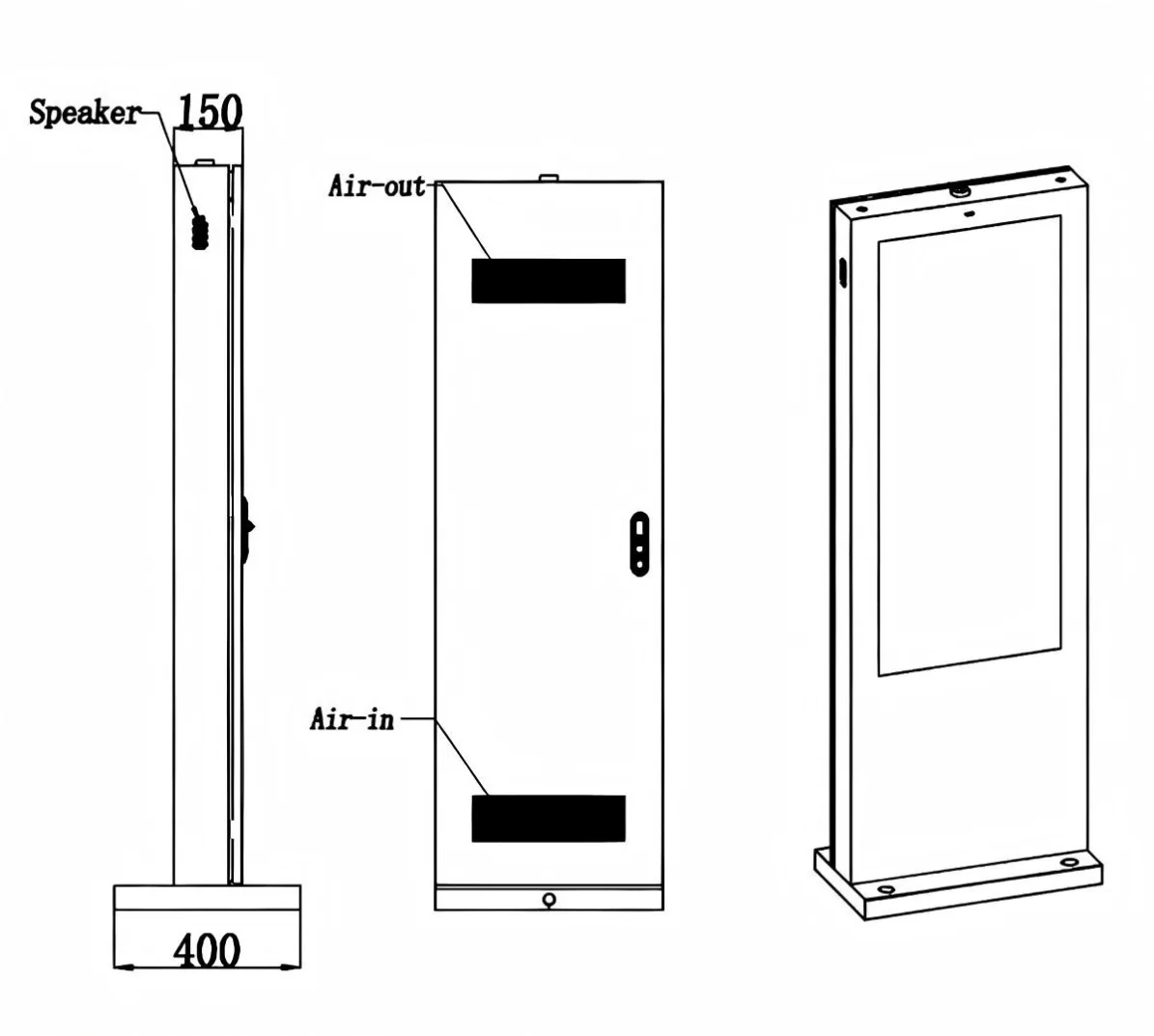

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

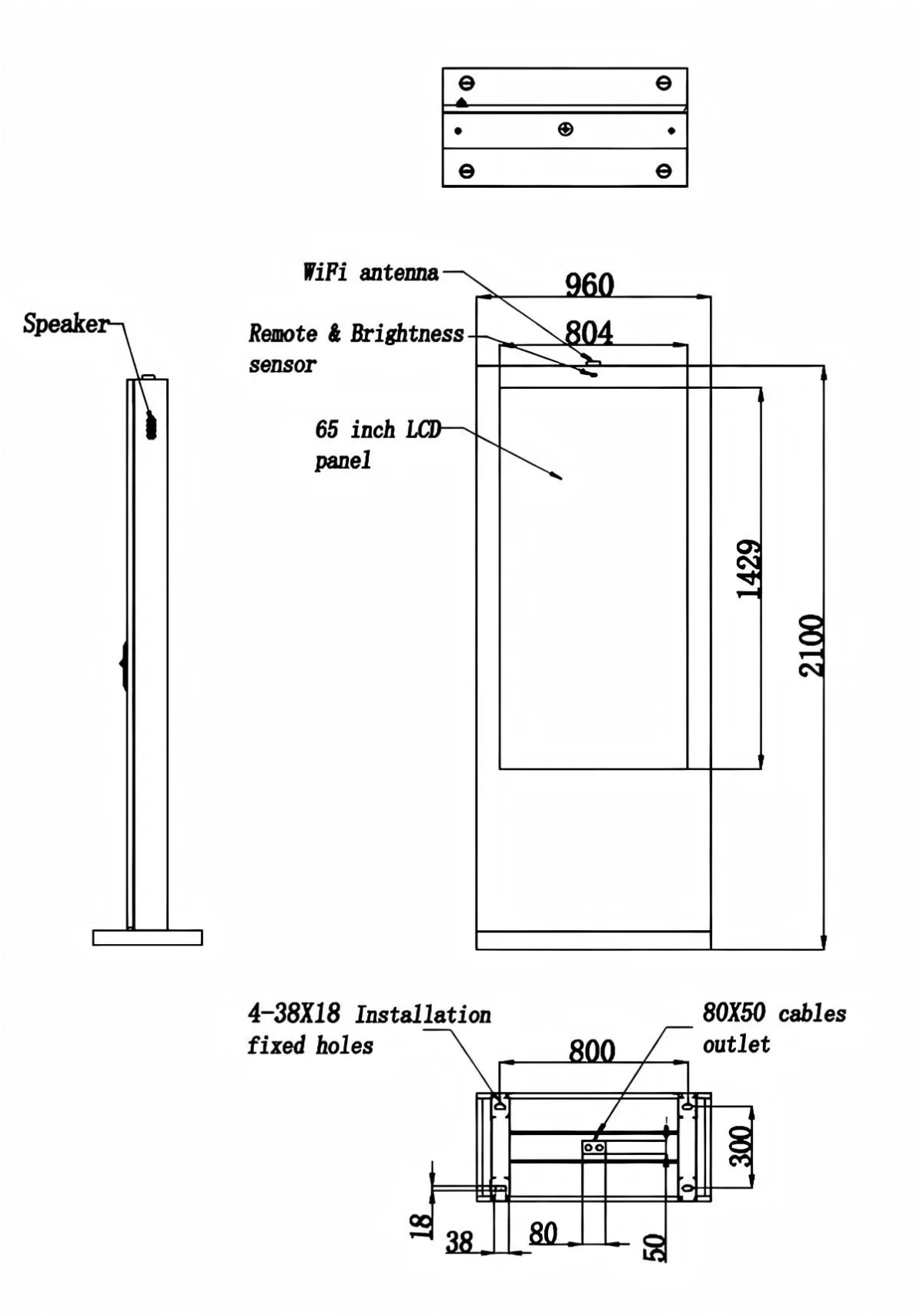

Mechanical Para. | Machine seize H*W*D( mm) | 2100*960*150 |
Net weight(Kg) | 120 | |
Package size H*W*D( mm) | 1190*2250*470 | |
Gross weight(Kg) | 170 | |
Menu Design Starts at the Vehicle
The customer does not stand directly in front of a drive-thru display. Prices, product names and category headings need to remain readable through a windshield from the intended stopping position.
A practical screen layout gives priority to:
- Main categories
- Popular combinations
- Large prices
- One featured offer
- Short availability notices
Detailed descriptions increase visual clutter and ordering time.
Positioning the Dark-Green Cabinet
The green enclosure shown in the image may coordinate with a restaurant façade or landscape design. It should not be treated as a standard color promise.
The screen needs a foundation, sealed cable route and protection from vehicle impact. Bollards must not block the menu or fan-cooling air paths.
Daylight and Long Operating Hours
The 2500-nit panel supports outdoor menu visibility. The proposed position should be checked under morning and afternoon sunlight.
IP65 protection helps protect the enclosure from traffic dust, rain and water jets. Fan operation and ventilation should be included in routine maintenance.
Scheduled breakfast and lunch menus require a compatible player or CMS. POS integration is a separate software project.
The 65 Inch Floor Standing Outdoor Advertising Display gives restaurants a large outdoor menu surface without requiring the scale of a 75-inch cabinet.
