Built-in Fan Version
Double Sided Outdoor Digital Signage 49 Inch Horizontal Fan Cooling for Mall Promotions
Pixel Pitch:0.4845(H)*0.4845 (V) Contrast Ratio:4000:1 Brightness:2500nits Response Time:5ms
Specifications
- SKU
- ZXTLCD-OUTFHN490DP
49 Inch Double Sided Outdoor Digital Signage for Two-Way Mall Traffic
A single-facing display can miss half of the people using an outdoor shopping route. This 49 Inch Double Sided Outdoor Digital Signage presents content toward both directions of travel, allowing one installation to serve visitors entering and leaving the same walkway.

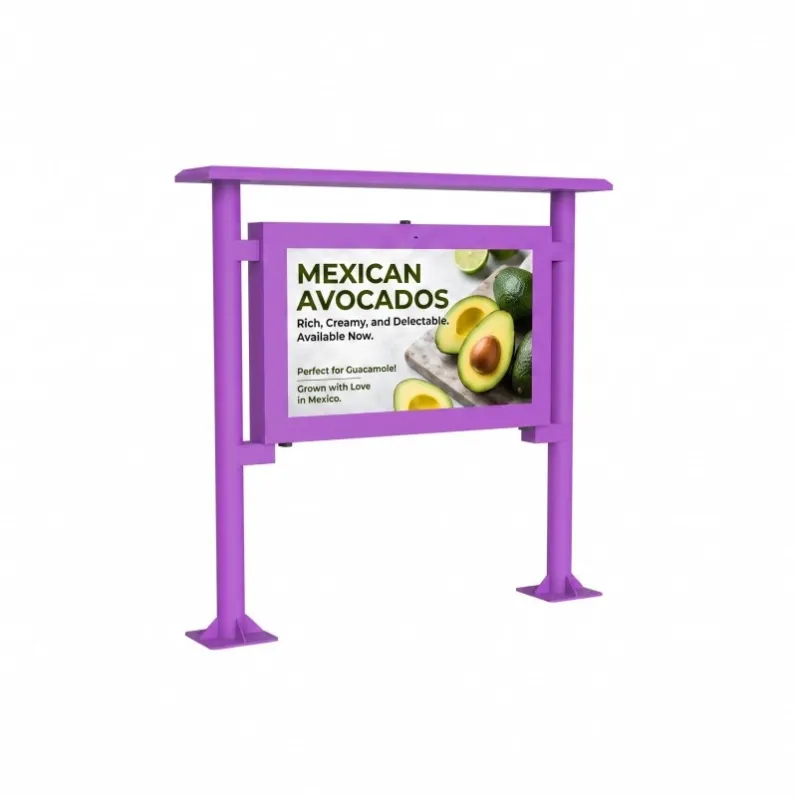

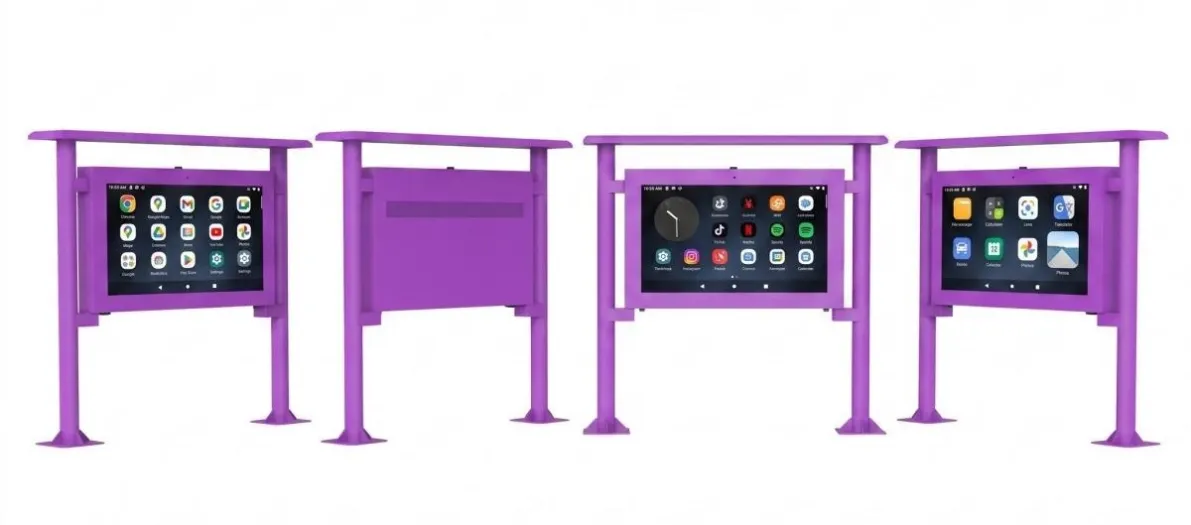

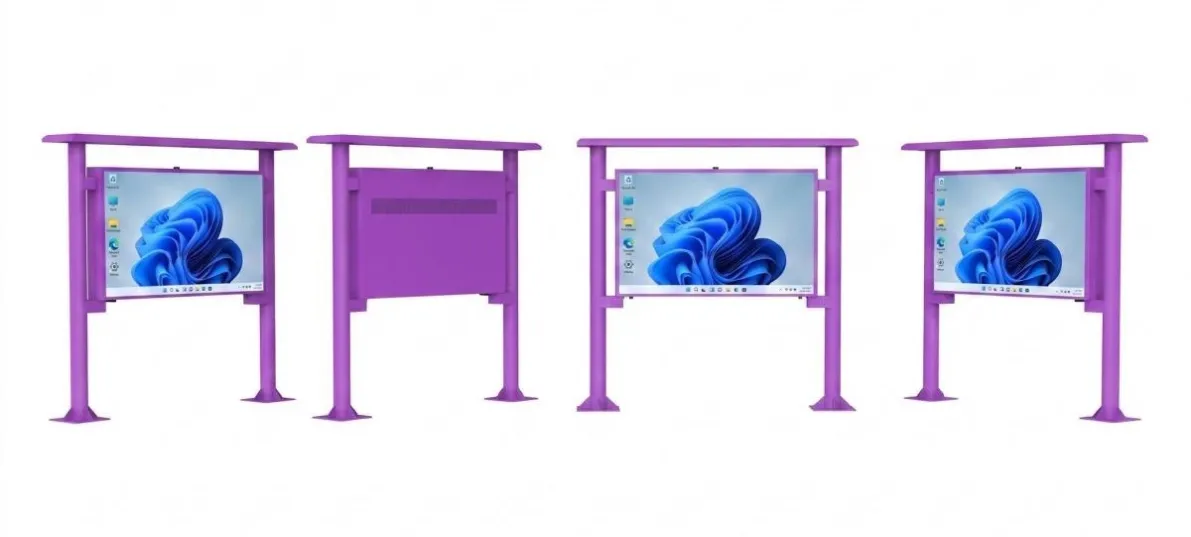

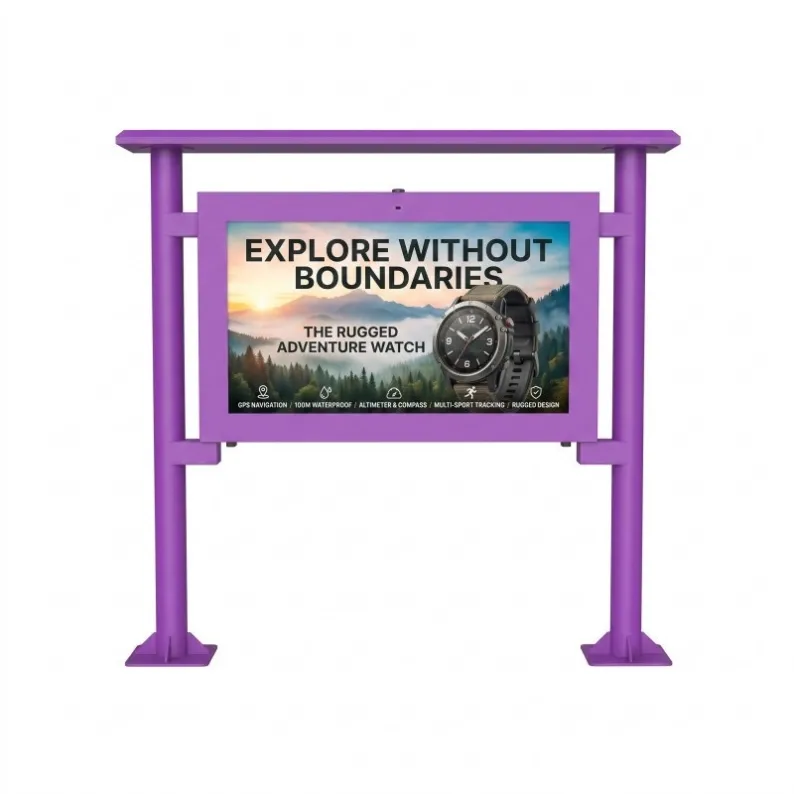

The product image shows a purple two-post structure with a landscape display. The old title explicitly identifies the product as double-sided, distinguishing it from other multi-angle product images that may only show the front and rear of a single-screen cabinet.
49 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1074*604mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

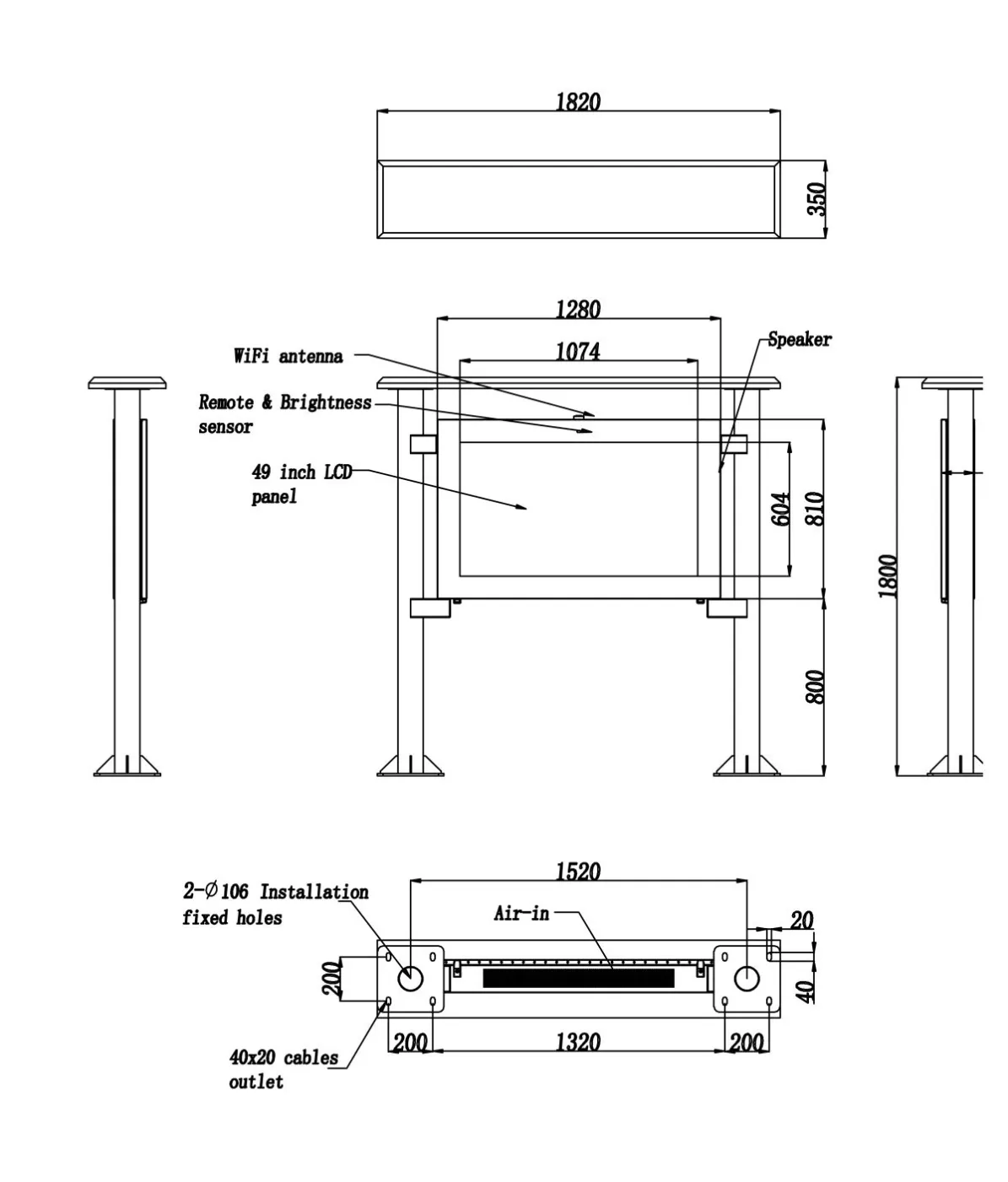

Mechanical parameters | Whole device dimension (H*W*D) | 1800*1820*350mm |
Whole device net.weight | 146kg | |
Package dimension H*W*D | 1080*1430*300mm | |
Stand pole dimension H*W*D | 570*2070*510mm | |
Mechanical parameters | Whole device gross weight(kg) | 100 |
Stand pole gross weight(kg) | 120 | |
Two Faces Do Not Require Identical Content
Both sides can run the same campaign, but the direction of travel may justify different messages.
Entrance-facing screen:
- Current events
- Store launches
- Dining offers
- Visitor maps
Exit-facing screen:
- Parking directions
- Return-visit promotions
- Loyalty membership
- Upcoming events
The 49 Inch Double Sided Outdoor Digital Signage can therefore support two stages of the customer journey from one structural position.
Plan Cooling for Two Display Assemblies
A double-sided configuration produces a different thermal load from a single-screen unit. The cabinet uses built-in fan cooling, so internal airflow and service access need to suit the final two-screen construction.
The project specification should confirm whether both sides use the same brightness, resolution and media-player configuration.
Select the Correct Walkway Position
The display should sit between opposing pedestrian flows without reducing emergency or accessibility clearance. The two faces need clean sightlines, and neither side should be blocked by planters, signs or outdoor furniture.
Content Management Options
The 49 Inch Double Sided Outdoor Digital Signage may use synchronized playback or separate playlists. Independent content offers greater commercial flexibility, while synchronized content simplifies operation.
Before ordering, confirm:
- Two-sided screen configuration
- Independent or synchronized playback
- Cabinet colour
- Network method
- Installation orientation
- Foundation and wind-load requirements
- Maintenance access direction
This product should target searches for a genuinely double-sided outdoor display rather than competing with standard single-screen 49-inch kiosks.
