Built-in Fan Version
Double Sided Outdoor Advertising Kiosk 75 Inch Vertical Fan Cooling for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVPD750DB
75 Inch Double Sided Outdoor Advertising Kiosk for Outdoor City Media

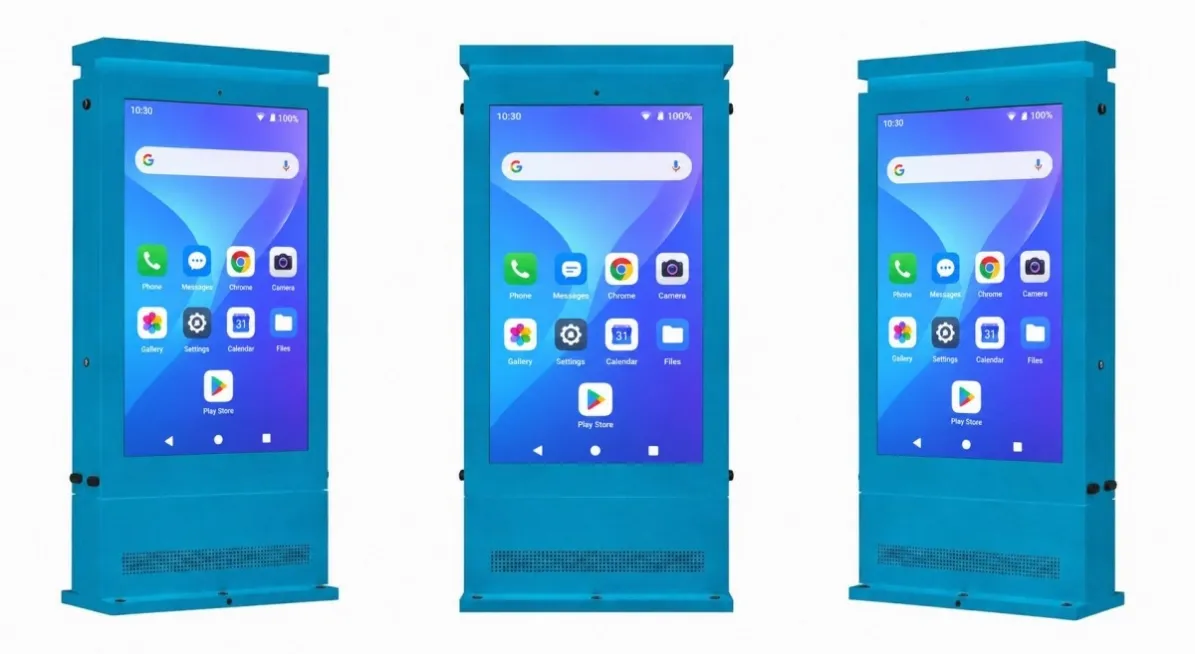

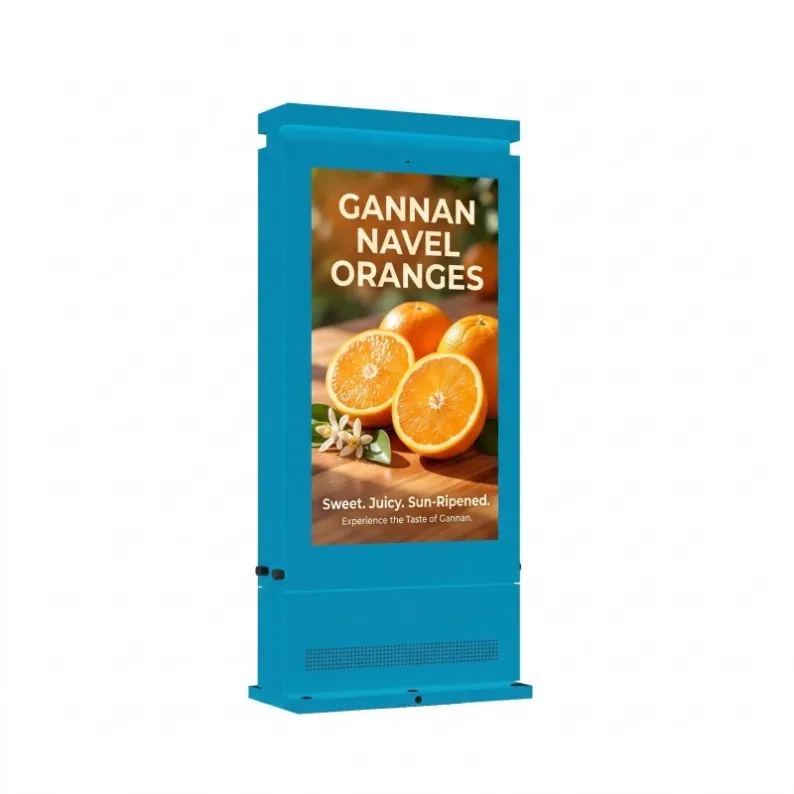

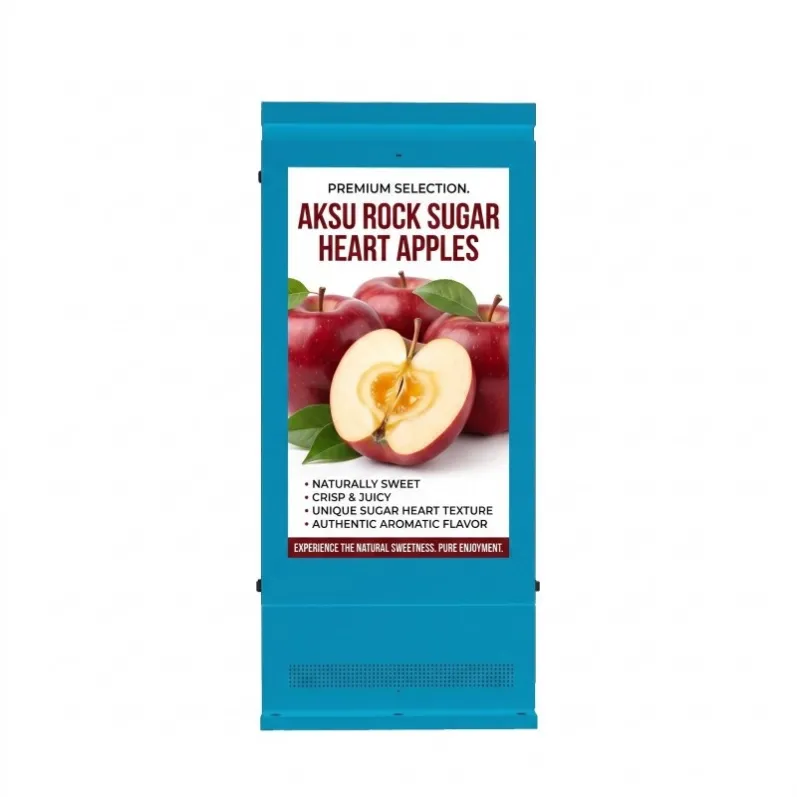

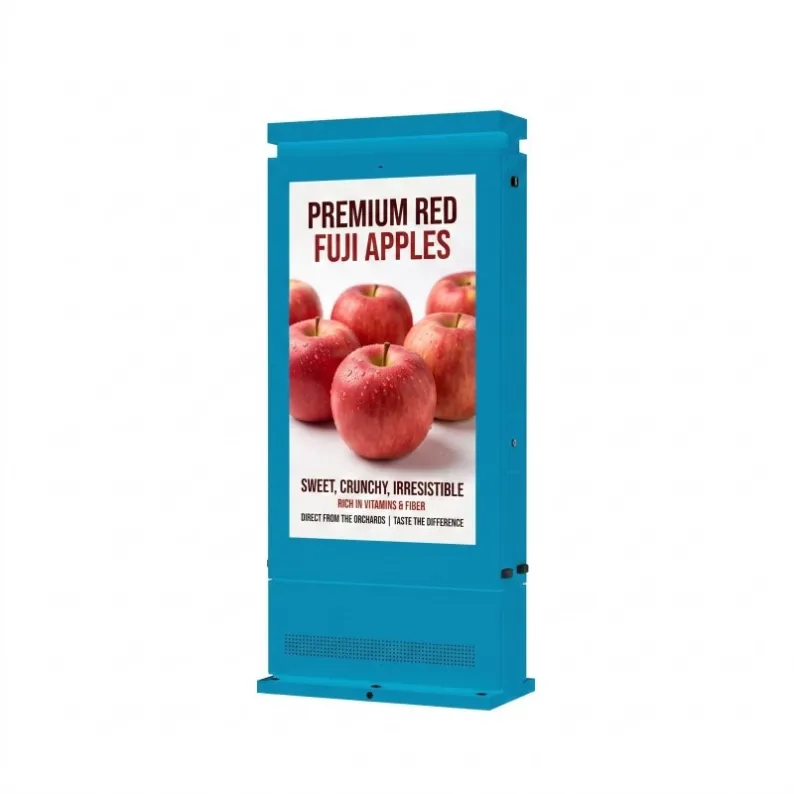

The product image shows a blue-toned freestanding enclosure with a clearly defined base and tall portrait proportions. Unlike a conventional single-face display, the cabinet carries screens on two sides.
This 75 Inch Double Sided Outdoor Advertising Kiosk is designed for outdoor public areas where pedestrian traffic approaches from opposite directions. Its specifications include 2500-nit brightness, IP65 protection and built-in fan cooling.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1600w | |
Mechanical Para. | Machine seize H*W*D( mm) | 2500*1140*300mm |
Net weight(Kg) | 350kg | |
Package size H*W*D( mm) | 1370*2650*570mm | |
Gross weight(Kg) | 420kg | |
Better Coverage Along Two-Way Pedestrian Routes
Outdoor plazas, pedestrian streets and transport approaches rarely have a single viewing direction. A double-sided kiosk can address people walking both toward and away from the same location.
The format may be used at:
- Outdoor municipal plazas
- Open-air shopping streets
- Park entrances
- Exterior transport interchanges
- Outdoor tourism routes
- Pedestrian approaches to public venues
- City event spaces
The screen must not be positioned where its large body restricts accessibility or emergency movement.
A Distinctive Enclosure
The product image shows a blue cabinet rather than a standard black finish. This can help a display network develop a recognizable visual identity, but the image should not be treated as a guaranteed color specification.
Final cabinet color, coating, corrosion protection and branding need to be confirmed before production.
The thicker side profile expected from a double-sided cabinet must also be included in architectural drawings. Buyers should request exact depth, weight and anchor details.
Coordinating Two Content Faces
Both screens can carry the same public campaign, but different directional content may use the double-sided structure more effectively.
For example, one face may show directions to an outdoor event while the reverse face presents exit information or nearby transport. Advertising schedules can also be adjusted according to pedestrian direction if the selected media system supports separate outputs.

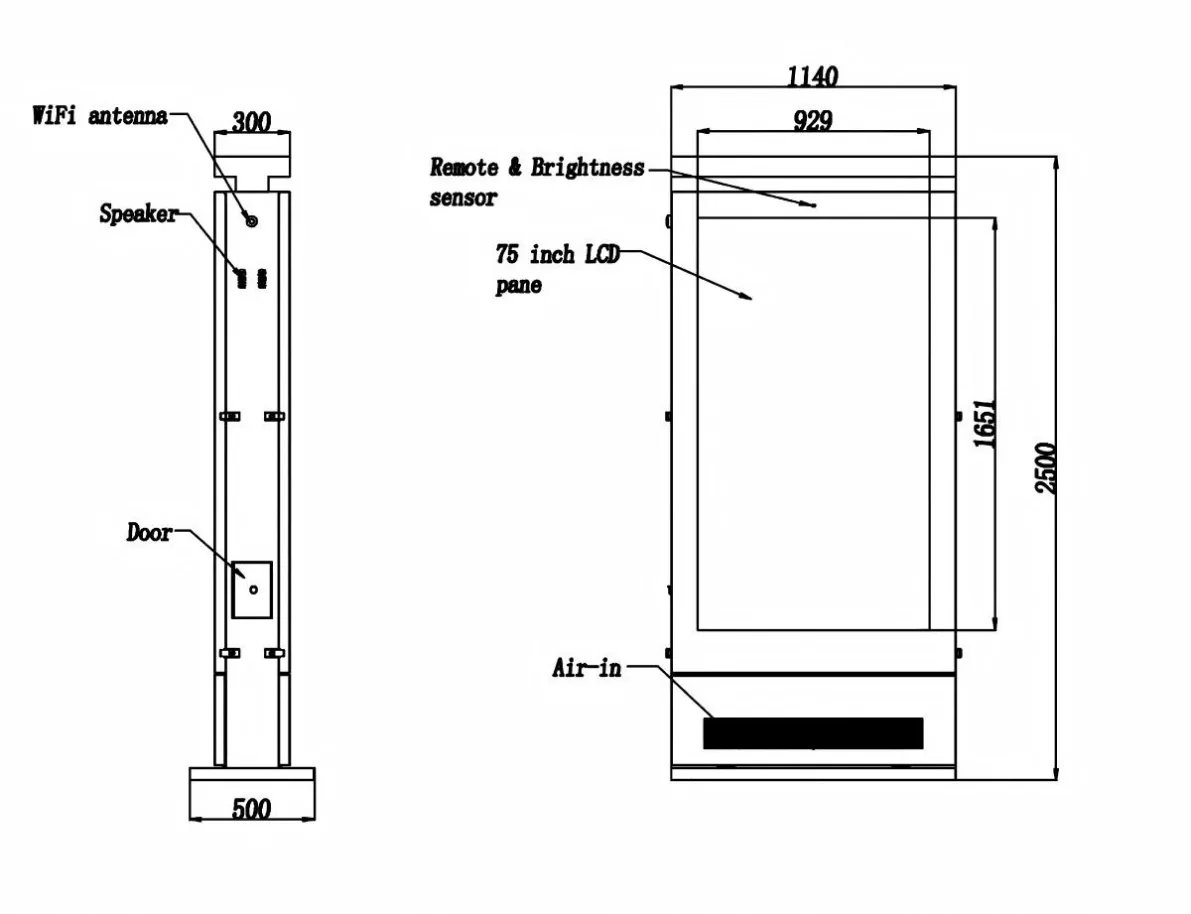

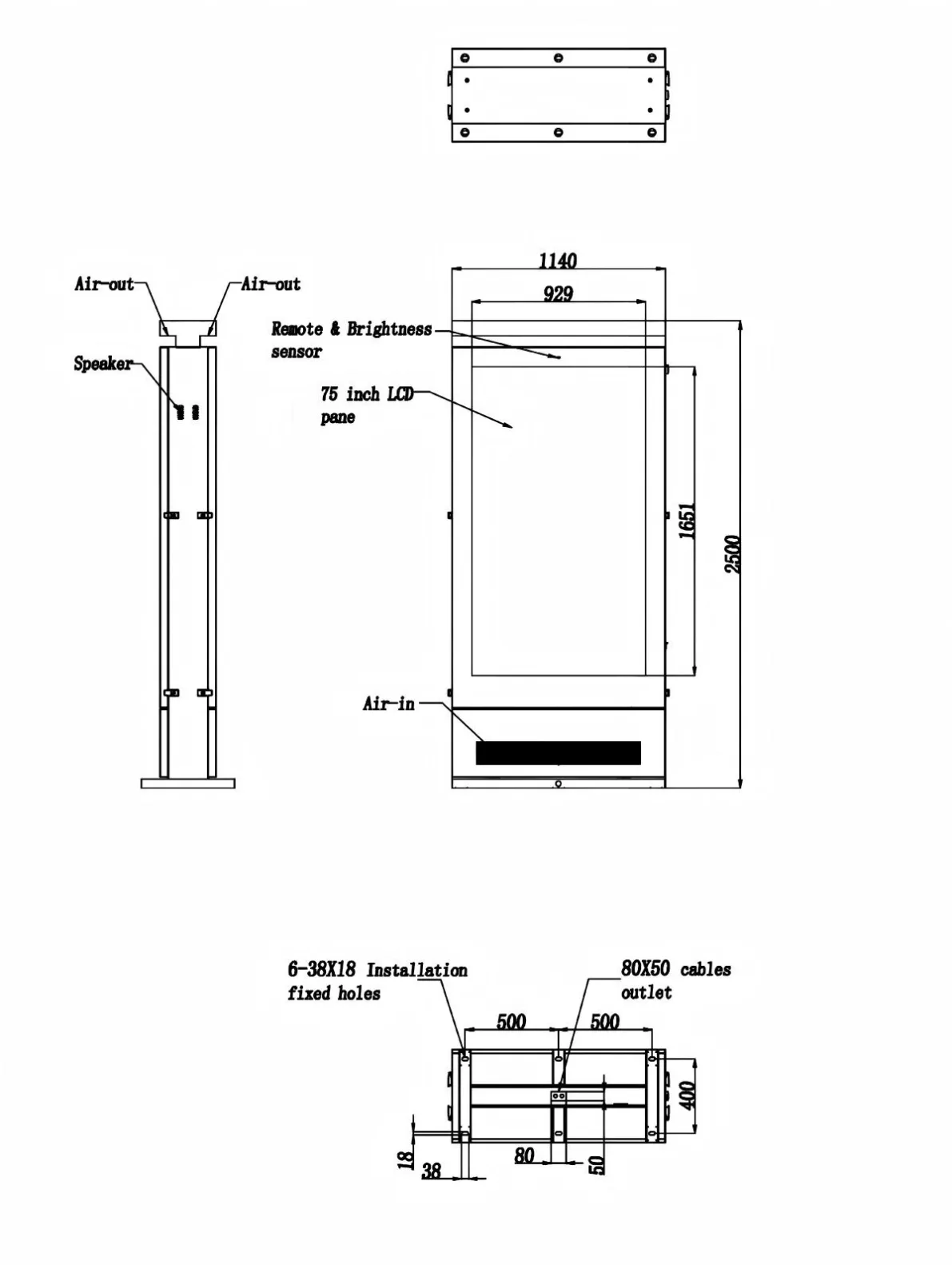

The design drawing of rear display
Maintenance Considerations
Technicians need access to the internal equipment without damaging either display face. Surrounding landscaping, benches and protective barriers should not prevent service doors from opening.
The 2500-nit brightness supports daylight viewing, while IP65 protection and built-in fan cooling address outdoor exposure and heat management.
The 75 Inch Double Sided Outdoor Advertising Kiosk provides two large portrait media surfaces within one outdoor cabinet, making it suitable for public spaces with meaningful traffic in both directions.
