Built-in Fan Version
98 Inch Outdoor LCD Display for Open-Air Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVPD980P
98 Inch Outdoor LCD Display for Open-Air Shopping Center Promotions

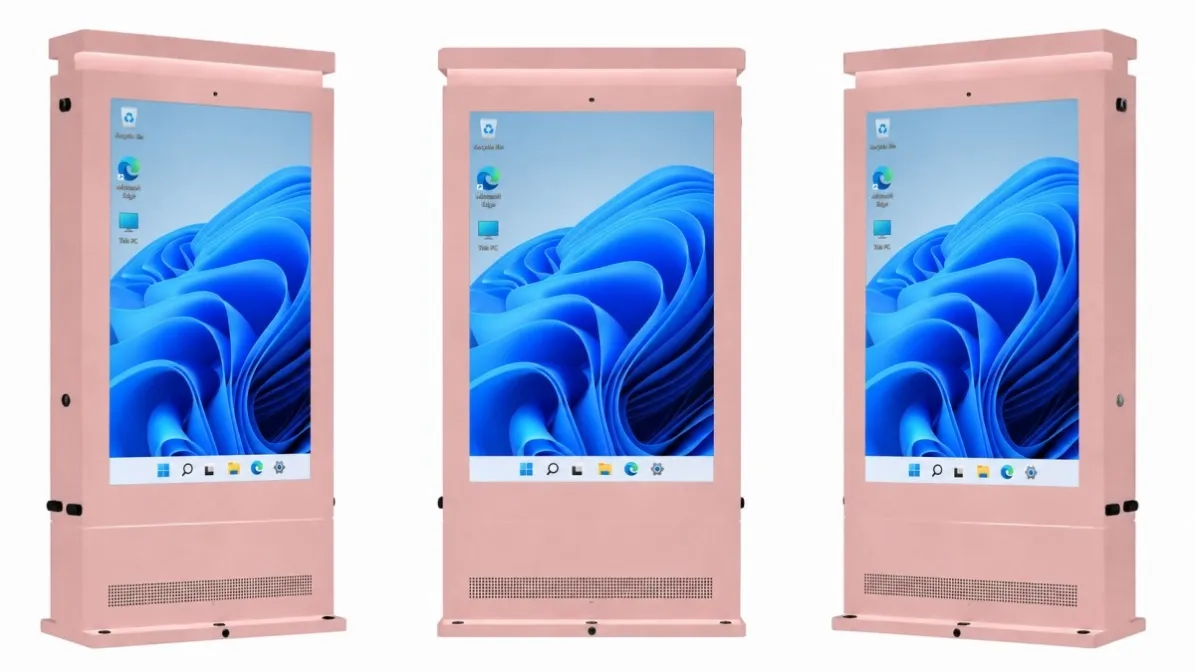

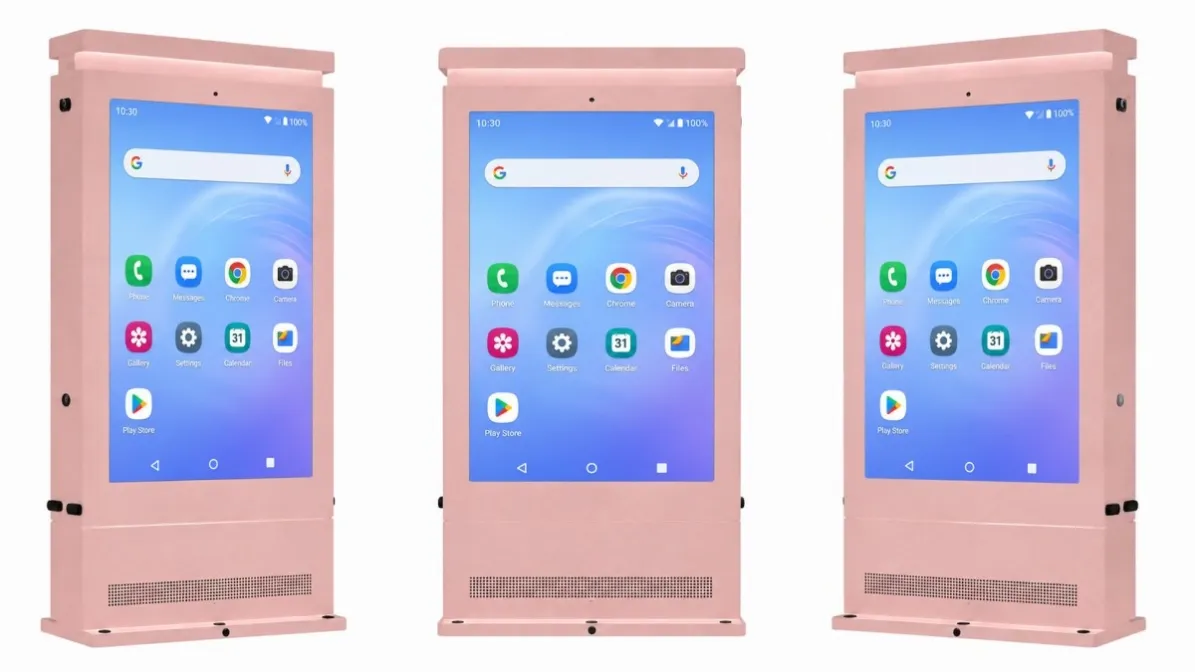

The product image shows an exceptionally tall portrait cabinet with a light-colored body and a wide display area. At 98 inches, the screen is not intended to behave like a small digital poster. It becomes a major outdoor media feature within the surrounding architecture.
This 98 Inch Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
98 Inch Outdoor floor standing double-sided digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 2159*1215mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤3800w | |

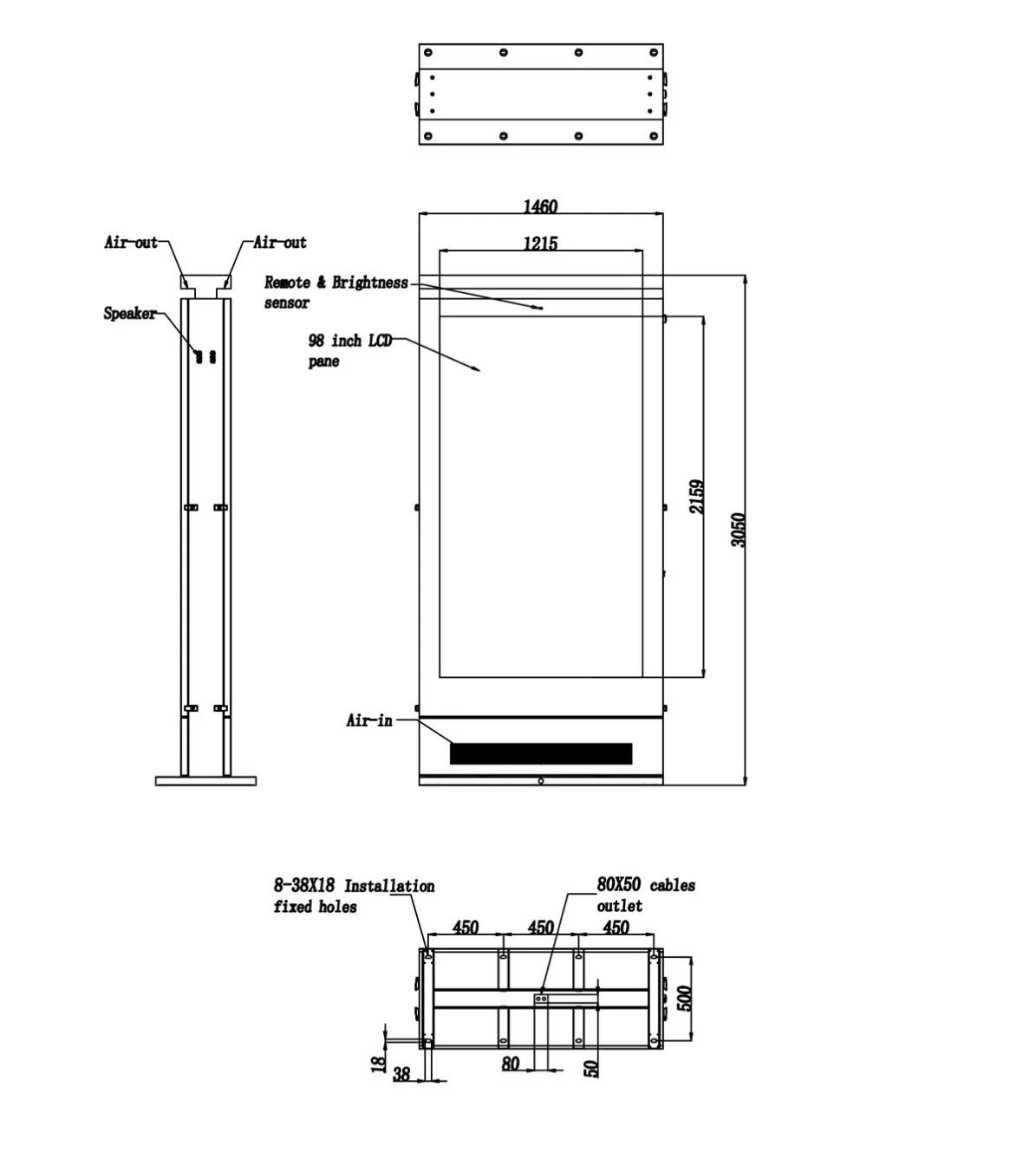

Mechanical Para. | Machine seize H*W*D( mm) | 3050*1460*300mm |
Net weight(Kg) | 700kg | |
Package size H*W*D( mm) | 1690*3200*670mm | |
Gross weight(Kg) | 830kg | |
Outdoor Locations That Can Support Its Scale
The display is appropriate for exterior shopping-center plazas, open-air retail developments, outdoor restaurant districts and large pedestrian approaches.
It is unlikely to suit a narrow walkway or small storefront. Viewers need enough distance to see the complete campaign, and the cabinet requires adequate foundation and service space.
The installation route should be checked before delivery. Door widths, lifting access and temporary work areas may affect whether the cabinet can reach its final position.
Using a 98-Inch Portrait Canvas
The screen can present full-height fashion images, automotive campaigns, entertainment promotion and shopping-center events.
Large size exposes weaknesses in source material. Artwork must be prepared at appropriate resolution, and small web graphics should not be enlarged without quality checks.
One campaign image and a short headline normally create more impact than a grid of small advertisements.
Cabinet Appearance
The image shows a light, slightly warm-colored enclosure. This may reduce the visual heaviness of such a large unit when it is placed near pale stonework or contemporary exterior façades.
The image is not a binding color specification. Surface finish, corrosion protection, branding and available customization need to be documented.
Environmental and Structural Requirements
The 2500-nit panel supports outdoor daylight viewing. IP65 protection helps defend against dust and water jets.
Built-in fan cooling manages heat from the large high-brightness panel. Maintenance clearance and airflow should be considered part of the architectural layout.
Wind loading, cabinet weight, foundation dimensions and anchoring require particular attention for a screen of this height.
FAQ
Is a 98-inch display appropriate for a standard shop entrance?
Only when the site provides sufficient viewing distance, structural support and pedestrian clearance. Many smaller storefronts are better served by a 55- or 65-inch display.
Can it be installed inside a mall?
This product is an outdoor machine. The applications discussed here are exterior plazas, open-air retail streets and outdoor-facing shopping-center entrances.
Does the image confirm the final cabinet color?
No. The image shows the sample appearance. Final color and surface finish must be confirmed before production.
The 98 Inch Outdoor LCD Display is intended for outdoor retail developments where a large architectural media element is justified by the available space and viewing distance.
