Built-in Fan Version
86 Inch Weatherproof Digital Signage with 2500 Nits IP65 Wall Mounted Design for EV Charging Ads
Material:304 Stainless steel/SGCC Galvanized plate Touch screen:Mesh metal touch/G+G cap touch Surface:Spraying,frosted aluminum Control method:IR controller, Android Windows OS
Specifications
- SKU
- ZXTLCD-OUTFHW860LP
86 Inch Wall Mounted EV Charging Signage for High-Traffic Charging Hubs
A large charging facility can use one prominent screen to communicate with several bays instead of placing a separate advertising cabinet beside every charger. This 86 Inch Wall Mounted EV Charging Signage can be installed on an exterior service building, parking structure or purpose-built charging canopy.

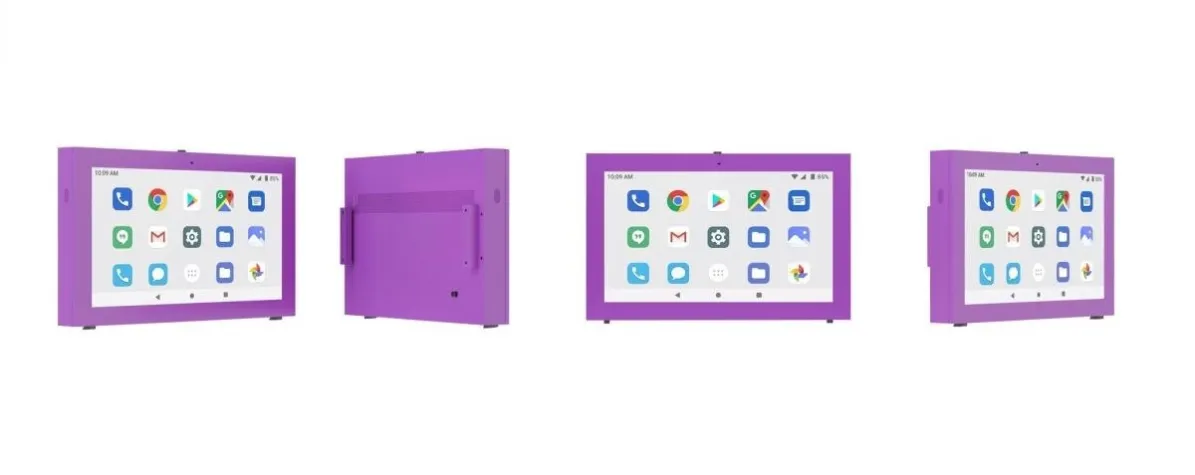

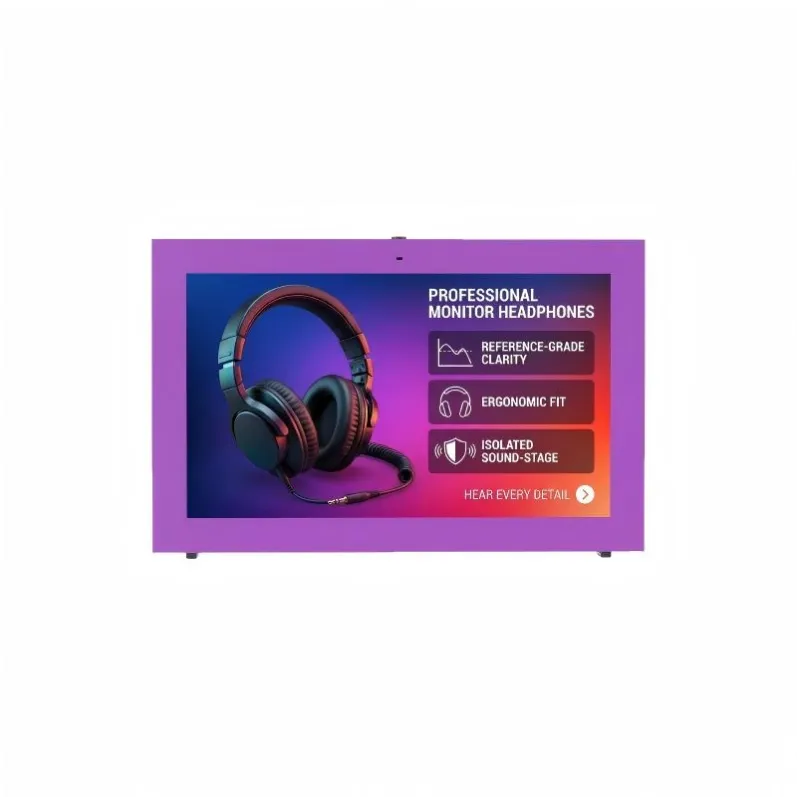

The image shows a wide display in a purple outer frame. Its large landscape area can combine site instructions with advertising while keeping the ground around chargers clear.
86 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

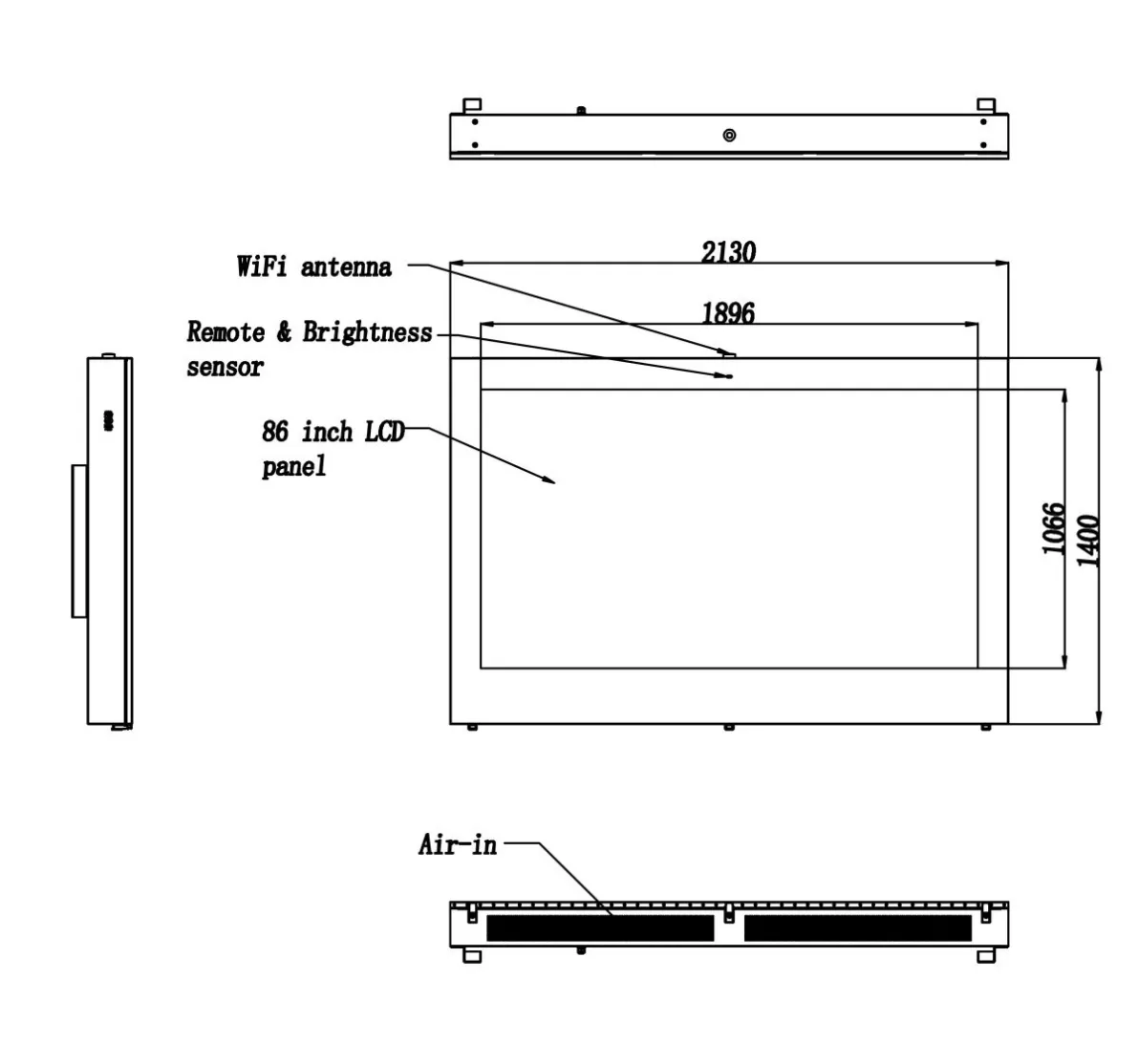

Mechanical Para | Machine seize H*W*D(mm) | 2130*1400*170 |
Net weight(Kg) | 230 | |
Package size H*W*D(mm) | 1670*2280*320 | |
Gross weight(Kg) | 280 | |
Build the Playlist Around Charging Time
A driver may remain on site for considerably longer than a customer at a conventional fuel stop. Content can therefore extend beyond a short promotional loop:
- Charging and payment instructions
- Safety notices
- Customer-support information
- Live site information when integrated
- Nearby food and retail services
- Local travel content
- Commercial campaigns
Operational information should always receive priority. The display must not imply a live connection to charger status unless that integration is included.
Large Screen, Longer Viewing Distance
The 86 Inch Wall Mounted EV Charging Signage should face a shared waiting area or the main vehicle approach. Large headlines and high-contrast graphics remain important even when the audience is parked.
Evening brightness should be controlled to prevent glare toward drivers or nearby properties.
Wall and Cooling Requirements

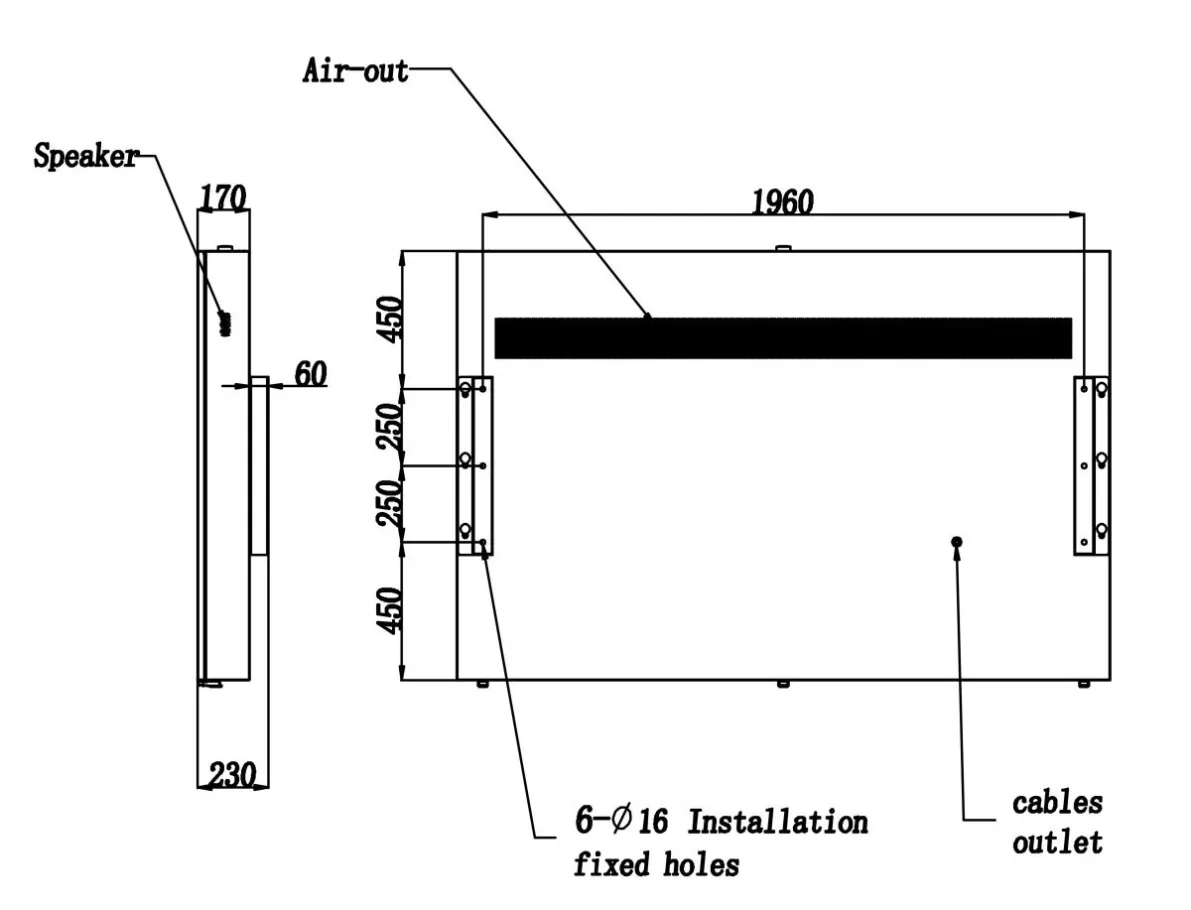

The supporting structure must handle the cabinet weight and outdoor wind load. The installation drawing should include mounting points, cable routes, drainage and service access.
The product uses 2500-nit brightness, IP65 protection and built-in fan cooling. The wall or decorative surround must not block the airflow path.
The 86 Inch Wall Mounted EV Charging Signage is most appropriate for a charging hub with a suitable permanent structure and a planned content operation—not for an isolated charger with no media-management process.
