Built-in Fan Version
86 Inch 2500 Nits IP65 Weatherproof Digital Signage Wall Mounted Fan Cooling for Transit Hub Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW860R
86 Inch Wall Mounted Weatherproof Digital Signage for Exterior Transit Media
The product image shows a large red rectangular enclosure without a ground base. Its flat cabinet form is intended to be supported by an outdoor wall or engineered mounting structure.
The 86 Inch Wall Mounted Weatherproof Digital Signage model combines 2500-nit brightness, IP65 protection and built-in fan cooling for exterior transport advertising and information.
86 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size（mm） | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

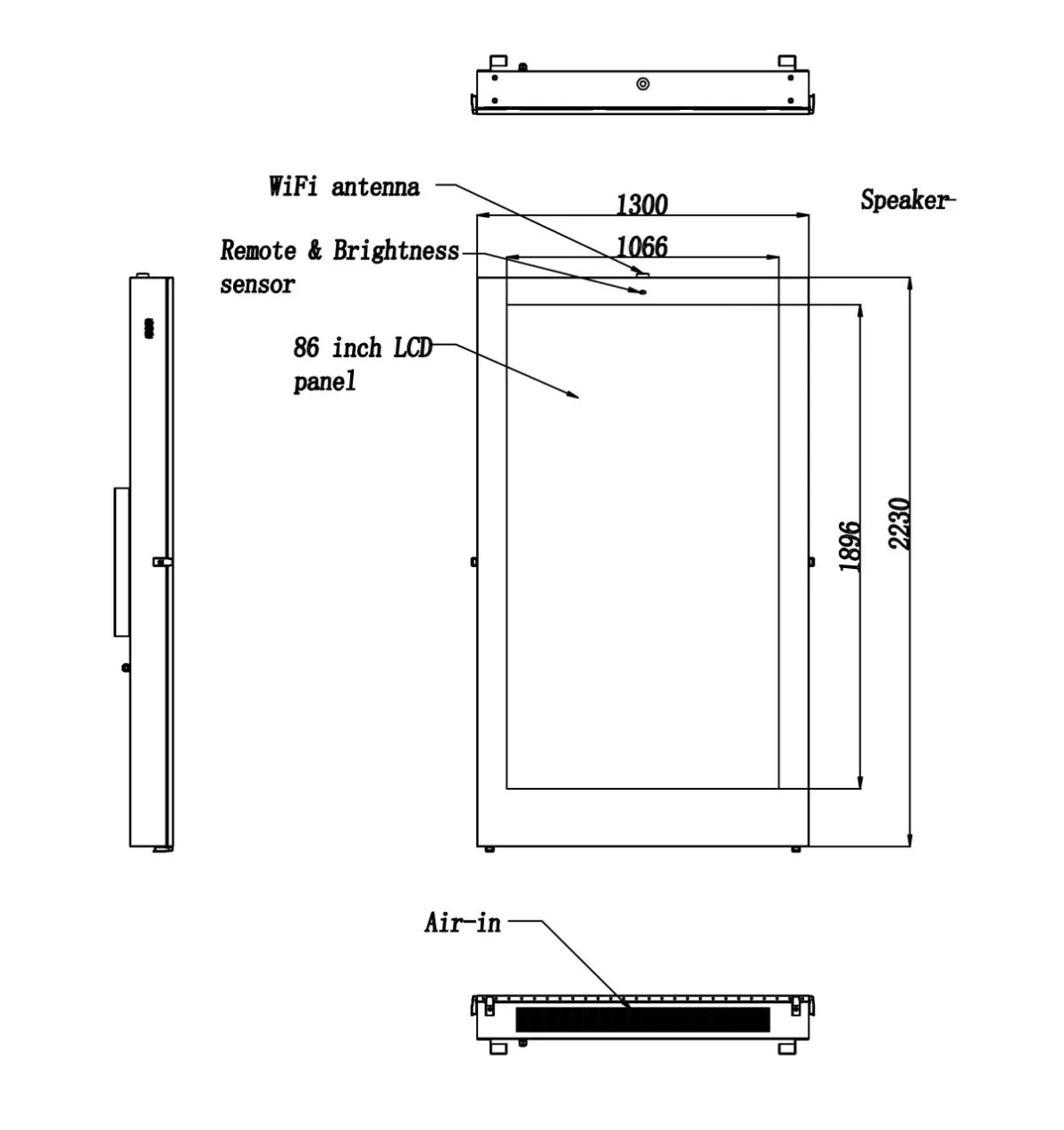

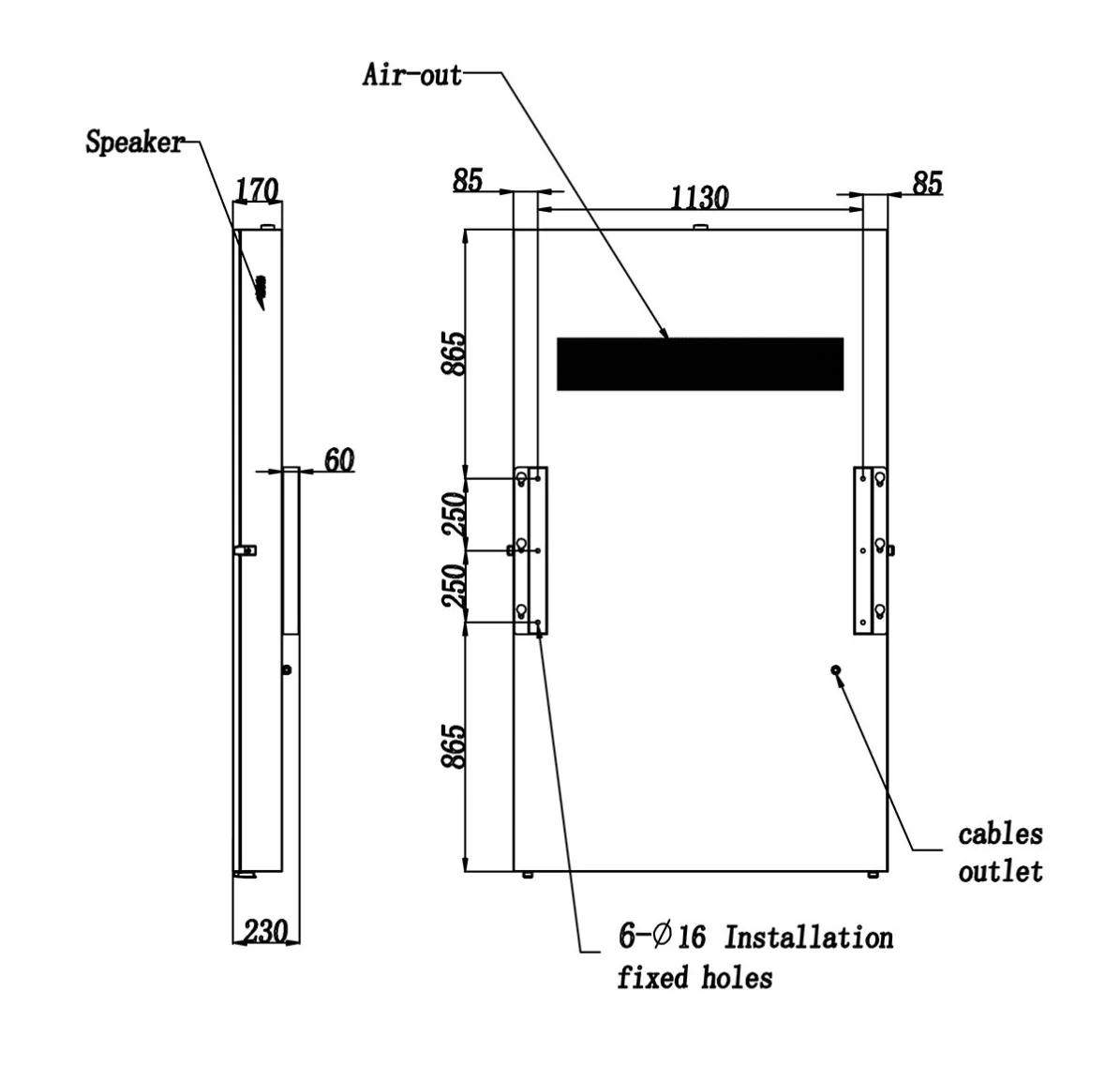

Mechanical Para | Machine seize H*W*D（mm） | 2230*1300*170 |
Net weight(Kg) | 230 | |
Package size H*W*D（mm） | 1570*2380*320 | |
Gross weight(Kg) | 280 | |
Wall Loading Is the First Procurement Question
An 86-inch outdoor cabinet is considerably heavier and deeper than an indoor commercial screen. The receiving structure must be assessed for the combined weight of the enclosure, mounting hardware and environmental loads.
Installation planning should establish:
- Wall construction
- Fixing locations
- Bracket design
- Wind exposure
- Service clearance
- Cable routes
- Lifting access
- Water drainage
The screen should never be attached to decorative cladding that lacks structural support.
Using Height to Protect Ground Space
Wall mounting can preserve pedestrian space in an exterior transit area. This is useful where a floor-standing kiosk would narrow the walking route or interfere with accessibility.
The mounting height must still provide a comfortable viewing angle. Positioning the screen too high may make detailed passenger information difficult to read.
Content for an 86-Inch Display
The screen can carry major advertising imagery, exterior station directions and service announcements. A large format is most effective with a strong primary message rather than several small content windows.
The 2500-nit panel supports daylight visibility. Screen direction should be reviewed for direct sunlight and nighttime glare toward nearby roads.
Weather and Service Access
IP65 protection helps defend against dust and water jets. Wall penetrations and cable entries require outdoor sealing.
Built-in fan cooling needs clear air paths. The mounting system should allow maintenance without removing unrelated façade components.
FAQ
Can the display be fixed to any exterior wall?
No. A qualified structural review is required for the wall, fixings, bracket and environmental loading.
Is access from the rear necessary?
That depends on the cabinet design. Buyers should obtain the service drawing before completing the wall.
The 86 Inch Wall Mounted Weatherproof Digital Signage format delivers large outdoor visibility while keeping the passenger route below free from a floor-standing cabinet.
