Built-in Fan Version
86 Inch 2500 Nits IP65 Outdoor LCD Display Floor Standing Fan Cooling for Transit Hub Ads
Protection Grade:IP65 Sensors:Light sensor,temperature sensor Front Panel:Toughened glass or acrylic,High transparency
Specifications
- SKU
- ZXTLCD-OUTFHK860Y
86 Inch 2500 Nits IP65 Outdoor LCD Display Floor Standing Fan Cooling for Transit Hub Ads
86 Inch Outdoor LCD Display for Transit Hubs
Advertising in a transport hub is viewed differently from advertising inside a shop. Some passengers pass the screen quickly, while others see it repeatedly as they wait, queue or change routes. An 86 inch outdoor LCD display provides the scale required for campaign messages, timetable notices and public information in these large circulation areas.
The floor-standing unit combines 2500-nit brightness, IP65 protection, fan cooling and environmental sensors. A toughened-glass or high-transparency acrylic front panel can be specified according to the project requirements.
86 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1896*1066mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860w | |

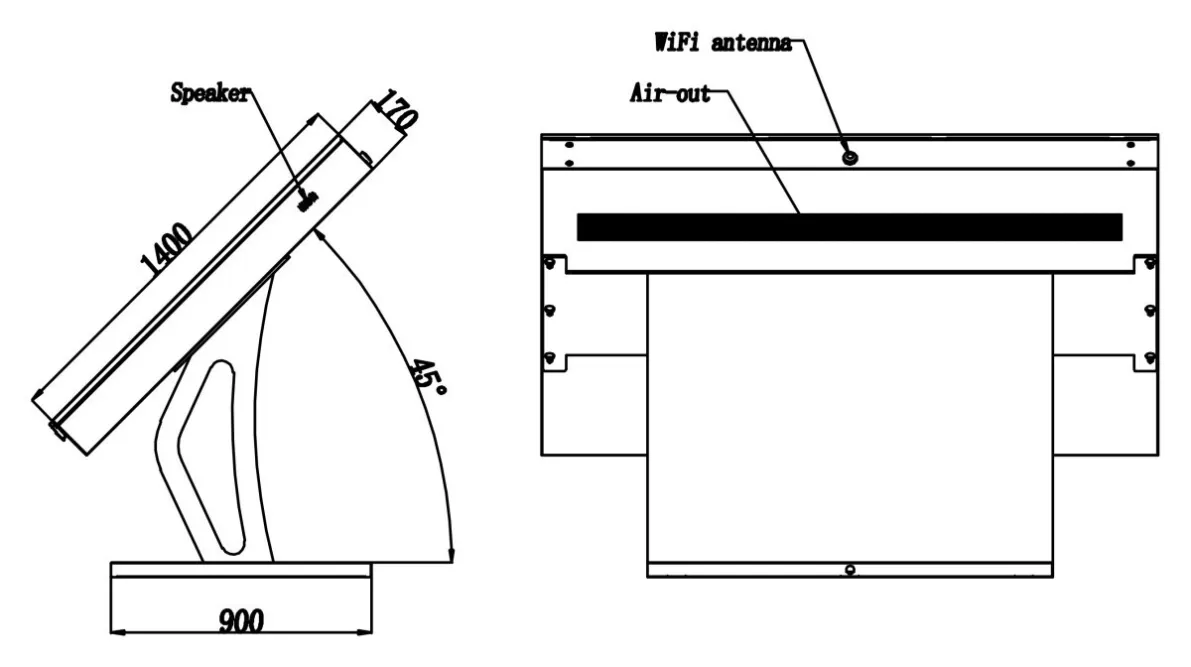

Mechanical parameters | Machine size(H*W*D) | 2130*1400*170 |
Net machine weight | 400kg | |
Package size(H*W*D)(mm) | 1760*2280*1260 | |
Package weight | 470kg | |
Designing for Passenger Movement
An 86-inch screen can be read across a wider concourse than a compact information display. However, the content must still match passenger behavior.
Campaigns near entrances should use short headlines and recognizable imagery. Screens placed beside waiting areas can run longer sequences, service announcements or rotating advertiser content. Wayfinding messages should use clear arrows, high contrast and limited text.
The installation plan should identify:
- Main pedestrian approaches;
- Normal viewing distance;
- Potential queue formation;
- Nearby signs competing for attention;
- Emergency and accessibility requirements;
- Space required for service access.
This planning prevents the large display from becoming visually impressive but operationally inconvenient.
High Brightness and Automatic Adjustment
The 2500-nit LCD is intended for outdoor or strongly illuminated environments. A light sensor can support automatic brightness adjustment as environmental conditions change.
Reducing brightness at night can improve viewing comfort and lower unnecessary energy use. During bright daytime conditions, increased output helps keep the content legible. The control strategy should be configured for the specific location rather than relying on one brightness setting throughout the day.
A temperature sensor provides additional information for thermal management. Project engineers should confirm alarm behavior, temperature thresholds and the response expected if the enclosure approaches its operating limit.
Floor-Standing Construction and Front Protection
A floor-standing 86 inch outdoor LCD display requires a properly prepared foundation. The finished installation must account for wind loading, anchor positions, cable entry, drainage and local structural requirements.
The front protective layer can use toughened glass or high-transparency acrylic. Glass offers a hard viewing surface, while acrylic can reduce weight and behaves differently under impact. The appropriate material depends on public access, transport requirements and the risk assessment for the site.
The enclosure should also allow technicians to reach the fans, filters, power supply, controller and display module without removing surrounding infrastructure.
Content Management for Transit Operators
A transit hub may combine commercial advertising with operational information. The content system therefore needs clear permission levels and scheduling rules.
Advertising teams may manage paid campaigns, while station personnel control disruption notices and passenger instructions. Buyers should decide whether these functions use one content-management platform or separate signal inputs. Remote monitoring can also help operators identify offline screens without waiting for a physical inspection.
