Built-in Fan Version
86 Inch 2500 Nits IP65 Outdoor Advertising Kiosk Pole Mounted Fan Cooling for Transit Hub Ads
Network:WIFI / LAN / 3G / 4G Optional Resolution:1920*1080 / 3840*2160 Operating system:Android / Windows os Back:Cold-rolled sheet metal board
Specifications
- SKU
- ZXTLCD-OUTFHN860TP
86 Inch Pole Mounted Outdoor Advertising Kiosk for Transit Hub Media
A digital screen installed beside a transport route has to do more than display a bright advertisement. It must remain visible above surrounding movement, fit the station’s circulation plan and allow technicians to service it without dismantling nearby structures. This 86 Inch Pole Mounted Outdoor Advertising Kiosk uses two supporting posts and a wide upper crossbar to create a permanent outdoor media position for transit hubs.

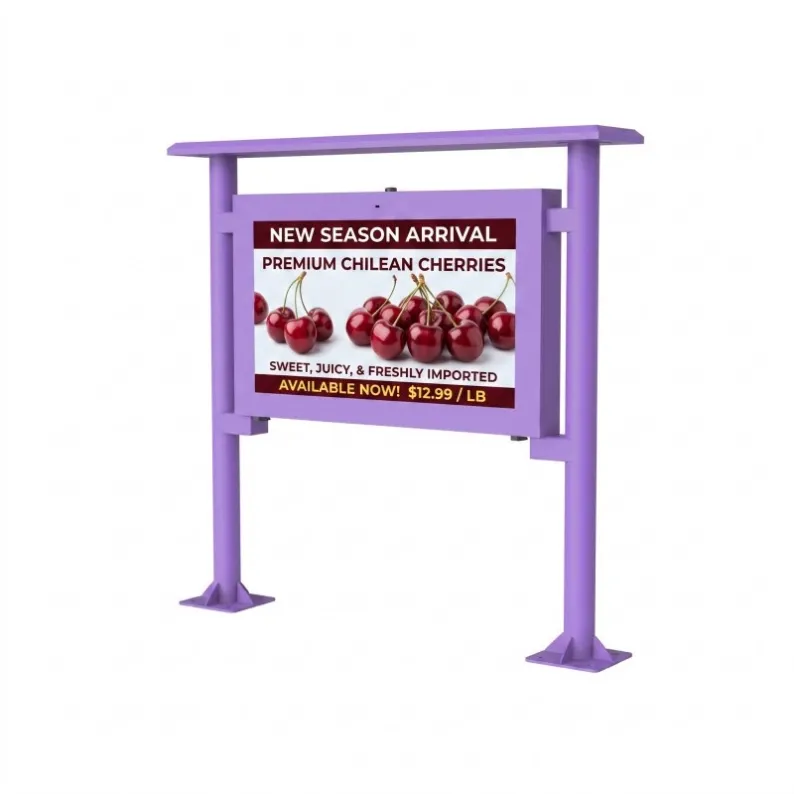

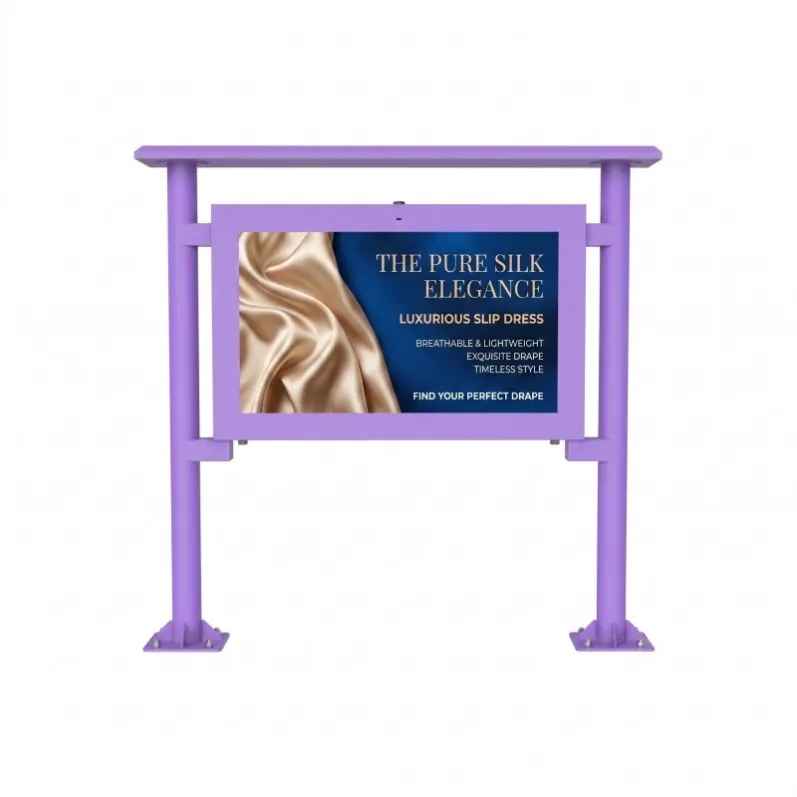

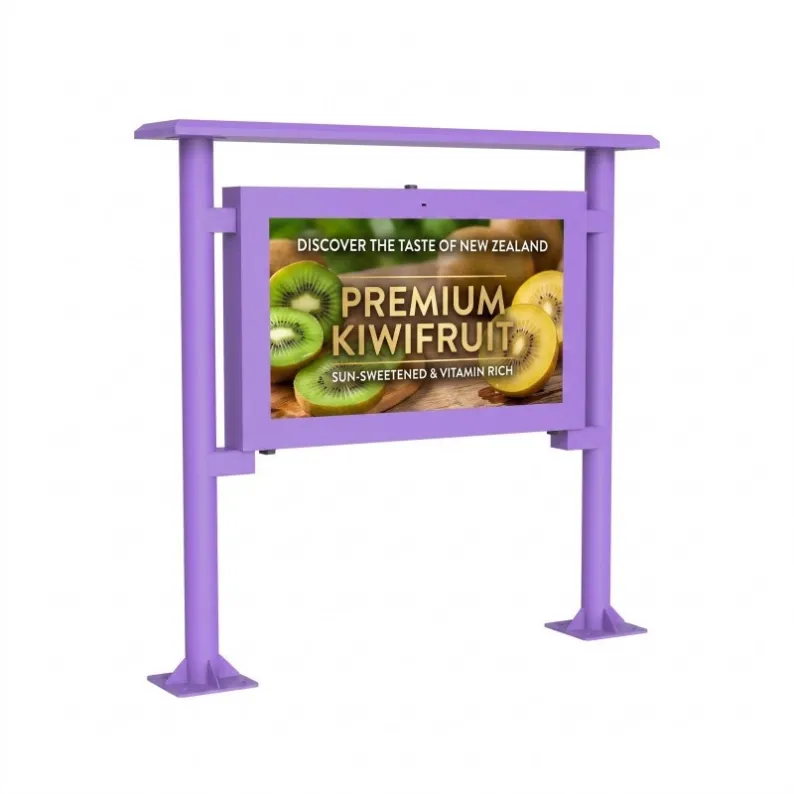

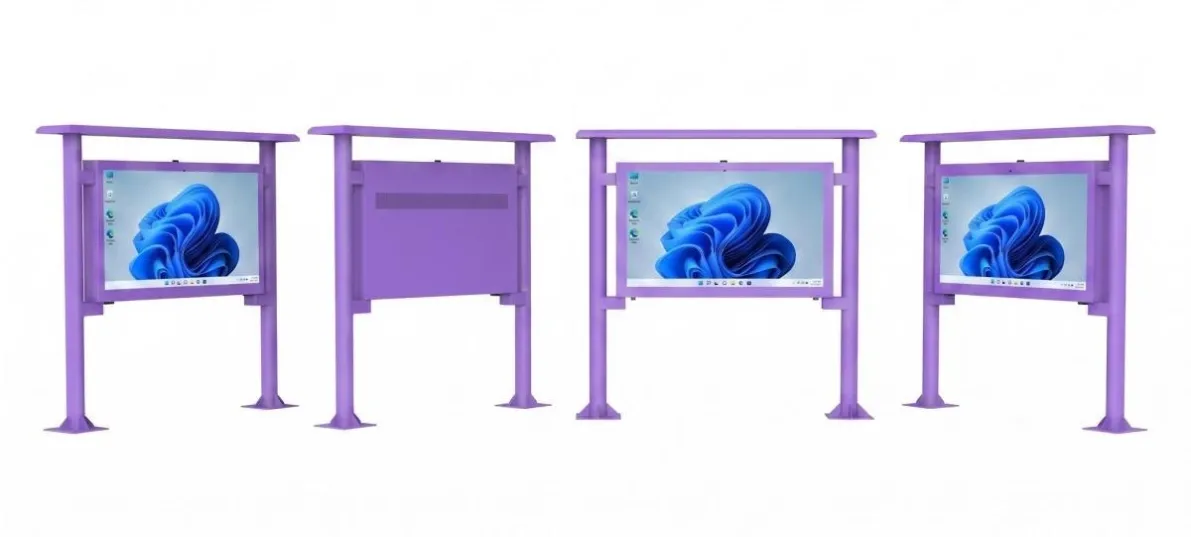

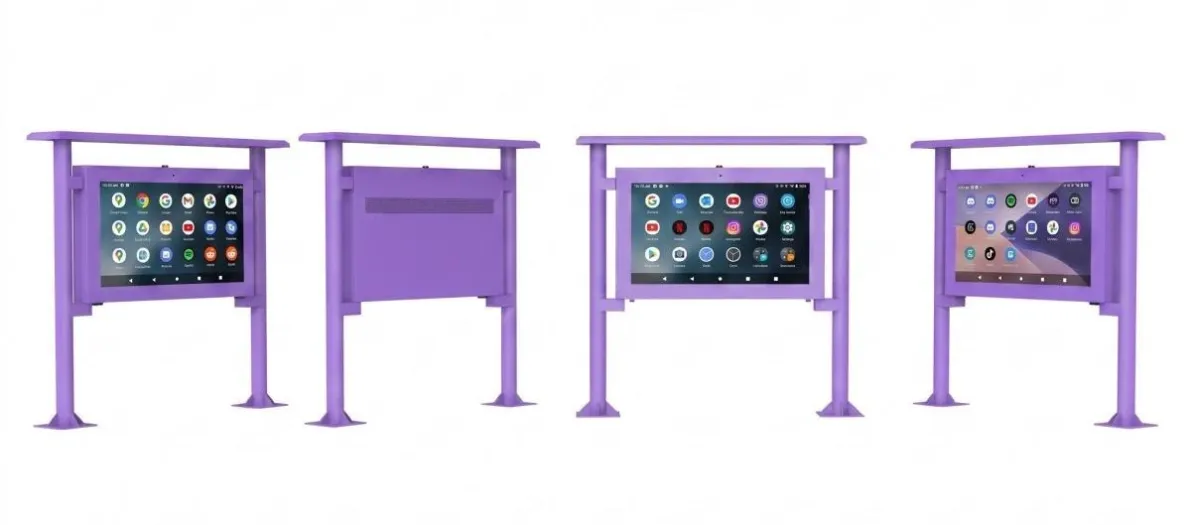

The product image shows a purple metal structure presented from the front, rear and angled sides. The display is suspended between two vertical supports rather than enclosed inside a conventional full-height floor-standing cabinet. A projecting top section provides a distinctive shelter-like appearance, while the open area below the display reduces the visual weight of the installation.
The purple finish shown is a sample appearance. Project-specific cabinet colours should be confirmed using an agreed RAL or Pantone reference.
86 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1896*1066mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

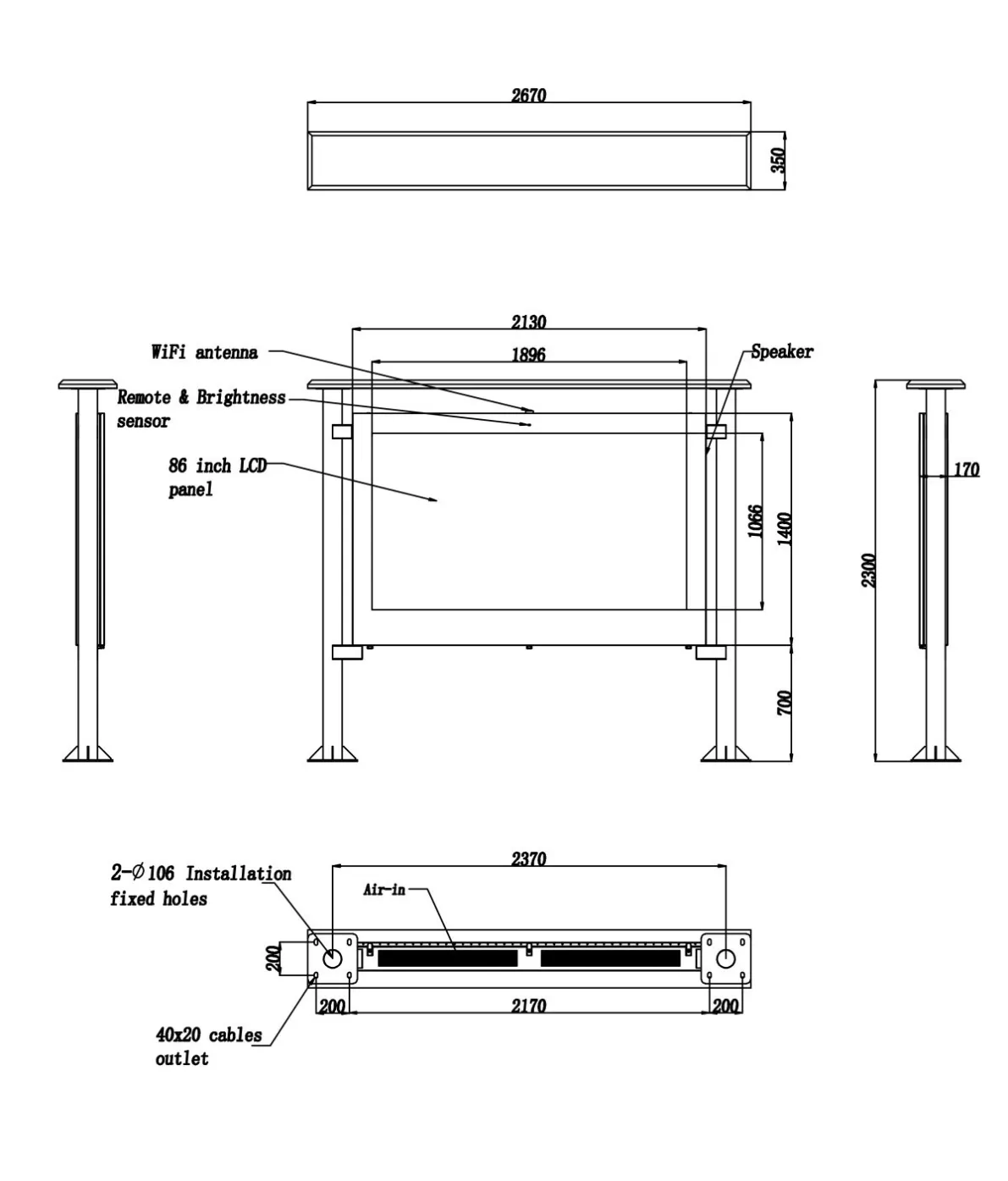

Mechanical parameters | Whole device dimension H*W*D | 2300*2670*350mm |
Whole device net.weight | 300kg | |
Package dimension H*W*D | 1670*2280*320mm | |
Stand pole package dimension H*W*D | 570*2920*510mm | |
Mechanical parameters | Whole device gross weight | 260kg |
Stand pole gross weight | 150kg | |
Designed Around Passenger Sightlines
At an outdoor station, advertisements compete with route signs, vehicles, shelter structures and passenger movement. The screen should therefore be positioned where people can see it during a natural pause—near a waiting zone, transfer point or station approach—without confusing it with official directional signage.
The 86 Inch Pole Mounted Outdoor Advertising Kiosk can carry:
- Destination and tourism campaigns
- Local retail advertising
- Outdoor event announcements
- Transport-related promotions
- Public-service messages
- Sponsored station information
The 86-inch landscape format provides sufficient width for cinematic advertising, destination photography and campaign videos originally produced for widescreen media.
A Structure That Looks Integrated, Not Temporary
The two-post construction gives the product a more architectural character than a movable advertising totem. It can be coordinated with outdoor platforms, station forecourts and pedestrian transfer areas where permanent equipment is expected.
Its appearance also affects installation planning. The screen, upper beam and support posts should be treated as one structure. Pole spacing, total height, foundation position and maintenance clearance need to be established before concrete work begins.
This model should not be described as double-sided unless screens are explicitly specified on both faces. The supplied product image includes several viewing angles, including the rear of the enclosure, but those views alone do not confirm a second display panel.
2500-Nit Visibility in Outdoor Transit Areas
The specified 2500-nit panel supports advertising visibility in high ambient light. Actual screen performance still depends on direction, surrounding reflections and the time of day.
For strong outdoor readability:
- Keep campaign headlines short
- Use bold contrast between text and background
- Avoid placing small text across detailed photography
- Keep dates and locations visible throughout the sequence
- Prepare evening content with lower visual intensity
An advertising message that works on a desktop monitor should always be reviewed at the expected station viewing distance.
IP65 Protection and Built-In Fan Cooling
The 86 Inch Pole Mounted Outdoor Advertising Kiosk uses an IP65-rated enclosure and built-in fan cooling. The fan system circulates air through the cabinet’s managed thermal path to remove heat generated by the high-brightness panel and internal electronics.
The installation must not block ventilation openings. Transport sites can expose equipment to road dust, brake particles and airborne debris, making scheduled airflow inspection particularly important.
Routine maintenance should cover:
- Cleaning the front glass
- Inspecting ventilation openings
- Checking cabinet and service-door seals
- Examining pole connections and anchor bolts
- Verifying cable-entry protection
- Reviewing media-player and network status
Planning the Foundation and Cable Route
Large pole-mounted equipment should not be installed using a generic foundation selected from screen size alone. A qualified engineer should consider local wind conditions, mounting height, soil or concrete condition and the complete structural load.
Power and data cables can be routed through the posts or another protected channel.
Exposed adapters, loose conduit and ordinary indoor connection boxes should not remain around the finished installation.
The rear service area must remain accessible even when the screen is positioned beside a railing, shelter or landscaped zone.
