Built-in Fan Version
85 Inch Floor Standing LCD Digital Signage Totem Outdoor Wifi Advertising Player With Safe Lock
Touch screen:Mesh metal touch/G+G cap touch Surface:Spraying,frosted aluminum Control method:IR controller, Android Windows OS Sensors:Light sensor,temperature sensor
Specifications
- SKU
- ZXTLCD-OUTFVP860G
85 Inch Floor Standing Outdoor Digital Signage for Managed Media Networks
A large outdoor advertising screen may be installed once but accessed many times during its working life. Media players need updates, filters require inspection and internal components may need replacement. This 85 Inch Floor Standing Outdoor Digital Signage adds a lockable service design to a large portrait advertising cabinet intended for controlled commercial operation.

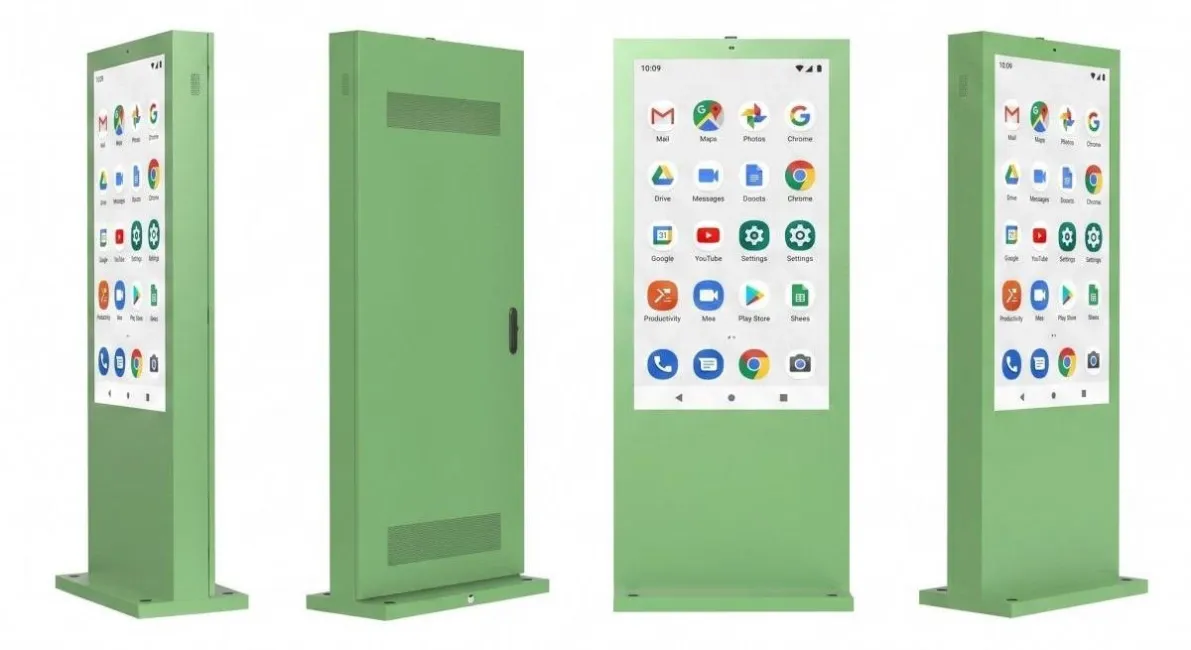

The product image shows a tall screen above a green lower enclosure. The substantial base provides space for equipment and service access, while the portrait format creates a visible advertising surface for pedestrian environments.
86 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

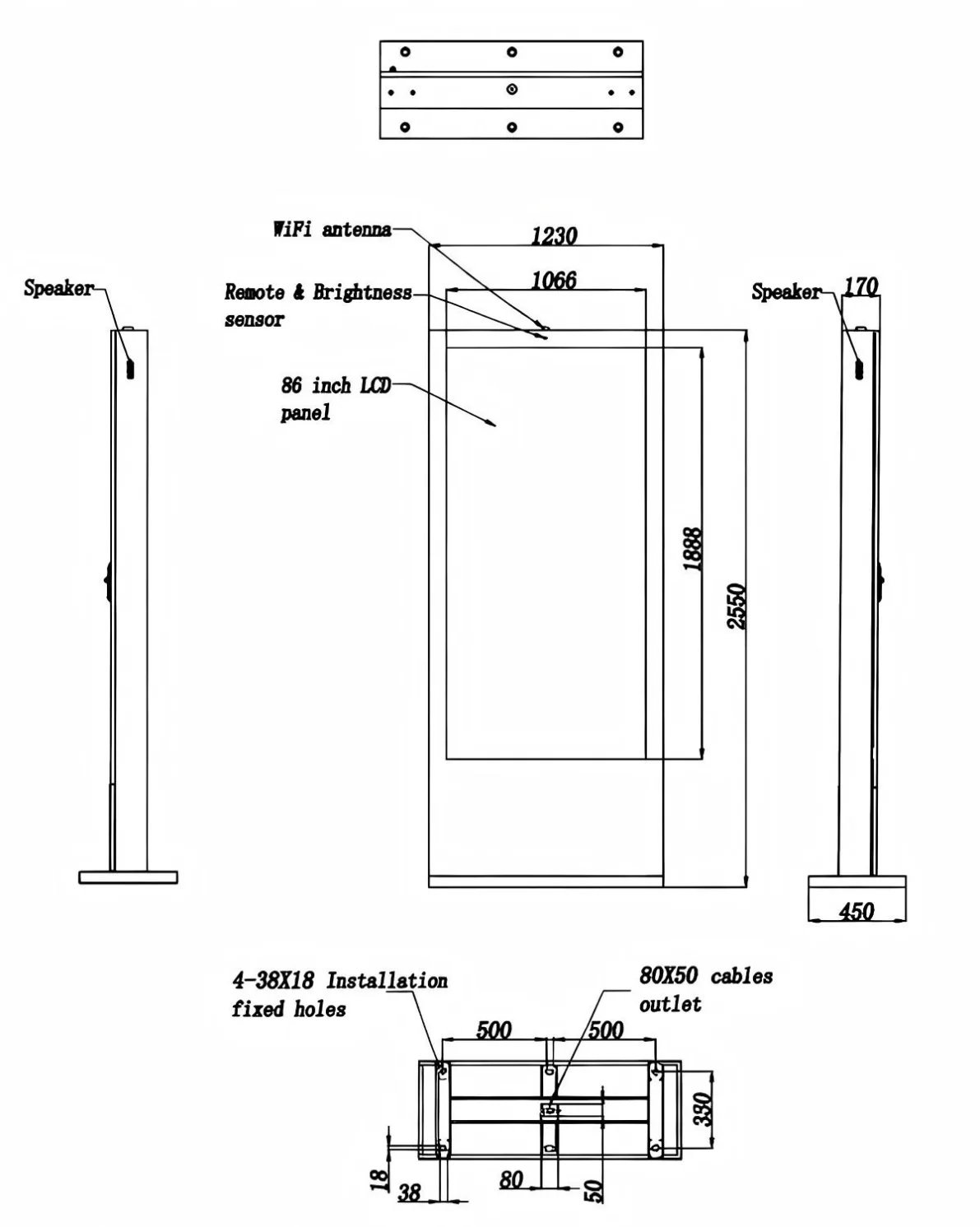

Mechanical Para. | Machine seize H*W*D( mm) | 2550*1230*170 |
Net weight(Kg) | 230 | |
Package size H*W*D( mm) | 1460*2700*520 | |
Gross weight(Kg) | 290 | |
Why the Safe Lock Is an Operational Feature
A lock is not only an anti-theft detail. It helps control who can access the media player, power equipment and internal cabinet.
This matters in locations where several organizations may be involved:
- The property owner
- Advertising operator
- Installation contractor
- Maintenance company
- Content-management provider
- Local site staff
A documented key or access-control process reduces the risk of unauthorized changes and helps technicians know who is responsible for the enclosure.
The lock does not remove the need for site security or appropriate cabinet monitoring.
A Large Portrait Format for Public Visibility
The 85 Inch Floor Standing Outdoor Digital Signage is suited to messages viewed across wide pedestrian spaces. Potential applications include:
- Open-air shopping centres
- Transport entrances
- Event venues
- Public-building forecourts
- Commercial plazas
- EV charging rest areas
- Outdoor campus information
- Destination advertising
The screen should not be installed where its cabinet blocks driver sightlines, emergency routes or wheelchair access.
Content for an 85-Inch Screen
The portrait canvas supports digital posters, full-height product imagery, public notices and vertical video. Its size makes it possible to create a clear hierarchy:
Top: campaign or location name
Centre: main image or announcement
Lower area: date, direction or call to action
Content should remain simple enough to understand at a distance. A larger screen is an opportunity to enlarge the message, not to add more paragraphs.
Touch Options Require a Defined Use Case
The product description mentions mesh-metal touch and G+G capacitive-touch options. Touch should only be added where people can approach the unit safely and where the content provides a useful interaction.
A screen used primarily for long-distance advertising may not need touch. Interactive public information may justify it, provided the interface, viewing height and accessibility requirements are designed properly.
The final quotation should identify the selected touch technology rather than listing several alternatives as though all are included.

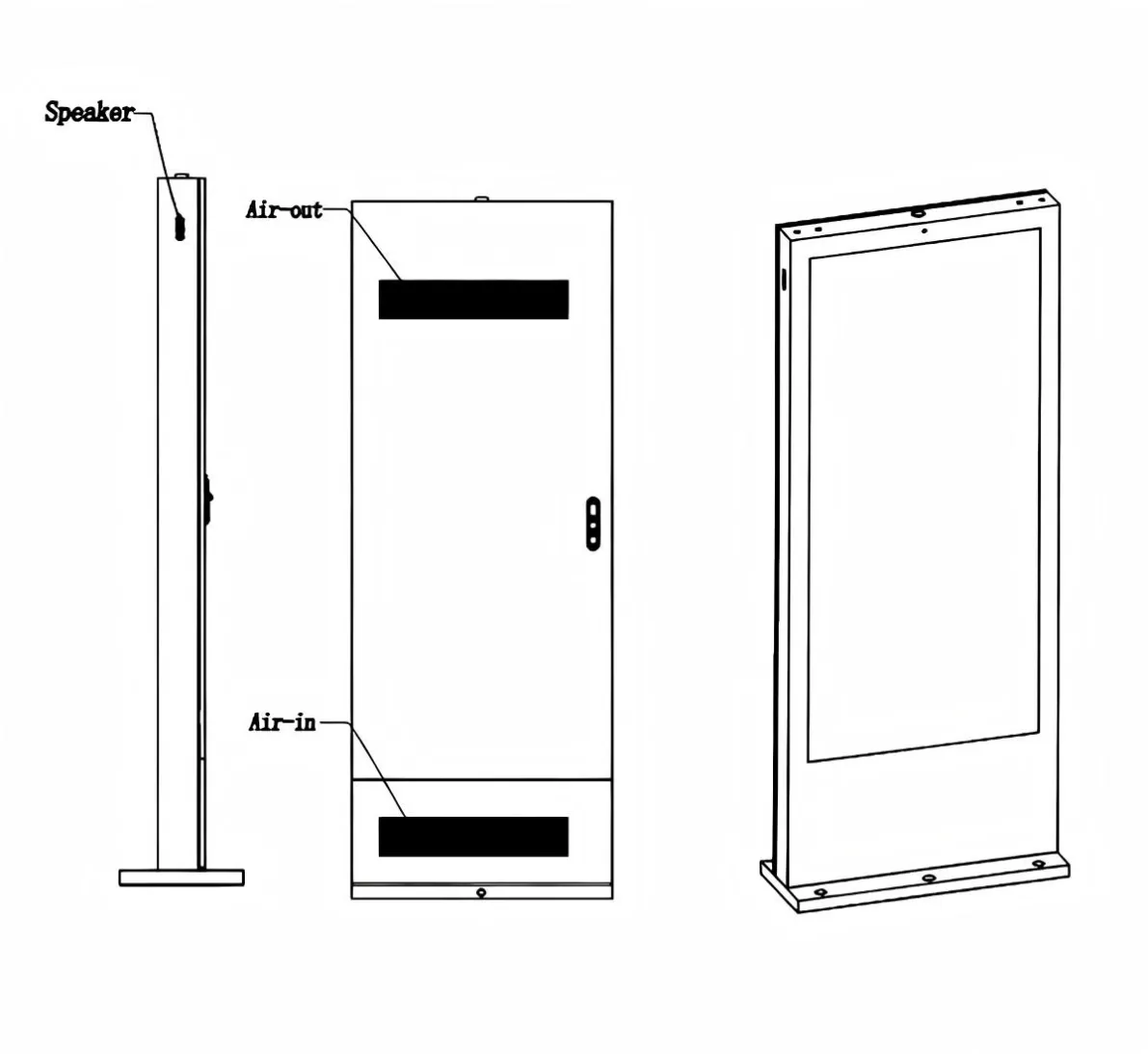

Fan Cooling and Maintenance Access
The backend classifies this 85 Inch Floor Standing Outdoor Digital Signage as a built-in fan version. A high-brightness large-format panel creates a significant thermal load, so the site environment should be reviewed carefully.
Maintenance staff need space to:
- Unlock and open the service area
- Inspect fan operation
- Clean airflow paths
- Check temperature-sensor readings
- Service the media player
- Examine power and network connections
- Inspect cabinet seals
The cabinet should not be positioned so close to a wall or planter that the service door cannot open fully.
