Built-in Fan Version
75 Inch Outdoor LCD Display with 2500 Nits IP65 Floor Standing Design for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP750BL
75 Inch Outdoor LCD Display with 2500 Nits IP65 Floor Standing Design for Public Information
75 Inch Floor Standing Outdoor LCD Display for Public Information
The product image shows a tall, enclosed outdoor cabinet with a dark front face and a visibly wider lower section. Rather than looking like a thin indoor screen placed on a stand, the unit presents the heavier proportions expected from a self-contained outdoor display.
This 75 Inch Floor Standing Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. Its large portrait screen is intended for information that needs to remain recognizable in outdoor public areas.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |
Mechanical Para. | Machine seize H*W*D( mm) | 2300*1090*170 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1320*2450*520 | |
Gross weight(Kg) | 230 | |
A Cabinet Designed to Stand Independently
The enclosed floor-standing body allows the display to be positioned away from an existing wall. This is useful at outdoor civic plazas, campus entrances, transport approaches, public-service areas and visitor destinations.

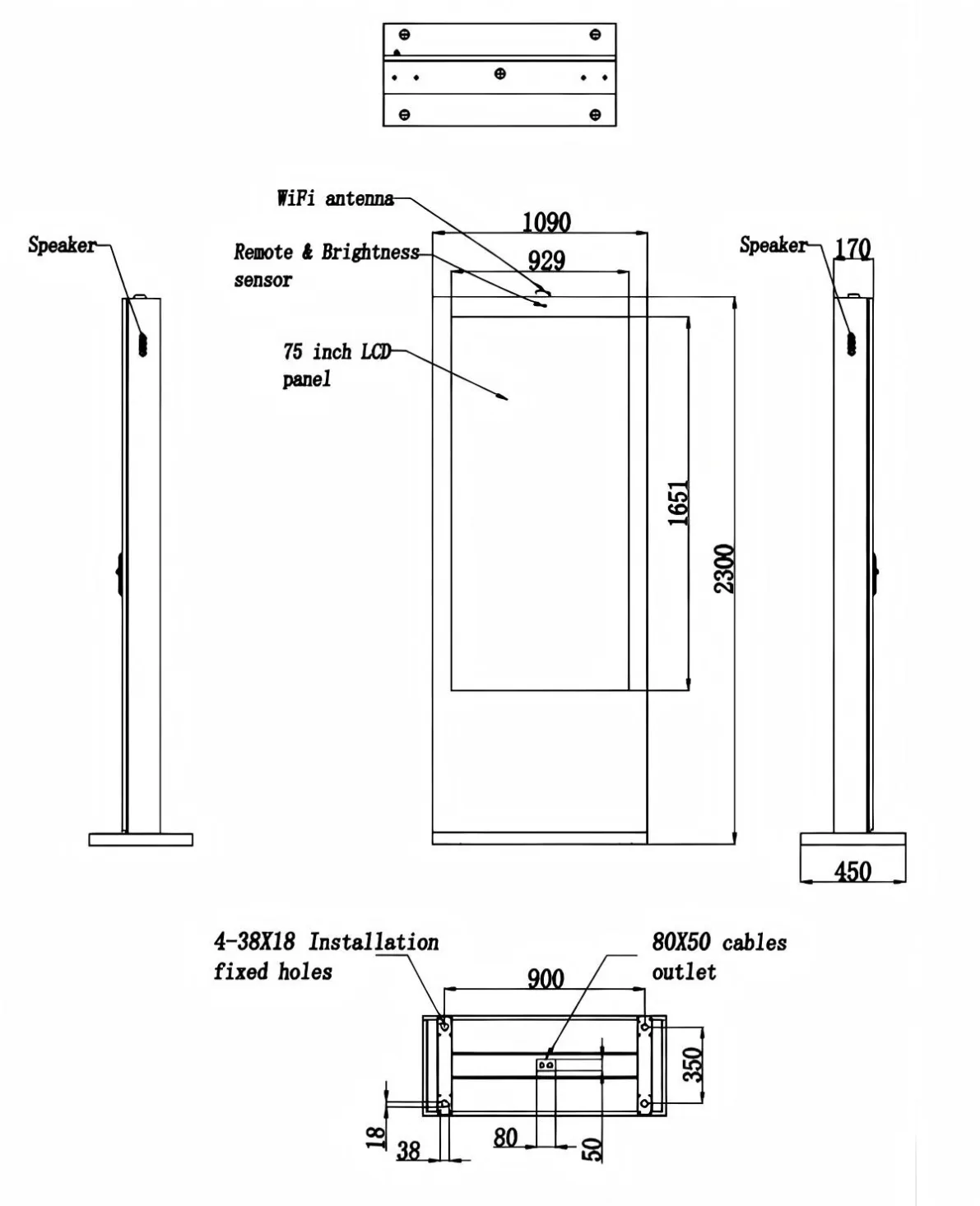

The wider lower cabinet shown in the product image provides a visually stable base. The exact foundation footprint and anchoring points must still be taken from the technical drawing rather than estimated from the picture.
Because the cabinet is tall, the installation team should review wind exposure, pedestrian clearance and the risk of accidental impact.
Content That Benefits From a 75-Inch Screen
Public information should remain readable while people are approaching the display. The large screen can accommodate a map, directional information or a major public notice without reducing text to an impractical size.
Useful outdoor content includes:
- Site maps and entrance directions
- Public-service announcements
- Outdoor event schedules
- Transport connections
- Emergency guidance
- Tourism information
- Location-specific advertising
The display should not reproduce a complete printed document. One clear subject per screen normally produces better results.
Outdoor Brightness and Protection
The 2500-nit brightness specification supports use in high ambient light. Screen direction, direct sun and reflective paving should still be assessed at the proposed site.
IP65 protection helps prevent dust ingress and protects against water jets when the enclosure is installed correctly. Cable connections and foundation openings must remain sealed.
Built-in fan cooling manages heat from the large high-brightness panel. Ventilation areas should not be blocked by landscaping or decorative structures.
Appearance and Project Integration
The dark front shown in the image can help the screen content remain visually dominant. Final cabinet color, surface coating and branding treatment should be confirmed before production.
For projects that need a substantial outdoor information point, the 75 Inch Floor Standing Outdoor LCD Display combines a large portrait screen with the enclosed cabinet form necessary for a permanent freestanding installation.
