Built-in Fan Version
75 Inch Outdoor Advertising Kiosk with 2500 Nits IP65 Floor Standing Design for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP750DP
75 Inch Floor Standing Outdoor Advertising Kiosk for EV Charging Sites

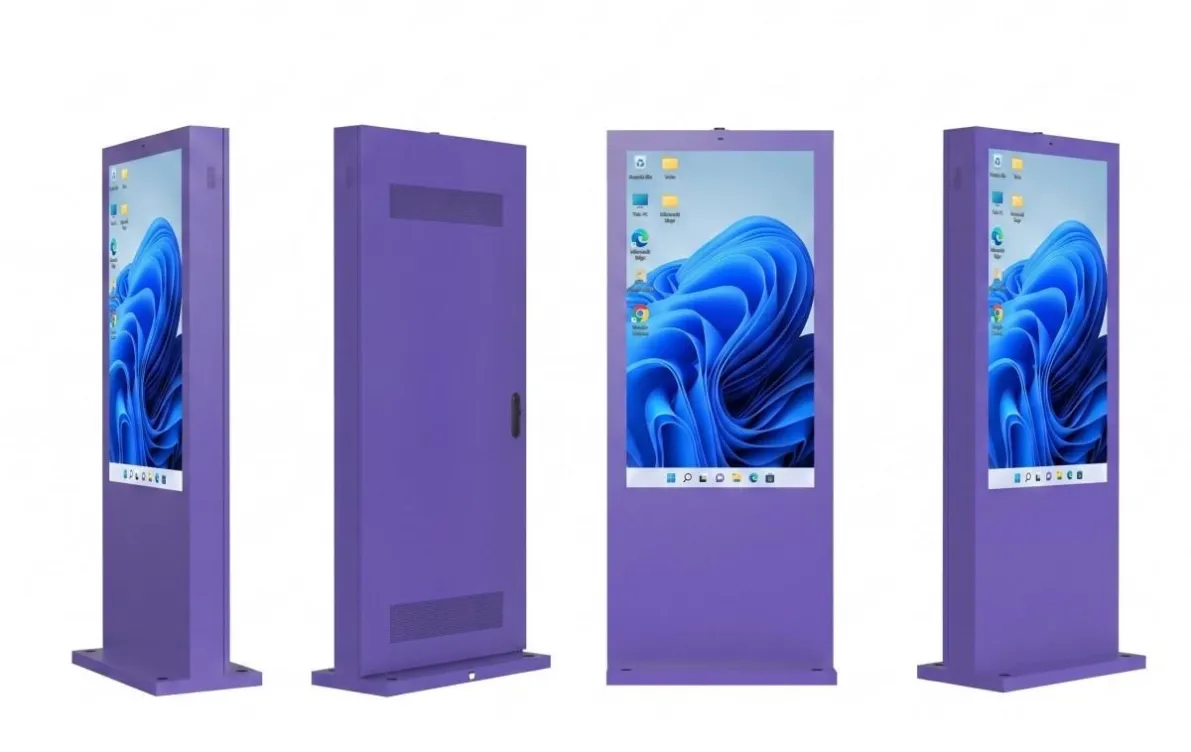

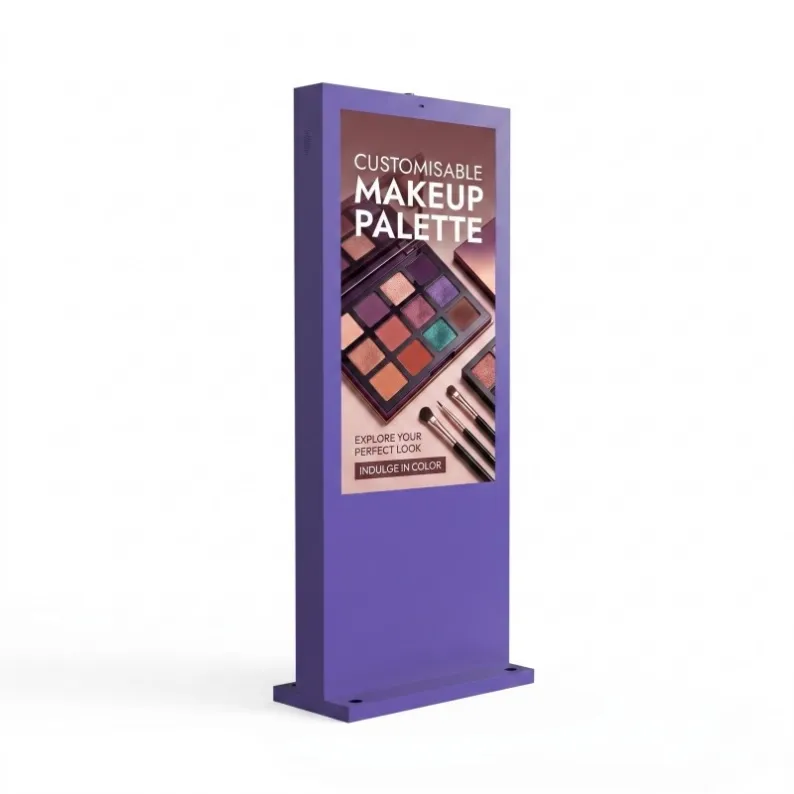

The product image shows a tall portrait screen rising from a purple-toned lower cabinet. The contrasting base gives the unit a stronger visual identity than an all-black outdoor display and makes it easier to recognize across a charging area.
This 75 Inch Floor Standing Outdoor Advertising Kiosk is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

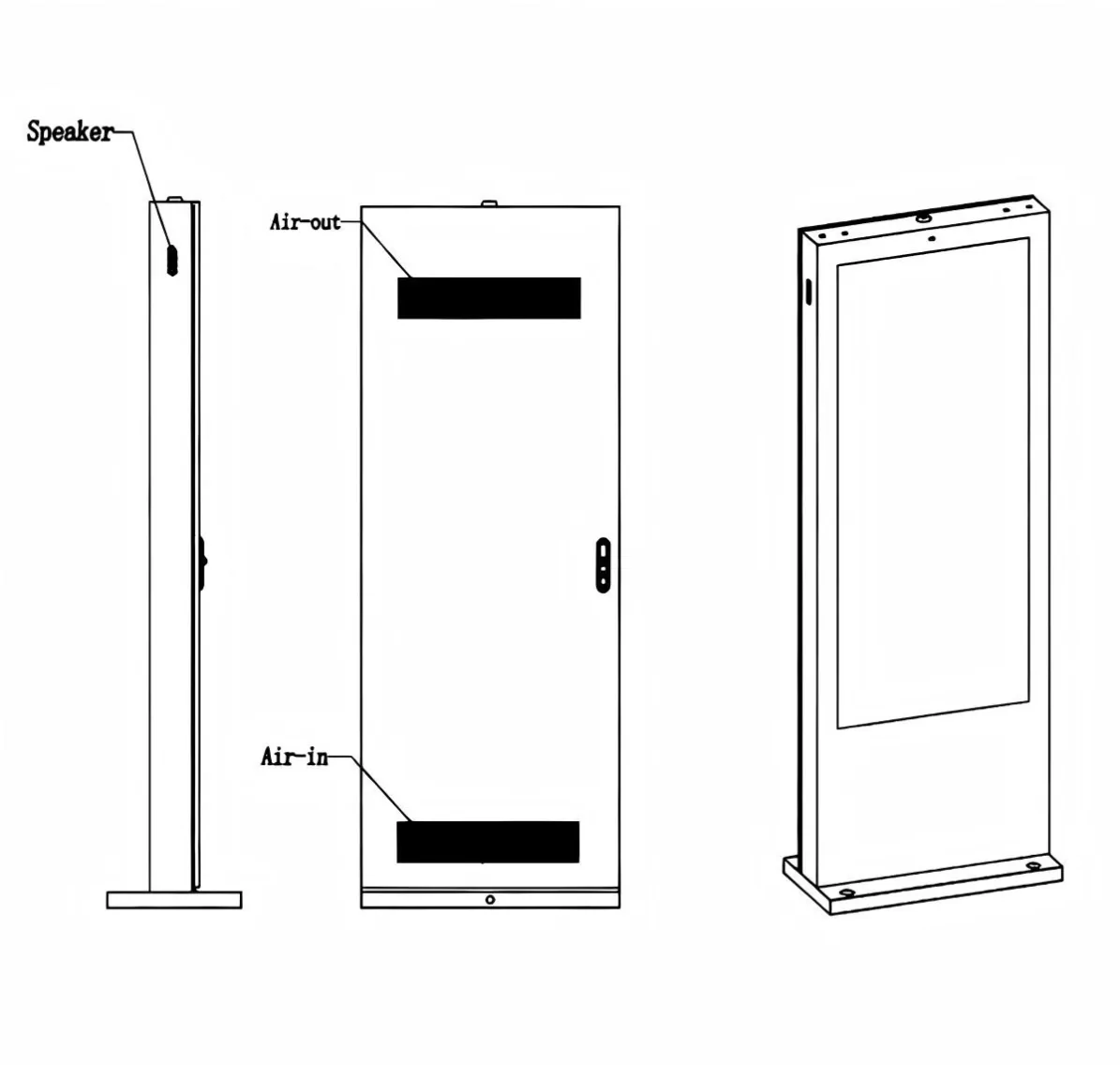

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

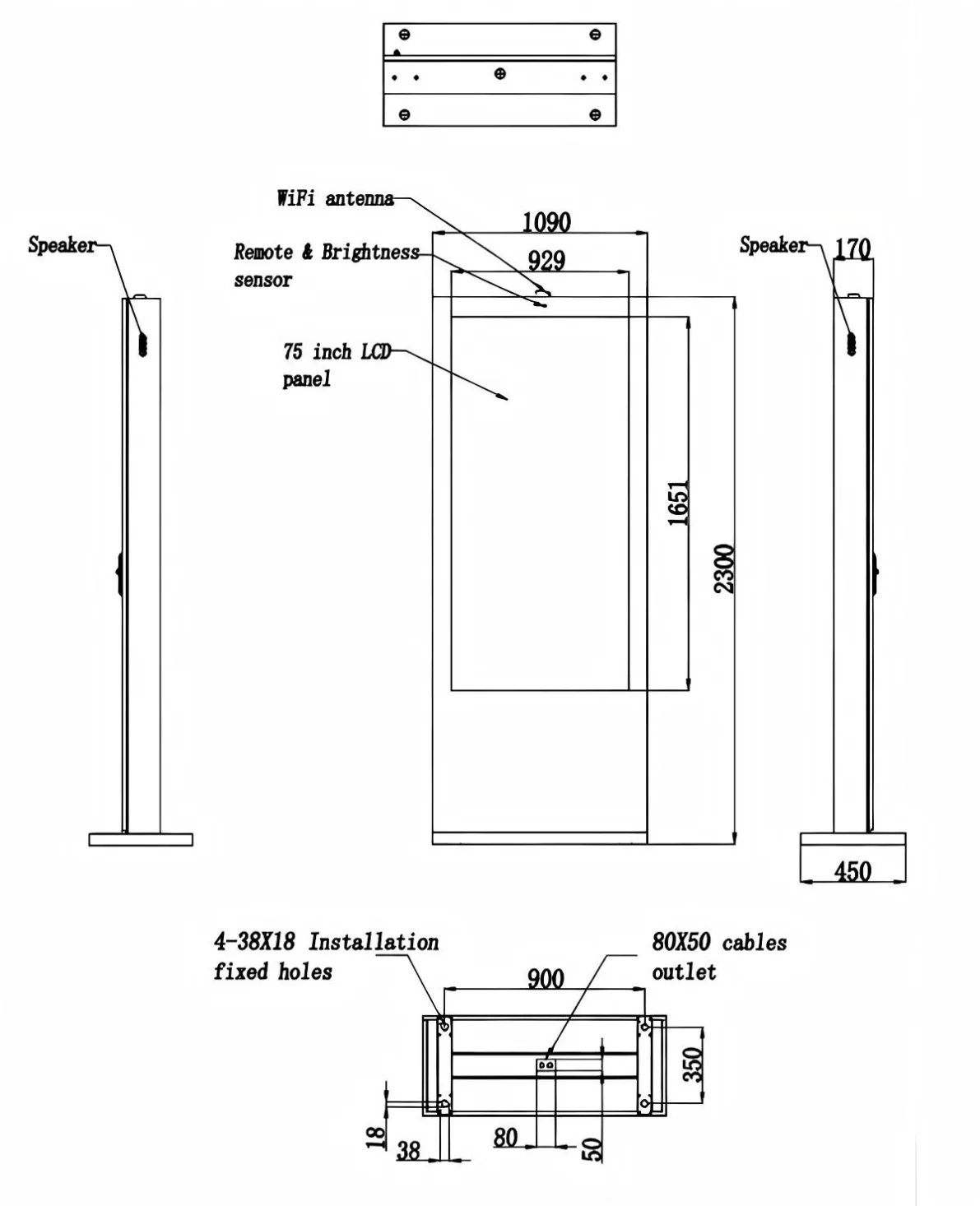

Mechanical Para. | Machine seize H*W*D( mm) | 2300*1090*170 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1320*2450*520 | |
Gross weight(Kg) | 230 | |
Using Charging Time Without Blocking the Charger
Drivers may remain at an EV site long enough to notice information about nearby restaurants, stores or roadside services. The kiosk can provide this content independently of the charger’s smaller control interface.
Possible material includes:
- Directions to outdoor facilities
- Charging-site safety information
- Customer-support details
- Nearby retail and food promotions
- Local travel information
- Brand advertising
Live charging status requires separate data and software integration.
A Large Screen With a Visible Base
The 75-inch portrait format is suited to full-height images and messages read from a vehicle or nearby pedestrian area. The purple base shown in the product image may support site branding, but final color and coating must be confirmed.
Its floor-standing form requires a prepared foundation. The cabinet must not interfere with accessible bays, charging cables or vehicle movement.
Outdoor Operation
The 2500-nit panel supports daylight visibility. Screen direction should account for afternoon sun and vehicle headlights.
IP65 protection helps defend against dust and water jets when the cabinet is installed correctly. Built-in fan cooling requires clear air paths and scheduled inspection.
The 75 Inch Floor Standing Outdoor Advertising Kiosk is appropriate for outdoor charging developments that need a separate, highly visible media position rather than trying to place advertising on the charger itself.
