Built-in Fan Version
75 Inch 2500Nits Outside Waterproof Lcd Player Digital Signage Outdoor Totem
Temperature Control System:Precise air conditioner Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass Installation:Floor standing or customized
Specifications
- SKU
- ZXTLCD-OUTFVP750MG
75 Inch 2500 Nits Outdoor Digital Signage for Messages That Must Be Seen
A large outdoor totem is most useful when the viewing area is too open for a compact screen. This 75 Inch 2500 Nits Outdoor Digital Signage combines a tall portrait format with daylight-readable output for advertising and public communication in exterior commercial environments.

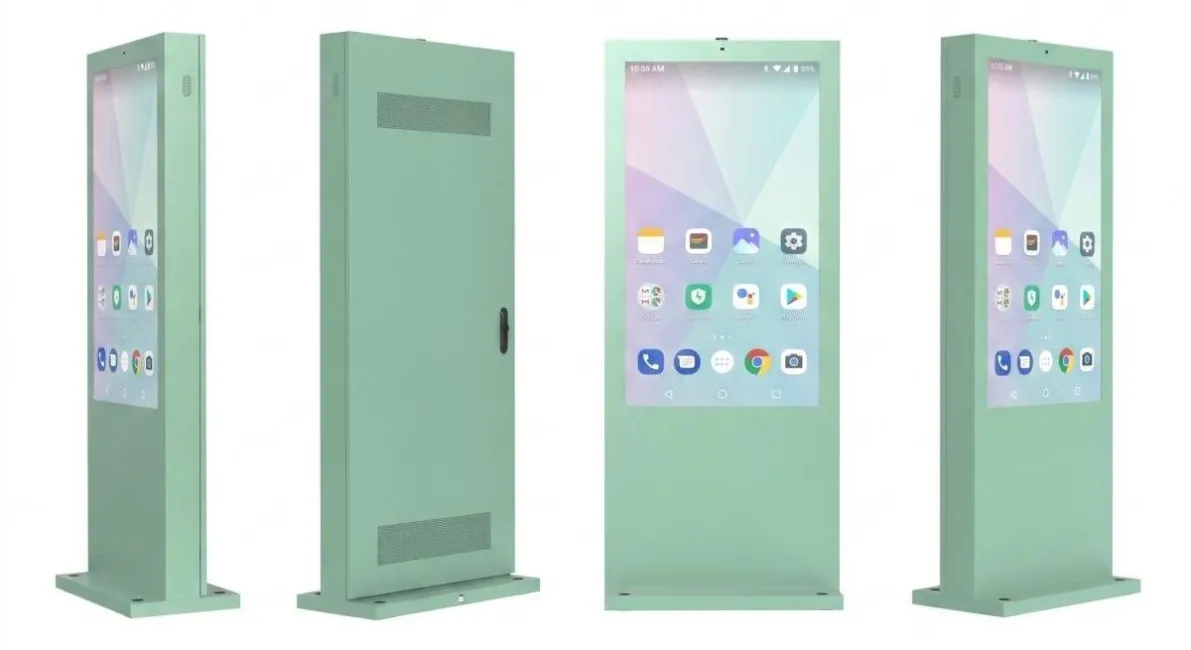

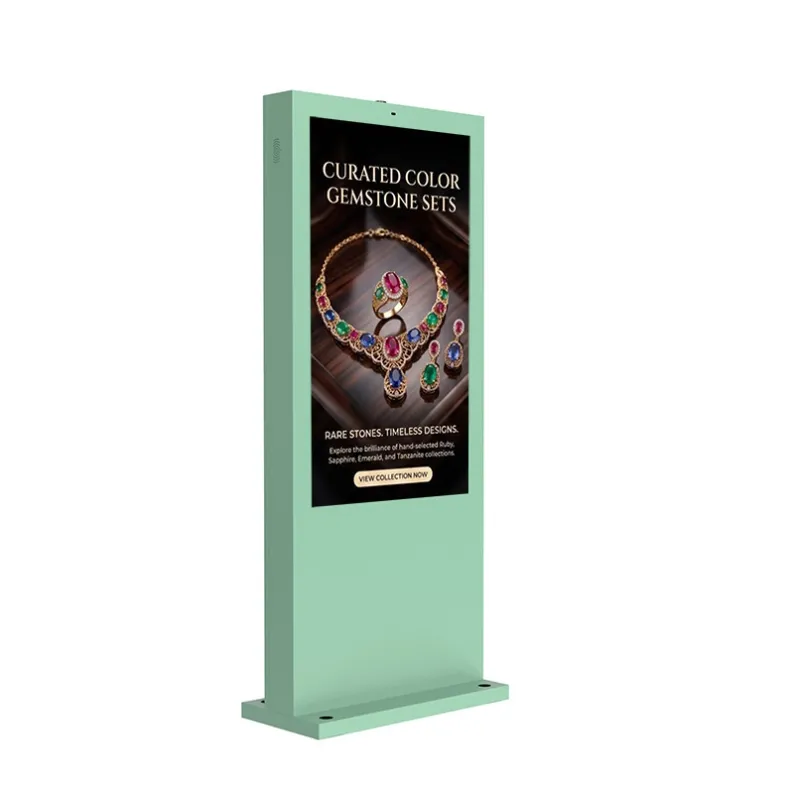

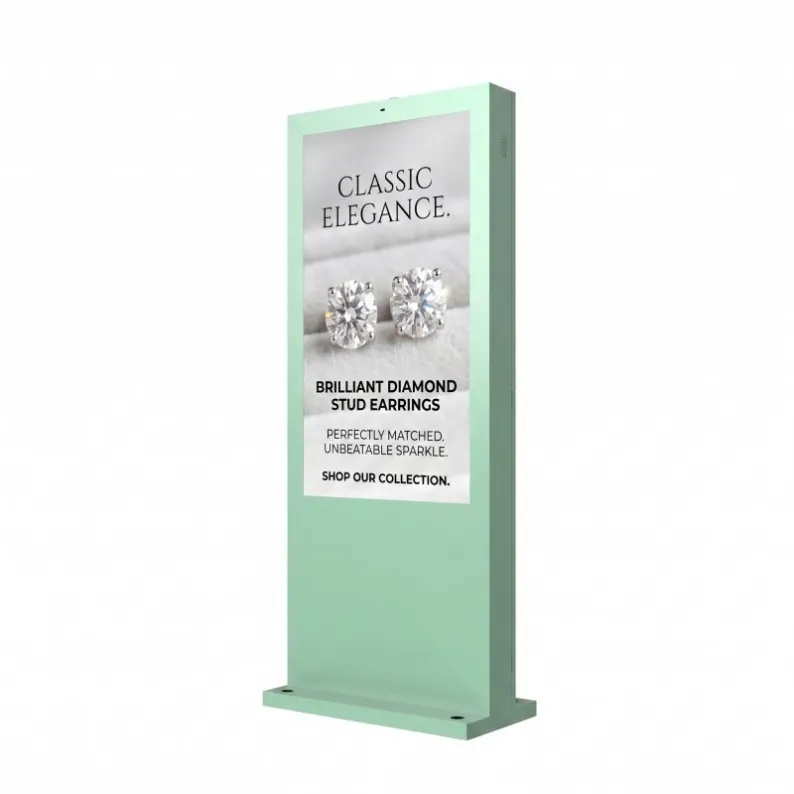

The product image shows a substantial green lower enclosure with a vertically oriented display. Its cabinet has greater visual weight than the 43- and 65-inch models, making it suitable for permanent positions in plazas, transport approaches and open-air retail areas.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

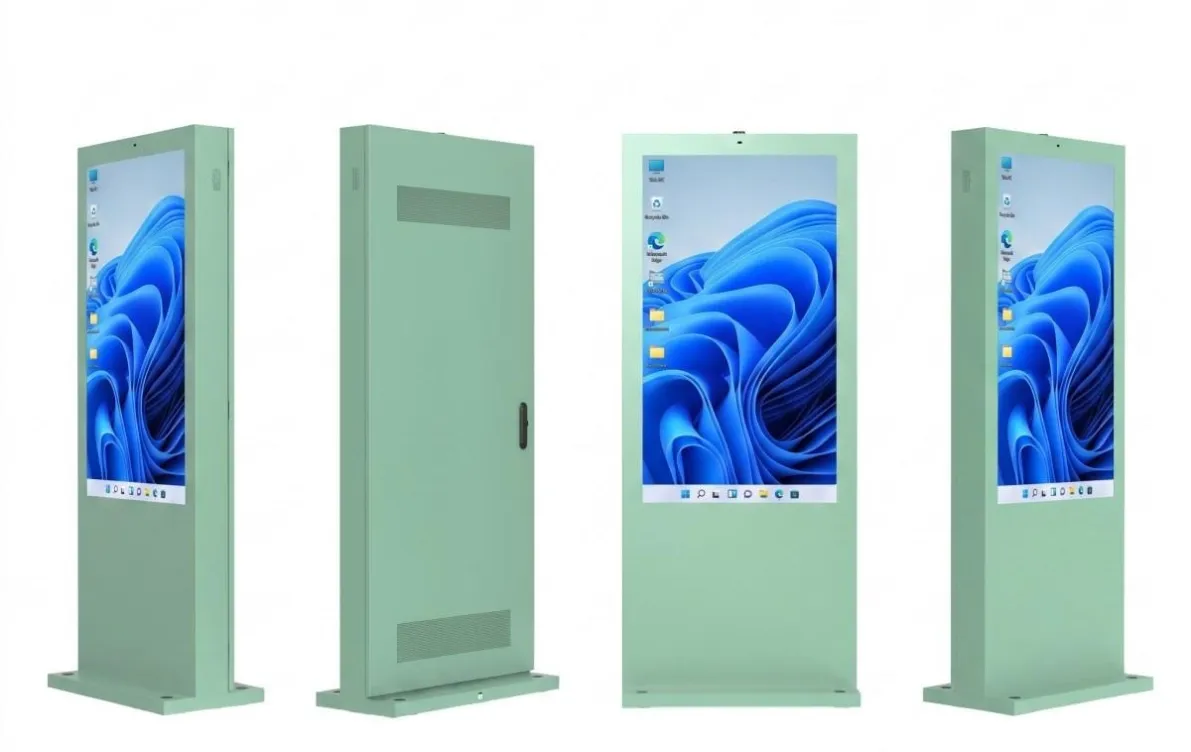

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

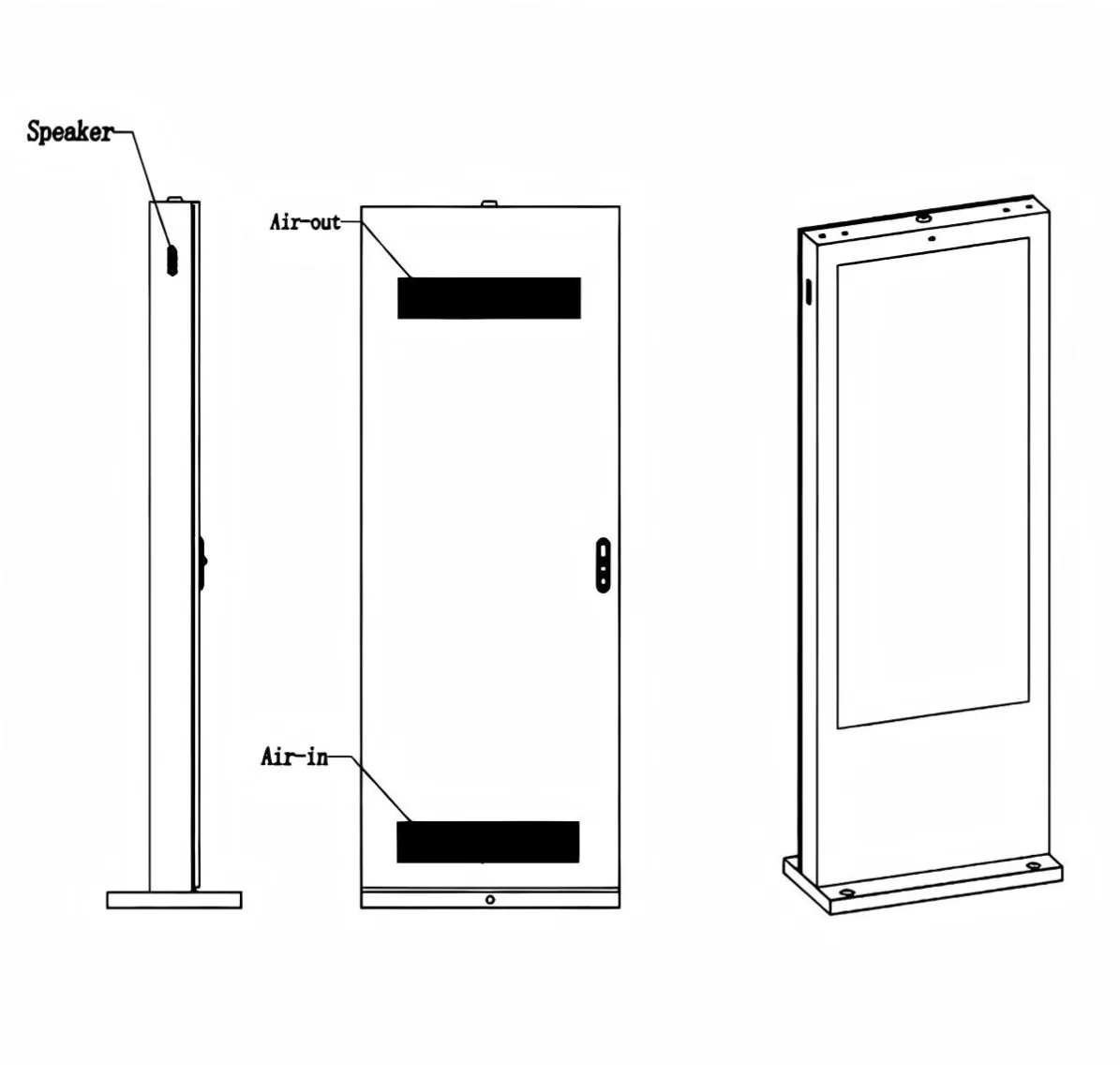

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

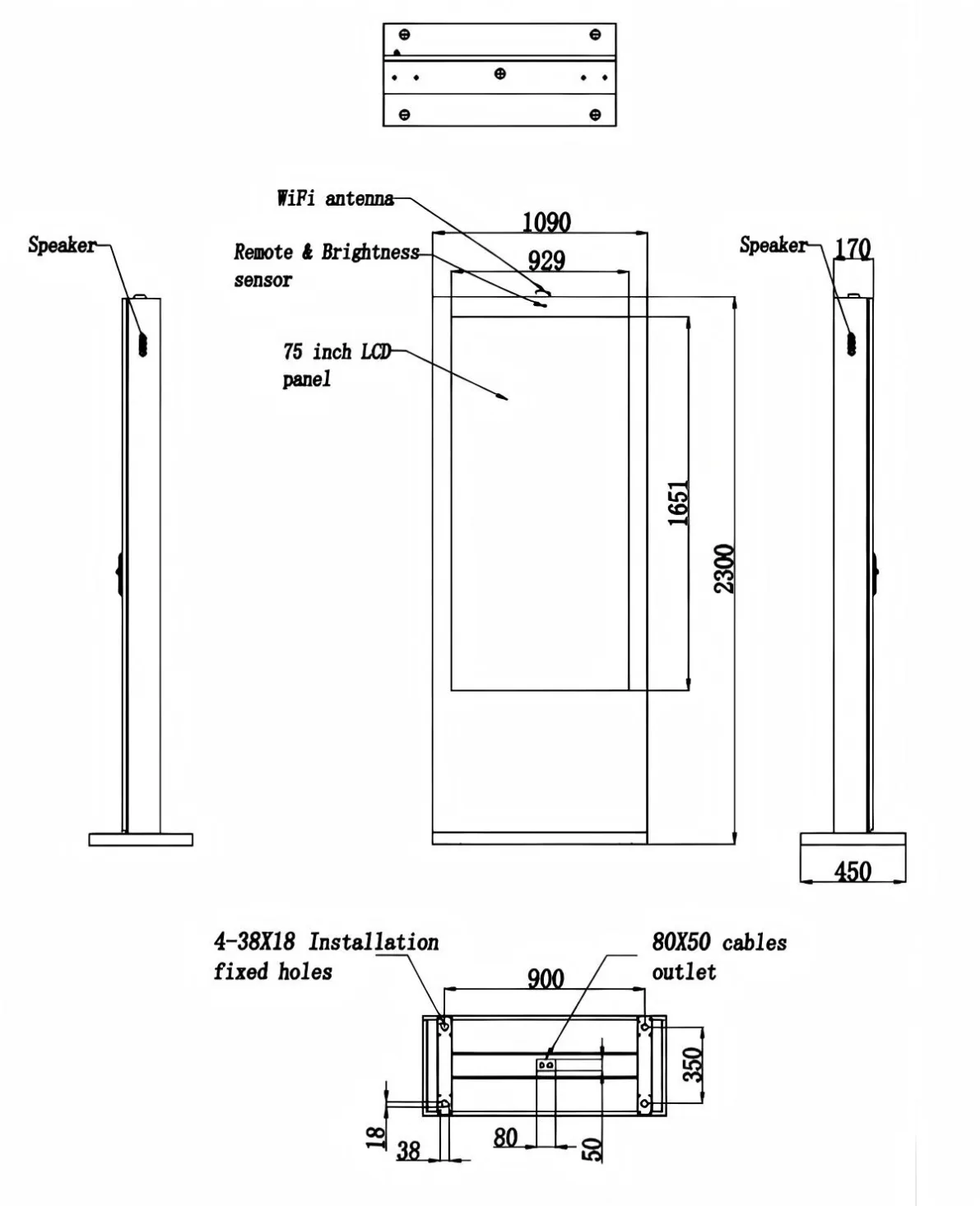

Mechanical Para. | Machine seize H*W*D( mm) | 2300*1090*170 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1320*2450*520 | |
Gross weight(Kg) | 230 | |
The Question Is Not “Can It Show More?”
A 75-inch screen provides more area, but that space should improve viewing distance rather than encourage smaller text.
The strongest outdoor creative often contains:
- One campaign image
- One short headline
- One date or price
- One location
- One clear action
A large display filled with many small product images becomes difficult to understand from across a pedestrian space.
The 75 Inch 2500 Nits Outdoor Digital Signage should communicate its main message before the viewer reaches the cabinet.
Application Areas
This format can support:
- Open-air shopping centres
- Exterior retail entrances
- Transport forecourts
- EV charging hubs
- Civic plazas
- Outdoor event grounds
- Large commercial campuses
- Public-information points
The final site must provide safe pedestrian clearance and a foundation suited to the enclosure load and local wind conditions.
Why 2500 Nits Matters
High ambient light reduces the apparent contrast of ordinary LCD screens. The specified 2500-nit panel provides stronger luminance for daytime outdoor viewing.
The result still depends on screen direction, reflections and content design. A site review should identify direct sunlight during morning and afternoon operation.
Automatic brightness control can reduce output after sunset. This makes the screen more comfortable near roads, dining areas and neighbouring properties.
Front Protection and Visual Clarity
The available product information refers to toughened glass or high-transparency acrylic and 6 mm anti-reflection safety glass. The final quotation should identify which front-panel construction is included.
Front protection has several roles:
- Protecting the display surface
- Supporting outdoor enclosure integrity
- Reducing accidental impact risk
- Maintaining visual clarity
- Providing a cleanable exterior surface
Anti-reflection treatment can improve visibility, but correct screen placement remains important.
Resolving the Cooling-System Conflict
The backend category identifies this model as Built-in Fan Version. The product description shown in the CMS currently includes “Precise air conditioner,” which conflicts with that category.
For this article, the 75 Inch 2500 Nits Outdoor Digital Signage is treated as a fan-cooled model. Before publishing, update the description and specification table so they do not present two different cooling systems.
The fan configuration requires unobstructed airflow and periodic inspection. A large high-brightness screen can generate considerable heat, so the manufacturer should review expected ambient temperature, sunlight exposure and operating hours.
