Built-in Fan Version
75 Inch 2500 Nits IP65 Weatherproof Digital Signage Floor Standing Fan Cooling for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP750BR
75 Inch 2500 Nits IP65 Weatherproof Digital Signage Floor Standing Fan Cooling for Drive Thru Menus
75 Inch Floor Standing Weatherproof Digital Signage for Outdoor Drive-Thru Menus
A drive-thru menu is usually viewed from inside a vehicle, often through a windshield and under changing daylight conditions. The customer cannot move closer to inspect small text, so screen size, placement and menu structure all influence how quickly an order can be understood.
This 75 Inch Floor Standing Weatherproof Digital Signage unit provides a large outdoor display surface for restaurant menus and promotional content. The product is specified with 2500-nit brightness, IP65 protection and a built-in fan cooling system.
Its floor-standing construction allows the display to be positioned beside an outdoor ordering lane without depending on a building wall.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

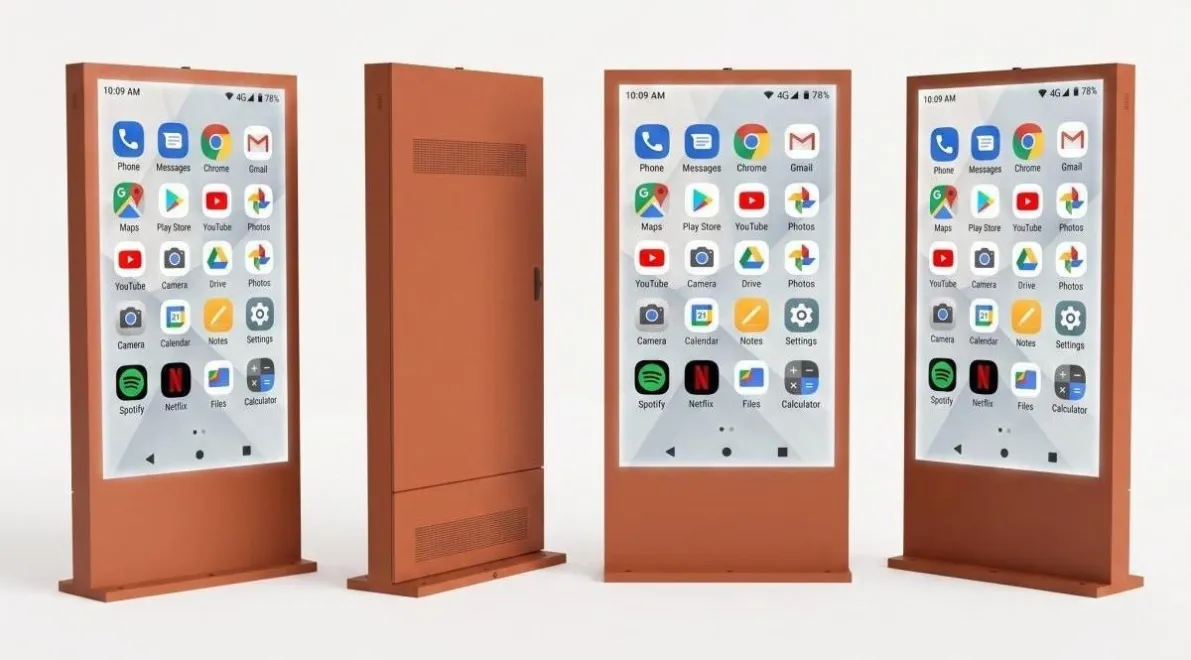

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

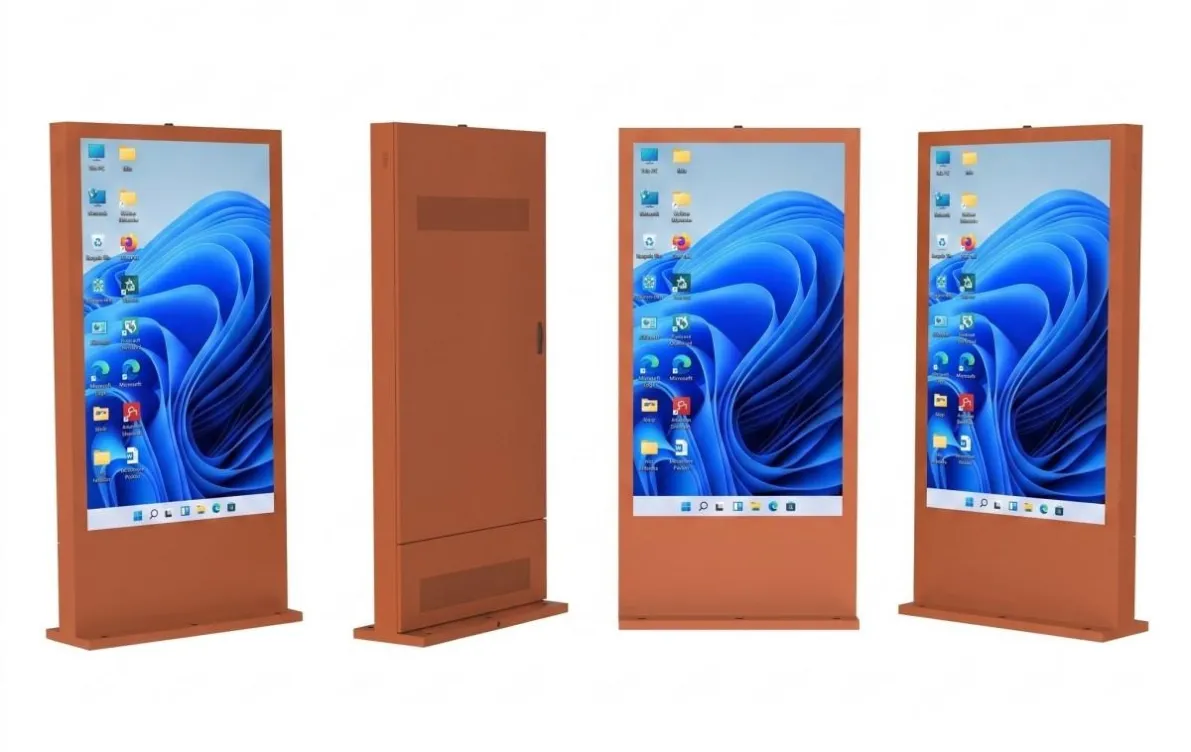

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

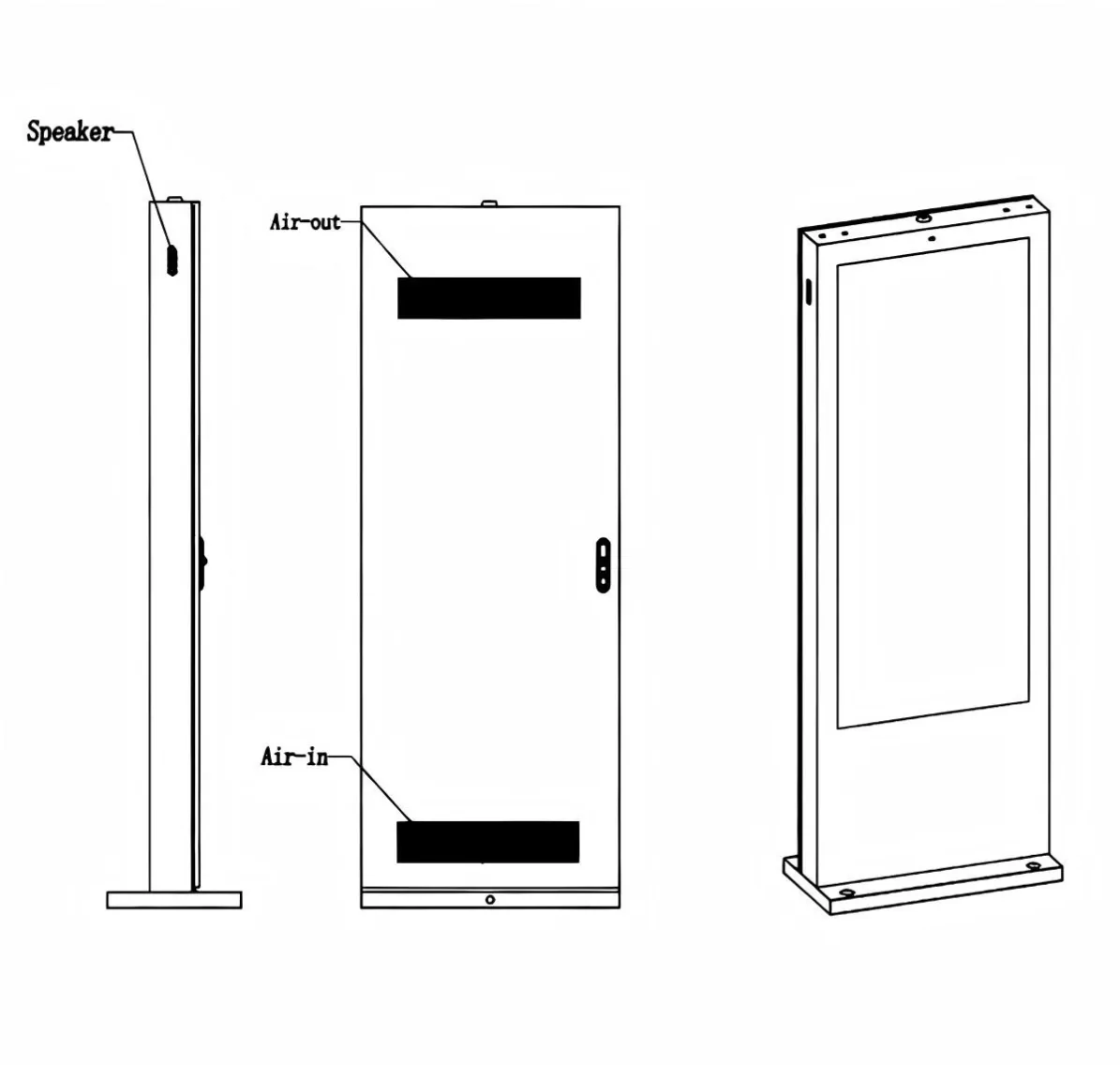

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

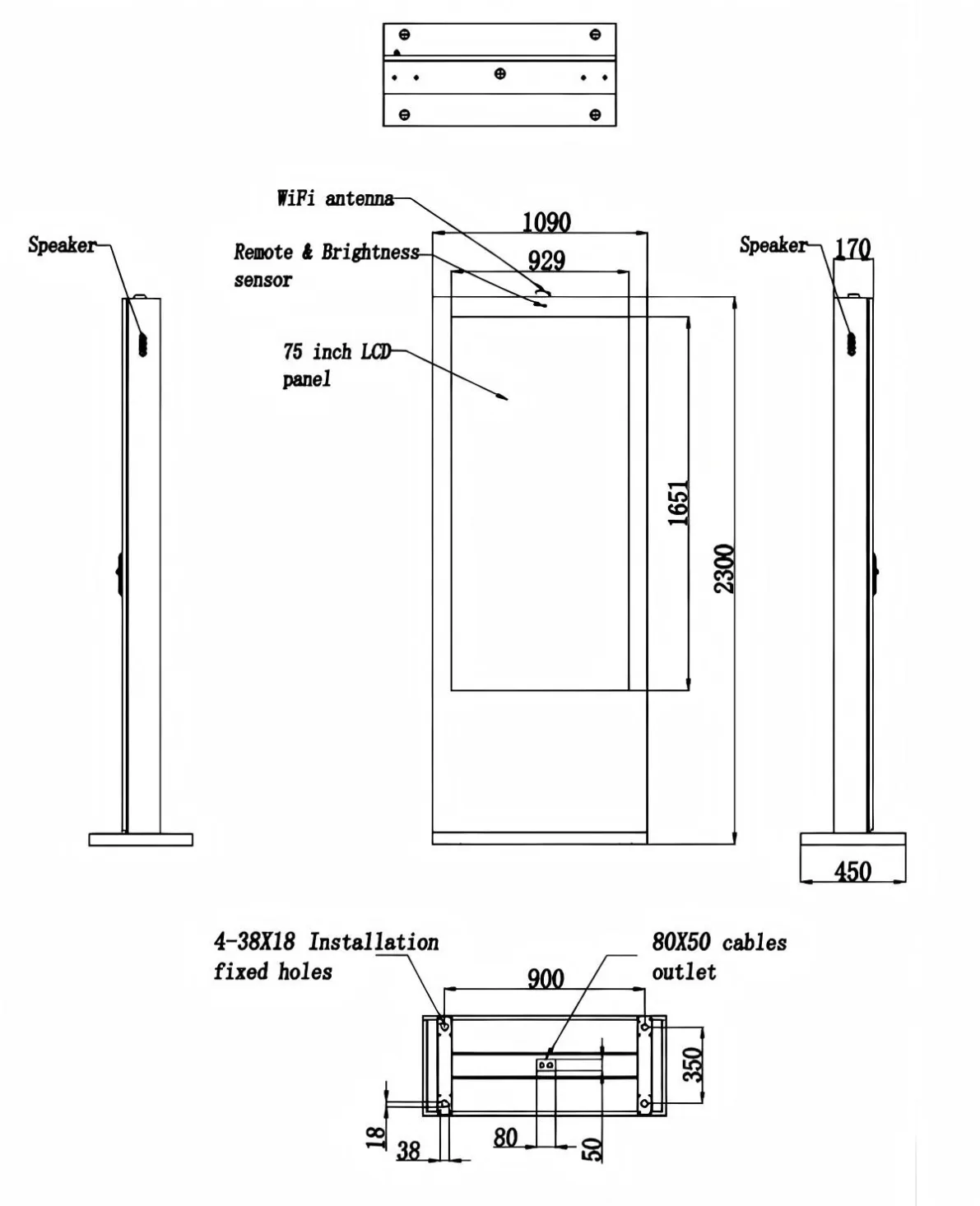

Mechanical Para. | Machine seize H*W*D( mm) | 2300*1090*170 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1320*2450*520 | |
Gross weight(Kg) | 230 | |
Why a 75-Inch Screen Fits Multi-Item Menus
A 75-inch display provides more working area than a 55- or 65-inch outdoor menu screen. That additional space can be useful for restaurants with several product categories, meal combinations or frequently changing promotions.
The larger screen should not become an excuse to add excessive text. Customers still have limited time to read the menu before placing an order.
A practical outdoor drive-thru layout may include:
- Main food or service categories
- Popular meal combinations
- Clearly visible prices
- Large product photography
- One limited-time promotion
- Short availability notices
Nutritional or detailed product information can be provided through another channel rather than reducing the size of the main ordering content.
Designing for Vehicle Viewing Distance
The menu should be tested from the actual vehicle stopping position. A design that looks clear from one meter away may be difficult to read from several meters through a windshield.
Text size, price contrast and image placement should be established after the lane layout is known. The screen should also face the driver’s natural viewing direction so customers do not need to turn sharply away from the ordering route.
If several displays are installed along the lane, each screen should have a defined purpose. One may introduce featured products, while another presents the complete ordering menu.
2500-Nit Brightness for Outdoor Daylight
The panel is listed at 2500 nits, making it more suitable for high-ambient-light conditions than a conventional indoor commercial display.
Direct sunlight, reflections and screen orientation still affect visibility. The proposed position should be inspected during both morning and afternoon operating periods. Seasonal changes in sunlight may also need consideration.
Content should use strong contrast and avoid dark product images with fine details. Outdoor creative material normally requires brighter photography and larger lettering than indoor menu graphics.
Updating Outdoor Menu Content
When connected to an appropriate media player, the 75 Inch Floor Standing Weatherproof Digital Signage display can support scheduled breakfast, lunch and evening menus.
Remote content management, automatic scheduling and POS data integration depend on the selected hardware and software configuration. These functions should be confirmed separately rather than assumed from the display specification.
FAQ
Is a 75-inch display suitable for a single drive-thru menu position?
Yes, when the viewing distance and menu volume justify the larger screen. The actual suitability depends on lane width, stopping position and content design.
Can this model remain outside in rainy weather?
The cabinet is listed as IP65, providing protection against dust and water jets. Proper sealing, drainage and electrical installation are still required.
Does 2500-nit brightness guarantee visibility in direct sunlight?
It provides strong outdoor brightness, but screen angle, reflections, sunlight direction and content contrast continue to affect readability.
Can the screen automatically display different menus by time of day?
This requires a compatible media player or content-management system with scheduling capability. The software configuration should be confirmed when ordering.
For outdoor restaurants that need more menu space and longer-distance visibility, the 75 Inch Floor Standing Weatherproof Digital Signage model combines large-format presentation with a high-brightness panel, weather-resistant enclosure and fan-assisted thermal management.
