Built-in Fan Version
65 Inch Weatherproof Digital Signage for Outdoor Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP650P-B
High Brightness Weatherproof Digital Signage 65 Inch Floor Standing for Mall Promotions
65 Inch Weatherproof Digital Signage for Outdoor Shopping Areas

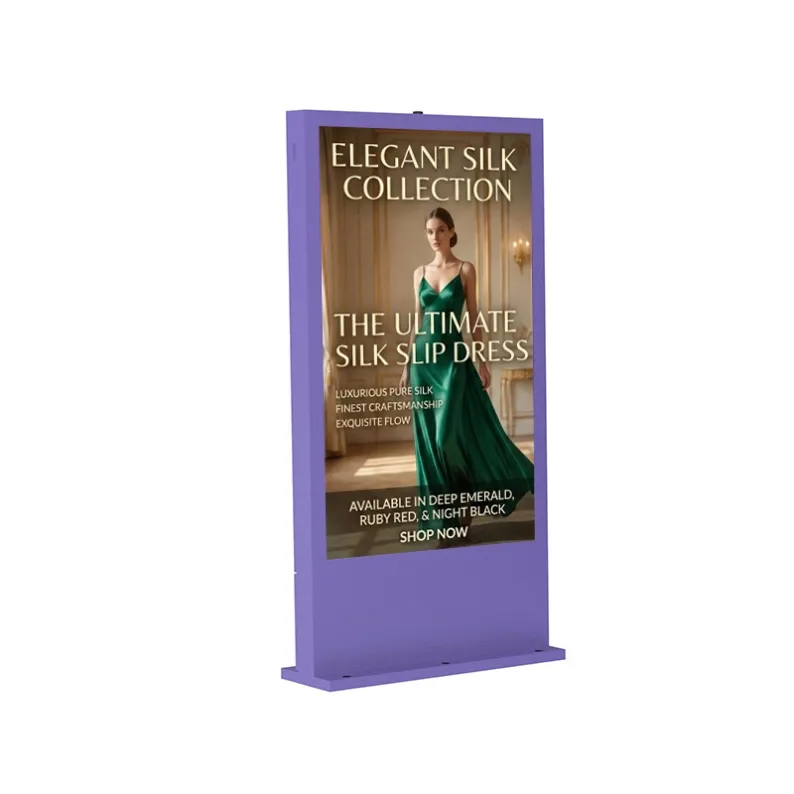

The product image stands apart from conventional black outdoor kiosks. It shows a tall purple-toned enclosure with a slightly angled side profile and an integrated floor-standing body.
This visible shape gives the product a stronger architectural presence. The 65 Inch Weatherproof Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling for outdoor operation.
65 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |
Mechanical Para. | Machine seize H*W*D( mm) | 2100*960*150 |
Net weight(Kg) | 120 | |
Package size H*W*D( mm) | 1190*2250*470 | |
Gross weight(Kg) | 170 | |
An Enclosure That Can Become Part of the Campaign
At an open-air shopping center, the cabinet itself is visible even when the screen content changes. A distinctive enclosure can support a branded outdoor environment, seasonal installation or location-specific design scheme.
The purple finish shown in the product image should be treated as the appearance of the displayed sample, not an automatic color guarantee. Buyers requiring a specific RAL color or branded finish should confirm the coating process and available options.
The slightly deeper side profile also means installation space should be checked using technical dimensions rather than the screen size alone.
Appropriate Outdoor Locations
This display may be considered for:
- Exterior mall entrances
- Open-air retail streets
- Outdoor restaurant zones
- Shopping-center forecourts
- Pedestrian pickup areas
- Outdoor event spaces connected to retail developments
It should not be described as an indoor mall advertising screen. Its brightness, enclosure and cooling specifications identify it as an outdoor machine.
Content for a 65-Inch Portrait Screen
The screen can present fashion campaigns, restaurant promotions, store openings, event schedules and directions to exterior entrances.
The display will be viewed while visitors are walking, so content should rely on large images and short messages. Detailed product comparisons are better placed on a website or inside the store.
Environmental Performance
A 2500-nit panel supports daylight viewing, although final visibility depends on sunlight direction and reflections.
IP65 protection helps prevent dust ingress and protects against water jets. The integrated fan system manages internal heat, and its air paths should remain unobstructed.
Installation Questions
Before ordering, buyers should request the exact footprint, anchor drawing, weight, service access and electrical requirements. If the enclosure color is important, a production sample or documented finish reference is preferable to relying on an online image.
The 65 Inch Weatherproof Digital Signage model is suited to outdoor shopping projects where both the screen content and cabinet appearance contribute to the surrounding commercial space.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
