Built-in Fan Version
65 Inch Semi-Outdoor Digital Signage for Direct Sunlight-Floor Standing LCD Subways SDK
Frame:Unibody Aluminum Life:60000 Hours Protection Grade:IP65 LOGO:Customerize
Specifications
- SKU
- ZXTLCD-OUTFVP650W
65 Inch Semi-Outdoor Digital Signage for Covered Transit Entrances
Some installation areas are brighter and more demanding than an indoor commercial space but do not experience the full exposure of an open outdoor plaza. A covered subway entrance, sheltered retail arcade or station concourse may receive strong daylight, airborne dust and changing temperatures while remaining protected from direct rainfall. This is the intended position of the 65 Inch Semi-Outdoor Digital Signage.

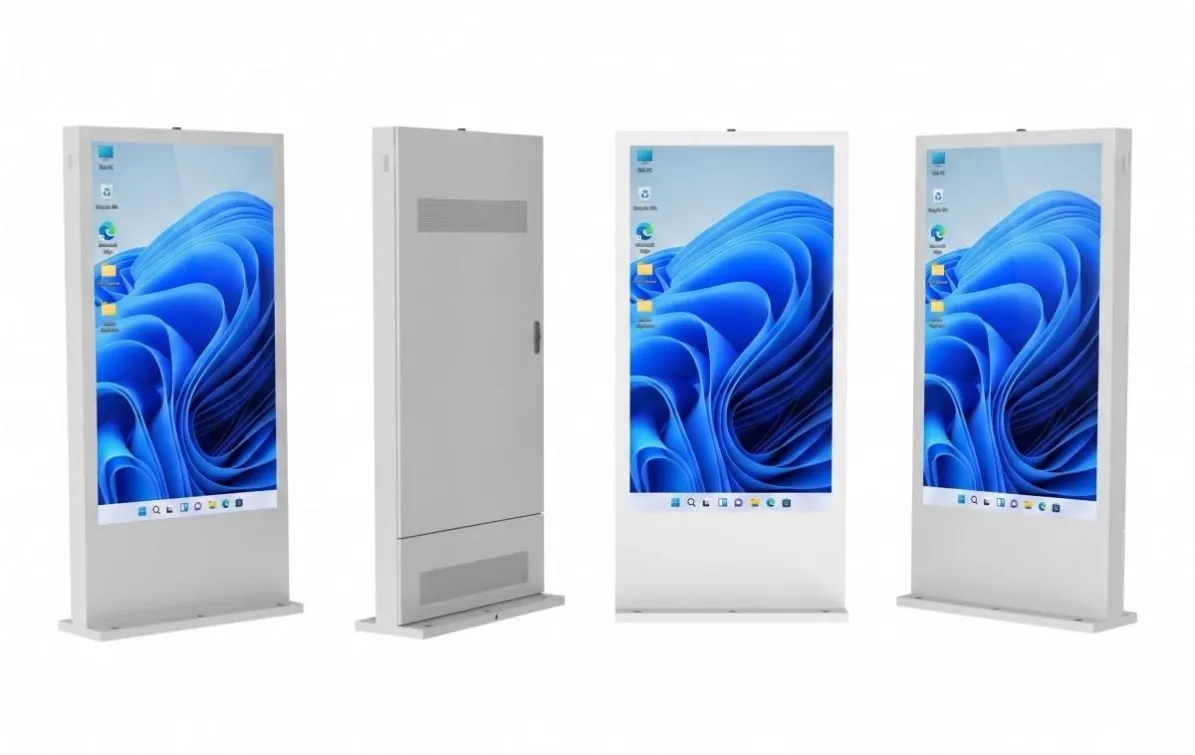

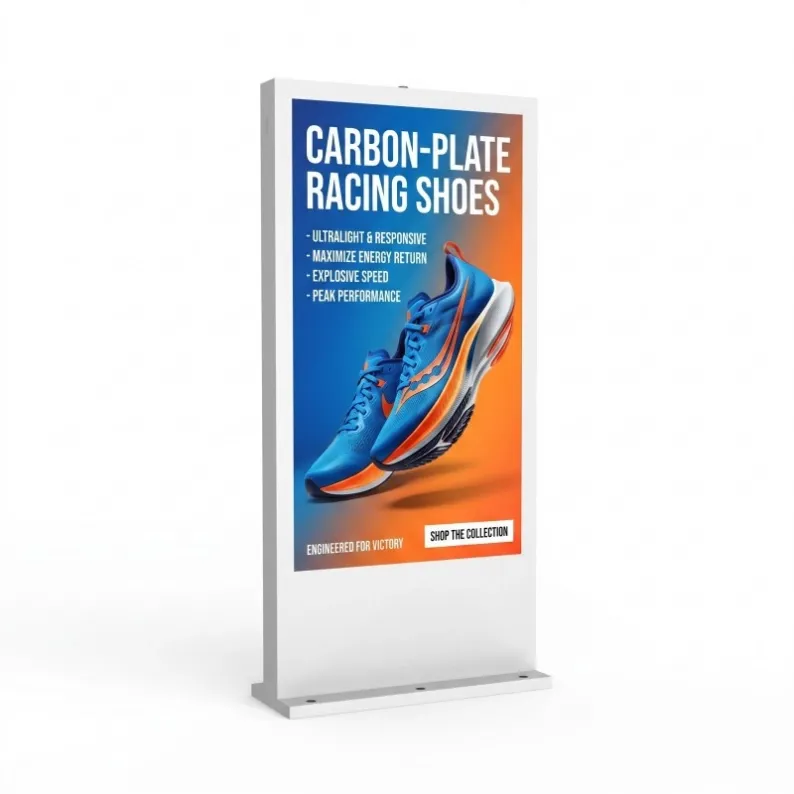

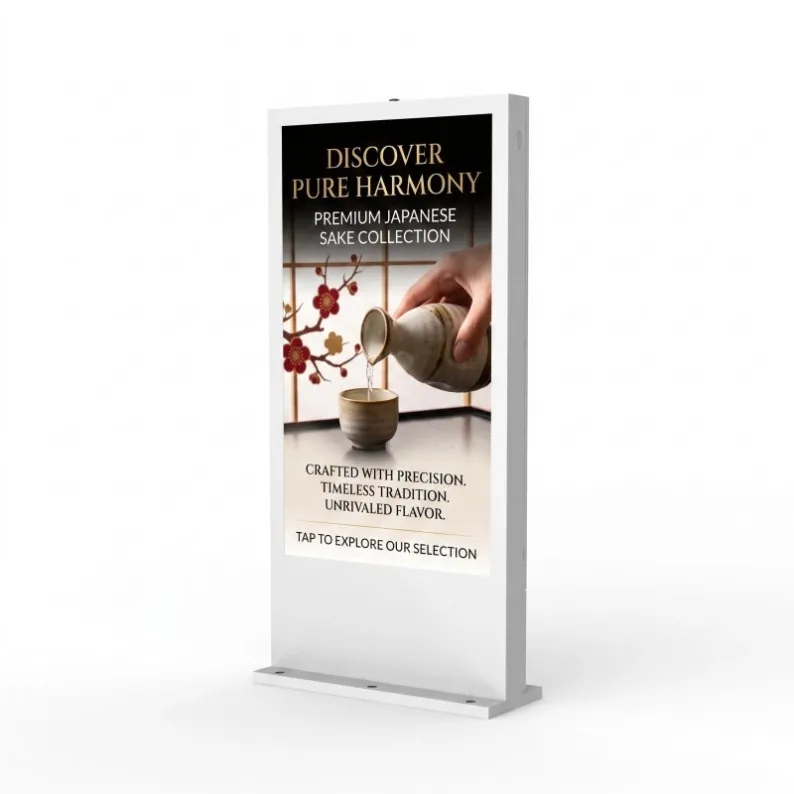

The product image shows a tall portrait screen in a light-coloured floor-standing cabinet. Its pale exterior gives the unit a restrained architectural appearance that can fit around station entrances, public-building approaches and semi-open commercial spaces.
65 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

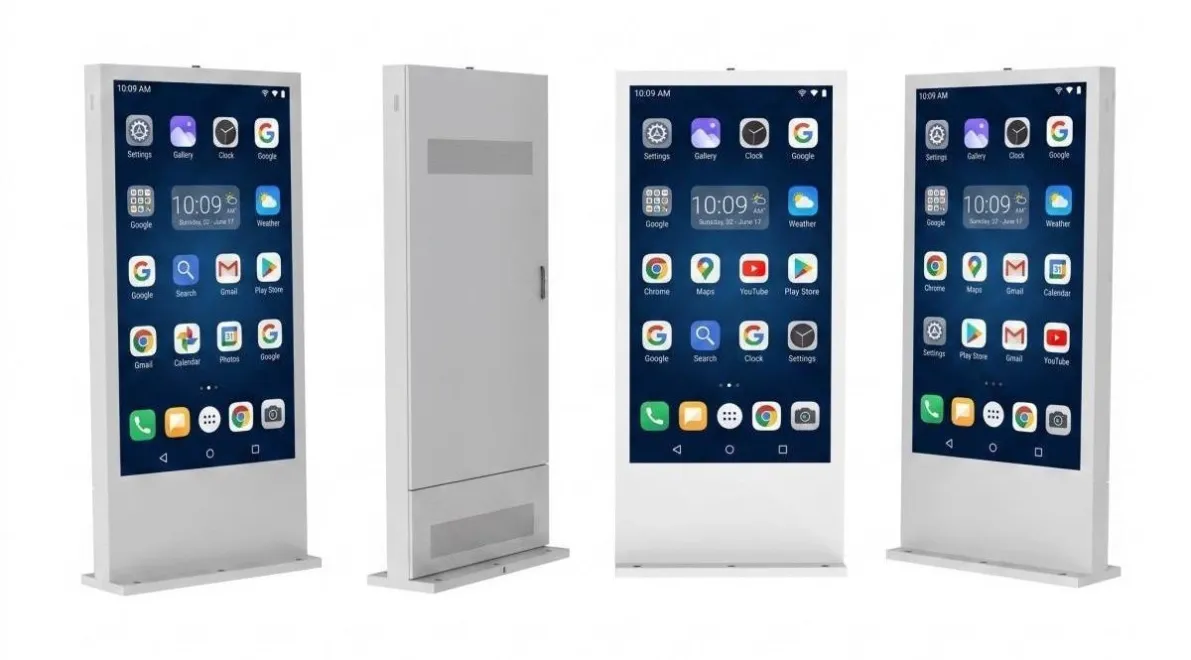

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

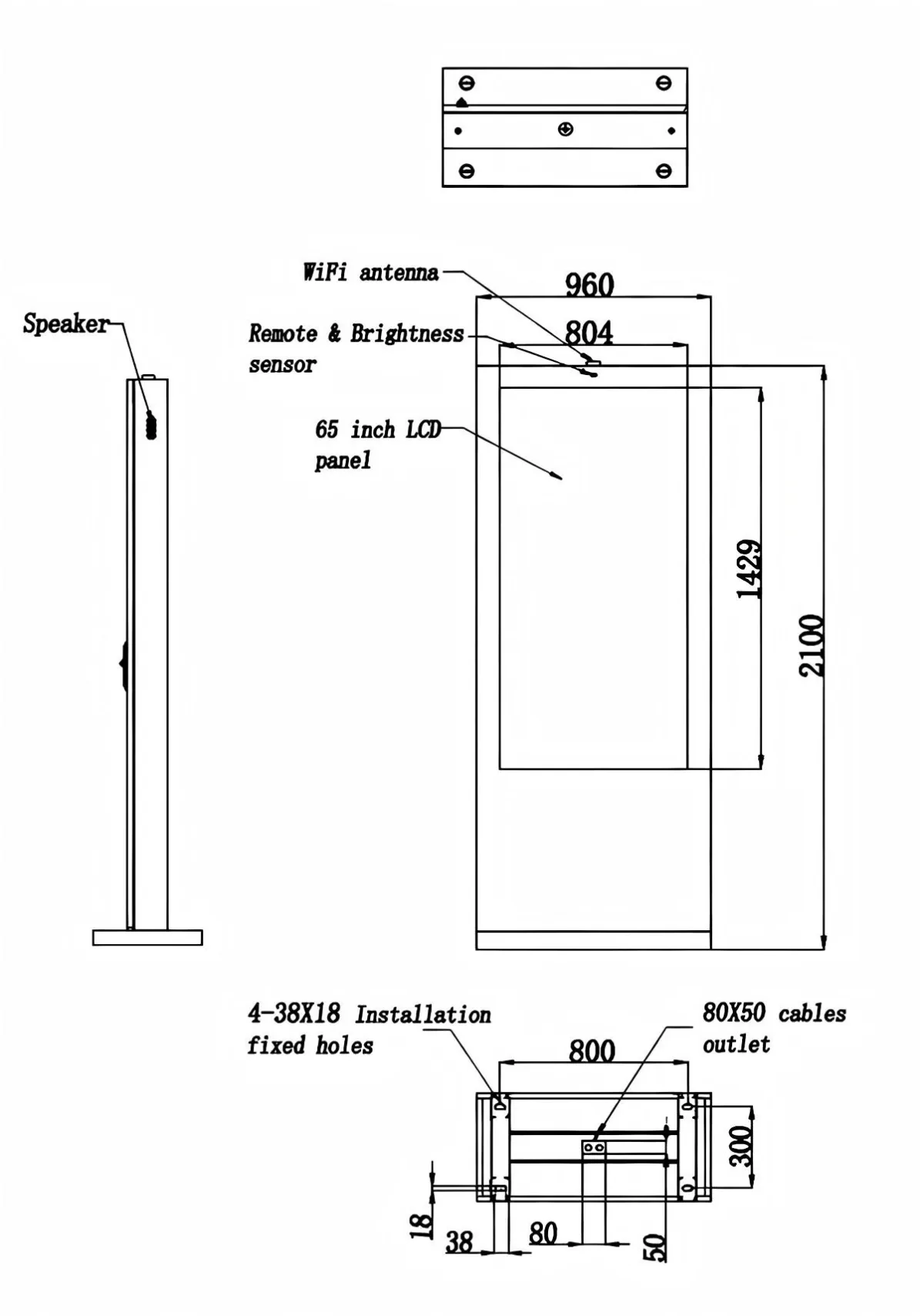

Mechanical Para. | Machine seize H*W*D( mm) | 2100*960*150 |
Net weight(Kg) | 120 | |
Package size H*W*D( mm) | 1190*2250*470 | |
Gross weight(Kg) | 170 | |
Where a Semi-Outdoor Display Makes Sense
“Semi-outdoor” should describe the real installation environment. Suitable locations may include:
- Covered subway and railway entrances
- Sheltered station concourses
- Exterior areas beneath a substantial canopy
- Semi-open retail walkways
- Covered hospital or campus entrances
- Bright indoor spaces immediately behind an open façade
- Weather-protected transport information points
The 65 Inch Semi-Outdoor Digital Signage should not automatically be specified for an unsheltered roadside or open plaza. Direct rain, wind-driven water, cabinet drainage and local temperature extremes must be reviewed separately.
Although the existing specification lists IP65, the complete installation still needs to follow the approved semi-outdoor operating conditions.
Better Visibility Near Direct Daylight
Screens positioned near open entrances often look clear at night but become difficult to read during the day. The problem is not necessarily direct sun falling on the panel; high ambient light outside the entrance can reduce apparent contrast.
Content for this environment should use:
- Large headlines
- Strong text-to-background contrast
- Simple portrait compositions
- Limited fine print
- Clear arrows and route numbers
- Darker evening templates
A site test should be carried out during the brightest operating period. Campaign artwork needs to be reviewed from the pedestrian approach rather than only from directly in front of the screen.
Portrait Content for Transit and Public Areas
The vertical format works well for information arranged from top to bottom. The upper section can identify the station or facility, the centre can show the main campaign or route information, and the lower area can carry directions or a QR code.
Possible content includes:
- Station entrance identification
- Service changes
- Public announcements
- Retail advertising
- Local-area maps
- Event information
- Emergency instructions
The 65 Inch Semi-Outdoor Digital Signage should not rotate critical information too quickly. Route changes and entrance directions need enough display time to be read by someone approaching the unit.

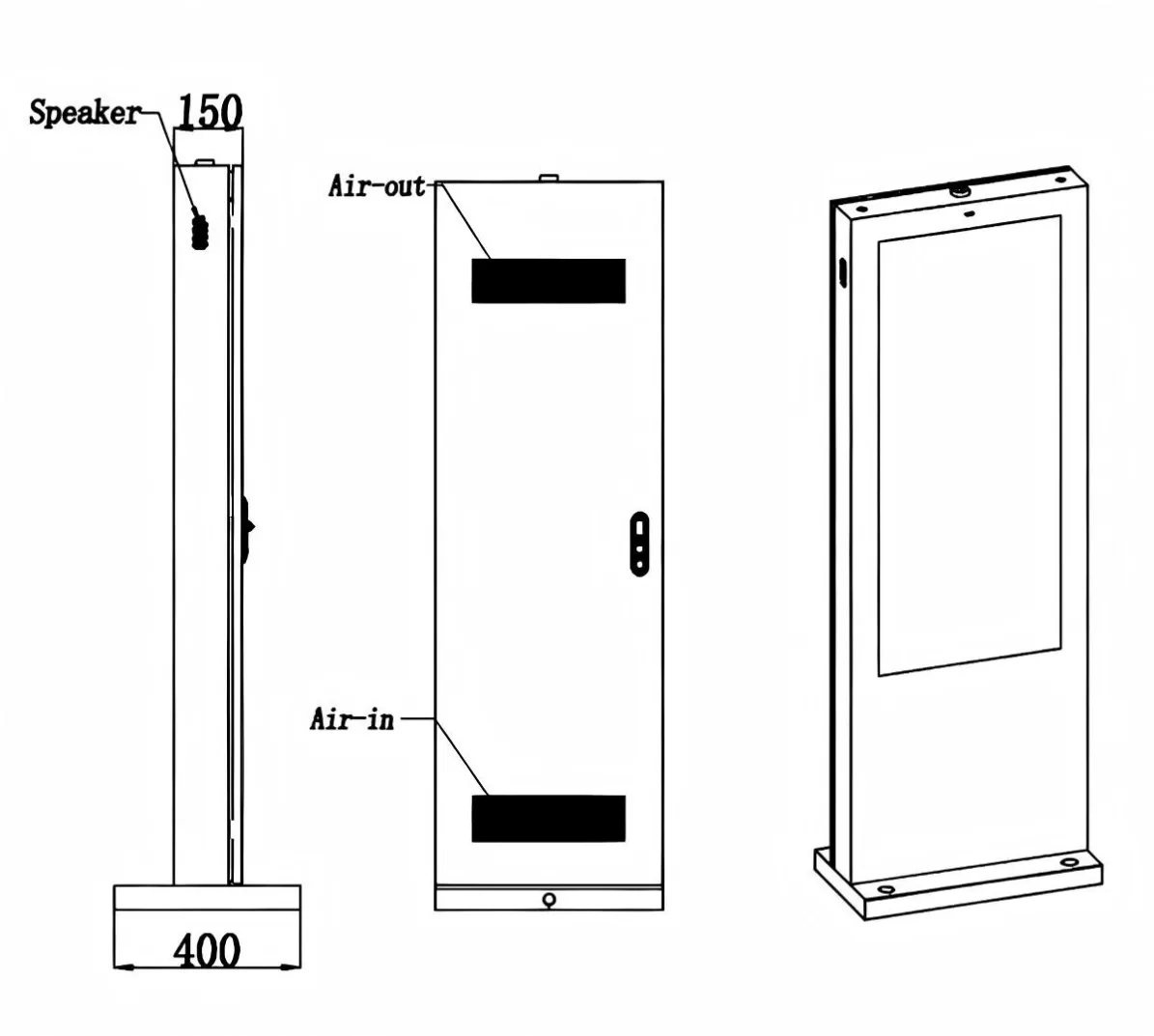

Fan Cooling and Installation Clearance
The backend classifies this product as a built-in fan version. Ventilation areas must remain unobstructed after the screen is installed.
The unit should not be pushed tightly against a wall or enclosed by decorative panels unless the required airflow clearance has been included in the project design.
Maintenance teams should periodically check:
- Fan operation
- Airflow openings
- Cabinet seals
- Cable-entry protection
- Front-glass cleanliness
- Base anchoring
- Media-player connectivity
A Useful Middle Ground
The 65 Inch Semi-Outdoor Digital Signage provides a practical option between a standard indoor advertising display and a fully exposed outdoor kiosk. Its value comes from using an appropriate cabinet and high-visibility screen in a bright but protected location.
When requesting a quotation, provide site photographs, canopy depth, sunlight direction, expected temperature range and the possibility of wind-driven rain. These details help determine whether the semi-outdoor configuration fits the project or whether a full outdoor model is required.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
