Built-in Fan Version
65 Inch Outdoor LCD Display with 2500 Nits IP65 Wall Mounted Design for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW650O
65 Inch Wall Mounted Outdoor LCD Display for EV Charging Facilities
The product image shows a dark screen inside an orange-edged rectangular cabinet. With no freestanding lower body, the unit is designed to use an existing exterior wall or engineered support.
This 65 Inch Wall Mounted Outdoor LCD Display can provide advertising and site information without occupying additional ground space around outdoor charging bays.
65 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size（mm） | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

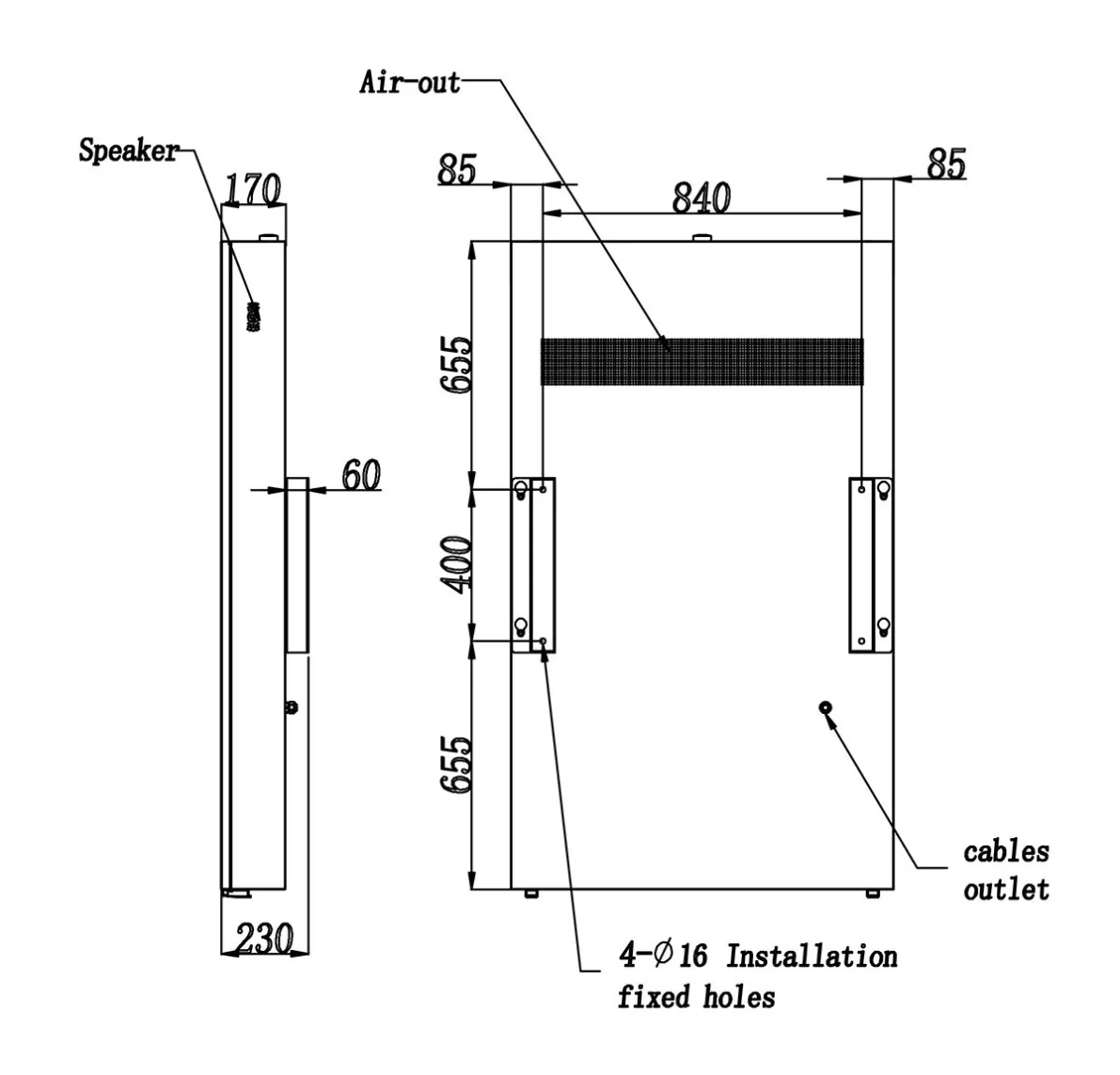

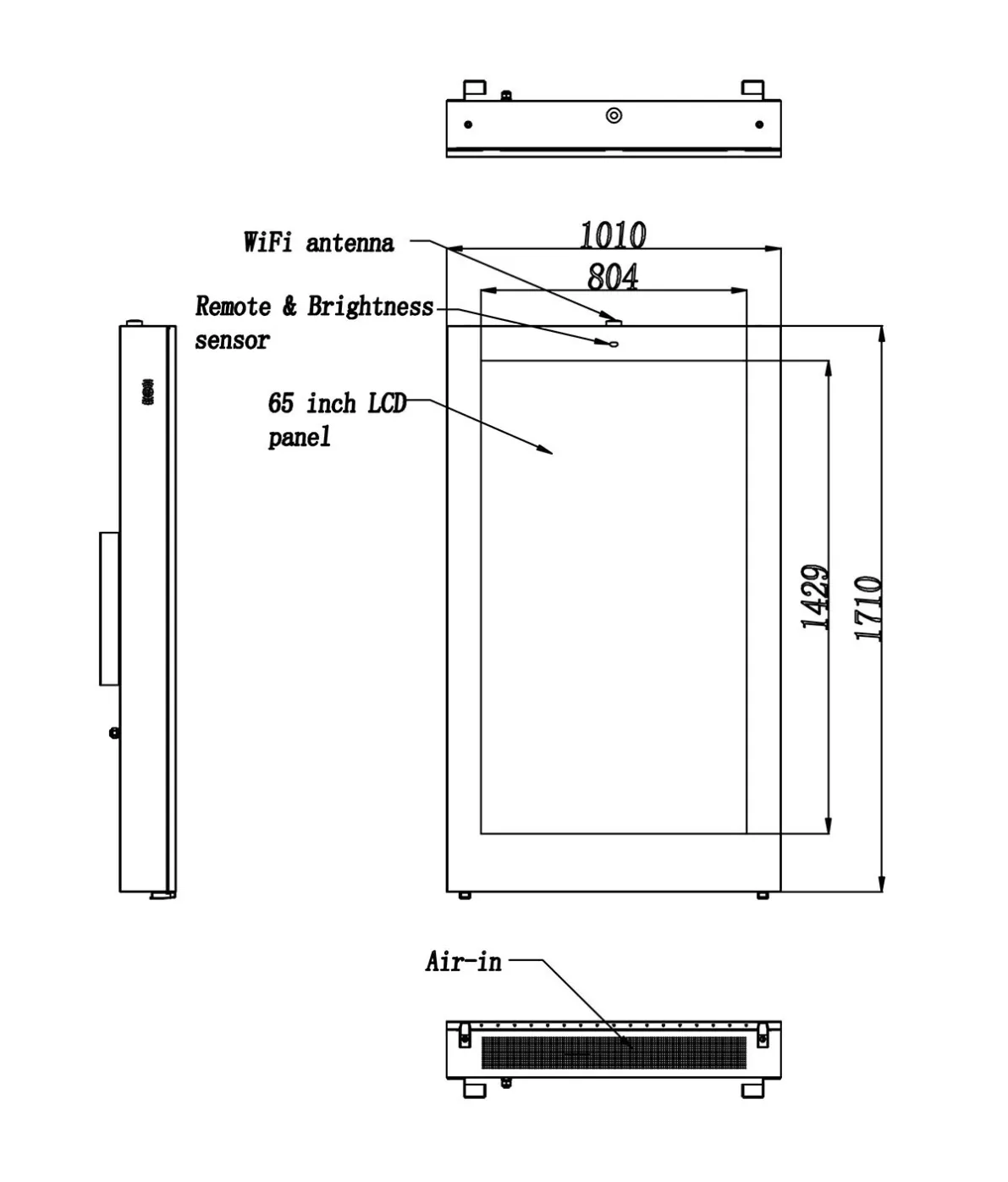

Mechanical Para | Machine seize H*W*D（mm） | 1710*1010*170 |
Net weight(Kg) | 110 | |
Package size H*W*D（mm） | 1280*1860*320 | |
Gross weight(Kg) | 140 | |
Where Wall Mounting Helps
EV charging areas need clear space for vehicles, cables and accessible routes. A wall-mounted screen may be installed on an exterior service building, charging canopy structure or purpose-built outdoor media wall.
The supporting structure must carry the complete cabinet weight and environmental loads. Fixing an outdoor display to decorative façade material without structural support is unsafe.
Content During Charging Dwell Time
The screen can show nearby services, customer-support details, safety instructions and location-specific advertising.
It should not be described as providing live charging status unless compatible software and charger-data integration are supplied.
At 65 inches, the screen can be viewed from a vehicle or nearby pedestrian area. Text and images should be sized for the actual distance.
Orange Frame and Site Branding
The image shows a narrow orange perimeter around the dark display face. This can add visibility or connect the unit with a charging-site brand.
The final color and coating require confirmation. Bright cabinet finishes should not conflict with traffic or emergency markings.
Outdoor Performance
The 2500-nit panel supports high ambient light. IP65 protection helps defend against dust and water jets, provided wall penetrations and cables are correctly sealed.
Fan cooling requires clear ventilation and service access. The 65 Inch Wall Mounted Outdoor LCD Display should be mounted where technicians can reach it without entering an active vehicle path.
