65 Inch Outdoor LCD Display with 2500 Nits IP65 Floor Standing Design for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP650AR
65 Inch Outdoor Drive Thru Menu Display for Fast Ordering
A drive-thru menu has only a short window to influence a purchase. Drivers must identify product groups, compare prices and place an order without holding up the queue. The layout used on a printed restaurant menu rarely transfers successfully to a 65 Inch Outdoor Drive Thru Menu Display.

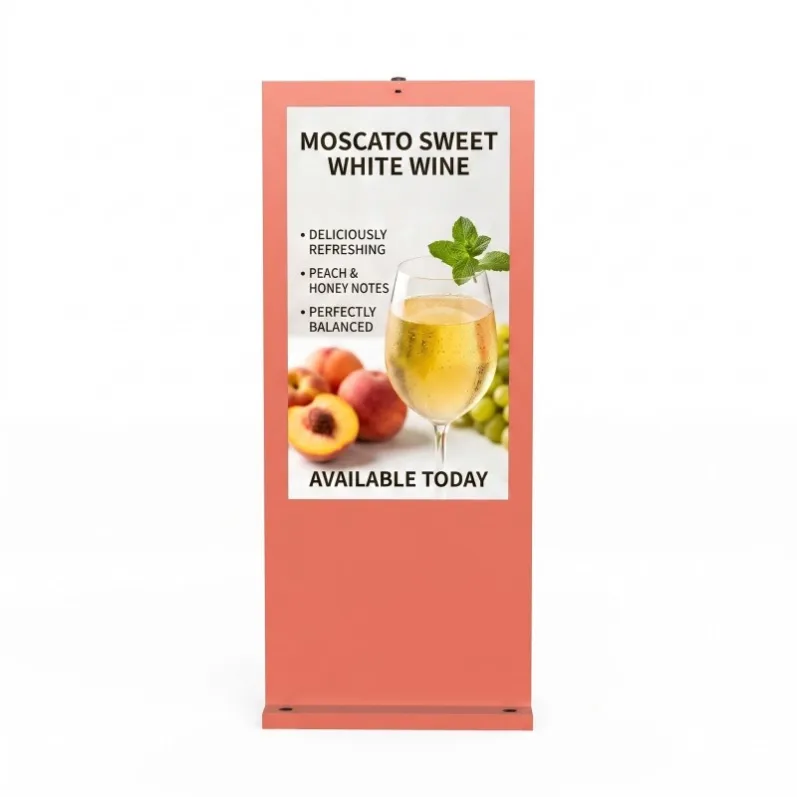

The product image shows a tall red cabinet with a darker screen surround. Its visible colour can complement bold restaurant branding, but final cabinet colour should be specified during project approval.
65 Inch Outdoor floor standing digital signage with air conditioner specification -A style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

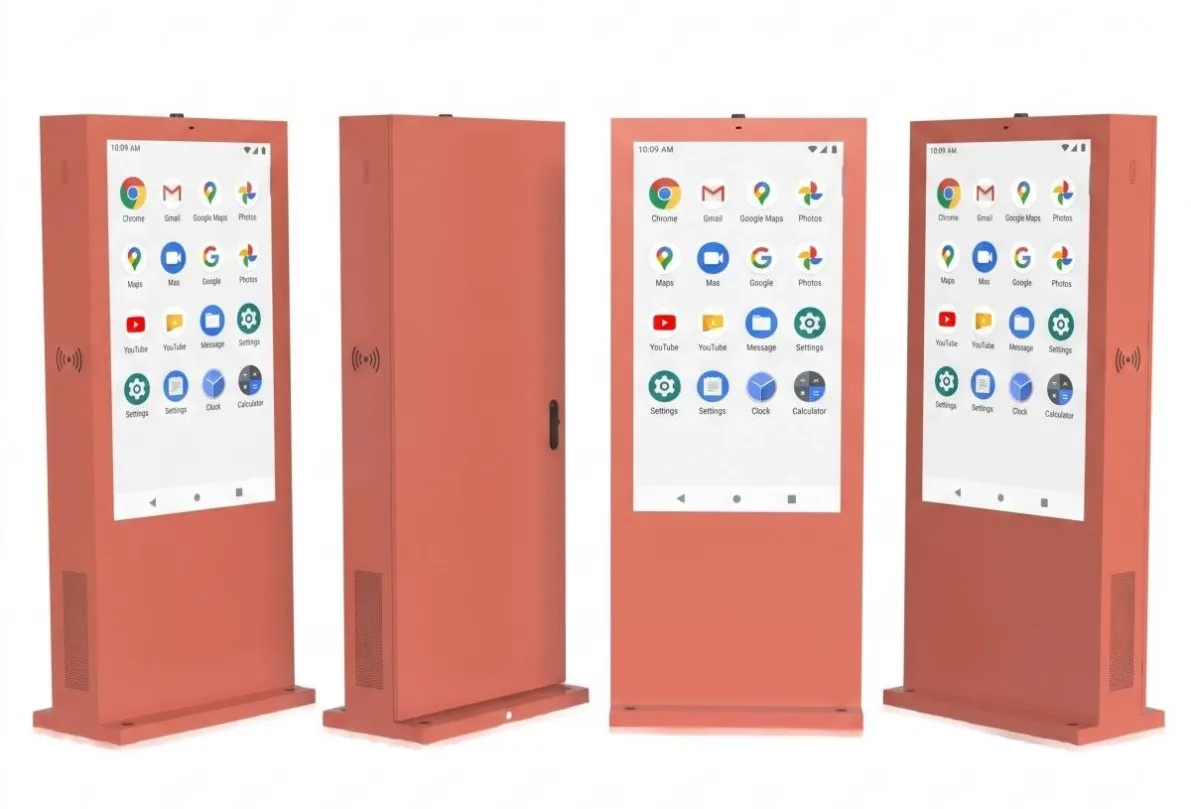

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

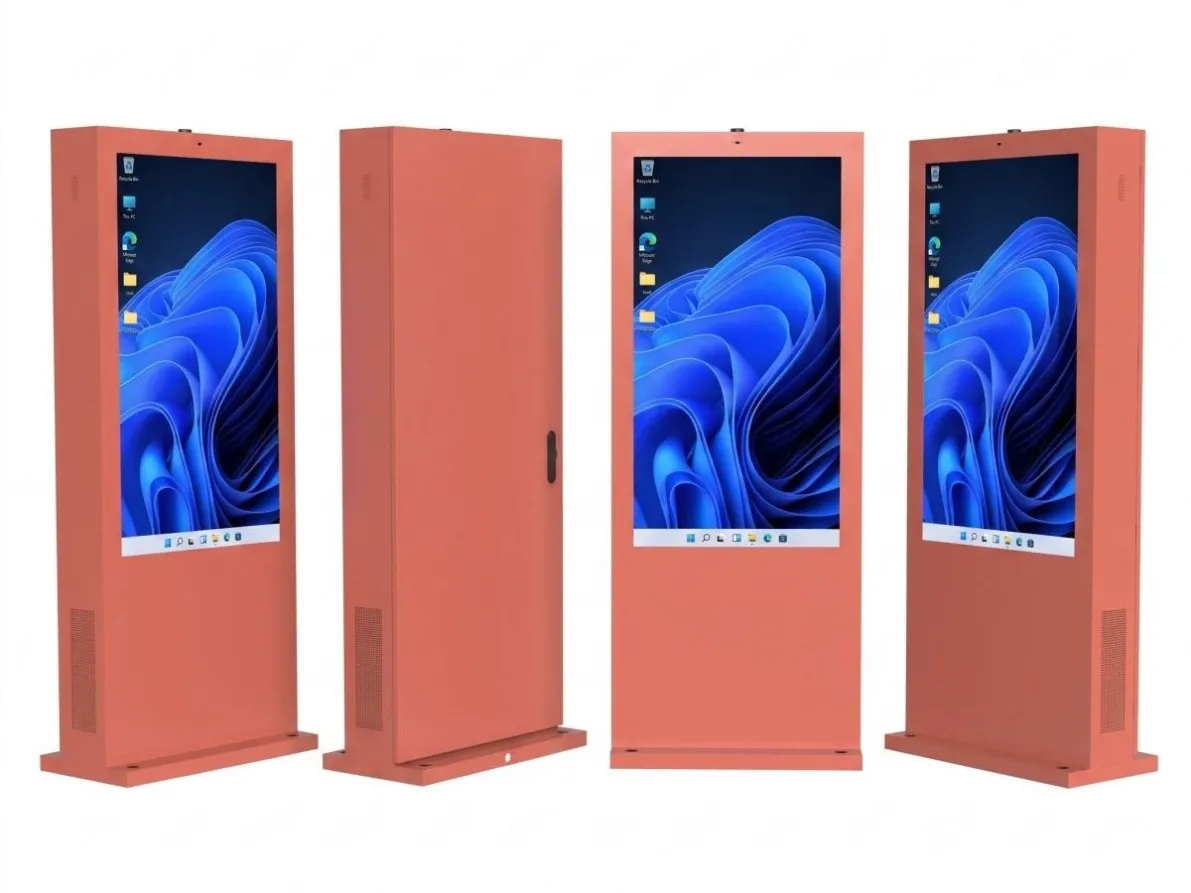

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1130W | |

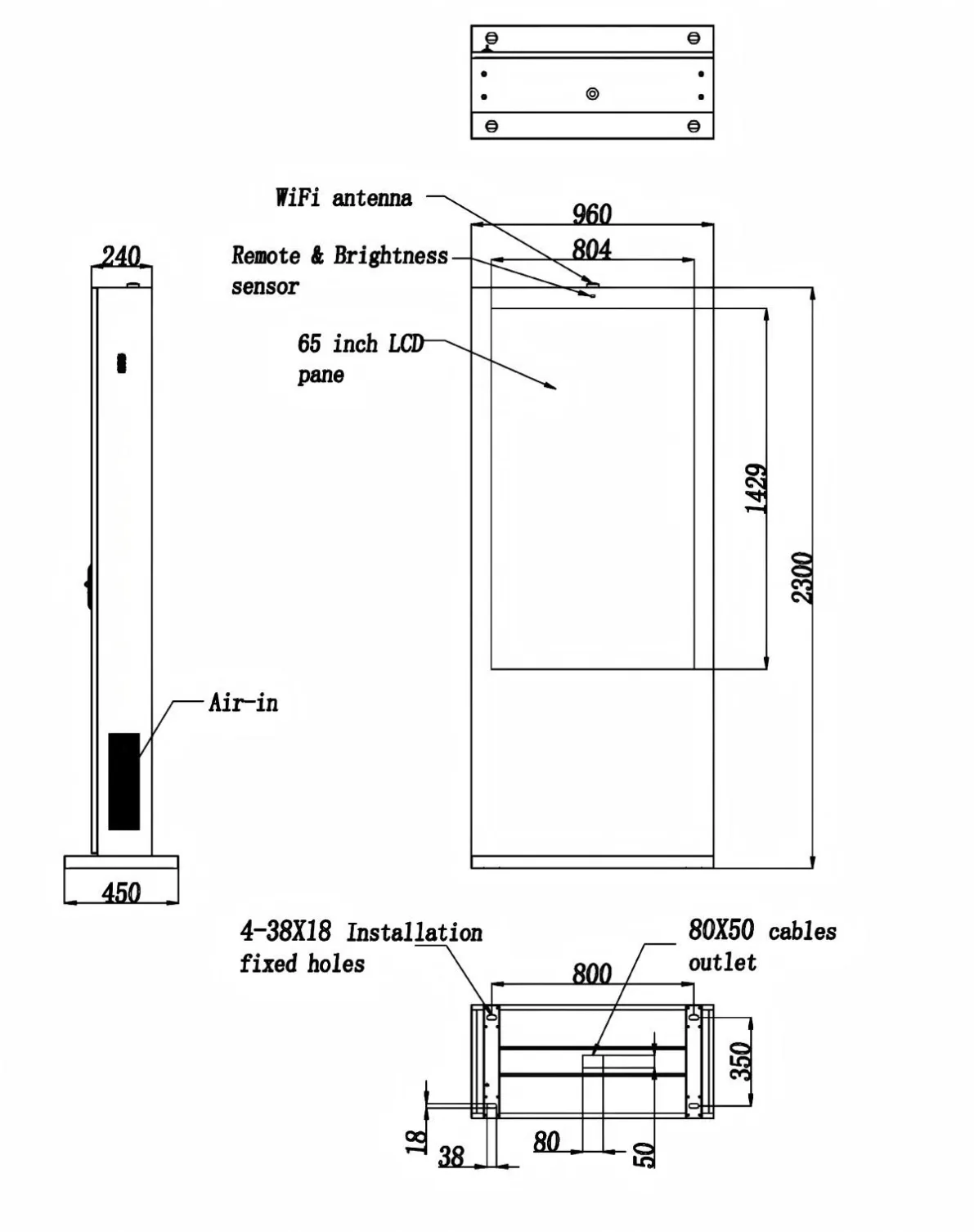

Mechanical parameters | Whole device dimension H*W*D | 2300*960*240mm |
Whole device net.weight | 180kg | |
Package dimension H*W*D | Machine1190*2450*520mmAC 760*950*330mm | |
Gross packing | Machine 190kgAC 40kg | |
Organize the Menu Around Decisions
Customers usually make decisions in stages: meal type, main item, size and optional addition. Screen content should follow the same sequence.
Instead of displaying every available item at once, restaurants can rotate selected groups:
- Breakfast combinations
- Core meals and best sellers
- Limited seasonal items
- Drinks and desserts
- Upgrade or add-on suggestions
- Temporary unavailable-item notices
Prices must remain large enough to read from the driver’s normal stopping position.
Site Geometry Controls Readability
The 65 Inch Outdoor Drive Thru Menu Display should be evaluated from inside a vehicle, not only by someone standing in front of it. Mounting angle, lane width, driver position and ordering-point distance all affect the result.
Vehicle headlights, low sunlight and rain on the front glass can also change contrast. A site mock-up is worthwhile before the concrete foundation and cable path are finalized.
Built for Outdoor Restaurant Operation
The 2500-nit panel supports bright daytime presentation. IP65 cabinet protection addresses weather and dust exposure, while built-in air conditioning manages heat inside the enclosure.
Restaurant environments can introduce grease, dust and airborne debris. Cooling-system maintenance should therefore be scheduled according to local conditions rather than relying on a generic annual inspection.
Faster Updates Reduce Pricing Errors
Digital menus allow staff to change prices, remove unavailable items and schedule different dayparts without replacing printed panels. Central management is especially useful for restaurant groups that need consistent campaigns across several outdoor locations.
The 65 Inch Outdoor Drive Thru Menu Display should ultimately shorten ordering decisions. Clear hierarchy, accurate availability and timely content updates matter more than filling every part of the screen.
