Built-in Fan Version
65 Inch Outdoor LCD Display for Smart City Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP650DG-B
65 Inch Outdoor LCD Display for Outdoor Smart City Communication

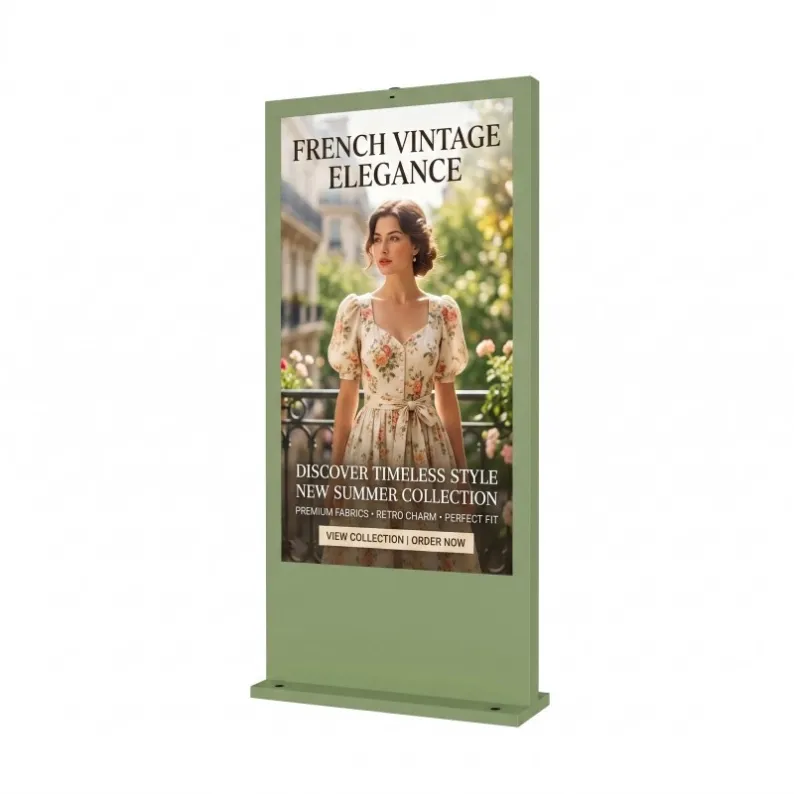

The product image shows a tall green cabinet with a simple rectangular profile. Unlike a screen mounted on an exposed support, the enclosure appears continuous from the display area to the base, creating the look of a permanent outdoor information fixture.
This 65 Inch Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
65 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |
Mechanical Para. | Machine seize H*W*D( mm) | 2100*960*150 |
Net weight(Kg) | 120 | |
Package size H*W*D( mm) | 1190*2250*470 | |
Gross weight(Kg) | 170 | |
Using Cabinet Color in a Public Environment
The green finish shown in the image may visually connect the display with parks, landscaped public areas or environmental information projects. It may also help a network of city displays develop a recognizable identity.
The image does not confirm that all units are supplied in green. Final color, coating durability and branding should be documented in the order specification.
A neutral or site-specific finish may be more suitable near historic architecture, transport infrastructure or municipal buildings.
Outdoor Applications
Appropriate locations include:
- Park entrances
- Outdoor municipal service points
- Public squares
- Cycle-route information areas
- Outdoor tourism locations
- Pedestrian streets
- Exterior transport connections
A “smart city” installation does not automatically mean the display includes sensors, cameras or live data. Those functions require separate equipment and integration.
Information Design
The 65-inch portrait screen can show local maps, environmental messages, event notices and emergency information. Content should be readable while people approach from several meters away.
The screen should identify when time-sensitive information was last updated. Outdated public messages can reduce trust in the whole display network.
Outdoor Cabinet Performance
The 2500-nit panel supports high-ambient-light viewing. IP65 protection helps defend the enclosure against outdoor dust and water jets.
Built-in fan cooling manages heat from the panel and electronics. Air paths and service access must remain available after landscaping is completed.
The 65 Inch Outdoor LCD Display can become part of a coordinated outdoor city-information network when its cabinet appearance, placement and content responsibilities are planned together.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
