Built-in Air conditioner
65 Inch Outdoor Advertising Kiosk with 2500 Nits IP65 Floor Standing Design for Transit Hub Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVPD650BL
65 Inch Air Conditioned Outdoor Advertising Kiosk for Exterior Transit Areas

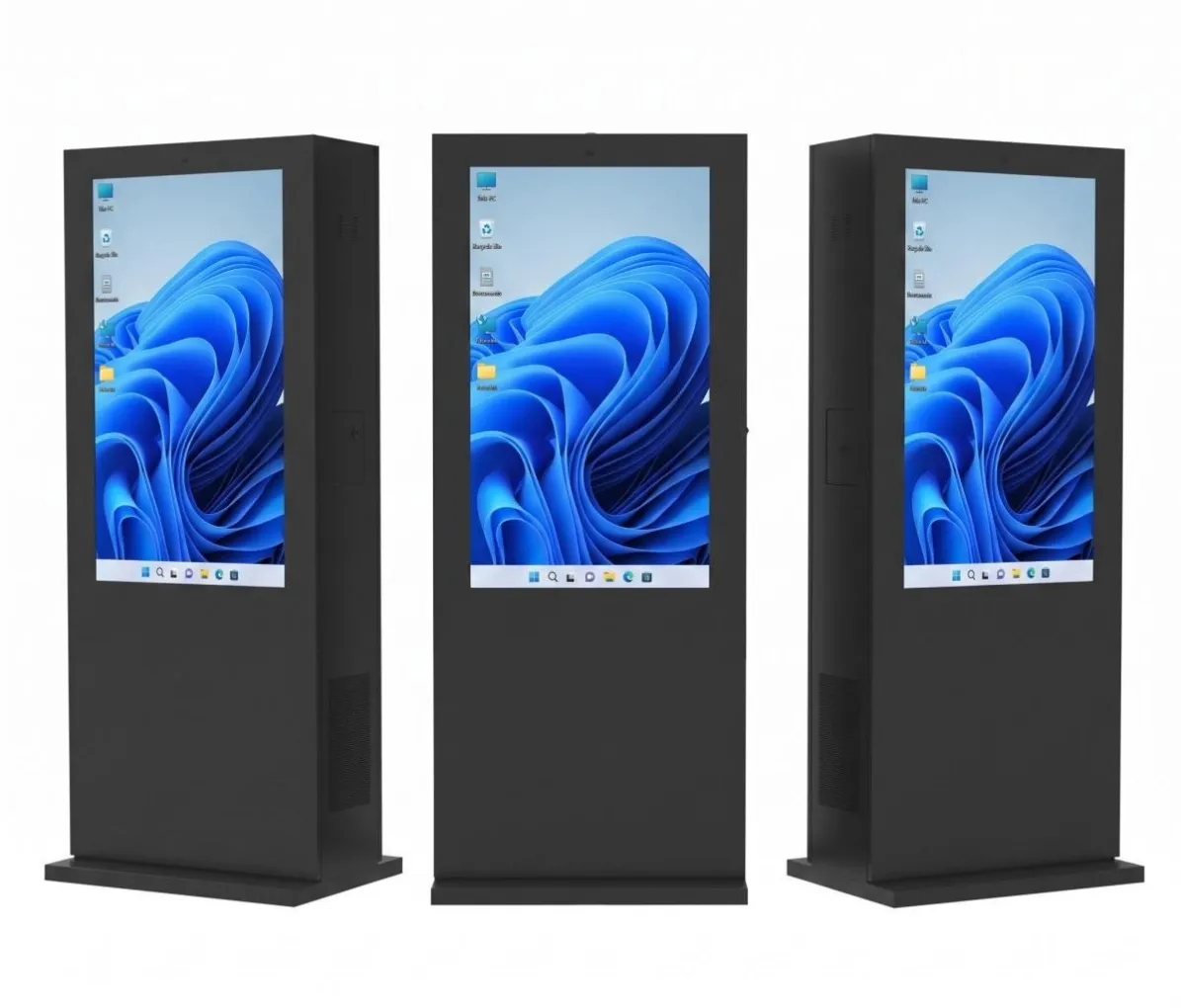

The product image shows a dark, fully enclosed portrait cabinet with a simple rectangular outline. The backend classifies this model as a built-in air-conditioner version, distinguishing it from the earlier fan-cooled kiosks.
This 65 Inch Air Conditioned Outdoor Advertising Kiosk can support advertising and public communication at exposed transport locations.
65 Inch Outdoor floor standing digital signage with air conditioner specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 2300W | |

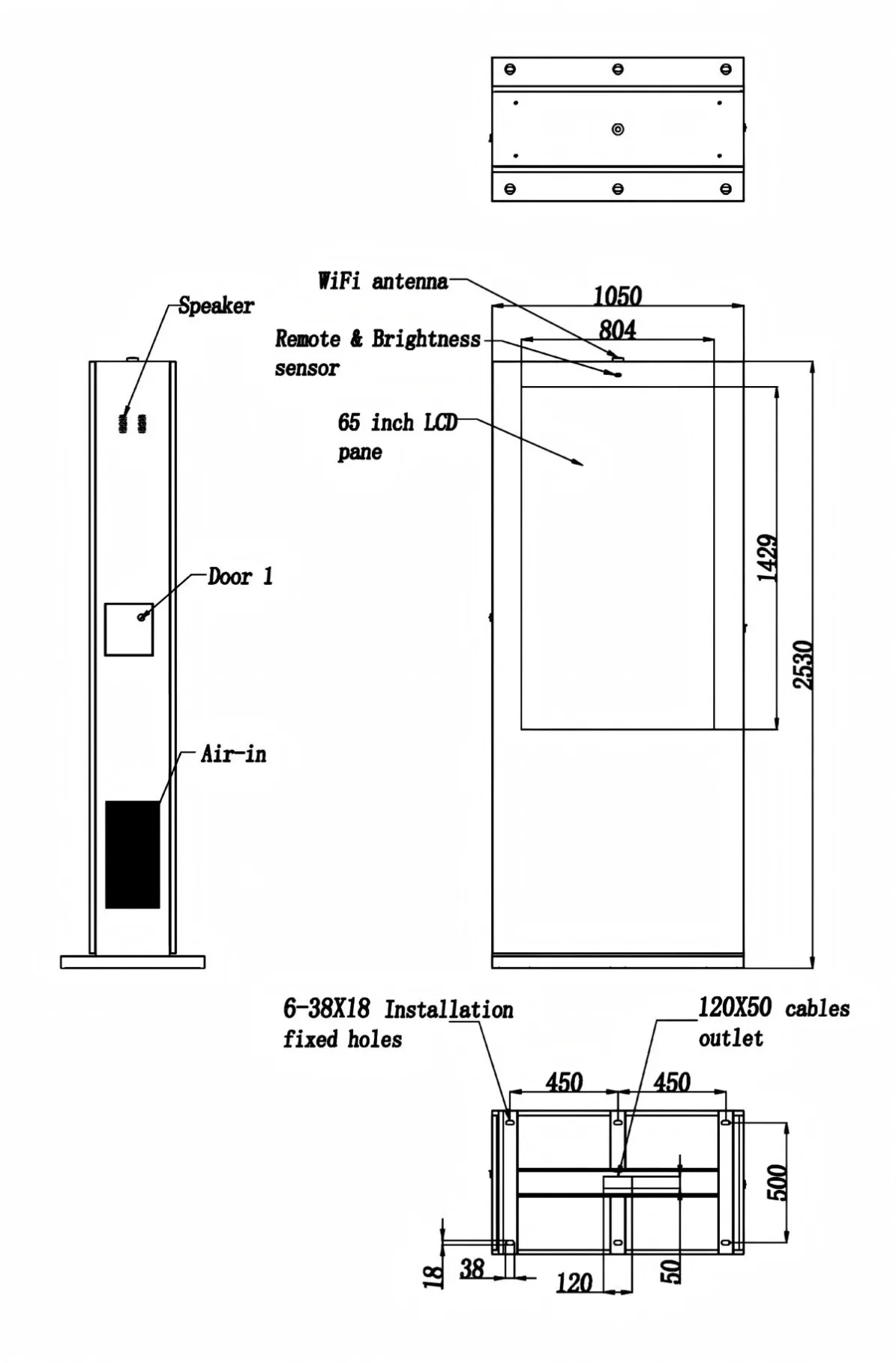

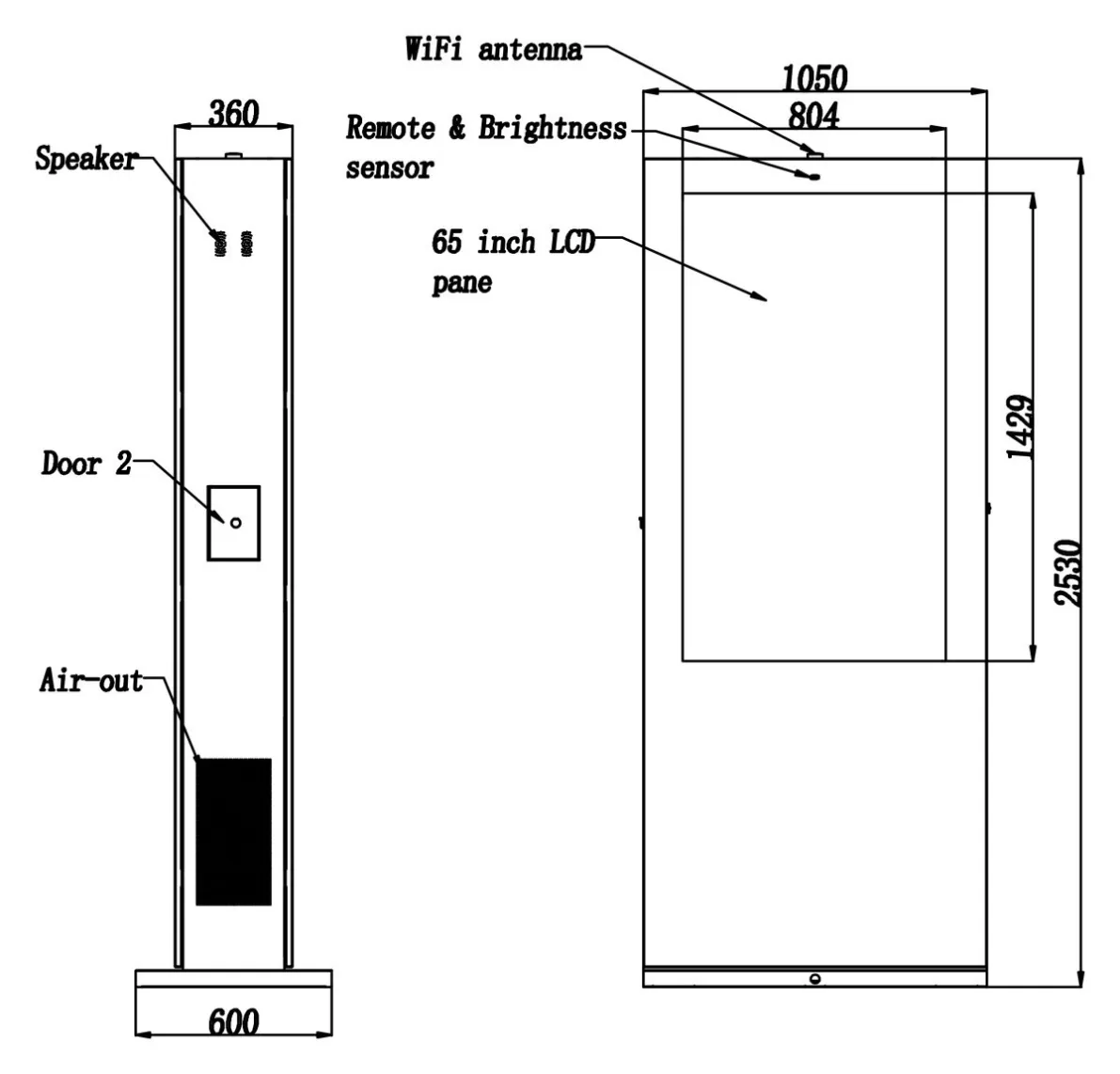

Mechanical parameters | Whole device dimension H*W*D | 2530*1050*360mm |
Whole device net.weight | 270kg | |
Package dimension H*W*D | Machine1280*2680*670mmAC850*930*400mm | |
Gross packing | Machine270kg AC 60kg | |
Cooling for a Closed Outdoor Enclosure
A built-in air conditioner actively manages cabinet temperature rather than relying only on general fan circulation. This can be useful in outdoor installations with long operating hours or demanding ambient conditions.
The exact cooling architecture, rated temperature range and maintenance requirements need to be verified in the product specification.
The cabinet image suggests an enclosed body with no lightweight open support. That form is consistent with a permanent outdoor installation but also requires adequate foundation and lifting preparation.
Exterior Transit Applications
Appropriate locations include:
- Outdoor station entrances
- Open-air transit plazas
- Exterior passenger waiting areas
- Park-and-ride approaches
- Outdoor ticketing routes
- Roadside transport interchanges
The kiosk should not be described as an indoor station display. Its brightness, IP rating and cooling classification identify it as outdoor equipment.
Content and Visibility
The 2500-nit panel supports daylight viewing. A 65-inch portrait screen can display full-screen advertising, service notices and outdoor directions.
Nighttime brightness, driver sightlines and passenger safety must be reviewed. Commercial content should never obscure urgent transport information.
FAQ
Why select an air-conditioned model?
It provides more active internal temperature management. Whether it is necessary depends on climate, solar exposure and operating conditions.
Does it require more maintenance than a fan-cooled model?
Potentially. The manufacturer’s maintenance requirements for the air-conditioning system should be reviewed before procurement.
Can it show live passenger information?
Only when connected to a compatible data source and software platform.
The 65 Inch Air Conditioned Outdoor Advertising Kiosk is suited to exterior transport projects that need a high-brightness display inside a more actively cooled enclosure.
