Built-in Fan Version
65 Inch Outdoor Advertising Kiosk with 2500 Nits IP65 Floor Standing Design for EV Charging Ads
Protection Grade:IP65 HS code:8528591090 Backlight:LED backlight
Specifications
- SKU
- ZXTLCD-OUTFHK650R
65 Inch Outdoor Advertising Kiosk with 2500 Nits IP65 Floor Standing Design for EV Charging Ads
65 Inch Outdoor Advertising Kiosk for EV Charging Ads
EV charging creates a valuable advertising period because drivers remain close to the station while their vehicles charge. A 65 inch outdoor advertising kiosk can use this waiting time to present nearby retail offers, charging instructions, membership campaigns and paid media.
This floor-standing display uses a 2500-nit LCD, IP65-rated construction and LED backlighting. Its 65-inch screen provides a large advertising area without overwhelming a standard charging bay.
65 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700w | |

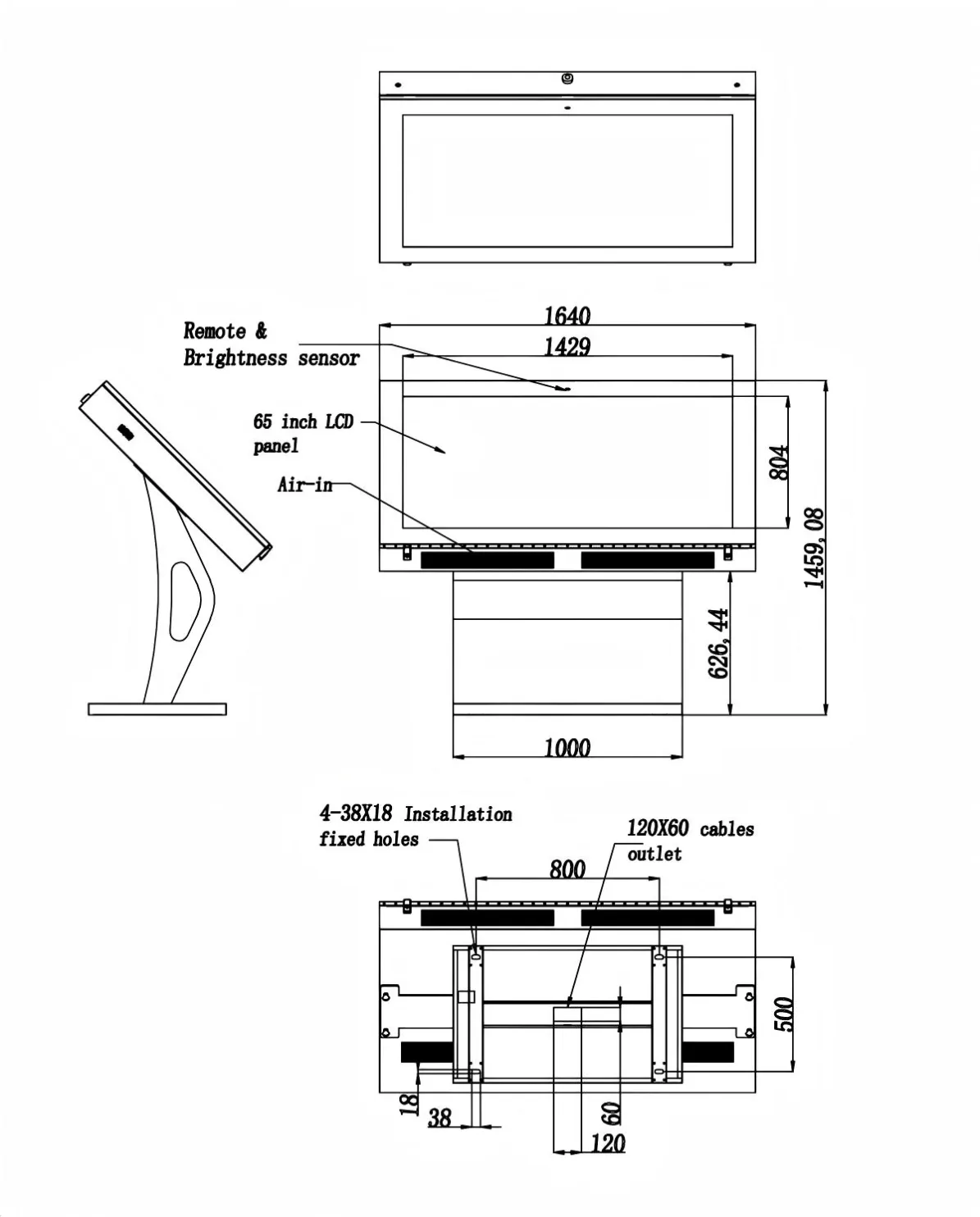

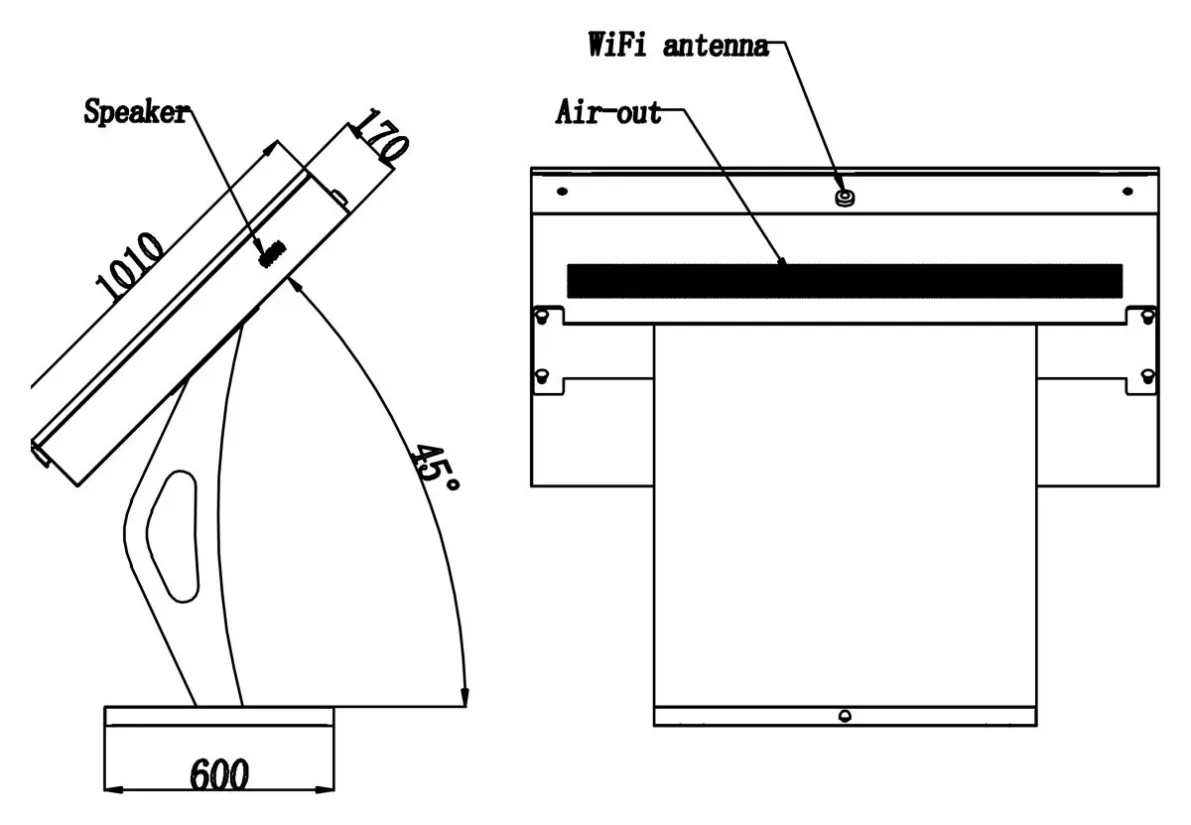

Mechanical parameters | Machine size(H*W*D) | 1010*1640*170 |
Net machine weight | 182kg | |
Package size(H*W*D)(mm) | 1690*1790*990 | |
Package weight | 240kg | |
Advertising Built Around Charging Dwell Time
A charging-location campaign does not need to follow the same structure as roadside advertising. Drivers may view the screen for several minutes, allowing the playlist to combine short attention-grabbing messages with more detailed information.
Useful content can include:
Charging-network membership benefits;
QR codes for mobile applications;
Nearby restaurants and convenience stores;
Shopping-center promotions;
Vehicle or energy-brand campaigns;
Safety and payment instructions.
The QR code should be positioned at a comfortable scanning height and remain visible long enough for the user to act. Charging instructions should be separated from commercial media so essential information is not hidden inside a long advertising loop.
Planning the Kiosk Position
The display should remain visible without obstructing the charging connector, vehicle movement or pedestrian access. Project planners should consider the charging-port positions of different vehicles and allow sufficient clearance around each bay.
A floor-standing unit also requires an appropriate foundation and protected cable route. Power and data cables should not create trip hazards or interfere with drainage. If the installation is close to moving vehicles, the project may require bollards or other impact protection.
Visibility and Outdoor Protection
At 2500 nits, the screen is designed to remain readable under strong ambient light. The final result still depends on orientation, reflections and direct sunlight. A site survey should document the sun path and surrounding reflective surfaces before the enclosure position is finalized.
IP65 protection supports operation around dust and water exposure. However, installers must preserve that protection when creating power, network and foundation connections. Openings made at the site should be sealed using appropriate outdoor components.
LED backlighting provides the illumination required for the LCD image. Brightness schedules can be used to balance visibility, energy consumption and nighttime viewing comfort.
Operating an Advertising Network
One 65 inch outdoor advertising kiosk can be updated locally, but EV charging operators often manage multiple stations. A remote CMS can distribute campaigns by location, time, advertiser or charger type.
The operator may also require device-status monitoring and proof-of-play records. These functions should be confirmed with the media-player configuration rather than assumed to be included with the display.
Maintenance responsibility should be clearly assigned. Charging-equipment technicians may not be responsible for the advertising screen, so the project needs a defined process for cleaning, connectivity checks and component servicing.
Configuration Before Production
For an EV charging project, specify the number of stations, required screen orientation, climate conditions, network connection and content-management method. Custom branding and enclosure colors can be discussed for charging networks, automotive companies and site operators.
The 65 inch outdoor advertising kiosk is particularly suitable for locations that want to turn charging dwell time into a managed communication and advertising opportunity.
