Built-in Fan Version
65 Inch Outdoor Advertising Kiosk with 2500 Nits IP65 Floor Standing Design for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVF650O
65 Inch Outdoor Advertising Kiosk with 2500 Nits IP65 Floor Standing Design for Drive Thru Menus
65 Inch Floor Standing Outdoor Advertising Kiosk for Drive-Thru Menus
A drive-thru menu has to communicate product choices before a vehicle reaches the ordering point. Customers must be able to recognize categories, compare prices and make a decision without leaving the car.
This 65 Inch Floor Standing Outdoor Advertising Kiosk provides a large portrait display for outdoor menu content. The unit is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
65-inch outdoor optical bonding digital signage with fan-cooling product specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | LG |
Backlight type | DLED | |
Display size | 1429*804mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -20℃～70℃ |
Working humidity | 10%～95% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 160W | |

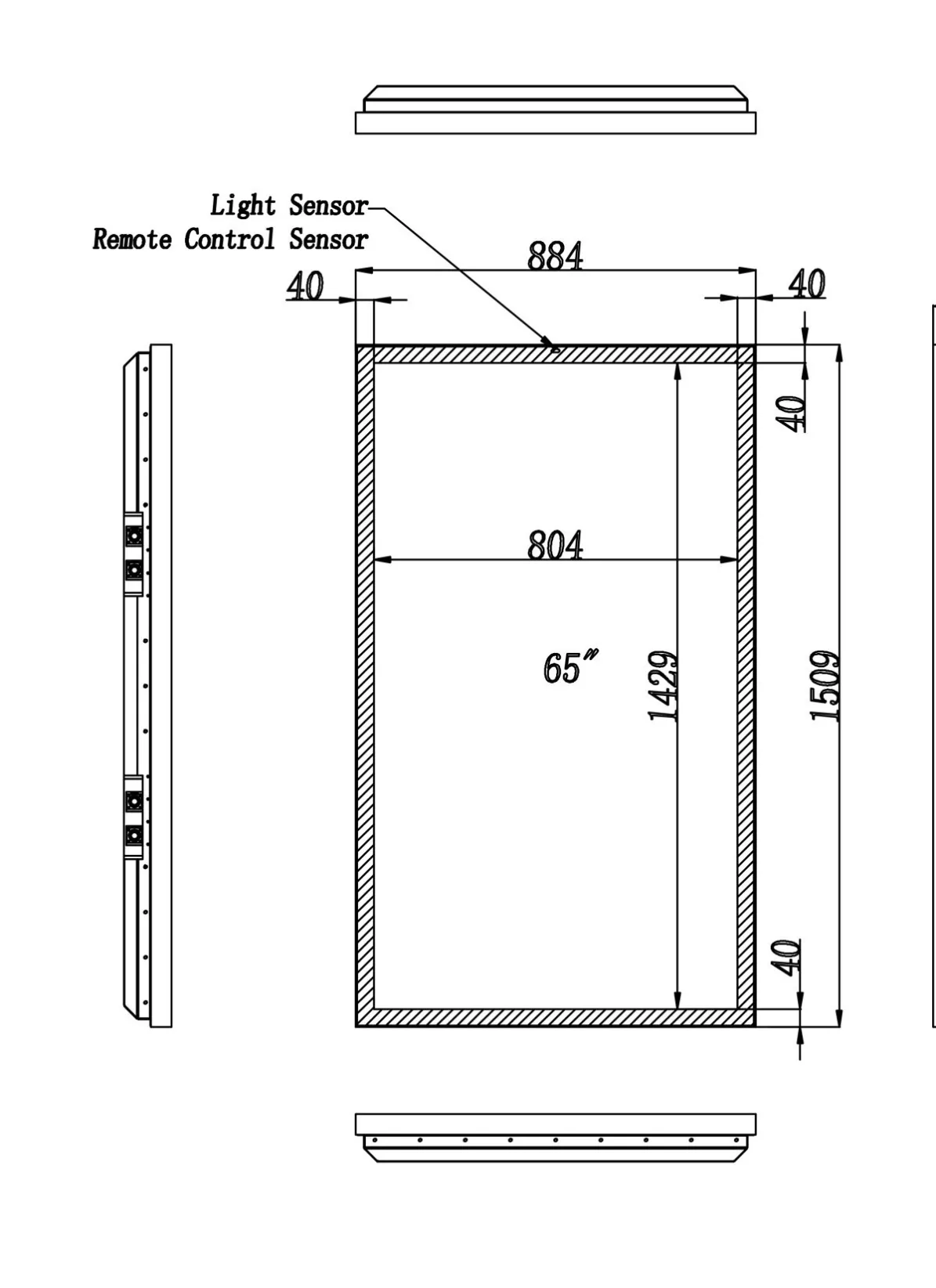

Machine size and weight | Machine size(H*W*D) | 1509*884*105mm |
Net weight | 100kg | |
Package size and weight | Package material | Honeycomb Paper Box |
Package size H*W*D | 1020*1670*280mm | |
Gross weight | 120kg | |
Building the Menu Around the Driver
A 65-inch screen provides enough visual area for product photography, category headings, pricing and limited-time promotions. That space should be used carefully.
An effective drive-thru menu normally gives priority to:
- Main food or service categories
- Popular combinations
- Clearly displayed prices
- Upgrade options
- One current promotion
Long descriptions and crowded grids increase decision time. The content should be readable from the vehicle’s expected stopping position rather than only from directly in front of the screen.
Daylight Is Part of the Installation
The panel is rated at 2500 nits to support viewing in bright outdoor conditions. Actual visibility will depend on the screen angle, vehicle direction and changing sunlight.
The installation team should observe the intended position at different times of day. A location that appears shaded in the morning may receive direct sunlight during the busiest afternoon period.
Content colors matter as well. Dark backgrounds can look attractive on an indoor monitor but may lose detail outdoors. High contrast between prices, product names and backgrounds generally improves readability.
Outdoor Protection and Heat Management
IP65 protection helps prevent dust ingress and protects the enclosure against water jets. This is relevant for restaurant locations exposed to rain, traffic dust and regular exterior cleaning.
The built-in fan system manages heat produced by the high-brightness panel and electronics. Service access should be positioned so technicians can inspect the display without unnecessarily closing the entire vehicle lane.

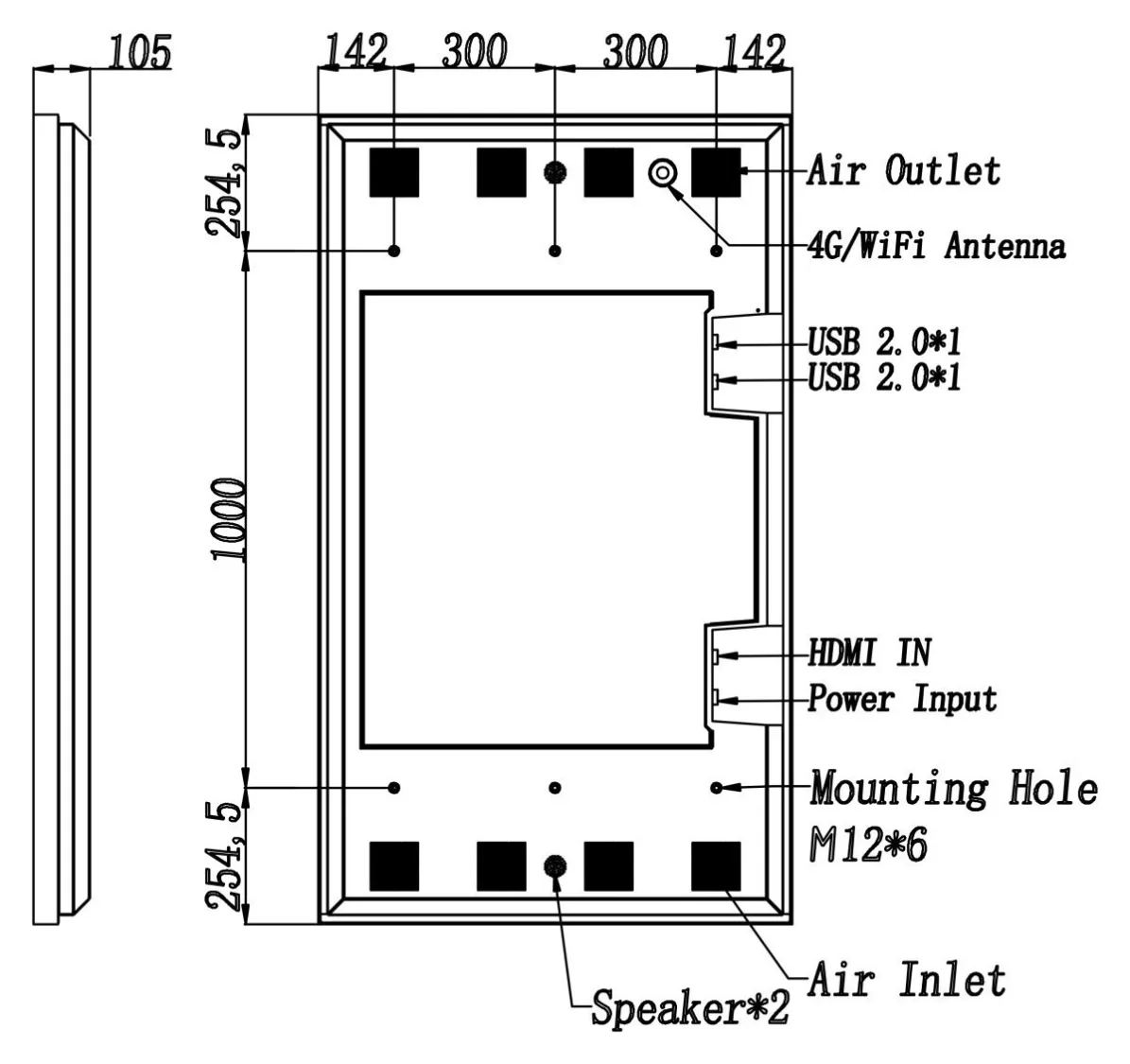

The design drawing of rear display
Foundation and Traffic Safety
A 65 Inch Floor Standing Outdoor Advertising Kiosk requires a suitable foundation and secure anchoring. Project teams must also consider wind loading, vehicle clearance, curb position and the risk of accidental impact.
Protective barriers may be appropriate in some layouts, but they must not block the customer’s view of the menu.
Supporting Scheduled Menu Changes
When connected to a compatible media player or content-management system, the display can present breakfast, lunch and evening menus at scheduled times. Prices and promotions can also be updated without replacing printed boards.
Automatic point-of-sale synchronization should only be promised when the required software integration has been confirmed.
The 65 Inch Floor Standing Outdoor Advertising Kiosk is a suitable starting point for restaurants that need a large, weather-resistant outdoor menu display with strong daylight visibility.
