Built-in Fan Version
55 Inch Weatherproof Digital Signage with 2500 Nits IP65 Floor Standing Design for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTV550W
55 Inch Weatherproof Digital Signage with 2500 Nits IP65 Floor Standing Design for EV Charging Ads
55 Inch Floor Standing Weatherproof Digital Signage for EV Charging Areas
Drivers may remain at an EV charging location long enough to notice information that would be missed in a conventional roadside setting. The screen can introduce nearby services, explain site facilities or provide a useful advertising channel.
This 55 Inch Floor Standing Weatherproof Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. Its standalone cabinet allows it to operate as a separate communications platform near the charging bays.
55-inch Air-Cooled Portrait Ultra-thin Outdoor Adversting Display | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | BOE Wide temperature screen |
Backlight type | DLED | |
Display size | 681*1210mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -10℃～+60℃ |
Working humidity | 10%～95% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 270W | |

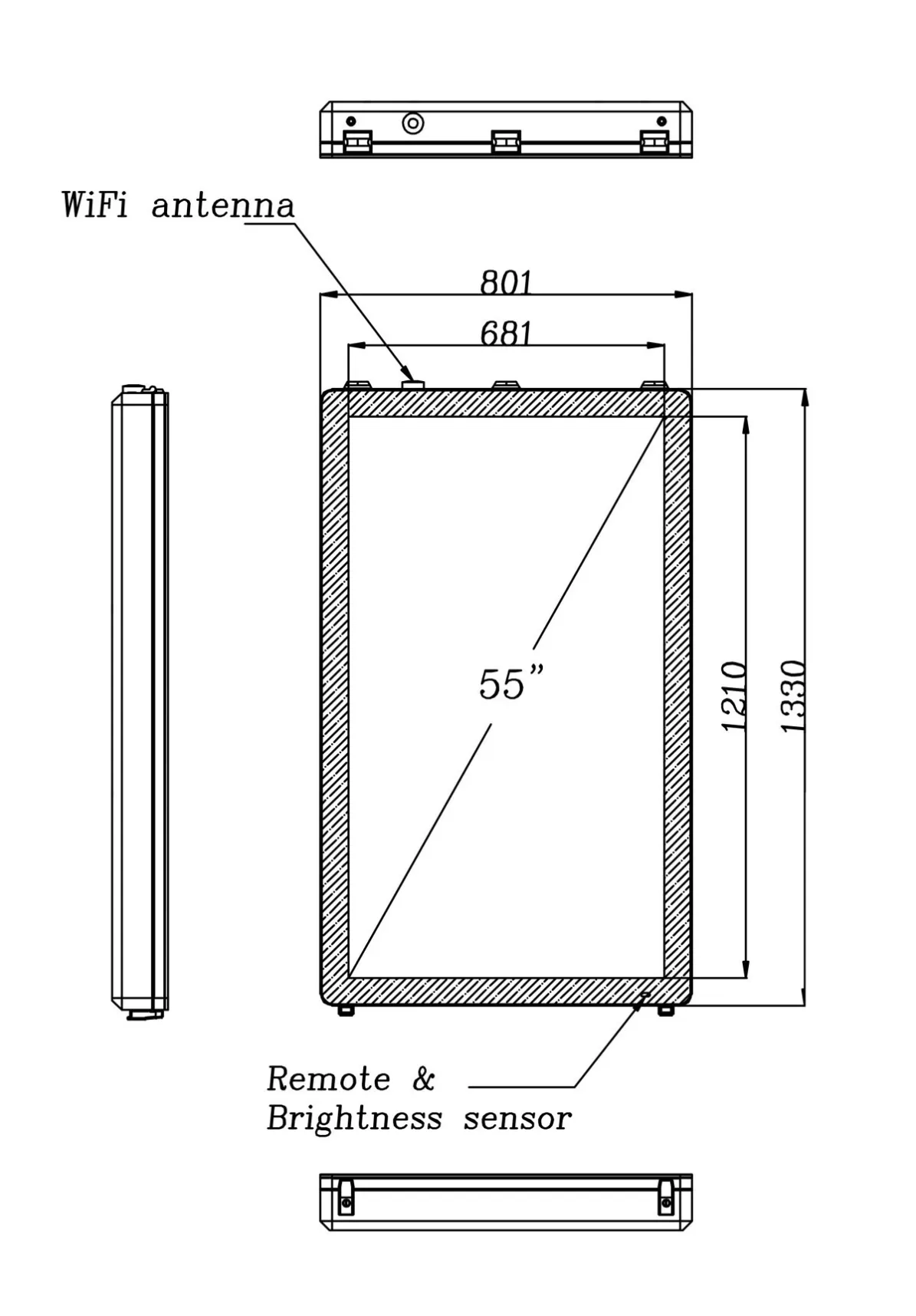

Machine size and weight | Machine size(H*W*D) | 801*1330*120mm |
Net weight | 68kg | |
Package size and weight | Package material | Wood box |
Package size H*W*D | 1020*1460*270mm | |
Gross weight | 92kg | |
Advertising That Respects the Location
Charging-site content works best when it is relevant to the driver’s immediate needs. Nearby food, shopping, restrooms and vehicle services may be more useful than a generic campaign.
Operators can also display support information, safety notices and instructions. These messages should receive priority when required.
The signage should not be described as controlling or monitoring the charger unless the necessary hardware and software integration is included.
Planning Visibility From the Vehicle
The display should be positioned according to where the driver parks, exits the vehicle or waits. A screen placed behind the charging equipment may be technically nearby but difficult to see.
The 2500-nit brightness supports daylight operation in open parking environments. The screen direction should still be evaluated at several times of day.
At night, lower brightness may provide a more comfortable experience. The availability of scheduled or sensor-based adjustment should be verified with the selected configuration.
Outdoor Cabinet Performance
IP65 protection helps prevent dust ingress and protects against water jets. Correct installation is necessary to preserve the enclosure rating.
The built-in fan system manages internal heat. Airflow inspections may be required more frequently at roadside sites with dust, pollen or vehicle-related debris.

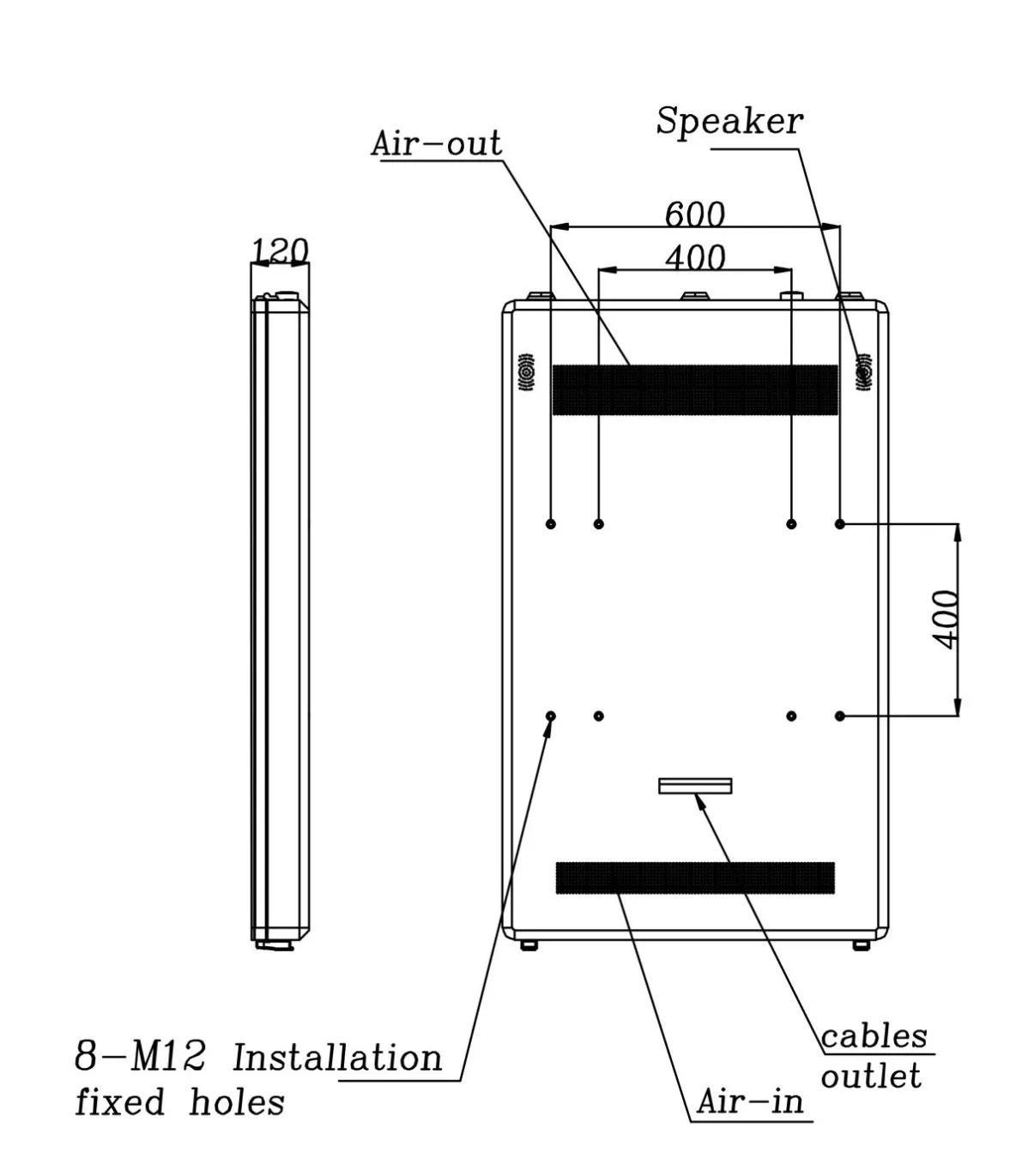

The design drawing of rear display
Coordinating With Charging Infrastructure
The 55 Inch Floor Standing Weatherproof Digital Signage cabinet needs safe power and data routes. Signage and charging equipment may have different circuit and isolation requirements, so the electrical design should be completed by qualified professionals.
The display should not block charging cables, accessible spaces, vehicle routes or maintenance access to the charging equipment.
Creating a Sustainable Content Routine
The media system should allow expired offers to be removed promptly. Site-specific content can be scheduled by location, campaign period or time of day when supported by the chosen player and management software.
A 55 Inch Floor Standing Weatherproof Digital Signage unit can add media value to an EV charging development, provided the screen is positioned carefully and its content remains relevant to drivers using the site.
