Built-in Fan Version
55 Inch Outdoor Advertising Display with 2500 Nits IP65 Wall Mounted Design for Transit Hub Ads
Life:60000 Hours Protection Grade:IP65 LOGO:Customerize HS code:8528591090
Specifications
- SKU
- ZXTLCD-OUTFHW550R
55 Inch Outdoor Advertising Display with 2500 Nits IP65 Wall Mounted Design for Transit Hub Ads
55 Inch Wall Mounted Outdoor Advertising Display for Station Media
Floor space inside a transport hub belongs to passengers, queues and luggage. Advertising equipment should not become another obstacle. This 55 Inch Wall Mounted Outdoor Advertising Display places a large media surface above passenger movement while maintaining a clear concourse.
The product offers 2500-nit brightness, IP65 protection and a published service life of 60,000 hours. Logo customization is available for transport operators, media companies and project integrators.
55 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |

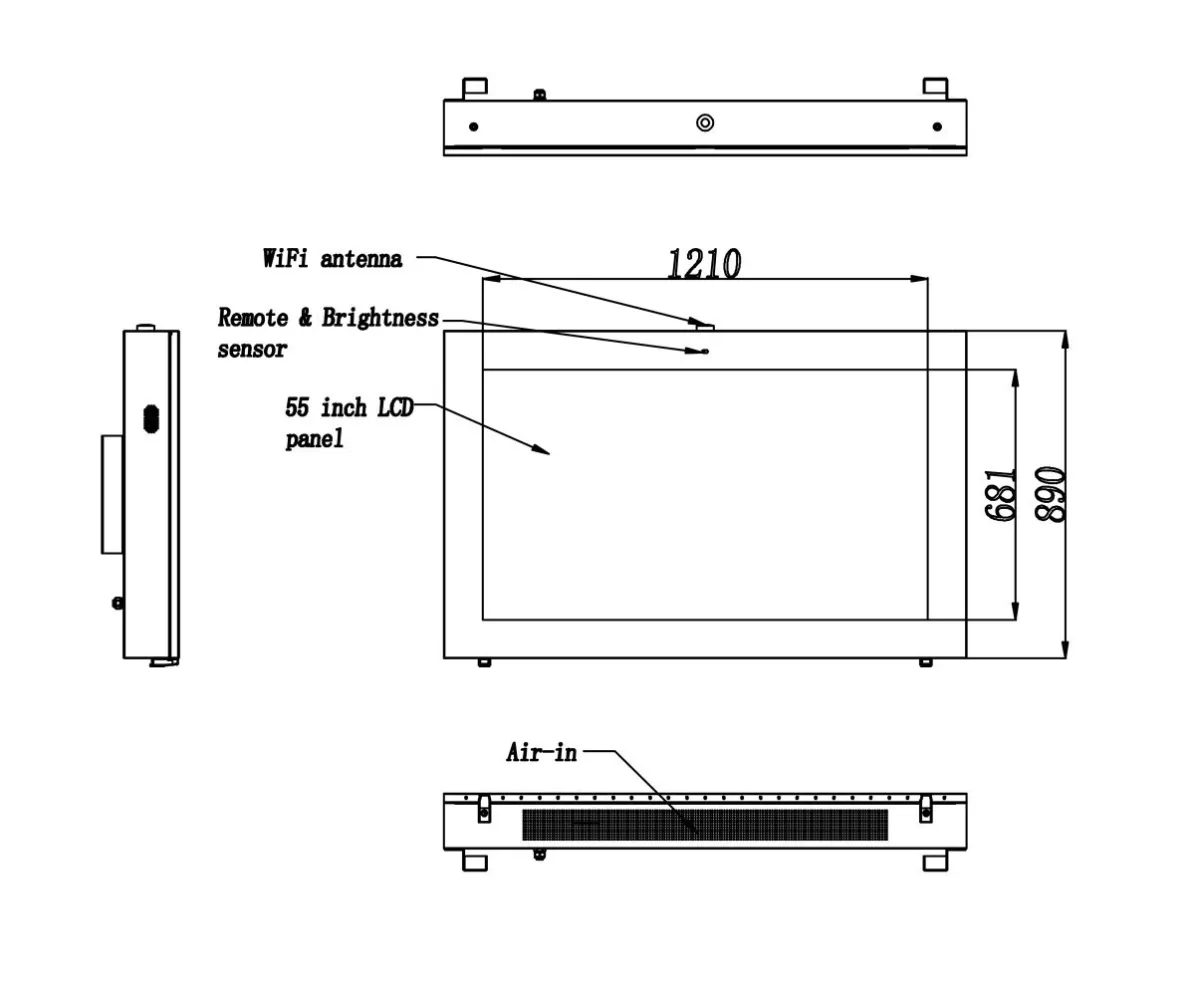

Display size(mm) | 1210*680 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

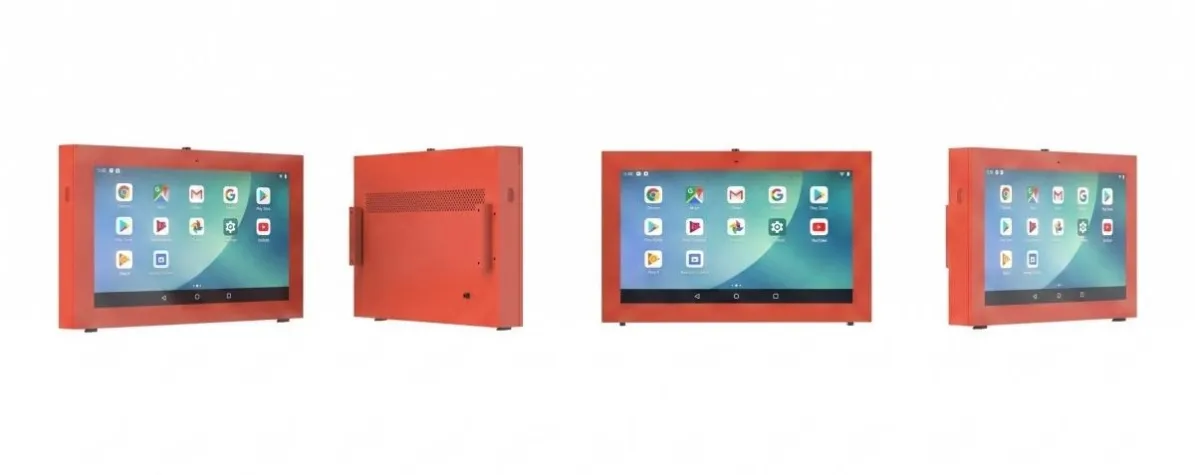

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

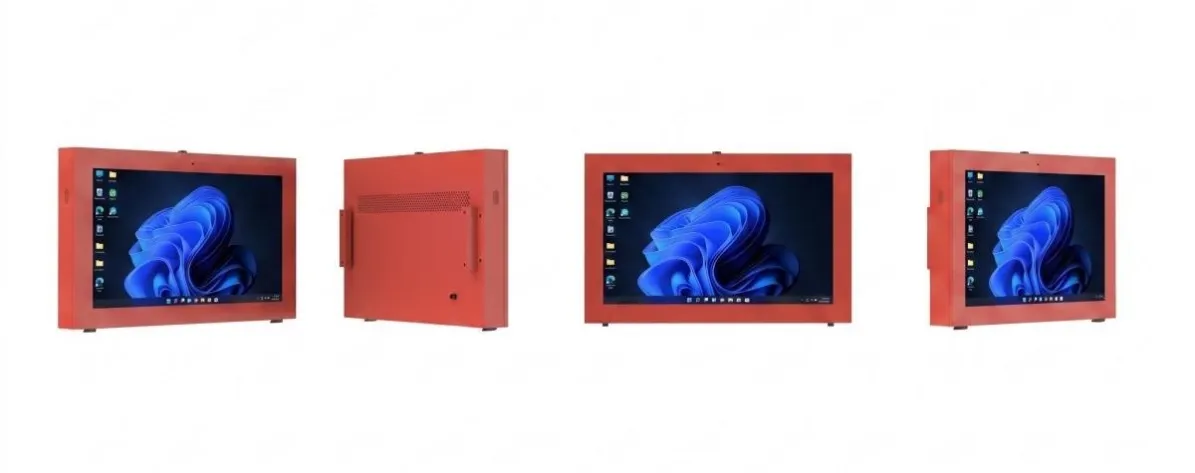

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | below 40℃ ~ + 55℃ |
Working humidity | 5% ~ 95% | |
Working Voltage | AC 100 ~240v , 50Hz | |
Max Power Consumption | 280W | |

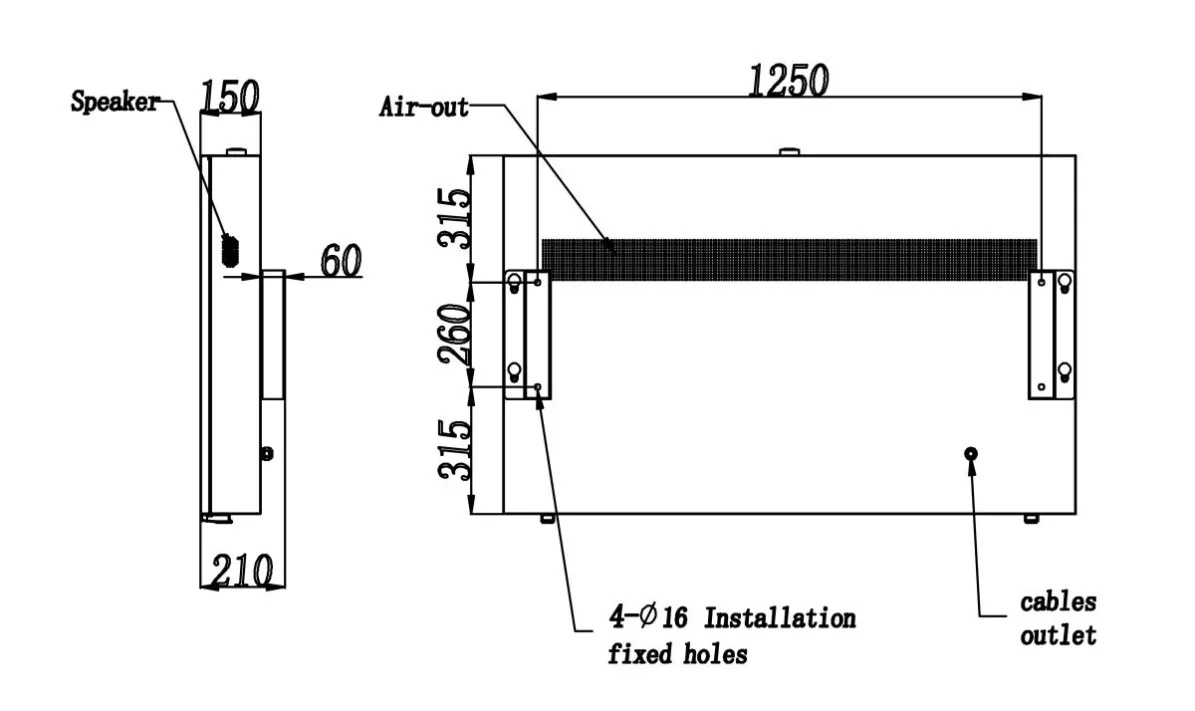

Mechanical Para | Machine seize H*W*D(mm) | 1420*890*150 |
Net weight(Kg) | 85 | |
Package size H*W*D(mm) | 1160*1570*300 | |
Gross weight(Kg) | 115 | |
The Value Changes by Station Location
A screen at the main entrance is viewed for a few seconds. Content should use a strong image and a short message. A display beside a waiting area can run longer product stories because passengers may see several campaign cycles.
Ticketing locations can support travel, payment and convenience-service advertising. Screens near the station exit can promote local hotels, restaurants and stores.
Sending the same playlist to every display ignores these differences. Screen groups should be based on passenger behavior and dwell time rather than station name alone.
Mounting Height and Passenger Flow
Wall mounting preserves floor space, but the display must remain visible behind crowds. If it is placed too low, passengers in a queue will block the campaign. If mounted too high, smaller text becomes difficult to read.
The site survey should examine sightlines from entrances, escalators and waiting positions. Advertising must not cover official station signs or make wayfinding information harder to find.
Maintenance access also needs planning. Technicians should not have to close a main corridor every time they inspect the player or cooling system.
Content for a 2500-Nit Screen
The 2500-nit panel supports bright concourses, glazed entrances and semi-outdoor station areas. Campaign artwork still requires strong contrast and suitable text size.
Subtle gray text over a detailed photograph may disappear under station lighting. The main message should remain legible from the passenger approach, with secondary information reserved for closer viewing.
Brightness can be reduced during the evening or in sheltered areas. This improves comfort for passengers waiting close to the display and avoids unnecessary power use.
Protection and Long-Term Operation
IP65 protection supports installations exposed to dust and water under the product’s rated conditions. Cable penetrations and wall joints created during installation must retain that protection.
Transport environments can contain road dust and brake residue. Cleaning and ventilation inspection should follow the actual site conditions.
The listed 60,000-hour life supports long operating schedules, but service access and spare-parts planning remain important. Media operators should know how quickly a player, fan or power component can be replaced.
Reporting and Operational Messages
A commercial 55 Inch Wall Mounted Outdoor Advertising Display network may require proof-of-play records. Remote monitoring should show whether each device is online and playing the assigned campaign.
The station operator may also need to interrupt advertising with urgent passenger information. Publishing permissions should allow operational teams to act quickly without giving every advertiser access to station messages.
Provide the wall drawing, orientation, viewing distance, operating hours and CMS requirements before production. A 55 Inch Wall Mounted Outdoor Advertising Display earns its place in a transport hub when the media fits the passenger location, the installation protects pedestrian flow and the maintenance team can keep it operating without closing the concourse.
