Built-in Fan Version
55 Inch 2500 Nits IP65 Weatherproof Digital Signage Pole Mounted Fan Cooling for Public Information
Working temperature:Working temperature: -40C-50C Material:Aluminum alloy,tempered glass Material:Metal Case + Toughened Glass Panel Material:304 Stainless steel/SGCC Galvanized plate
Specifications
- SKU
- ZXTLCD-OUTFHN550G
55 Inch 2500 Nits IP65 Weatherproof Digital Signage Pole Mounted Fan Cooling for Public Information
Turning Passing Footfall into Store Visits
This 55 Inch Outdoor Retail Advertising Display is intended for businesses that need to reach customers before they enter the store. The green two-post structure supports a landscape screen that can sit beside an exterior window, outdoor entrance or pavement-facing retail area.
Instead of repeating the complete in-store campaign, the display should give pedestrians one immediate reason to enter.
55 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1210*681mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

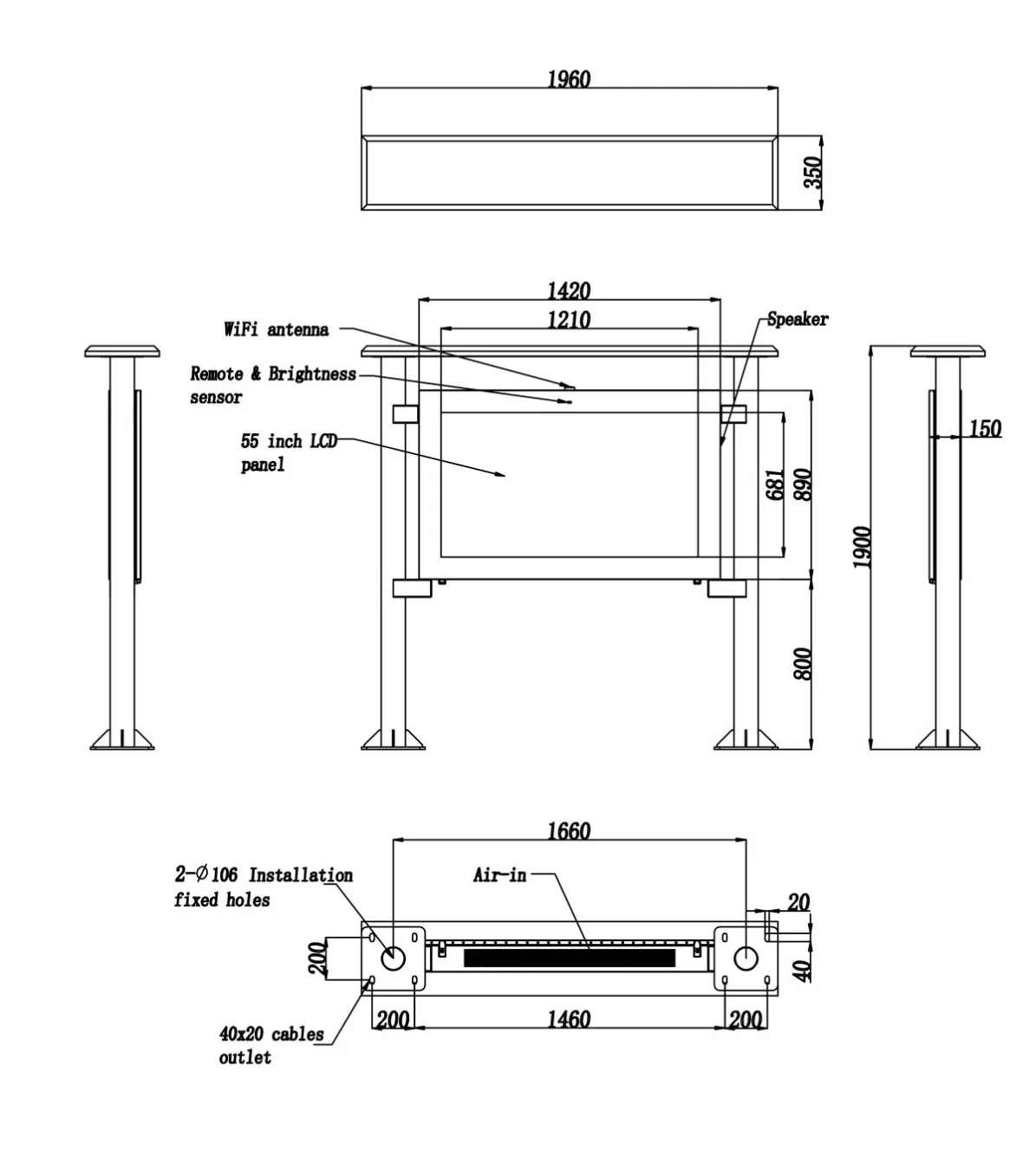

Mechanical parameters | Whole device dimension (H*W*D) | 1900*1960*350mm |
Whole device net.weight | 160kg | |
Package dimension H*W*D | 1160*1570*300mm | |
Stand pole dimension H*W*D | 570*2210*510mm | |
Mechanical parameters | Whole device gross weight(kg) | 110 |
Stand pole gross weight(kg) | 120 | |
What Should Appear on the Screen?
Effective storefront content may feature:
- One newly launched product
- A limited promotion with a clear end date
- Directions to an in-store event
- Pickup or service instructions
- Current opening hours
- A recognizable brand image
The main message should be understood within a few seconds. Detailed specifications belong on the product page or inside the store.
Coordinate Digital and Physical Merchandising
The 55 Inch Outdoor Retail Advertising Display should complement the nearby window rather than hide it. A digital campaign can introduce the product while the physical window shows the actual merchandise.
Screen orientation should follow the main pedestrian approach. A small change in angle may provide more viewing time than simply increasing brightness.
Daily Retail Operation
The product combines 2500-nit output, IP65 protection and built-in fan cooling. Store staff should clean the glass and inspect the campaign every day, while technical teams handle ventilation and cabinet servicing.
The 55 Inch Outdoor Retail Advertising Display performs best when its content follows real stock, real events and the current retail calendar. An expired outdoor promotion can discourage trust before a customer reaches the door.
