Built-in Fan Version
55 Inch 2500 Nits IP65 Outdoor Digital Signage Floor Standing Fan Cooling for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP550O
55 Inch Floor Standing Outdoor Digital Signage for Public Information
A public display is judged as much by the information it carries as by its technical specifications. A bright screen showing an expired notice is less useful than a modest screen updated at the right moment.

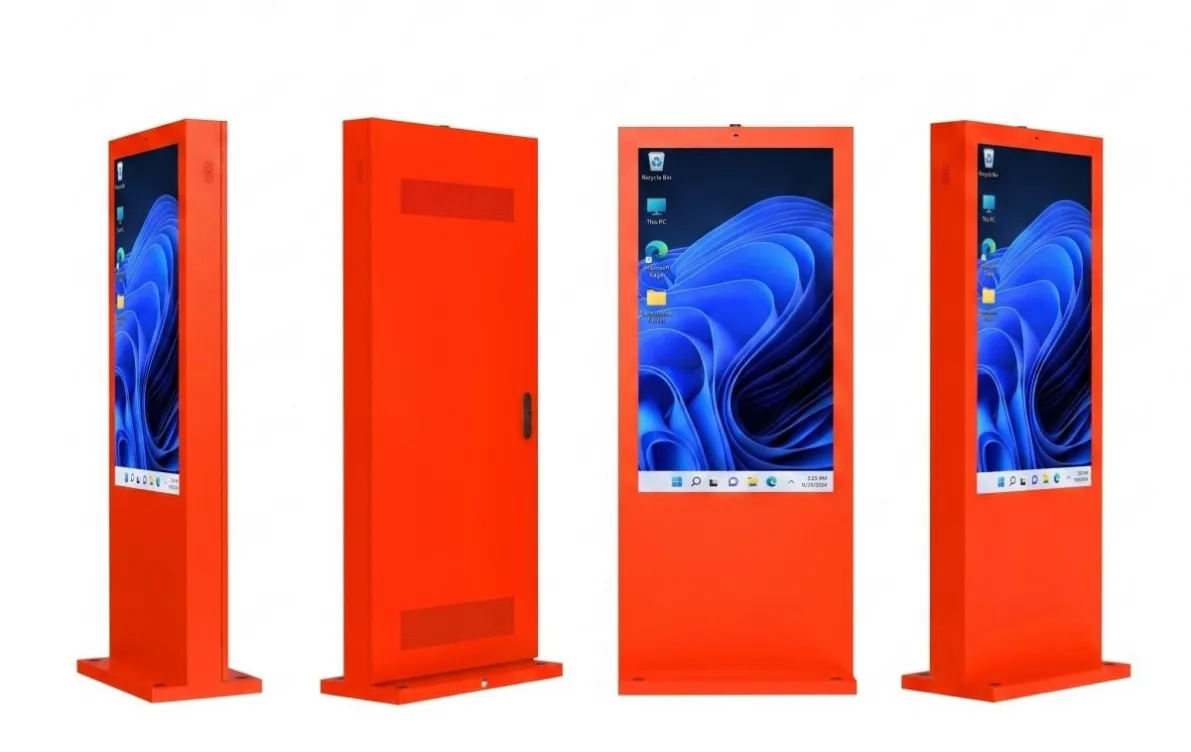

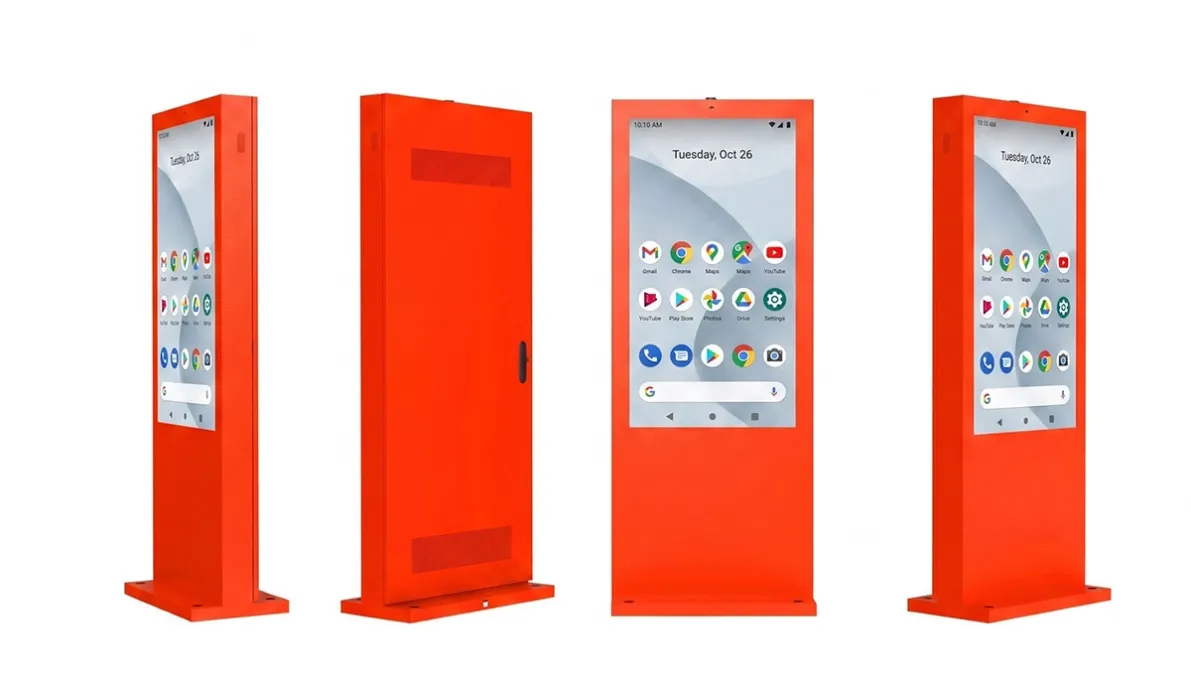

The 55 Inch Floor Standing Outdoor Digital Signage model combines a portrait screen with an orange freestanding enclosure. It is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
55 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1210*681 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

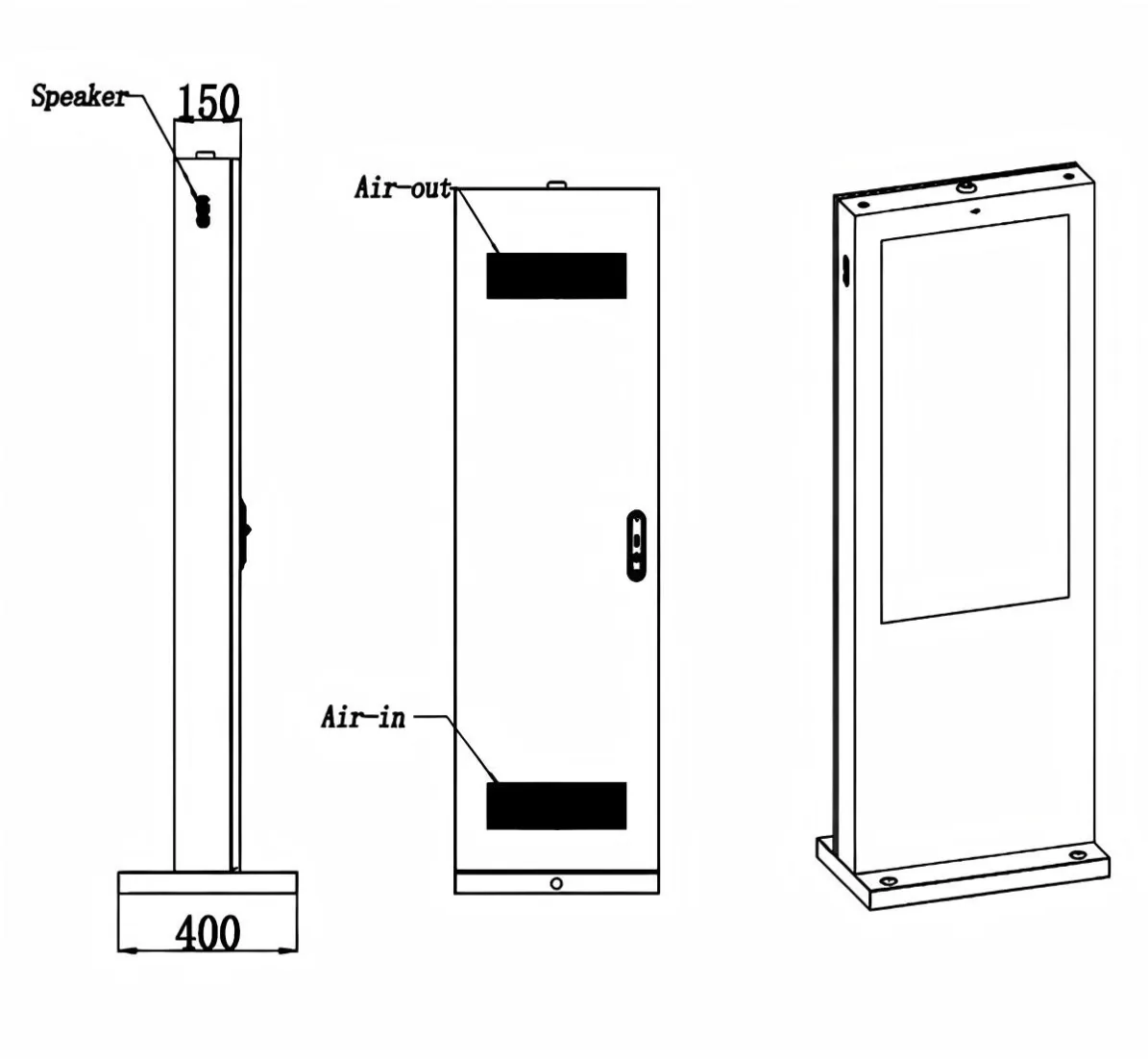

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

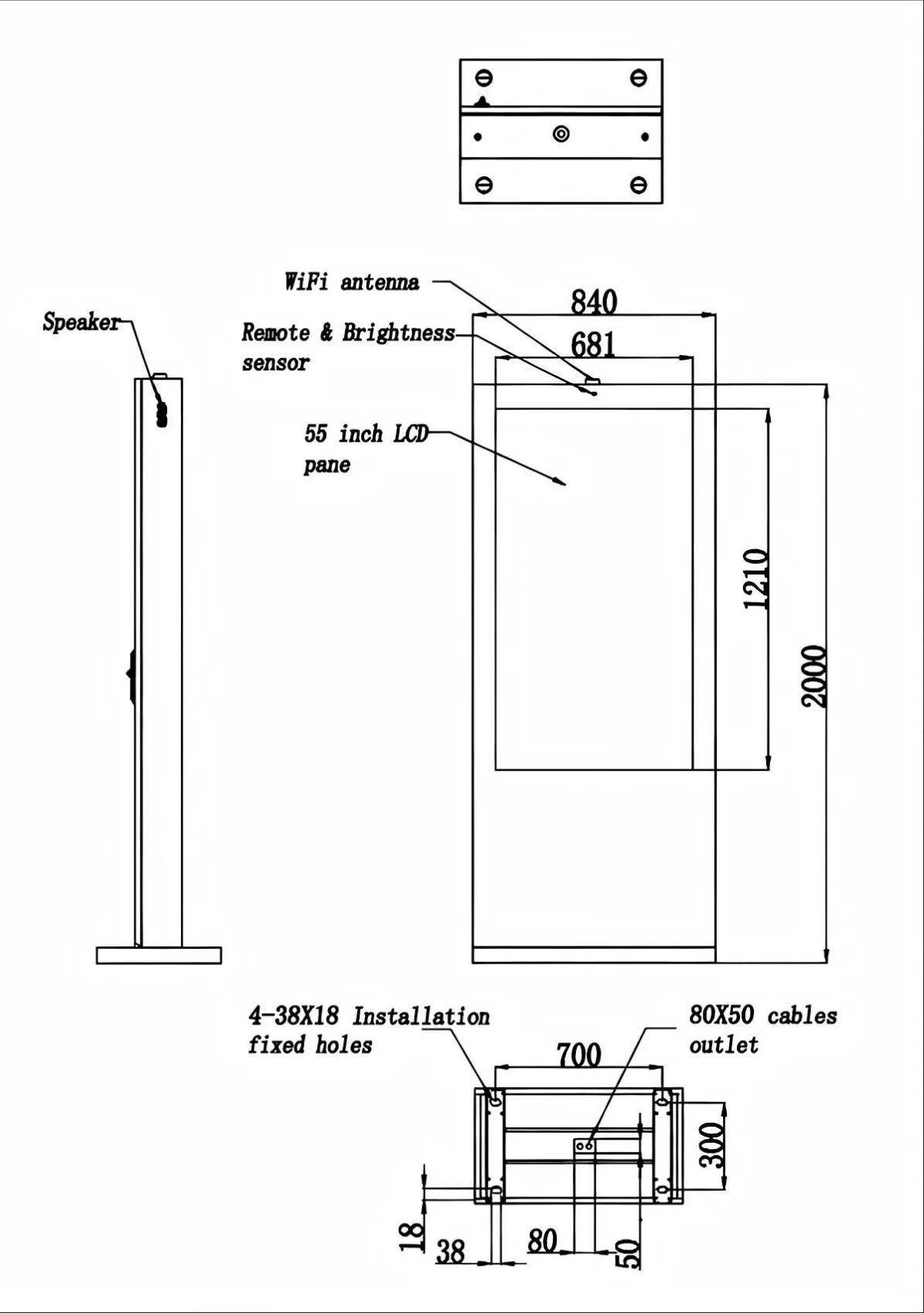

Mechanical Para. | Machine seize H*W*D( mm) | 2000*840*150 |
Net weight(Kg) | 100 | |
Package size H*W*D( mm) | 1070*2150*470 | |
Gross weight(Kg) | 140 | |
A Cabinet That Is Easy to Locate
The narrow orange body shown in the product image can help visitors recognize an information point from a distance. This may suit outdoor attractions, municipal service areas or event entrances.
The finish should not conflict with safety markings, and final color availability must be confirmed before ordering.
Content Ownership Before Installation
Operators should establish:
- Who approves public notices
- How urgent messages are published
- When expired content is removed
- Which information has priority
- How the screen is checked remotely or on site
The display can carry outdoor maps, entrance instructions, event schedules and emergency information.
Preparing the Site
The cabinet requires a suitable foundation, power route and maintenance clearance. Its position should not narrow accessible or emergency paths.
The 2500-nit brightness supports high ambient light. IP65 protection helps defend against dust and water jets, while fan cooling manages internal heat.
The 55 Inch Floor Standing Outdoor Digital Signage model is a good fit for outdoor information networks that need a recognizable, medium-size screen and a disciplined publishing process.
