55 Inch 2500 Nits IP65 Outdoor Advertising Kiosk Floor Standing Fan Cooling for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVX550G
55 Inch 2500 Nits IP65 Outdoor Advertising Kiosk Floor Standing Fan Cooling for EV Charging Ads
55 Inch IP65 Outdoor Advertising Kiosk for EV Charging Locations
EV charging stations give drivers something that conventional roadside advertising rarely receives: several minutes of potential viewing time. The content does not need to rely on a brief passing glance. It can introduce nearby services, explain site facilities or present time-sensitive advertising while a vehicle is charging.
The 55 Inch IP65 Outdoor Advertising Kiosk is a floor-standing display specified with 2500-nit brightness and built-in fan cooling. Its outdoor enclosure allows operators to create a separate media position without trying to fit advertising into the charger’s own interface.
55-inch Vertical Fan cooling Outdoor Advertising Display Specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | BOE |
Backlight type | DLED | |
Display size | 681*1210mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～50℃ |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 500W | |
Machine size and weight | Machine size(H*W*D) | 800*2000*120mm |
Net weight | 103KG | |
Package size and weight | Package material | Honeycomb Carton Packaging |
Package size H*W*D | 900*2110*420mm | |
Gross weight | 120KG | |
What the Display Can Communicate
A charging-site screen can carry more than conventional promotional material. Useful content may include:
- Nearby restaurants and shops
- Charging-site instructions
- Local maps and directions
- Customer-support information
- Loyalty or membership campaigns
- Safety reminders
- Community announcements
- Brand and sustainability messages
Advertising and operational information should be clearly separated. The kiosk should not be described as controlling the charger unless a dedicated integration has been designed and tested.
Why a Freestanding Cabinet Helps
Charging locations vary widely. Some are built into service stations, while others occupy open parking areas or retail developments. A floor-standing cabinet can be positioned according to driver movement and available ground space rather than depending on an existing wall.
The installation should not interfere with vehicle access, charging cables or accessible parking spaces. Maintenance personnel also need enough clearance to open and service the cabinet safely.
Outdoor Visibility Across the Day
The 2500-nit screen is designed for high-ambient-light conditions. This is especially relevant in open parking areas where there may be little natural shade.
The site survey should assess morning and afternoon sunlight separately. Screen direction can have a significant effect on perceived contrast, even when a high-brightness panel is used.
Evening operation requires a different approach. Buyers should ask whether automatic or scheduled brightness adjustment is available in the final configuration.

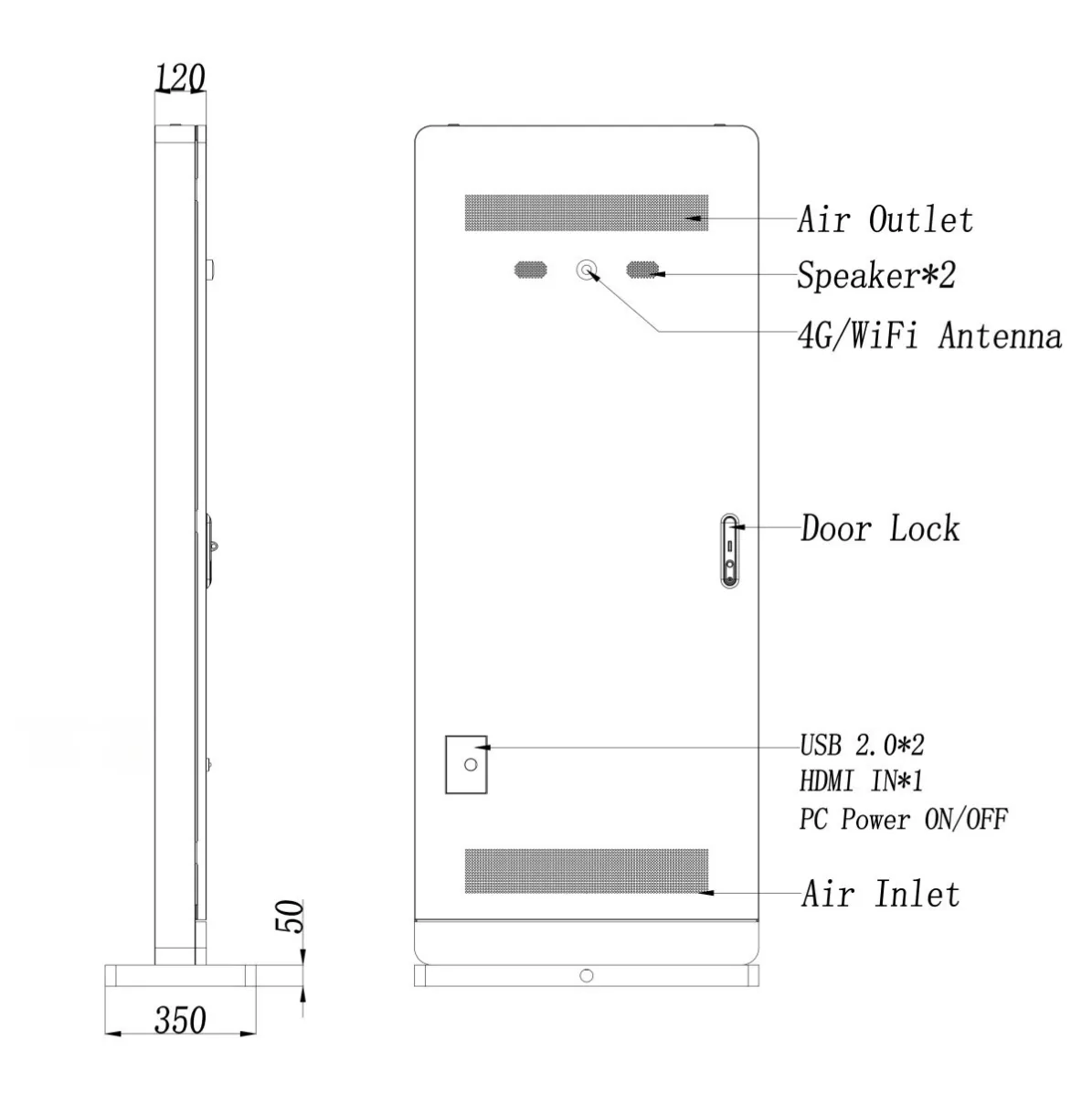

The design drawing of rear display
IP65 Enclosure and Cooling
The 55 Inch IP65 Outdoor Advertising Kiosk is protected against dust and water jets when correctly assembled and installed. The built-in fan cooling system assists with heat management during continuous or long-hour operation.
Cable glands, foundation openings and access panels should remain properly sealed. Airflow areas must also be inspected according to local dust and debris conditions.
Questions for the Project Stage
Before placing an order, the buyer should establish the content source, media-player configuration, remote-update requirements, electrical route and network method. Structural requirements such as the foundation, anchor arrangement and local wind loading must be reviewed separately.
The advertising display and EV charging equipment may require different electrical protections. Qualified installers should plan the circuits and cable paths according to local regulations.
A 55 Inch IP65 Outdoor Advertising Kiosk can turn charging dwell time into a useful communication opportunity while keeping the advertising system separate from the charger itself.
