Built-in Fan Version
49 Inch Weatherproof Digital Signage with 2500 Nits IP65 Floor Standing Design for Transit Hub Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP490R
49 Inch Floor Standing Weatherproof Digital Signage for Exterior Transit Areas
The product image shows a bright red lower cabinet with a yellow-green advertising image. Its compact form is more appropriate for close pedestrian traffic than large station-wide messaging.
This 49 Inch Floor Standing Weatherproof Digital Signage model is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
49 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel para | Backlight type | ELED |
Display size( mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

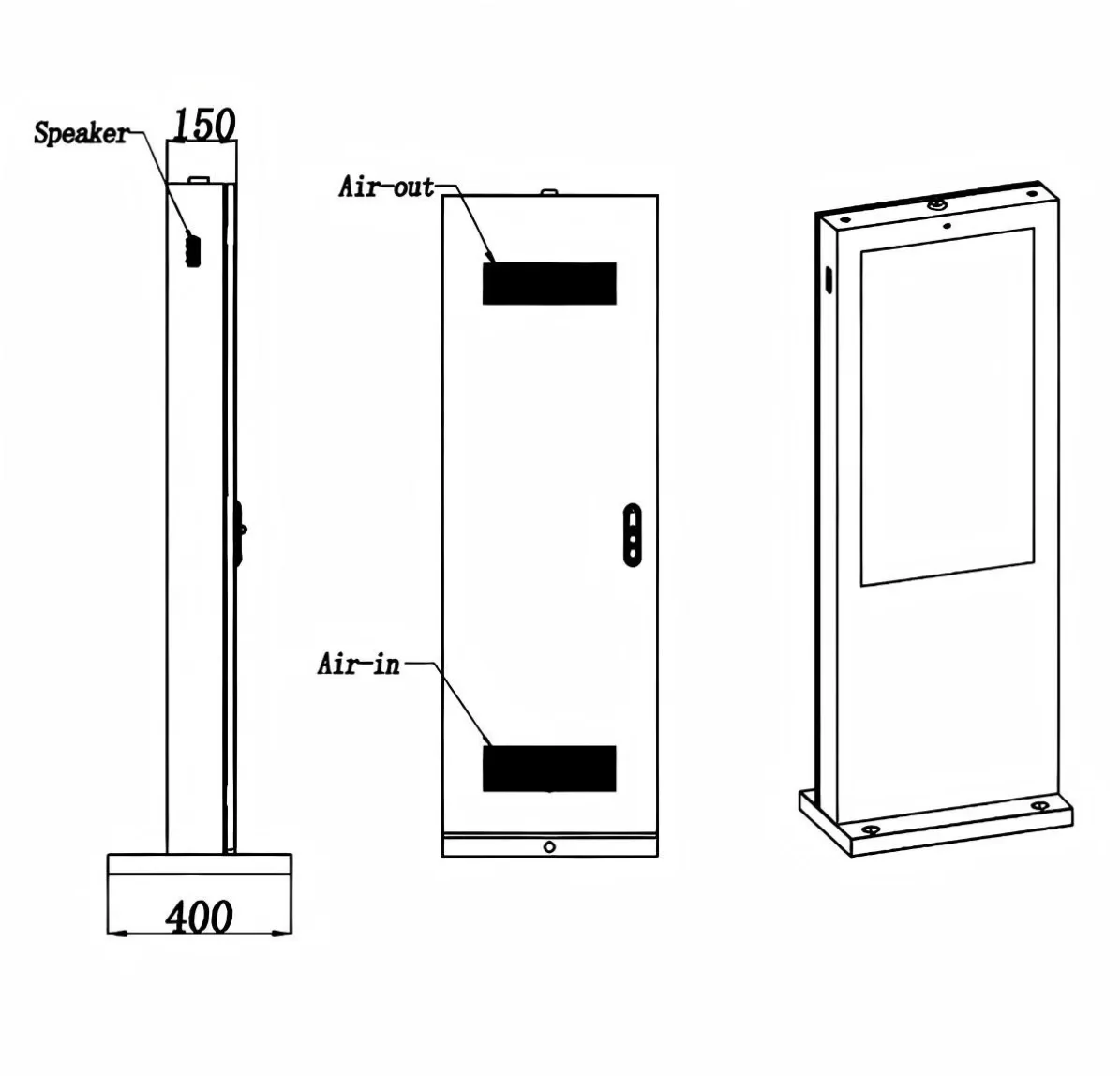

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |
Mechanical Para | Machine seize H*W*D( mm) | 1900*760*150 |
Net weight | 90 | |
Package size H*W*D( mm) | 990*2050*470 | |
Gross weight(Kg) | 130 | |
Advertising Where Passengers Naturally Wait
A 49-inch screen can be positioned near an exterior ticketing queue, outdoor pickup area or sheltered but weather-exposed waiting point.
The screen should be close enough for passengers to understand the message without narrowing the route or blocking official station information.
Distinctive Lower Cabinet
The red enclosure shown in the image makes the kiosk highly visible. It may help identify an outdoor media network, but the color should not be confused with emergency equipment.

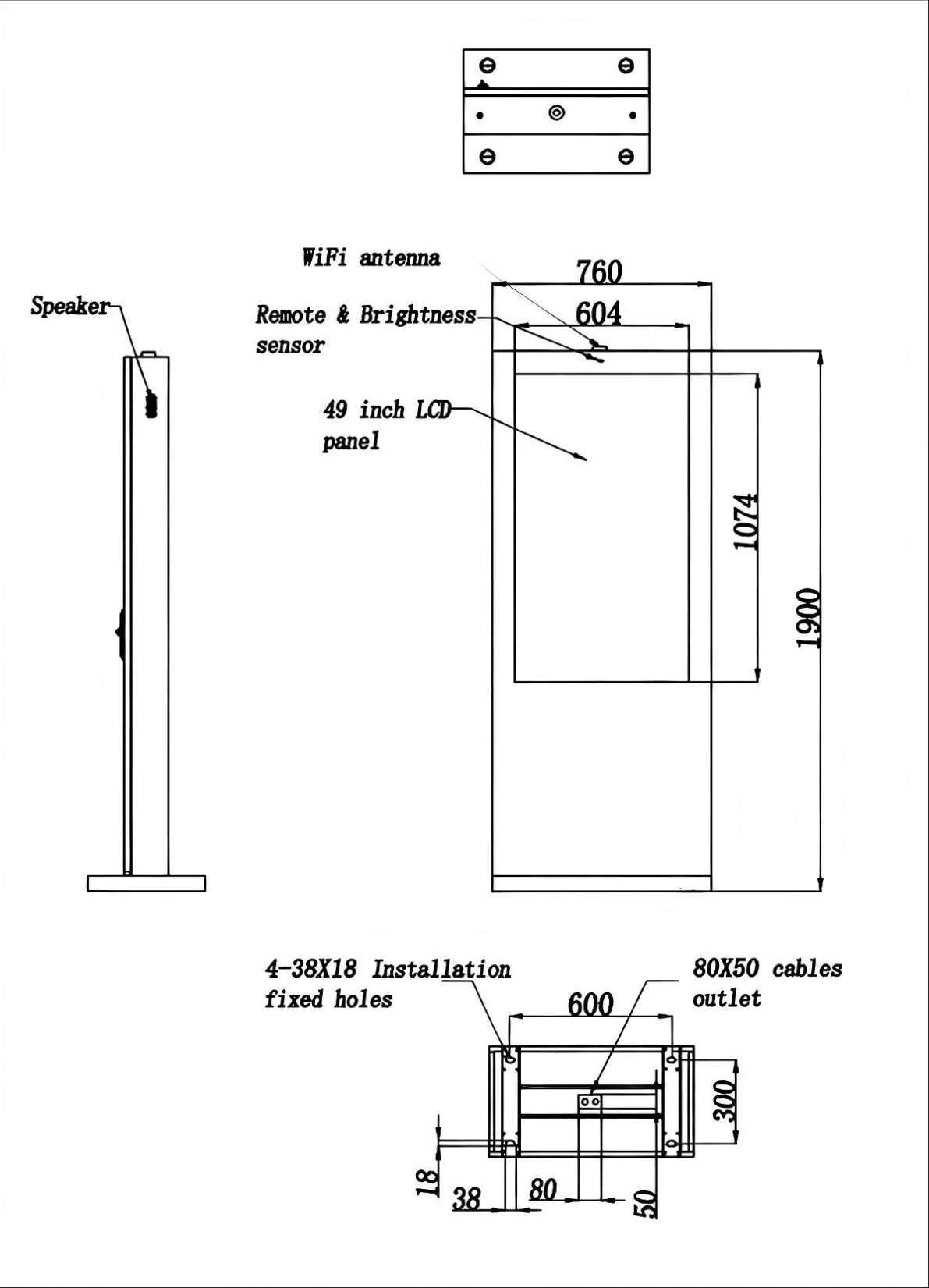

Final finish and branding require confirmation. Exact base dimensions and anchoring must come from the technical drawing.
Content Suitable for 49 Inches
Short campaigns, local-area advertising and simple transport directions fit this size better than complex timetables.
The 2500-nit panel supports daylight viewing. IP65 protection addresses dust and water jets, while fan cooling needs routine inspection in roadside environments.
FAQ
Is this screen large enough for a station timetable?
It is better suited to short information and advertising. Detailed timetables may require a larger screen or redesigned layout.
Can the red cabinet be customized?
Possibly, but color and coating options must be confirmed in the quotation.
The 49 Inch Floor Standing Weatherproof Digital Signage model offers a compact outdoor media position for transport locations with relatively close passenger viewing.
