Built-in Fan Version
49 Inch Outdoor LCD Display with 2500 Nits IP65 Pole Mounted Design for Transit Hub Ads
Brightness:2500nits Response Time:5ms Color:16.7M Input Voltage:AC100~240V 50 /60 HZ
Specifications
- SKU
- ZXTLCD-OUTFHN490W
49 Inch Pole Mounted Transit LCD Display for Focused Passenger Advertising
Not every transport campaign needs to dominate a station. This 49 Inch Pole Mounted Transit LCD Display suits positions where passengers pass relatively close to the screen, such as an outdoor entrance, sheltered queue or connection between parking and public transport.
The image shows a dark grey two-post structure with a compact landscape display. The neutral cabinet can accommodate different advertiser colours without becoming part of the campaign itself.
49 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1074*604mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

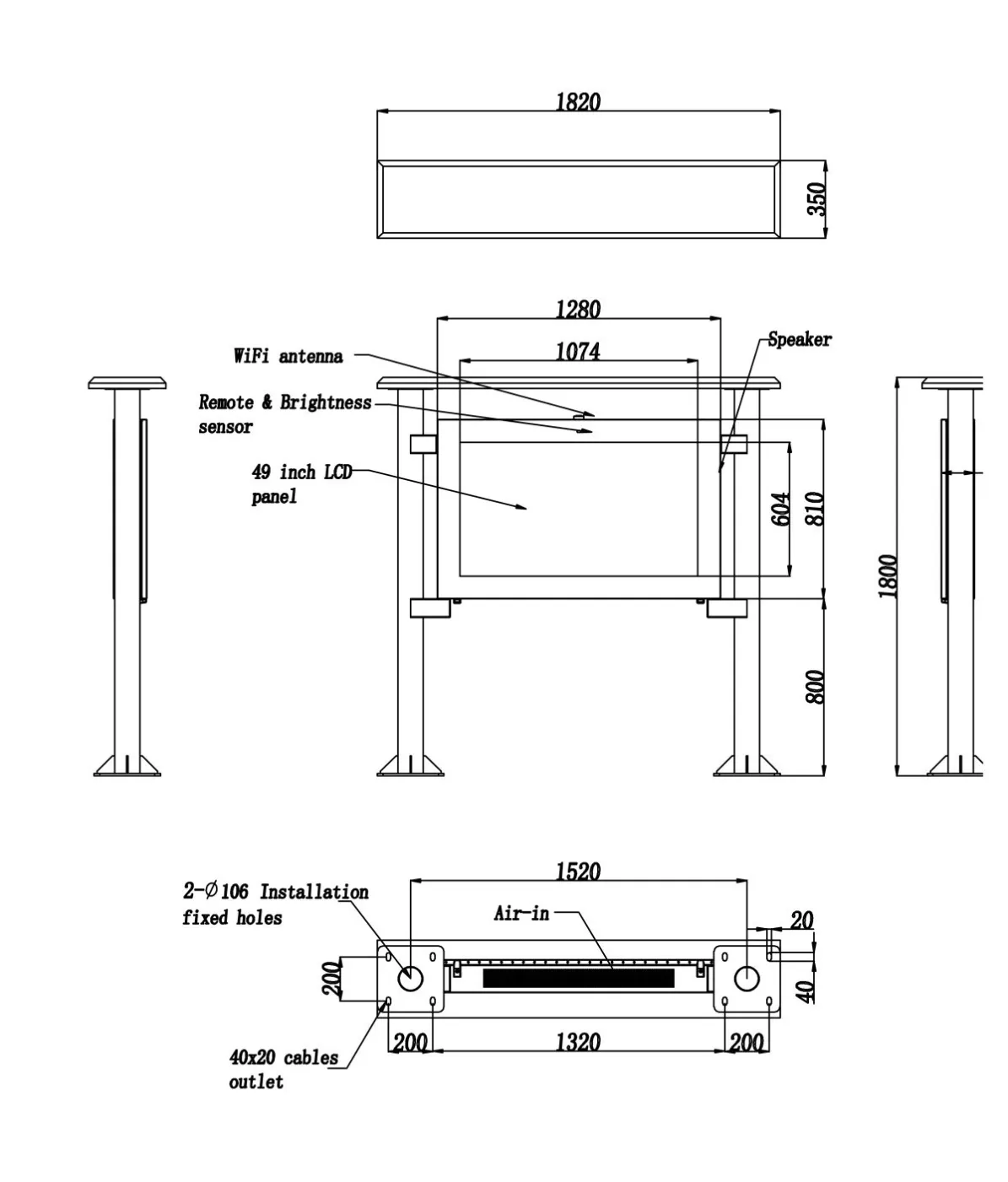

Mechanical parameters | Whole device dimension (H*W*D) | 1800*1820*350mm |
Whole device net.weight | 146kg | |
Package dimension H*W*D | 1080*1430*300mm | |
Stand pole dimension H*W*D | 570*2070*510mm | |
Mechanical parameters | Whole device gross weight(kg) | 100 |
Stand pole gross weight(kg) | 120 | |
Sell the Location Before Selling the Screen
Media value depends on what passengers are doing near the installation:
- Walking quickly toward a platform
- Waiting in an outdoor queue
- Transferring between transport modes
- Leaving a parking area
- Looking for nearby services
Each behaviour supports a different content length. A moving audience needs a short headline; a waiting audience can engage with destination or retail information.
Creative Requirements
The 49 Inch Pole Mounted Transit LCD Display should use one primary visual and limited copy. Small multi-advertiser grids are difficult to read unless passengers stand directly beside the screen.
The landscape format supports short video, travel imagery and local-area promotions.
Network and Physical Maintenance
The product combines 2500-nit brightness, IP65 protection and fan cooling. Media operators should monitor playback, connectivity and internal temperature while station maintenance teams inspect the supports, glass and cable protection.
The 49 Inch Pole Mounted Transit LCD Display is a targeted media position. Its commercial advantage comes from audience relevance and repeat exposure rather than screen size alone.
