Built-in Fan Version
49 Inch 2500 Nits IP65 Outdoor Digital Signage Floor Standing Fan Cooling for EV Charging Ads
Viewing Angle:178°/178° Max Resolution:1920*1080 Pixel Pitch:0.4845(H)*0.4845 (V) Contrast Ratio:4000:1
Specifications
- SKU
- ZXTLCD-OUTFHP490G
49 Inch EV Charging Digital Signage for the Driver’s On-Site Journey
A driver approaching a charging bay has different information needs at each stage. This 49 Inch EV Charging Digital Signage can support the journey from arrival to charging completion without occupying the space required by a large advertising billboard.
The product image shows a landscape screen on a white pedestal cabinet. Its compact outdoor form can be positioned near a shared pedestrian route serving several charging bays.
49 Inch Outdoor floor-standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 1074*604mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

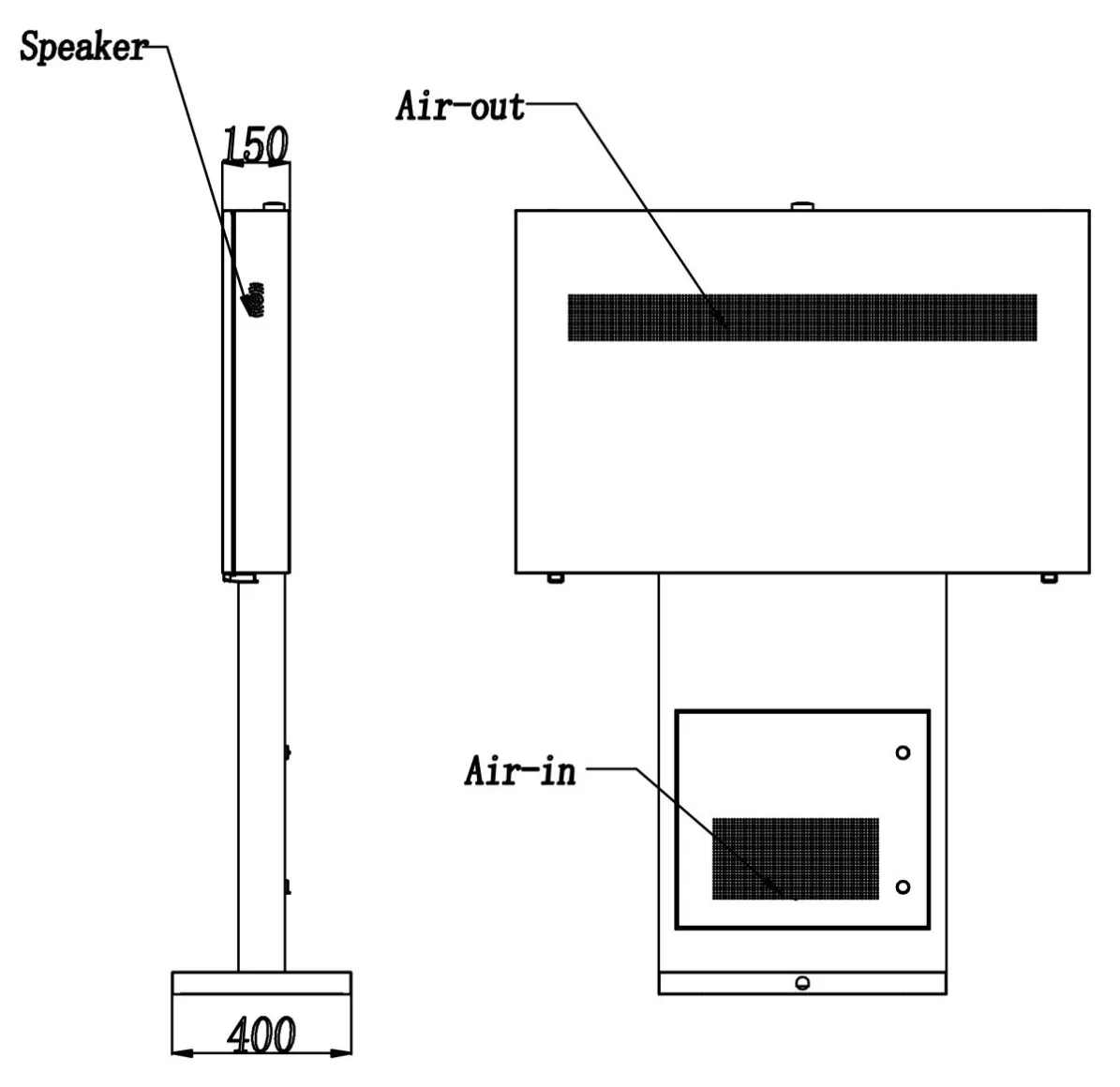

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

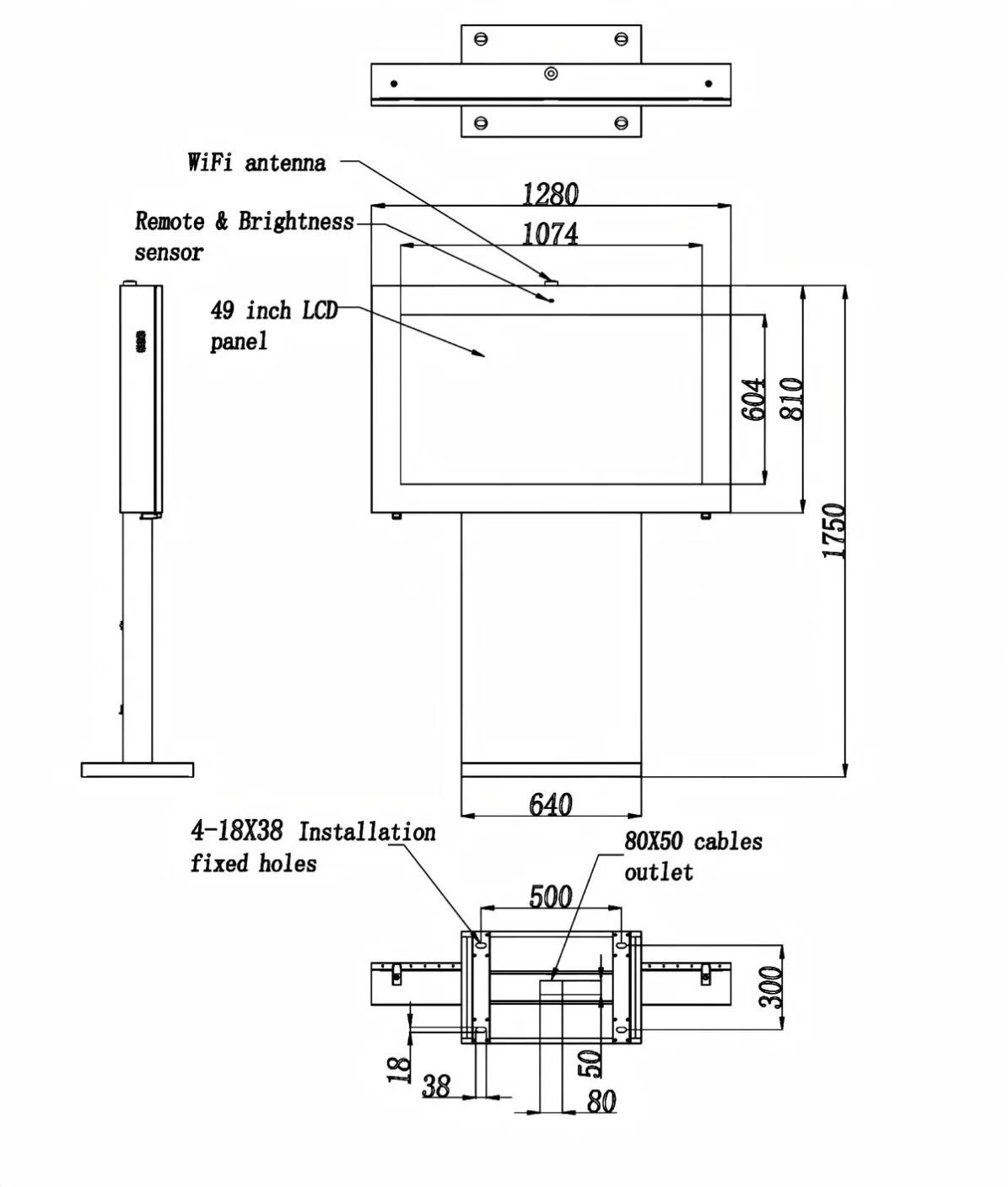

Mechanical parameters | Machine size(H*W*D) | 1750*1280* 150mm |
Net machine weight | 105kg | |
Package size(H*W*D) | 1980*1430* 420mm | |
Package weight | 145kg | |
Arrival: Help Drivers Understand the Site
The first content should answer practical questions:
- Where should the vehicle stop?
- Which charging connectors are available?
- How is payment started?
- Where can help be requested?
- What facilities are nearby?
The screen should not claim to show live charger availability unless it is connected to verified charging data.
During Charging: Introduce Relevant Services
Once charging has started, the 49 Inch EV Charging Digital Signage can promote nearby food, retail or leisure facilities. Offers should be realistic within the expected charging time.
A message such as “Coffee available 80 metres ahead” is more useful than a general restaurant advertisement with no location information.
Before Departure: Deliver Short Reminders
Safety reminders, parking restrictions and loyalty information can appear later in the playlist. The content sequence should remain short enough that new arrivals do not wait several minutes for charging instructions to return.
Outdoor Operation
The product combines 2500-nit brightness, IP65 protection and built-in fan cooling. Its position should avoid charging cables, vehicle doors and reversing routes.
Air openings require routine cleaning, particularly in open car parks exposed to dust and vehicle emissions.
The 49 Inch EV Charging Digital Signage becomes more valuable when operational information and commercial media support the same driver journey rather than competing for attention.
