Built-in Fan Version
43 Inch Vertical Floor Standing Advertising Machine Touch LCD Display Video Network HD Player
Network:WIFI / LAN / 3G / 4G Optional Resolution:1920*1080 / 3840*2160 Operating system:Android / Windows os Back:Cold-rolled sheet metal board
Specifications
- SKU
- ZXTLCD-OUTVX430B
43 Inch Touch Floor Standing Advertising Display for Interactive Service Points
A touch display should reduce the steps needed to find information. It should not reproduce a complicated website on a vertical screen and expect every visitor to understand it. This 43 Inch Touch Floor Standing Advertising Display is intended for close-range interaction at commercial and public-service points where people need to search, select or explore content.

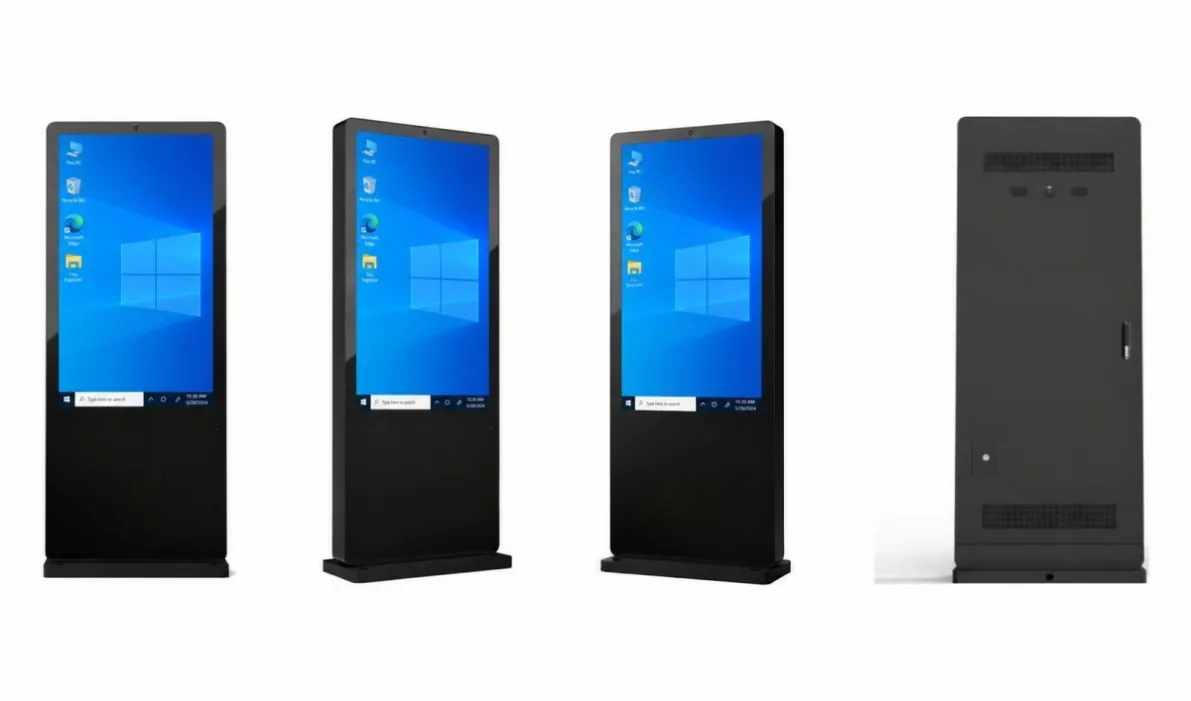

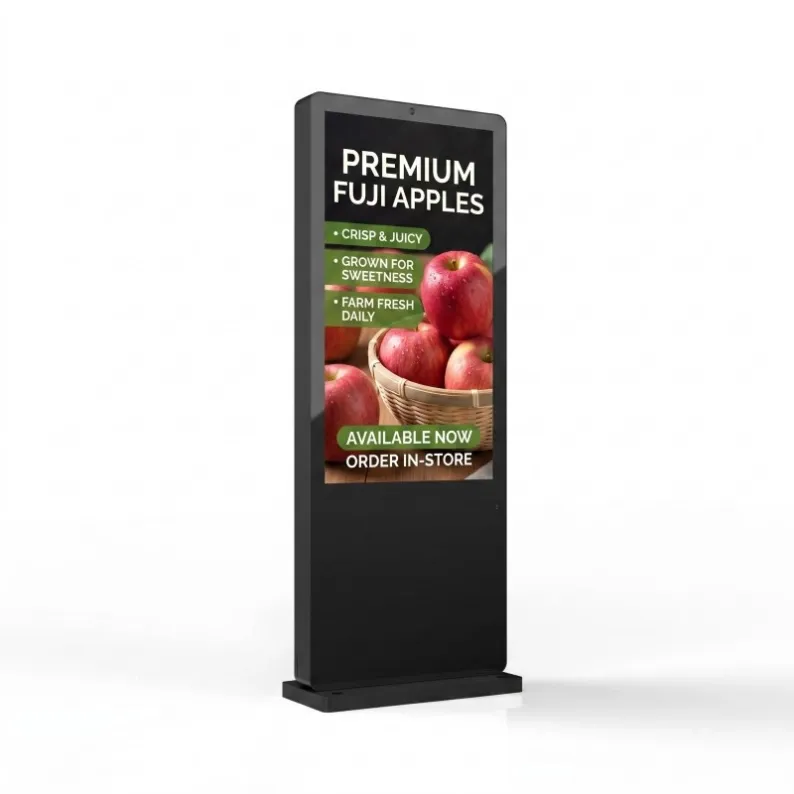

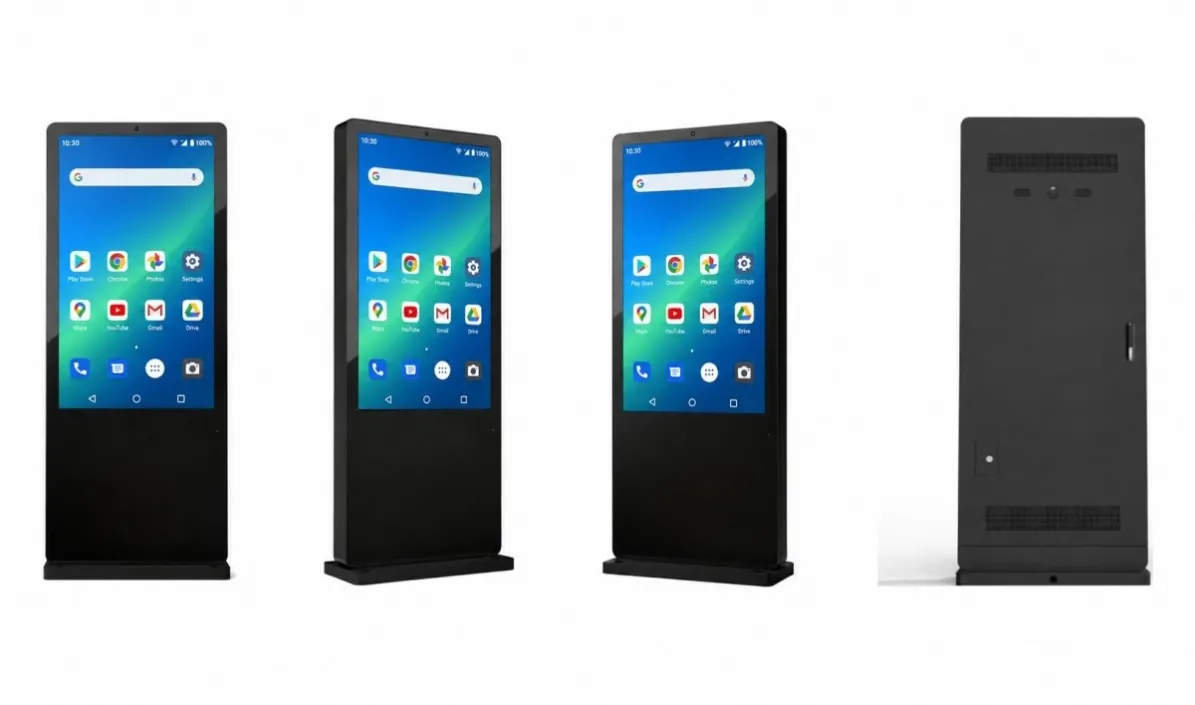

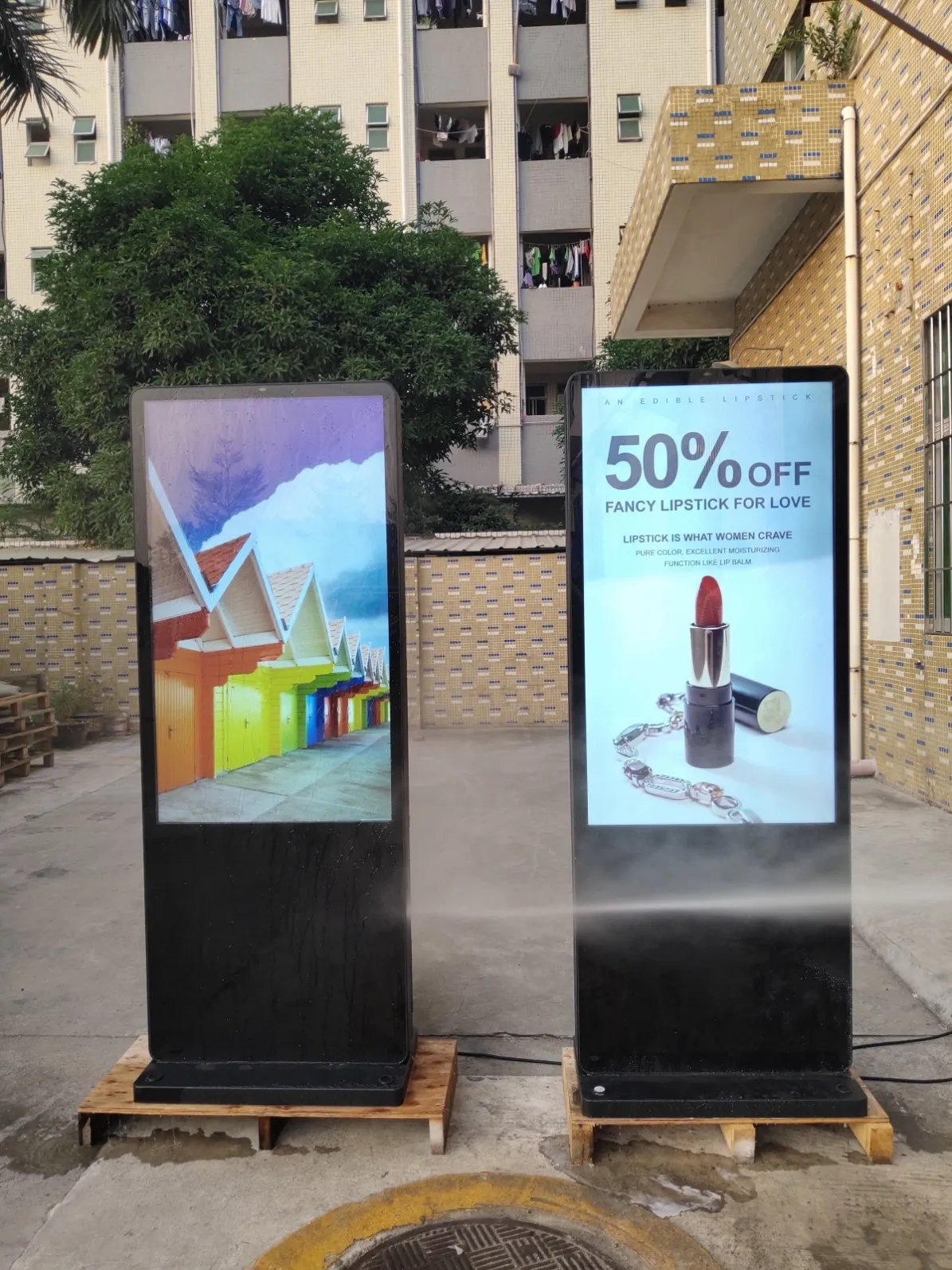

The product image shows a narrow black-and-white floor-standing cabinet with a portrait screen. Its compact width allows it to sit near an entrance, service area or covered exterior position without requiring the floor space of a large advertising totem.
43-inch Vertical Fan cooling Outdoor Advertising Display Specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | BOE |
Backlight type | DLED | |
Display size | 530*942mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～50℃ |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 300W | |

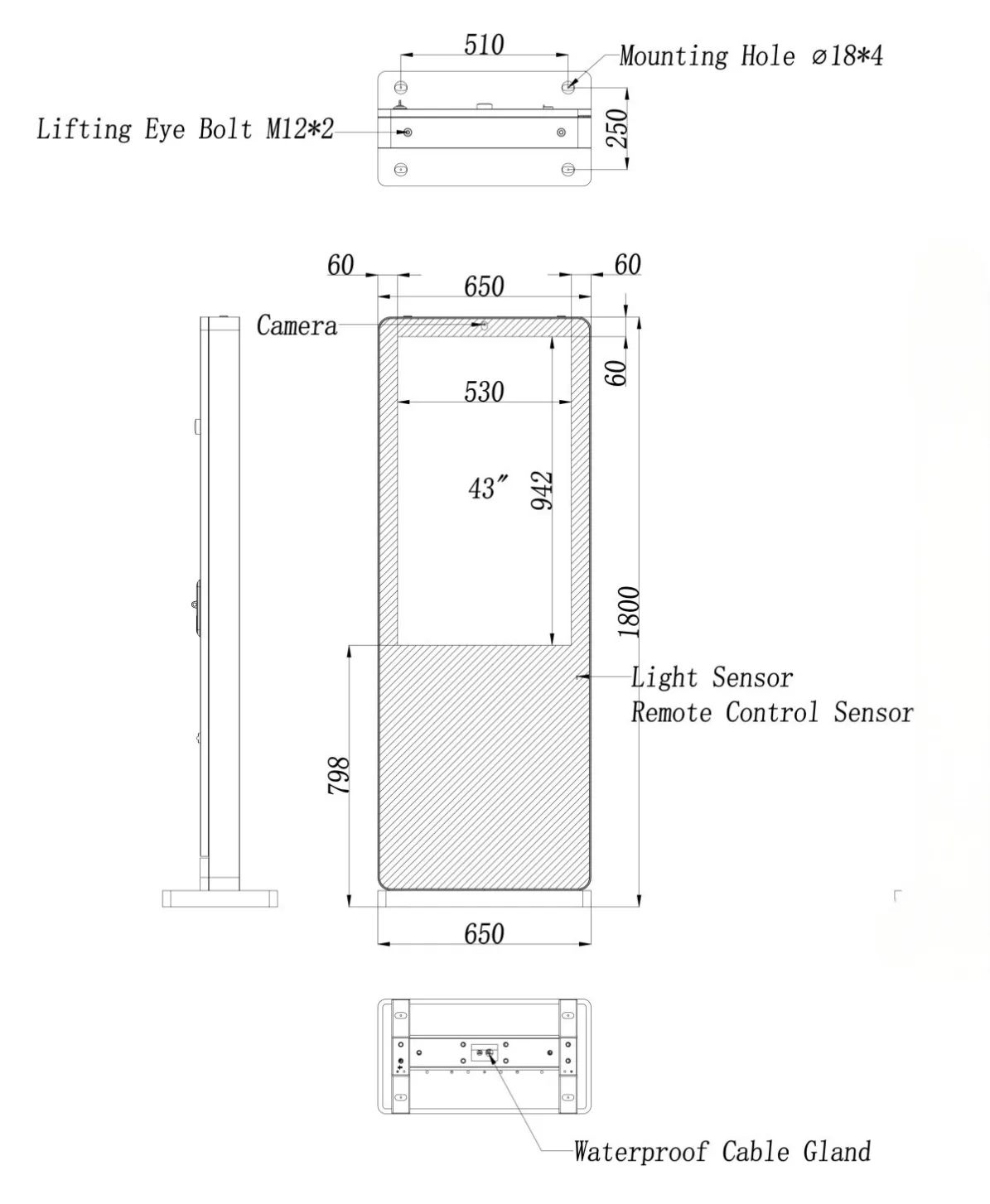

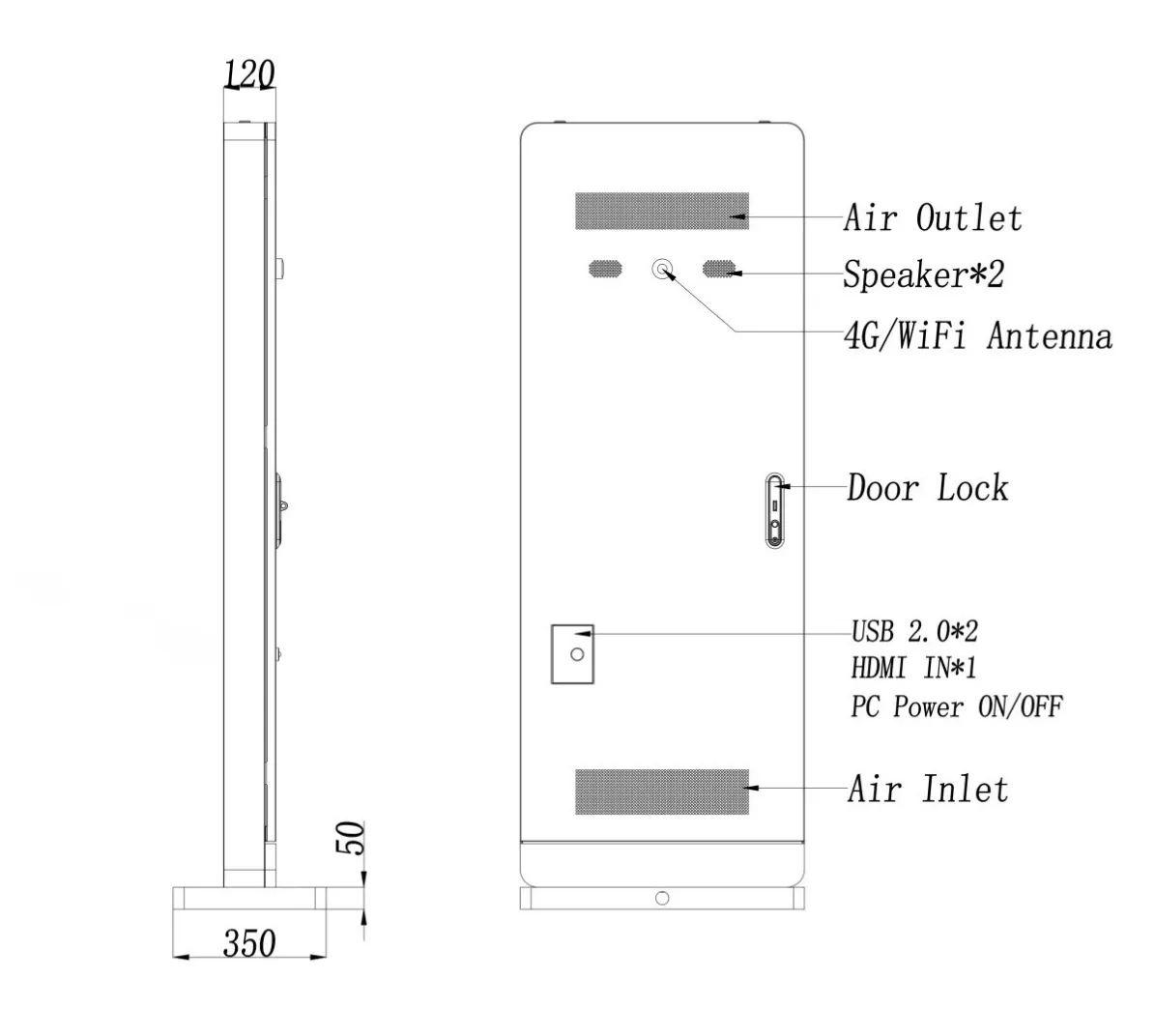

Machine size and weight | Machine size(H*W*D) | 650*1800*120mm |
Net weight | 80KG | |
Package size and weight | Package material | Honeycomb Carton Packaging |
Package size H*W*D | 750*1910*420mm | |
Gross weight | 95KG | |
Start with the User’s First Three Choices
An interactive project becomes easier to use when the first screen presents only a few clear actions. Depending on the application, those choices might be:
- Find a location
- Browse products
- View current services
- Check an event schedule
- Select a language
- Request assistance
The menu should not contain ten or fifteen equally prominent buttons. Less frequently used functions can appear after the user selects a main category.
Suitable Interactive Applications
The 43 Inch Touch Floor Standing Advertising Display can support:
Retail product discovery
Customers can browse models, colours and product information before speaking with store staff.
Outdoor or semi-open visitor reception
A covered information point can provide maps, schedules and service instructions.
Event registration
Visitors can find sessions, exhibitors or venue directions.
Restaurant information
The display can present menus, allergen information or queue instructions where the selected enclosure and environment permit.
Public-service directories
Users can locate departments, facilities and accessible entrances.
The product should only be installed in an exposed outdoor environment when the ordered enclosure, touch technology and weather protection are approved for those conditions.
Touch Technology Must Match the Environment
The product information refers to touch capability, but the final quotation should identify the actual touch technology.
Capacitive touch can provide a familiar, smooth user experience. Other touch technologies may be more suitable where gloves, thick protection glass or particular environmental conditions need to be considered.
The interface should also accommodate users who do not want to touch the screen. Important opening hours, directions and emergency information can remain visible in the normal attract loop.
Networked Content and Remote Management
Available connections include WiFi, LAN and optional 3G or 4G networking. A wired LAN connection is generally preferable where stable infrastructure is available. Mobile connectivity may suit temporary or difficult-to-cable positions.
Remote management can allow operators to:
- Change promotional content
- Update maps or directories
- Publish emergency notices
- Check device connectivity
- Schedule content by time
- Manage several locations centrally
A local fallback screen should remain available during a temporary network failure.
Installation and Daily Operation
The 43 Inch Touch Floor Standing Advertising Display needs a stable floor connection, protected cable route and enough space for users to stand without blocking a doorway or pedestrian path.
Touch surfaces require more frequent cleaning than non-interactive displays. The project should establish who cleans the glass, who updates the software and who responds when the unit becomes disconnected.

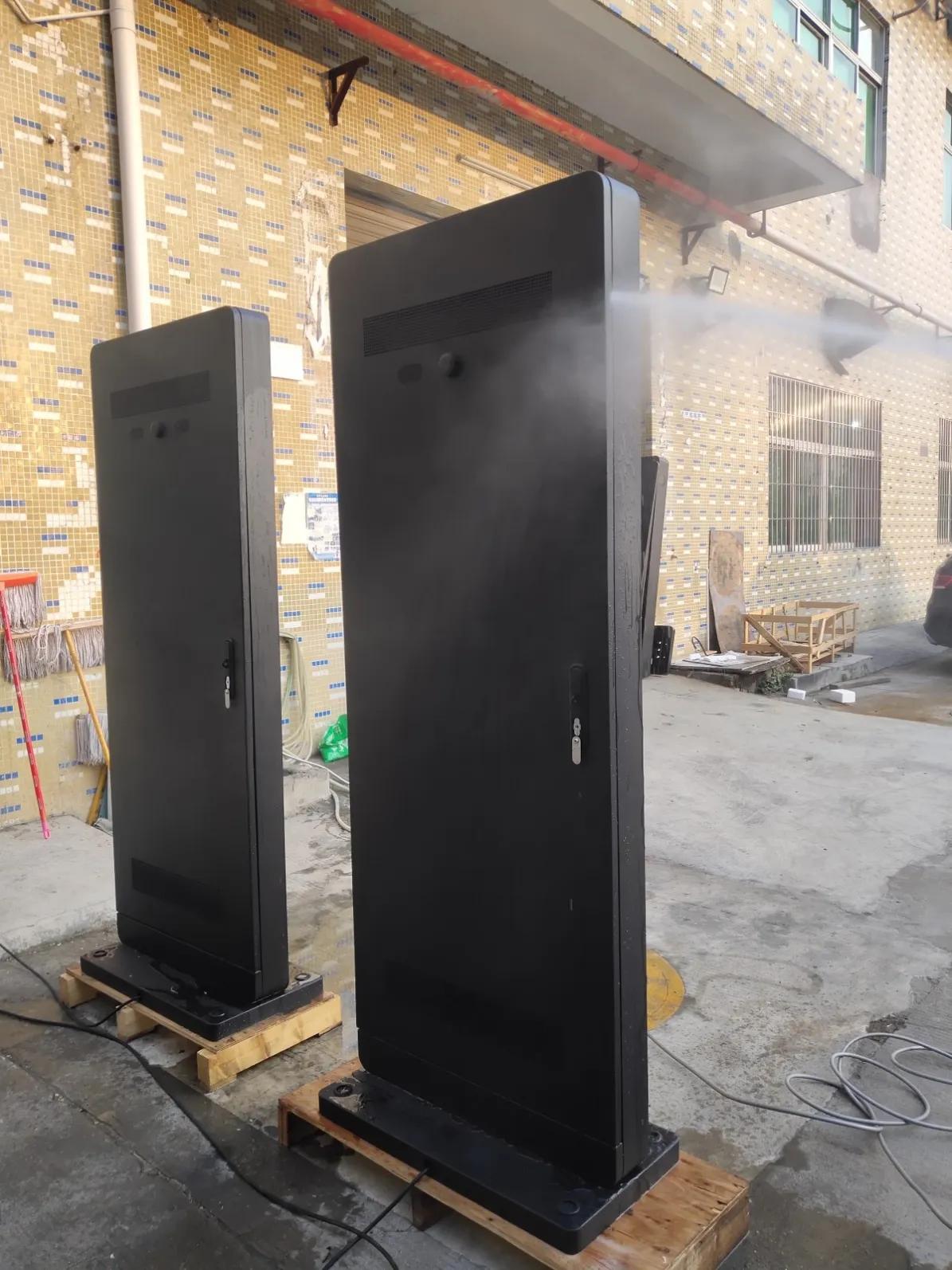

The backend identifies this product as a built-in fan version. Airflow openings and rear service access should remain clear.
Procurement Details to Establish
Before ordering, specify:
- Indoor, semi-outdoor or fully outdoor location
- Expected temperature and water exposure
- Required touch technology
- Android or Windows platform
- Full HD or 4K configuration
- WiFi, LAN or mobile connectivity
- CMS or interactive software
- Cabinet colour
- Floor anchoring method
- Required accessibility features
The 43 Inch Touch Floor Standing Advertising Display is best treated as an interactive service terminal rather than a standard advertising screen with touch added as an afterthought.
