Built-in Fan Version
43 Inch 2500 Nits IP65 Weatherproof Digital Signage Wall Mounted Fan Cooling for Drive Thru Menus
Place of Origin:CN;GUA Viewing Angle:178°/178° Max Resolution:1920*1080 Pixel Pitch:0.4845(H)*0.4845 (V) Contrast Ratio:4000:1
Specifications
- SKU
- ZXTLCD-OUTFHW430W
43 Inch 2500 Nits IP65 Weatherproof Digital Signage Wall Mounted Fan Cooling for Drive Thru Menus
43 Inch Wall Mounted Outdoor Digital Signage for Restaurant Lanes
Drive-thru customers view a menu through a windscreen while moving toward an ordering point. The screen must remain readable across different vehicle heights, approach angles and light conditions. This 43 Inch Wall Mounted Outdoor Digital Signage provides a Full HD display with 2500-nit brightness and IP65 protection.
Published specifications include a 4000:1 contrast ratio, 0.4845 mm horizontal and vertical pixel pitch, 178° viewing angles and fan-assisted cooling.
43 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

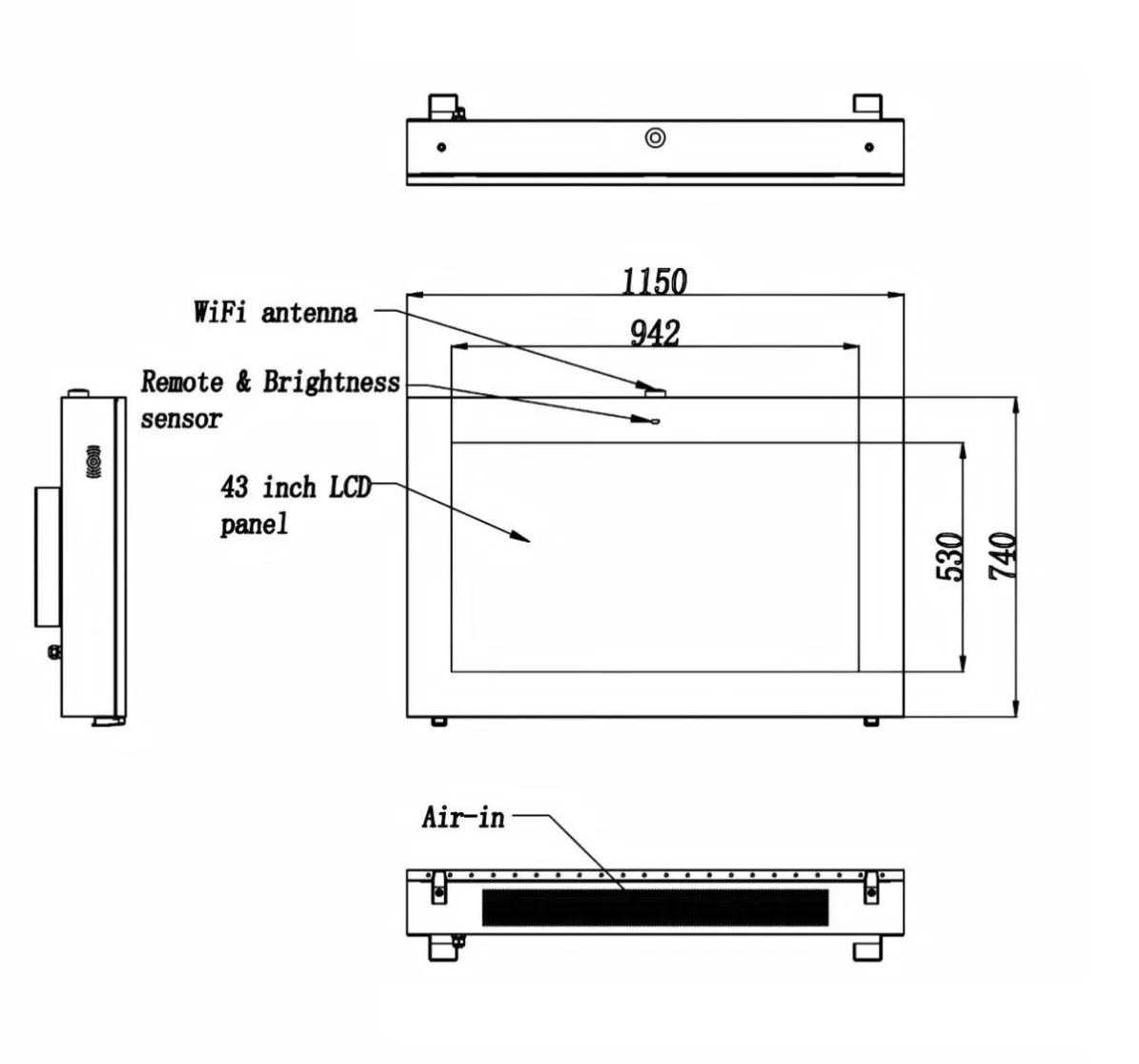

Mechanical Para | Machine seize H*W*D(mm) | 1150*740*150 |
Net weight(Kg) | 70 | |
Package size H*W*D(mm) | 1010*1300*300 | |
Gross weight(Kg) | 95 | |
Test the Mounting Position from Several Vehicles
The display should be evaluated from the driver’s seat of both lower passenger cars and taller SUVs. A comfortable viewing height for one vehicle may be unsuitable for another.
The shape of the lane also matters. On a curved approach, the driver may see the screen from the side before reaching the speaker. The 178° viewing specification provides flexibility, but speaker posts, canopies and neighboring vehicles can still obstruct the content.
Before finalizing the bracket, the restaurant can temporarily mark the proposed screen outline on the wall and drive through the lane. This reveals practical visibility issues earlier than a drawing review.
Keep the Ordering Page Stable
Full HD resolution supports sharp food images and prices, but adding more items can slow customer decisions.
The main menu near the speaker should remain stable. Animated offers are more suitable for a screen positioned earlier in the queue. Categories and prices need consistent placement so customers know where to look.
Daypart scheduling can switch between breakfast, lunch and evening menus automatically. Stores can also remove unavailable products or publish a local promotion without replacing printed panels.
The content should remain stored on the player. A network interruption must not leave the ordering point without a menu.
Daytime and Nighttime Brightness
The 2500-nit panel helps maintain readability in strong daylight. The 4000:1 contrast ratio supports clear separation between text and background when the artwork uses sensible colors.
Maximum output should not remain active after dark. Drivers view the menu from a relatively short distance, and excessive brightness can produce windscreen glare.
Scheduled settings or a light-sensor strategy can reduce output after sunset. Restaurants close to residential areas may also need nighttime brightness limits as part of local planning requirements.

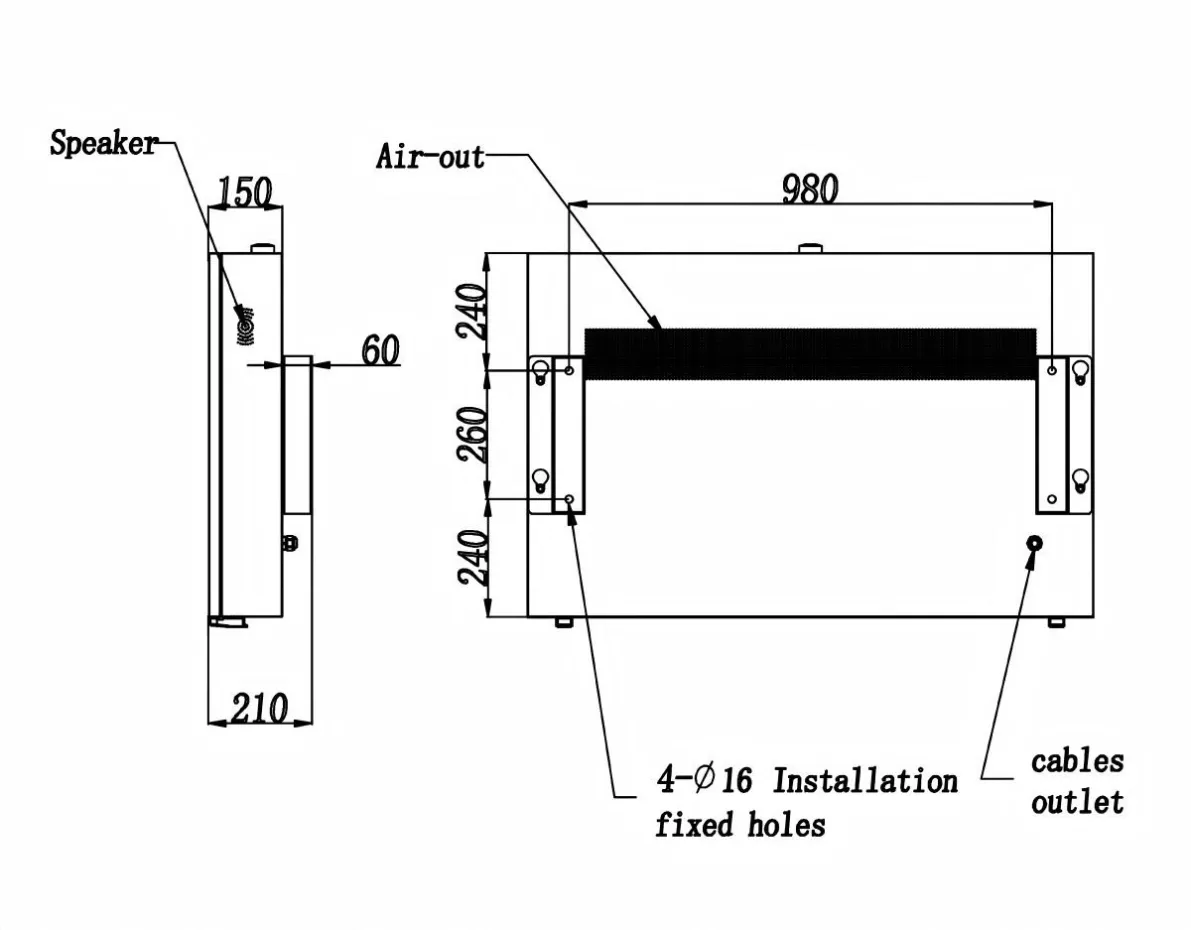

Mounting, IP65 Protection and Cooling
The supporting wall or menu structure must carry the equipment safely. Fasteners should match the wall material, screen weight and expected wind exposure.
IP65 protection helps prevent dust and water from entering the enclosure. Cable openings created during installation need proper sealing, and water should not collect behind the unit.
Fan cooling requires a clear intake and exhaust route. Decorative surrounds must not cover these areas. Grease, road dust and vehicle residue can accumulate around the product, so cleaning and filter inspection should form part of routine restaurant maintenance.
Rolling Out Across Several Stores
One 43 Inch Wall Mounted Outdoor Digital Signage unit may use local playback. A restaurant chain will normally require centralized templates, scheduled menu changes and location-based pricing.
Head office can control branding while store managers receive limited permission to update stock availability. Remote monitoring helps the support team distinguish a player issue from a failed network connection.
Provide the lane drawing, number of screens, viewing distance, content platform and local climate before production. This allows the 43 Inch Wall Mounted Outdoor Digital Signage to be configured around the ordering process rather than supplied as a standard screen with a restaurant image.
