Built-in Fan Version
43 Inch 2500 Nits IP65 Outdoor Advertising Kiosk Floor Standing Fan Cooling for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP430DB
43 Inch 2500 Nits Outdoor Advertising Kiosk with a Pedestal-Style Base

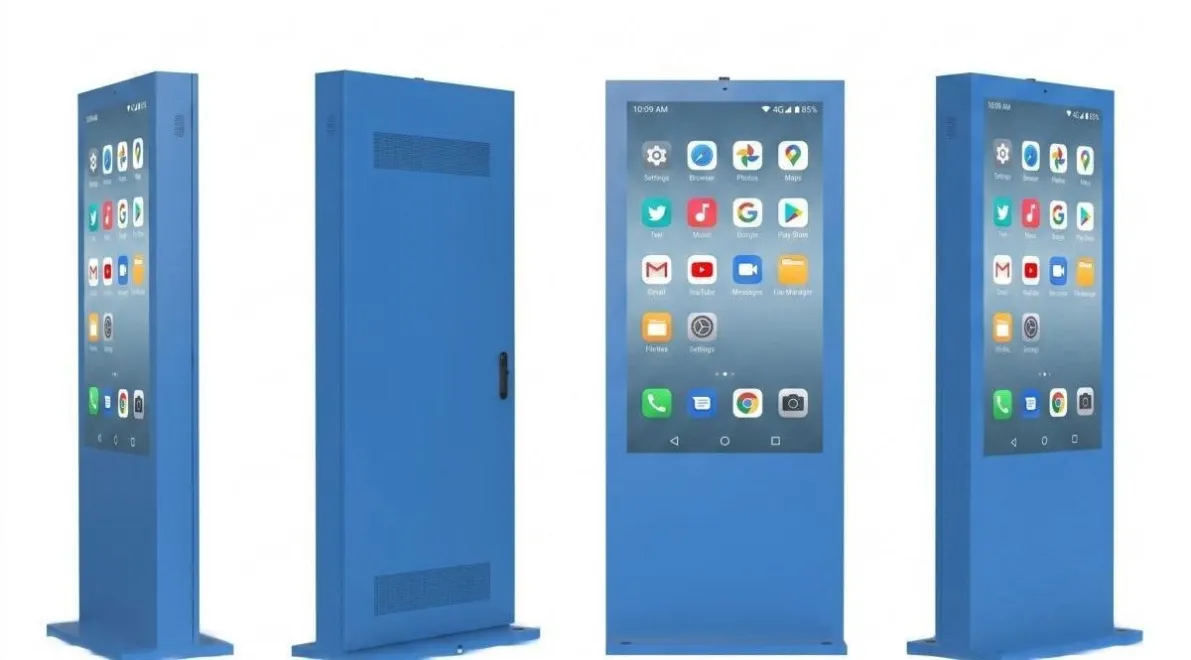

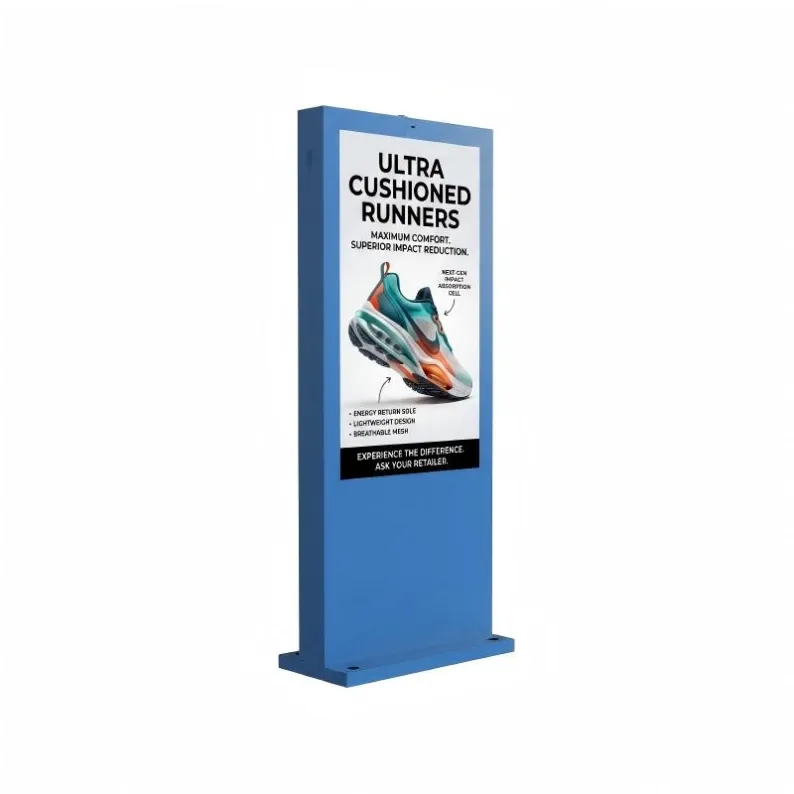

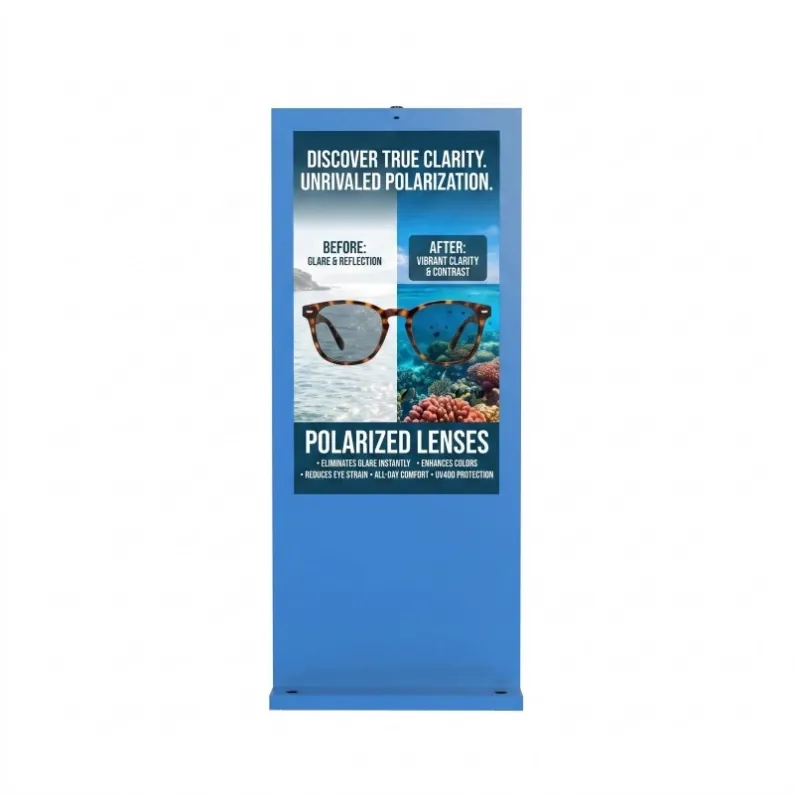

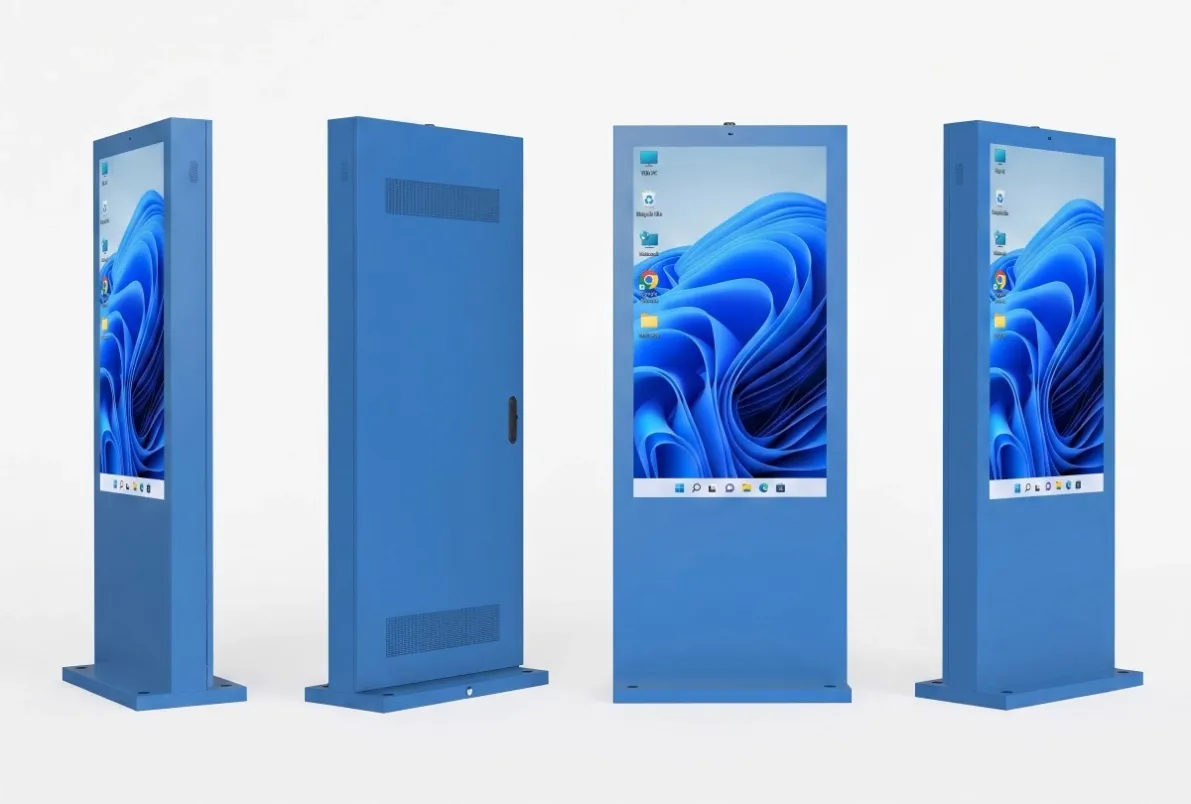

A compact outdoor advertising screen still needs enough physical presence to be noticed. This 43 Inch 2500 Nits Outdoor Advertising Kiosk combines a portrait display with a distinctive blue pedestal-style lower cabinet, creating a clearer separation between the screen and its supporting base.
Unlike the straight, full-width enclosure used on many conventional outdoor displays, the product image shows a narrower blue support section beneath the screen. This gives the kiosk a lighter visual profile while maintaining a freestanding outdoor form.
43 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel para | Backlight type | ELED |
Display size( mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

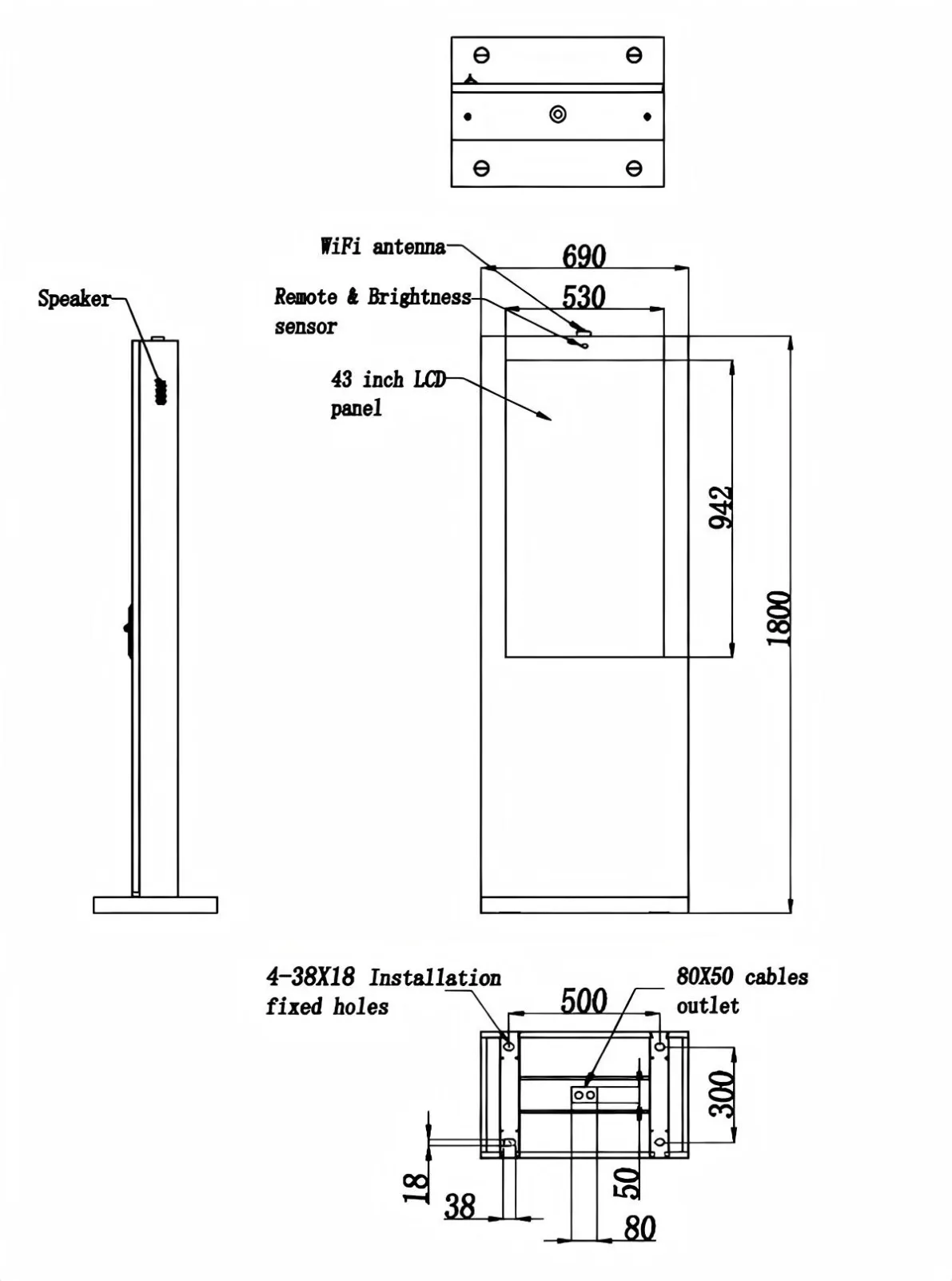

Mechanical Para | Machine seize H*W*D( mm) | 1800*690*150 |
Net weight | 80 | |
Package size H*W*D( mm) | 920*1950*470 | |
Gross weight(Kg) | 115 | |
Designed for Focused Messages in Outdoor Locations
The 43-inch portrait display is suitable for communications placed near pedestrian decision points. Rather than relying on long-distance visibility, it can deliver a specific message to people approaching an entrance, service point or outdoor commercial area.
Possible placements include:
- Outdoor retail entrances
- Pavement-facing promotional positions
- Exterior restaurant waiting areas
- Covered bus and transit stops
- Outdoor event registration points
- EV charging and parking service areas
The portrait orientation supports digital posters, product campaigns, menus, event announcements and directional information.
2500-Nit Brightness for Sunlit Environments
The 43 Inch 2500 Nits Outdoor Advertising Kiosk is specified with 2500-nit brightness. This output is intended to improve screen legibility under strong ambient light, particularly during daytime operation.
Actual visibility also depends on screen direction, surrounding reflections and content design. A display facing intense direct sun may behave differently from the same unit installed beneath an outdoor canopy. A site review should therefore accompany the brightness specification.
For better outdoor readability, content creators should use:
- Large headlines
- High-contrast backgrounds
- Short advertising messages
- Clearly visible prices or calls to action
- Reduced fine print
- Images with a strong central subject
Outdoor Protection and Fan-Based Thermal Control

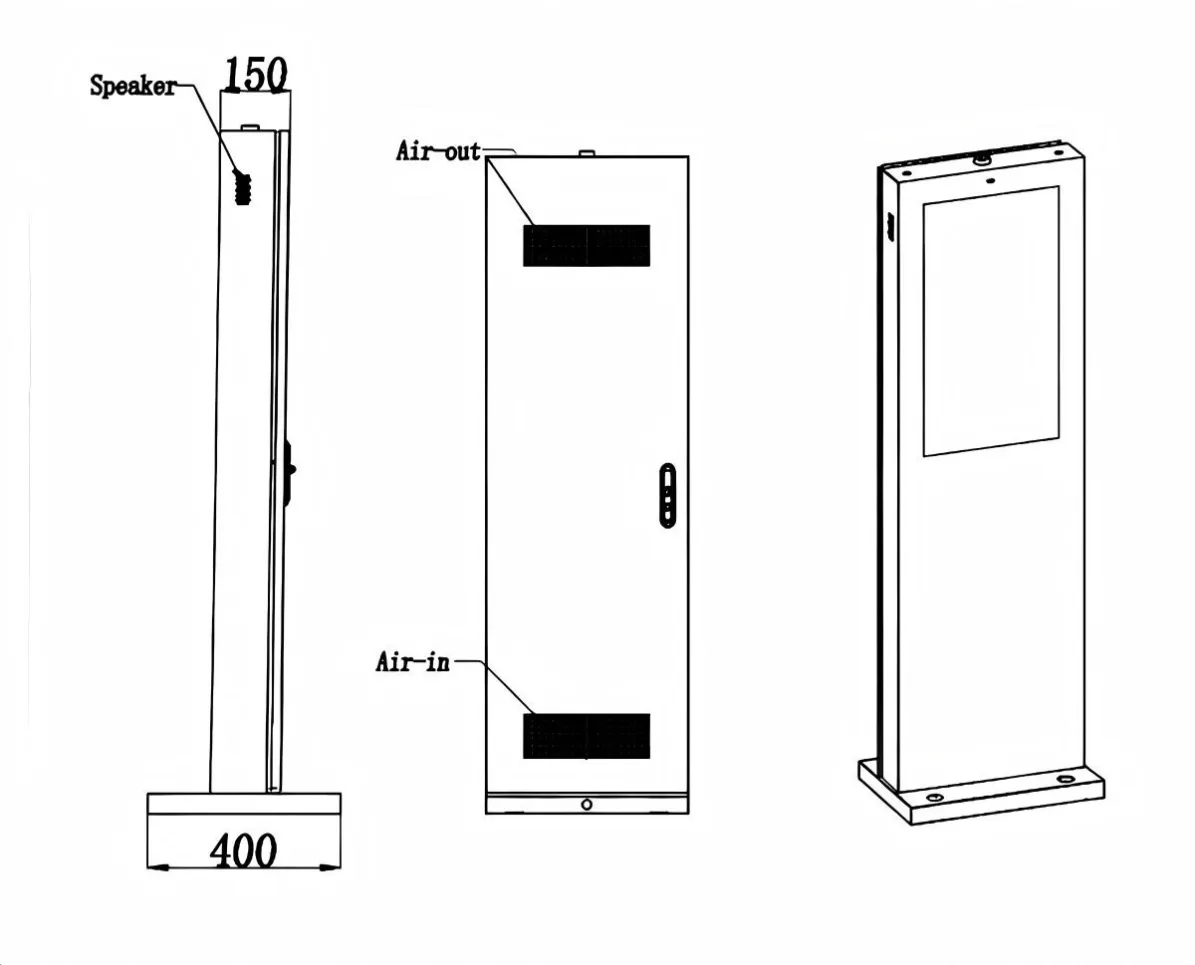

The IP65-rated enclosure is designed to resist dust and water exposure associated with outdoor deployment. Built-in fan cooling circulates air through the cabinet’s managed thermal system, helping control heat from the LCD panel and internal electronics.
This configuration is distinct from an air-conditioned outdoor kiosk. The product page and quotation should consistently identify it as the fan-cooled version to prevent specification conflicts during procurement.
Planning a Reliable Outdoor Installation
Before installing the 43 Inch 2500 Nits Outdoor Advertising Kiosk, the contractor should verify the mounting surface, anchor positions, power route and maintenance clearance. Water should not be allowed to collect around the base, and the ventilation openings must remain clear.
A practical pre-installation review should cover:
- Screen orientation relative to direct sunlight
- Foundation dimensions and anchoring method
- Outdoor power and network access
- Cable-entry weather sealing
- Pedestrian clearance around the cabinet
- Access for filter cleaning and component service
Selecting the Right Content System
The display hardware is only one part of an outdoor advertising network. Buyers should also confirm whether content will be played from a local media player or managed remotely through a content-management platform.
For multi-location projects, centralized scheduling can simplify campaign changes and help operators maintain consistent content across different outdoor sites.
Procurement Note
When requesting a quotation, specify the installation country, expected operating temperature, power standard, required media inputs, network connection, cabinet color and estimated daily operating hours. These details allow the configuration to be assessed against the actual outdoor environment instead of relying on screen size and brightness alone.
