Built-in Fan Version
43 Inch 2500 Nits IP65 Outdoor Advertising Display Wall Mounted Fan Cooling for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW430LR
43 Inch Wall Mounted Outdoor Advertising Display for Exterior Public Notices
The product image shows a slim screen in a muted brown or bronze-toned enclosure. Its compact wall-mounted form is suited to information placed close to an outdoor entrance rather than large advertisements intended for distant viewing.
This 43 Inch Wall Mounted Outdoor Advertising Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
43 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size（mm） | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |
Mechanical Para | Machine seize H*W*D（mm） | 1120*740*150 |
Net weight（Kg） | 70 | |
Package size H*W*D（mm） | 1010*1370*300 | |
Gross weight(Kg) | 95 | |
Use the Wall Without Filling the Walkway
At exterior public-service buildings, visitor centers and outdoor venue entrances, a wall-mounted screen can provide current information without adding a cabinet to the pedestrian route.
Possible content includes opening hours, entrance instructions, outdoor event notices, safety messages and short directories.
The wall position should remain visible but protected from unnecessary physical contact. Mounting height must support comfortable reading and accessible design.
The Enclosure Is Part of the Façade
The brown-toned frame shown in the image may blend with brick, stone or timber-colored exterior architecture. Its final finish should be confirmed using a documented color reference.

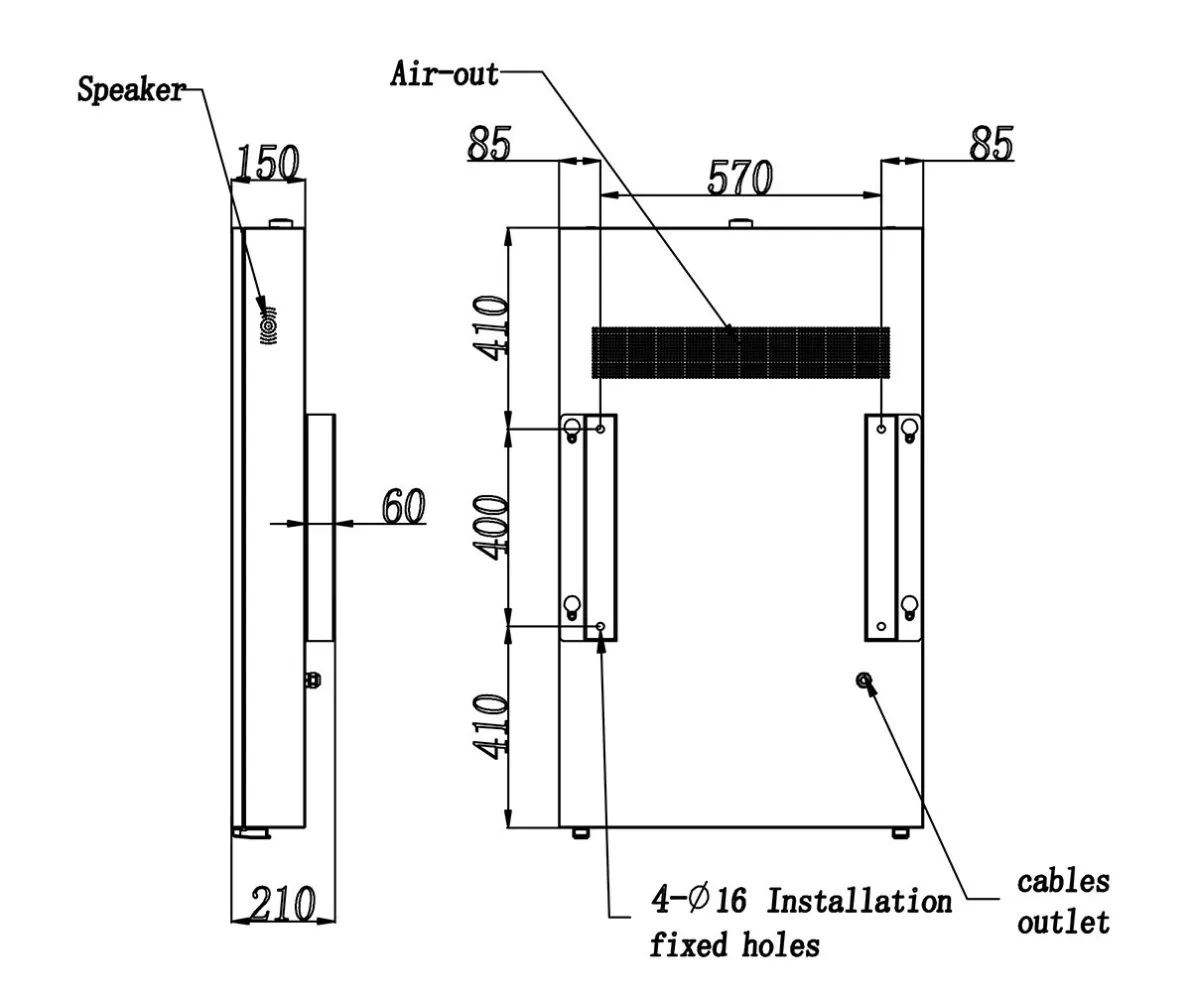

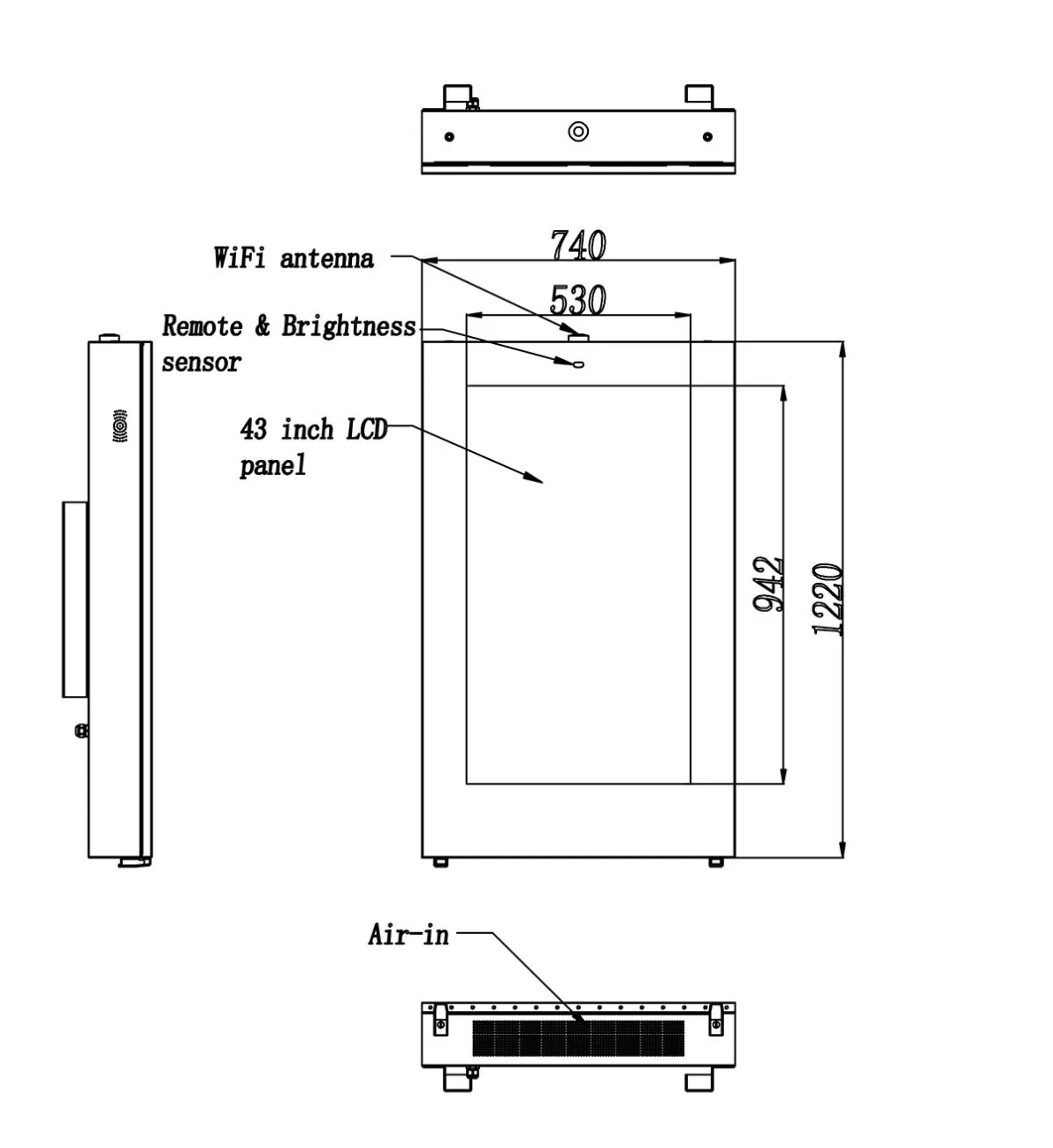

The complete cabinet will be thicker than an indoor screen. Architectural drawings should include the projection from the wall and the space required for service access.
Installation and Weather Protection
A structural review is necessary before mounting. Power and network penetrations through the exterior wall need weatherproof sealing.
The 2500-nit panel supports daylight visibility. IP65 protection helps defend against dust and water jets, while fan cooling manages internal heat.
The display should not sit directly beneath uncontrolled roof drainage. A canopy may reduce exposure, but it must not trap heat.
FAQ
Is a 43-inch screen suitable for public information?
Yes, when viewers stand relatively close and the content uses large text and simple layouts.
Can it be mounted on decorative cladding?
Only when the fixings connect to a suitable structural element behind the cladding.
The 43 Inch Wall Mounted Outdoor Advertising Display provides a compact exterior information surface for locations where preserving ground space is more important than long-distance advertising scale.
