Built-in Fan Version
32 Inch Weatherproof Digital Signage with 2500 Nits IP65 Floor Standing Design for Drive Thru Menus
HS code:8528591090 Backlight:LED backlight Menu language:Mutil Language Place of Origin:CN;GUA
Specifications
- SKU
- ZXTLCD-OUTFHP320O
32 Inch Outdoor Drive Thru Menu Display for Secondary Menu Positions
A compact menu screen does not need to carry the entire restaurant catalogue. This 32 Inch Outdoor Drive Thru Menu Display is better used beside the primary menu board for focused product groups, upgrades or limited-time campaigns.

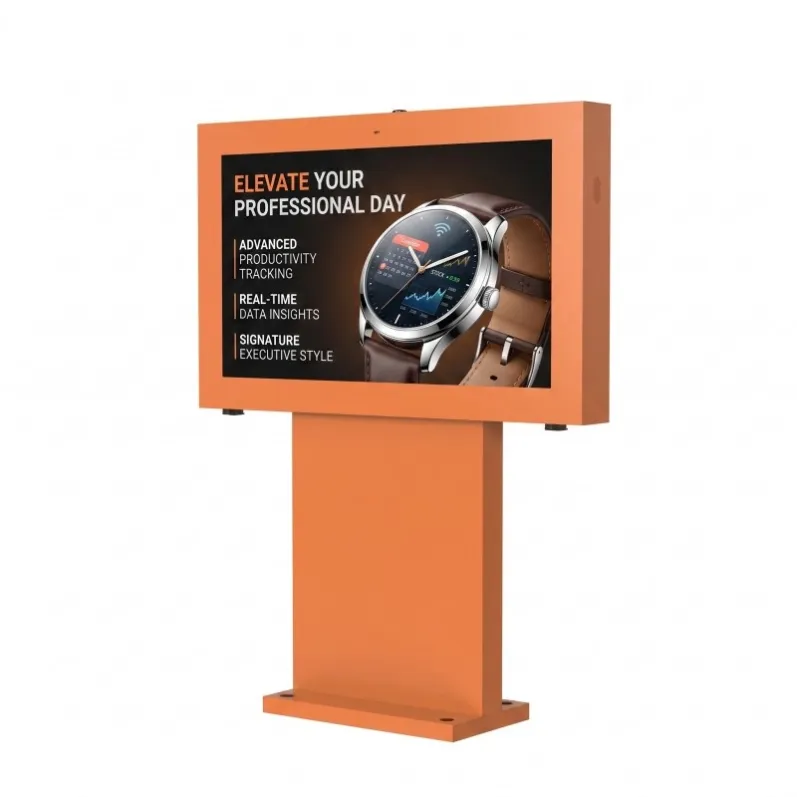

The product image shows a bright orange pedestal cabinet with a small landscape screen. Its colour and compact footprint can make it visible without occupying the space required by a full multi-panel menu system.
Three Practical Roles
Limited-Time Offers
Seasonal products can be promoted without rebuilding the main menu layout.
Drinks and Desserts
A dedicated screen can display additions at the point where customers are finalizing the order.
Pre-Order Guidance
Placed earlier in the lane, the display can introduce best-selling meals before the vehicle reaches the ordering point.
32 Inch Outdoor floor-standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 697*392mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

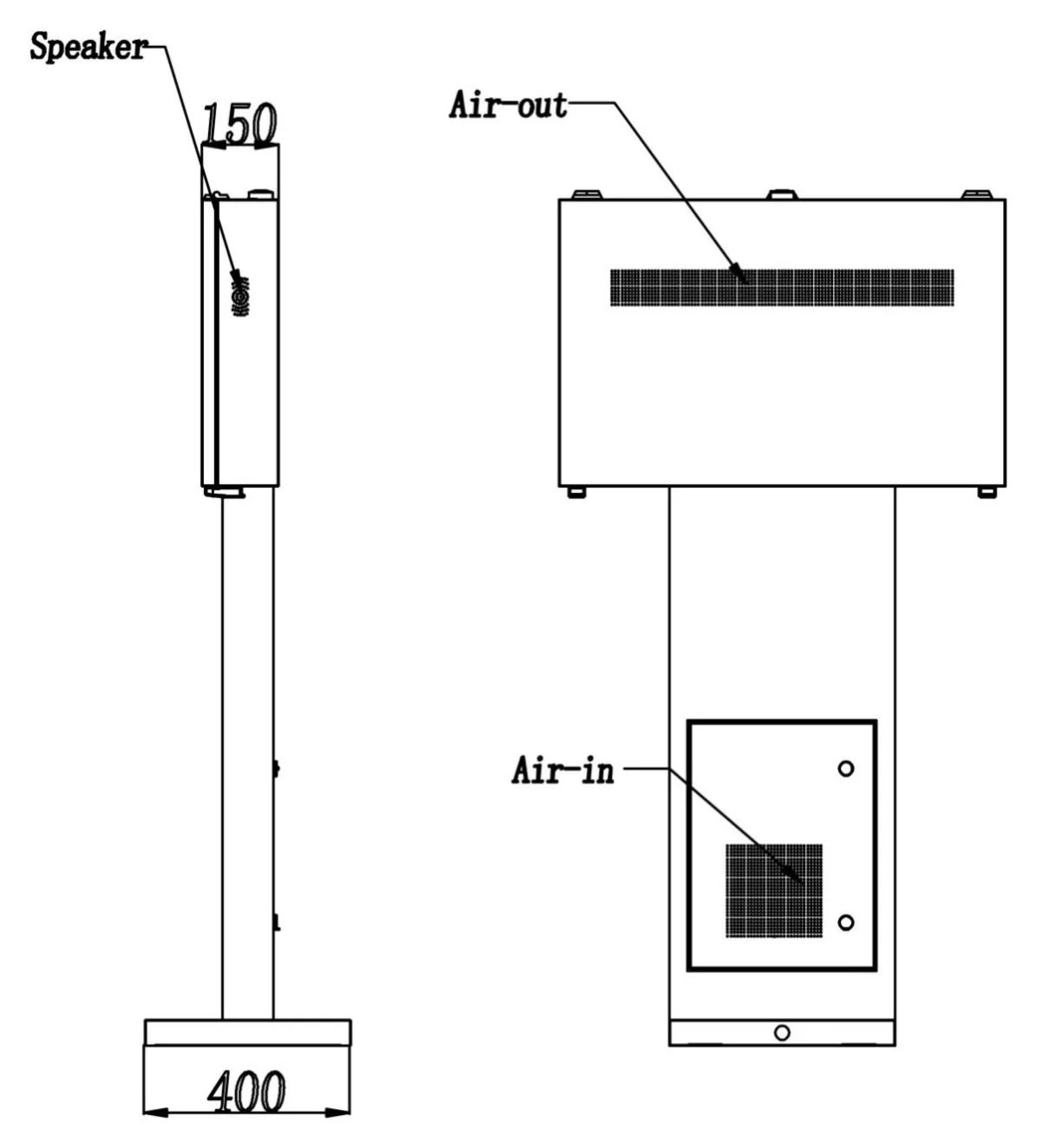

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |

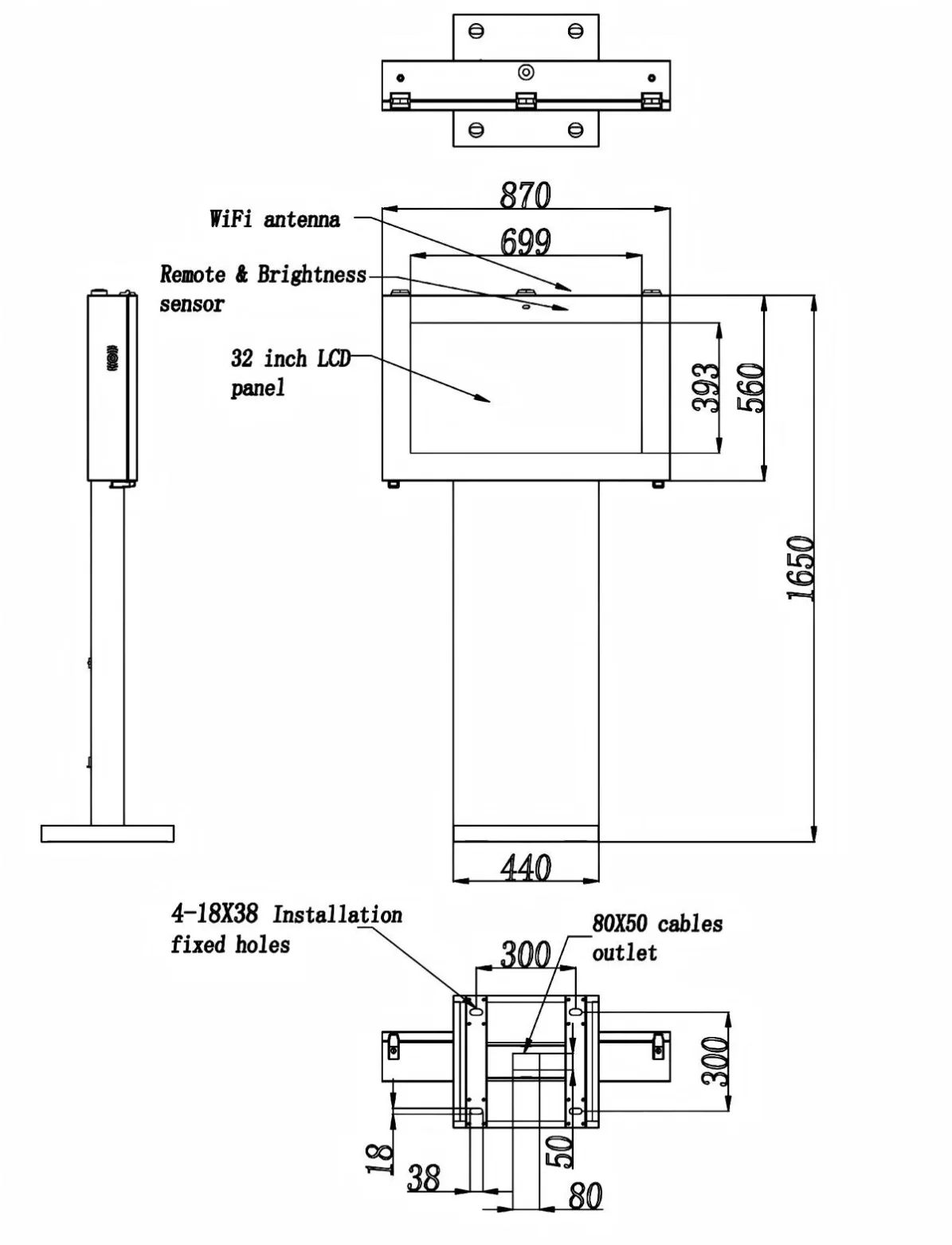

Mechanical parameters | Machine size(H*W*D) | 1650*870* 150mm |
Net machine weight | 70kg | |
Package size(H*W*D) | 1880*1020* 420mm | |
Package weight | 105kg | |
Do Not Shrink the Main Menu
The 32 Inch Outdoor Drive Thru Menu Display should use large product images, short names and clearly visible prices. Copying a full 65-inch menu onto this smaller screen produces text that drivers cannot read.
Content must be tested from inside a vehicle at the intended stopping distance.
Installation and Maintenance
The 2500-nit panel supports daytime visibility. IP65 protection addresses weather exposure, while fan cooling manages heat inside the cabinet.
The foundation should keep the unit stable without placing it in the path of vehicle mirrors or doors. Restaurant grease, road dust and debris may require frequent cleaning of the screen and airflow areas.
Can this screen replace the main drive-thru menu?
It can serve as a main menu for a very limited product range, but most restaurants will gain more value by using it as a secondary or pre-order display.
The 32 Inch Outdoor Drive Thru Menu Display is strongest when it performs one menu task clearly.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
