Built-in Fan Version
32 Inch Outdoor LCD Display with 2500 Nits IP65 Wall Mounted Design for Public Information
Resolution:1920*1080 / 3840*2160 Operating system:Android / Windows os Back:Cold-rolled sheet metal board Frame:Unibody Aluminum Life:60000 Hours Protection Grade:IP65
Specifications
- SKU
- ZXTLCD-OUTFHW320G
32 Inch Outdoor LCD Display with 2500 Nits IP65 Wall Mounted Design for Public Information
32 Inch Outdoor Public Information Display for Municipal Projects
Public information screens are often installed where a floor-standing kiosk would reduce walking space or interfere with the surroundings. This 32 inch outdoor public information display uses a wall-mounted structure to provide maps, notices and service instructions at a comfortable close-viewing size.
Available specifications include 1920 × 1080 or 3840 × 2160 resolution and Android or Windows operating systems. The enclosure uses a cold-rolled sheet-metal back with a unibody aluminum frame. IP65 protection and a listed service life of 60,000 hours support long-term commercial deployment.
32 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 280W | |
Mechanical Para | Machine seize H*W*D(mm) | 870*560*150 |
Net weight(Kg) | 45 | |
Package size H*W*D(mm) | 830*1210*300 | |
Gross weight(Kg) | 65 | |
Planning Around the Information, Not the Screen
The first project decision should be what the public needs to learn at that location. A screen outside a civic building may publish opening hours and appointment instructions. A park display may show maps, rules and event notices. A campus installation may guide visitors between buildings.
A 32-inch screen is read from relatively close range. It can carry detailed information, but the layout should still separate urgent notices from supporting content.
Dates, directions and contact details need clear visual priority. When several departments share the display, a common template prevents every notice from using a different style.
Resolution Selection
Full HD resolution is sufficient for most notices, standard video and public maps. The 4K option may be relevant when the screen presents detailed diagrams, high-resolution cultural material or a close-viewed interactive interface.
The content source must match the selected panel. Supplying a 4K display does not improve a low-resolution image or poorly formatted PDF. Public agencies should create dedicated digital layouts instead of photographing printed notices.
Text size should be tested at the intended mounting height. Accessibility requirements, viewing distance and wheelchair-user sightlines also need to be included in the placement decision.
Android and Windows in Daily Operation
Android may suit scheduled media, web-based dashboards and dedicated information applications. Windows may be required for existing municipal software, specialist peripherals or an application developed for a desktop environment.
The operating system affects support responsibilities, update policies and security management. The organization should identify who maintains the software after installation rather than leaving the screen with an unmanaged default configuration.
A stable offline playlist is valuable if network access is temporarily interrupted. Critical information should not disappear simply because a remote server is unavailable.

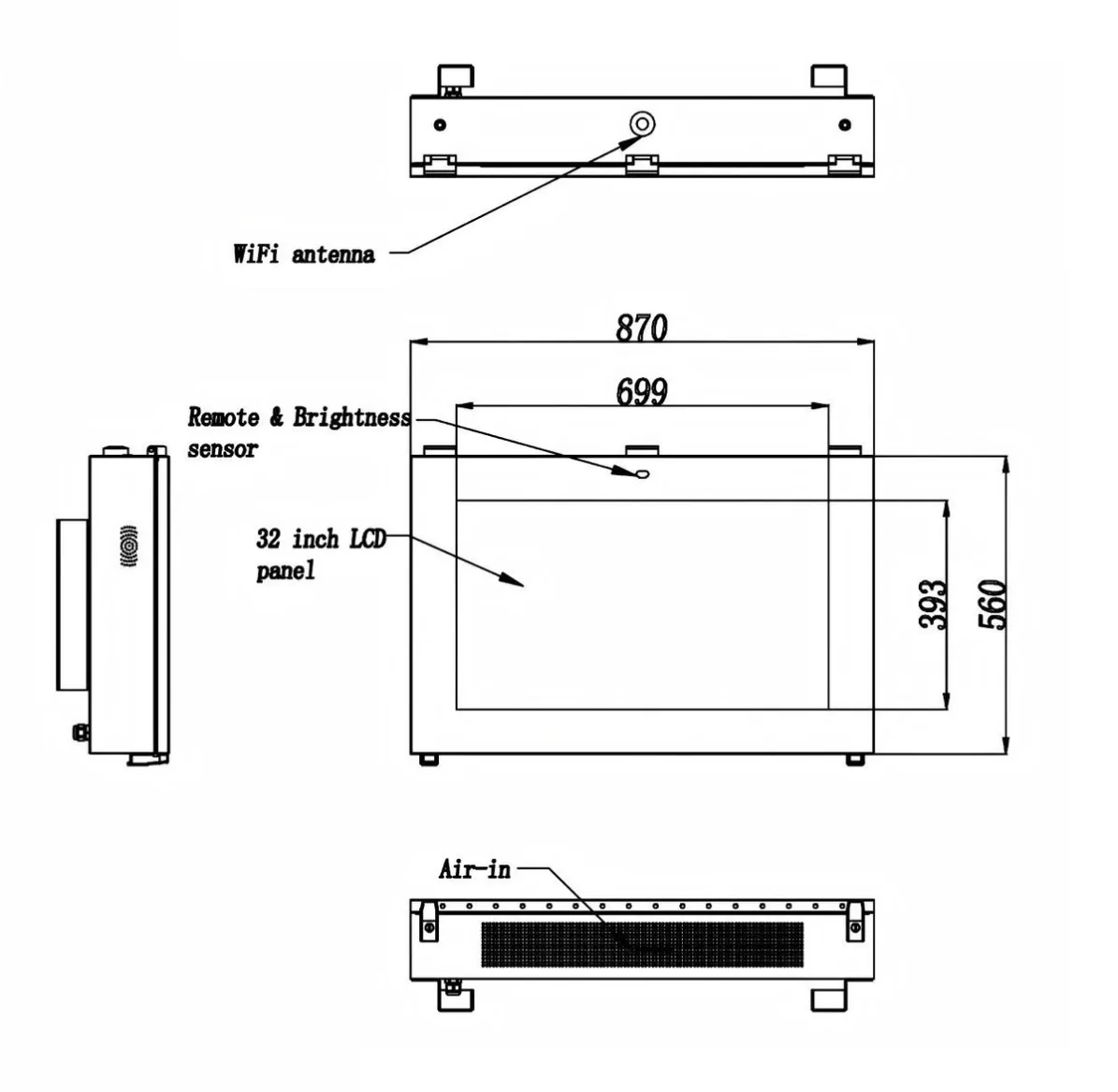

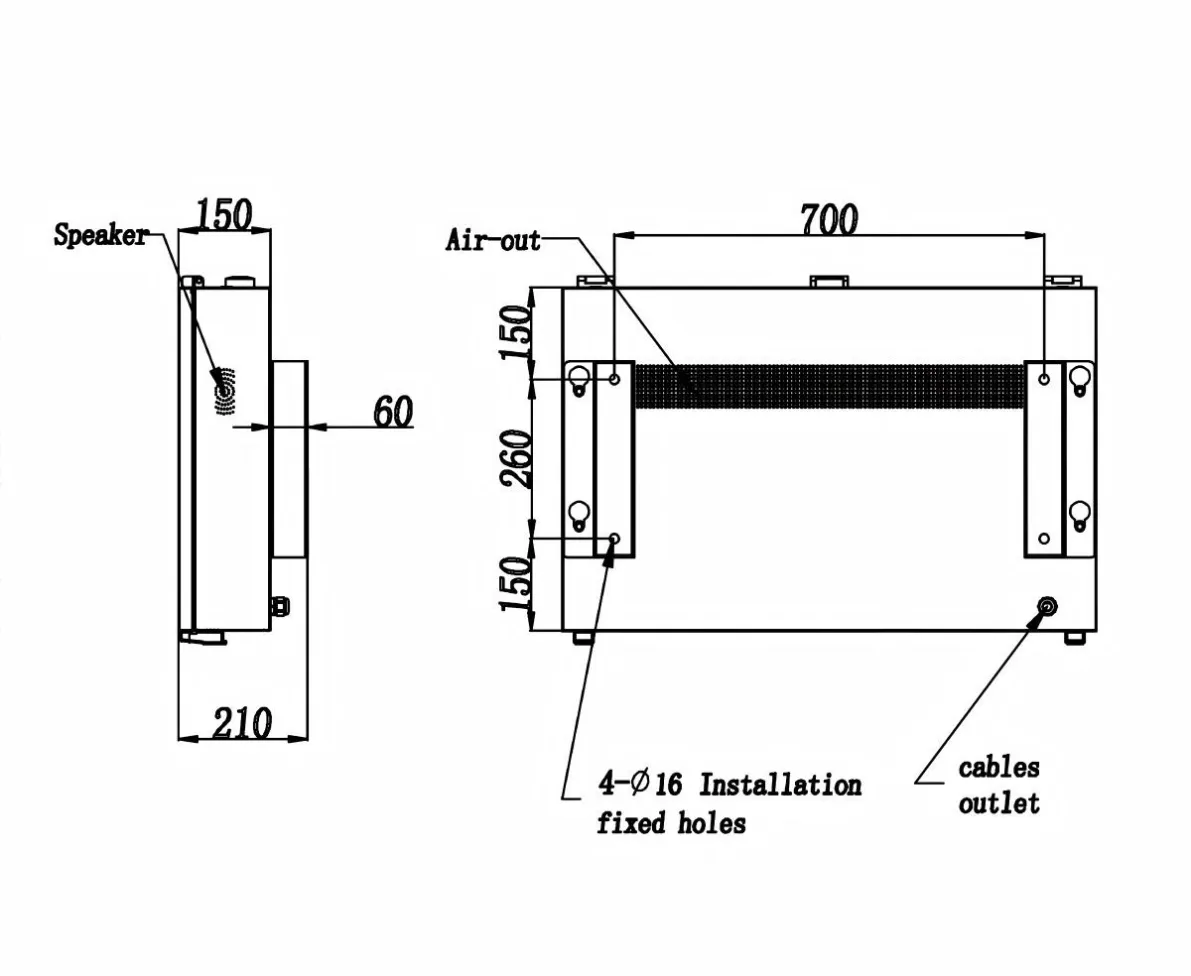

The design drawing of rear display
Enclosure and Wall Installation
The unibody aluminum frame provides a clean perimeter, while the cold-rolled sheet-metal back supports the internal structure. IP65 protection helps prevent dust and water from entering the product under its rated conditions.
Wall anchors must match the building material and total installed weight. Cable penetrations should be sealed, and power isolation should be accessible to authorized maintenance personnel.
Service space is particularly important for a wall-mounted unit. Technicians should be able to reach the media player, power components and cooling system without dismantling the entire façade.
Building a Maintainable Public Network
A 32 inch outdoor public information display may operate for many hours each day. The 60,000-hour published life supports this use, but maintenance still affects actual performance.
The operator should establish cleaning, ventilation inspection and software-update routines. Remote device monitoring can help a small facilities team manage displays across several public locations.
For production, provide the wall drawing, selected resolution, operating system, network method and daily schedule. The 32 inch outdoor public information display is most effective when hardware, publishing responsibility and long-term service access are planned as one municipal information system.
