Built-in Fan Version
32 Inch Outdoor Digital Signage with 2500 Nits IP65 Wall Mounted Design for Transit Hub Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW320BL
32 Inch Wall Mounted Outdoor Digital Signage for Transit Information
Not every passenger message needs a large freestanding kiosk. Near an exterior entrance, outdoor ticketing point or sheltered boarding area, a smaller wall-mounted screen may place information closer to the passenger while keeping the ground clear.
The product image shows a compact portrait screen with a light-colored border and a broader lower frame. This 32 Inch Wall Mounted Outdoor Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
Its wall-mounted construction separates it from the floor-standing products used elsewhere in the catalog.
32 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size（mm） | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |

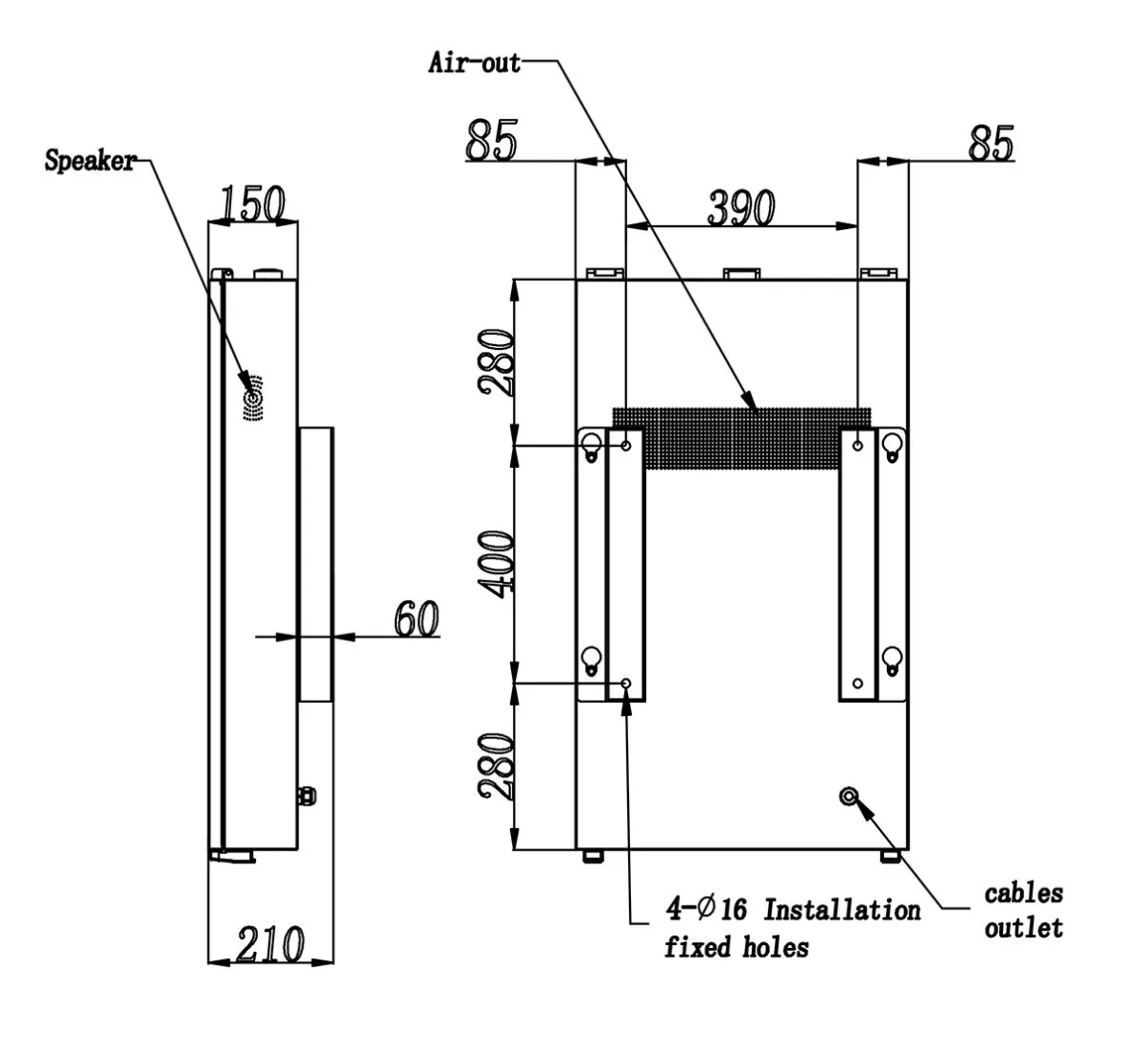

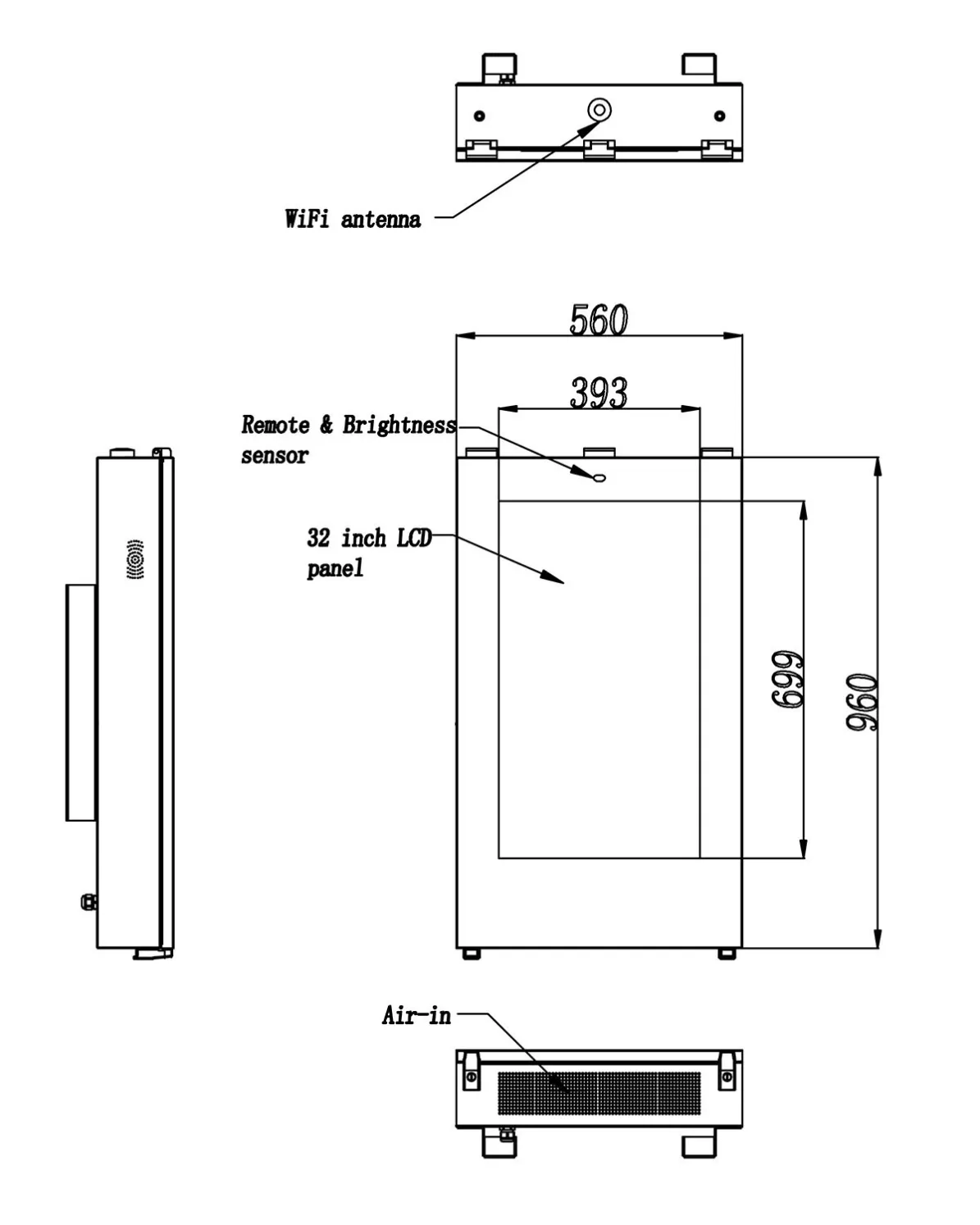

Mechanical Para | Machine seize H*W*D（mm） | 960*560*150 |
Net weight（Kg） | 45 | |
Package size H*W*D（mm） | 830*1100*300 | |
Gross weight(Kg) | 65 | |
Where a 32-Inch Wall Screen Is Useful
This size is intended for close-range information. It can be positioned on an exterior station wall, outdoor shelter structure or purpose-built passenger-information fixture.
Possible uses include:
- Stop or bay identification
- Outdoor ticketing instructions
- Short service notices
- Walking directions
- Entrance information
- Local transport connections
- Outdoor advertising near a waiting point
The screen is not an appropriate replacement for a large departure board viewed across an open terminal. The content scope should reflect its compact size.
Keeping the Passenger Route Clear
Wall mounting eliminates the need for a floor-standing cabinet in the pedestrian path. This can be valuable at outdoor transit sites with limited pavement width.
The benefit depends on correct installation. The cabinet will be heavier and deeper than a standard indoor monitor, and the receiving wall or shelter frame must support its weight and environmental loading.
Decorative panels, thin shelter glazing and lightweight cladding should not be treated as structural mounting surfaces without engineering review.
The screen must also be installed at a height that supports comfortable reading without projecting into the passenger route.
Exterior Cabinet Appearance

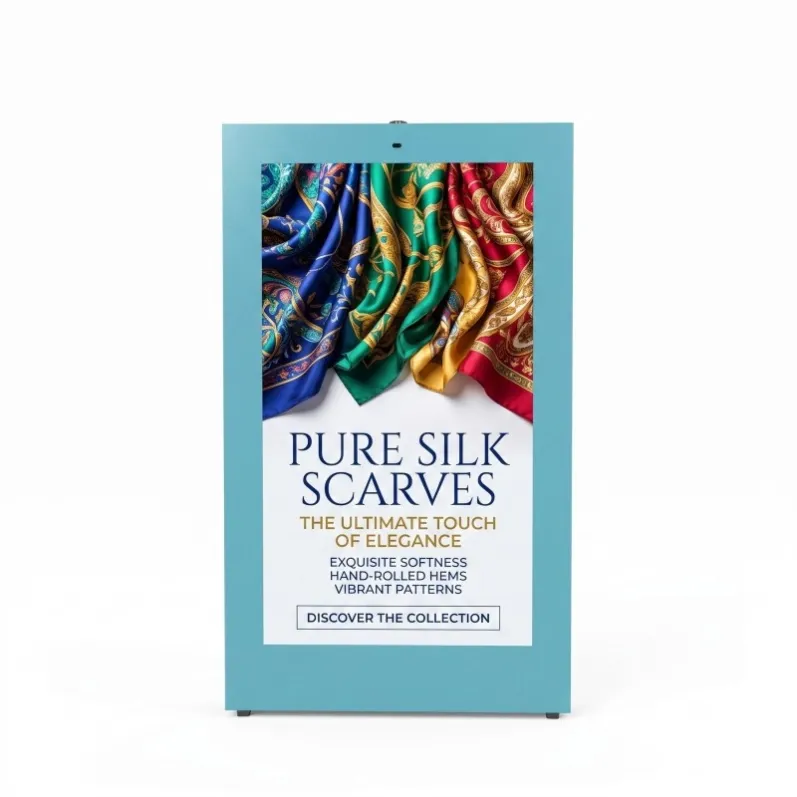

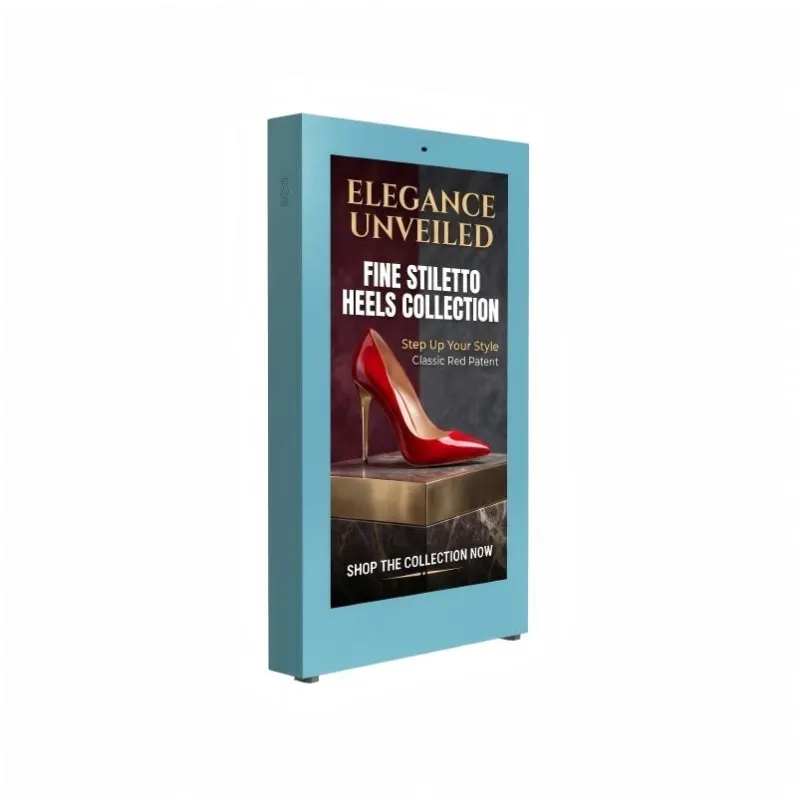

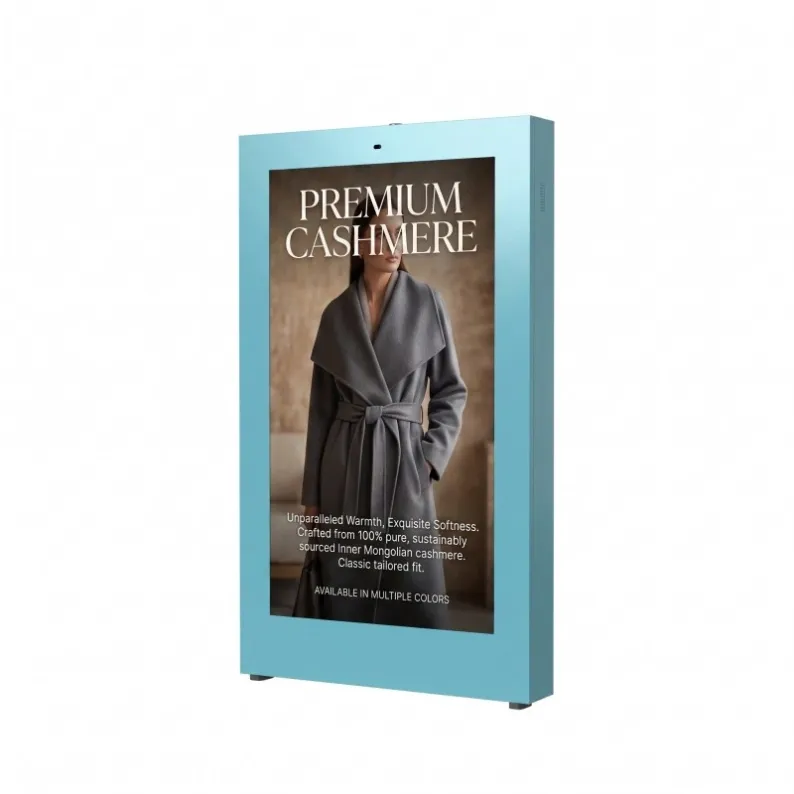

The product image shows a pale outer frame surrounding a colorful information screen. The relatively light enclosure may blend with contemporary shelter structures or exterior station finishes.
Final cabinet color, surface treatment and branding should be confirmed in the production specification. The thumbnail is a useful visual reference but not a binding color standard.
The broader lower frame visible in the image may contain part of the cabinet construction, but its internal purpose should not be assumed without a technical drawing.
Daylight Visibility at a Transit Site
The 2500-nit brightness specification supports use under outdoor ambient light. The screen orientation should still be reviewed for direct sunlight, reflective shelter panels and nearby vehicle headlights.
Because a wall-mounted screen has a fixed angle, the bracket and mounting position need to be selected carefully. A poor viewing angle cannot always be corrected after installation.
At night, excessive brightness may be uncomfortable for waiting passengers. Brightness scheduling or sensor-based adjustment requires a compatible control configuration and should be confirmed separately.
Weather Protection and Cable Routing
The IP65 enclosure helps protect the screen against dust and water jets. Wall penetrations, cable routes and mounting hardware require suitable outdoor sealing.
Cables should not remain exposed where passengers can pull or damage them. Tamper-resistant routing may be necessary at unattended transit locations.
The built-in fan cooling system needs unobstructed air paths. The screen should not be recessed tightly into a wall unless the manufacturer has approved the required ventilation and service method.
FAQ
Is a 32-inch screen large enough for an outdoor transit hub?
It is suitable for close-range directions, stop identification and short notices. Information intended to be read across a large terminal requires a larger display.
Can it be mounted on a bus shelter?
Potentially, but the shelter structure, mounting points, wind loading and cabinet weight must be reviewed by a qualified installer.
Does the display provide live arrival information?
It can display supplied information, but live arrivals require a compatible data source, media player and software integration.
Can it be used outdoors without a separate protective box?
The product is listed with IP65 protection, 2500-nit brightness and built-in cooling. Correct mounting and cable sealing are still required.
Is it the same as an indoor 32-inch commercial screen?
No. The high-brightness panel, IP65 enclosure and outdoor cooling system address conditions that a typical indoor screen is not designed to handle.
