Built-in Air conditioner
32 Inch 2500 Nits IP65 Outdoor Digital Signage Floor Standing Air Conditioning for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVPD320W
32 Inch Double Sided Outdoor Digital Signage for Compact Drive-Thru Sites

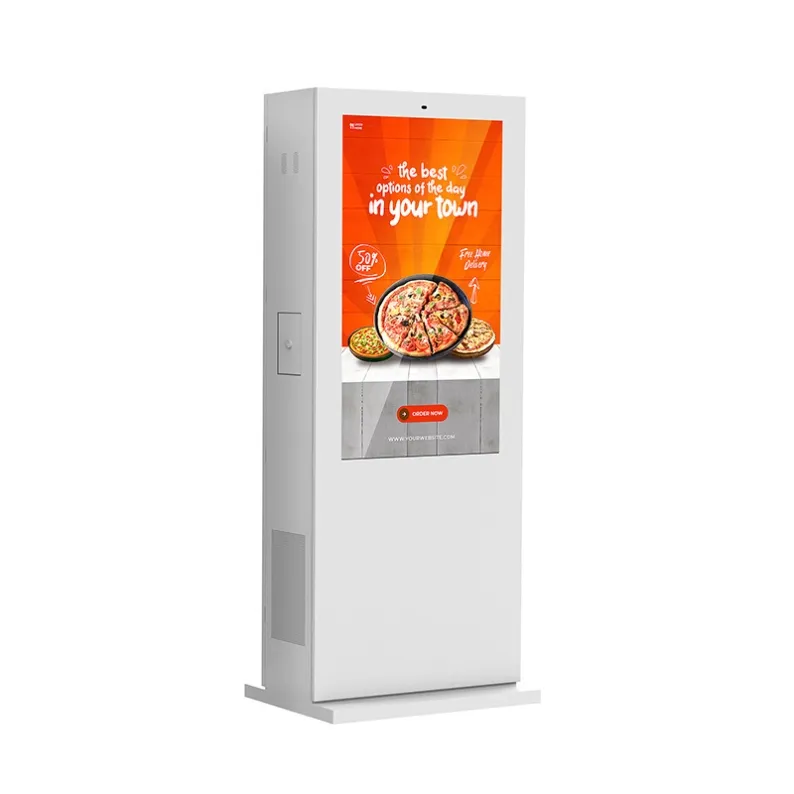

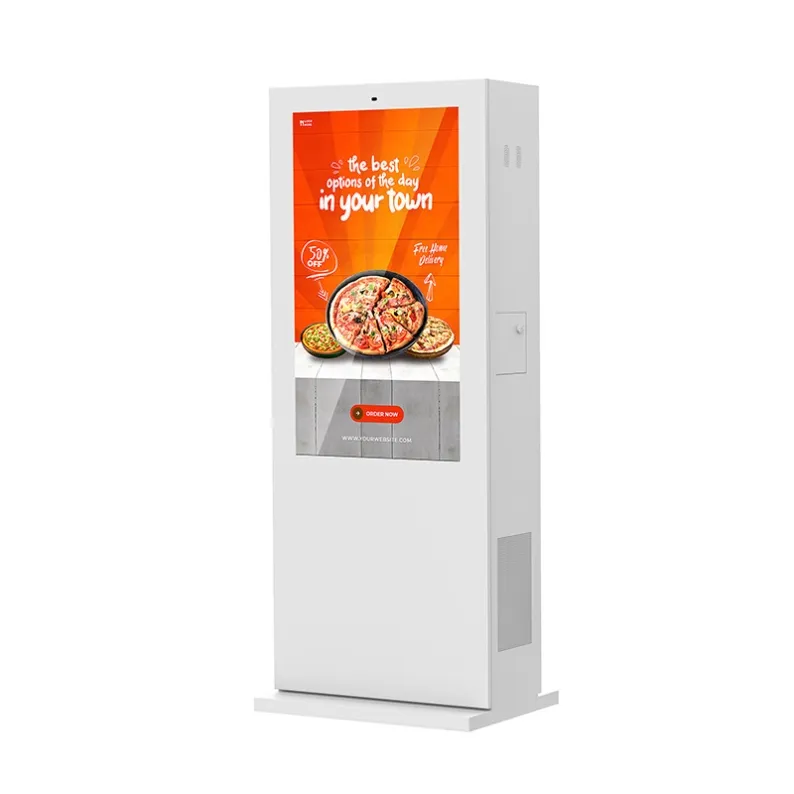

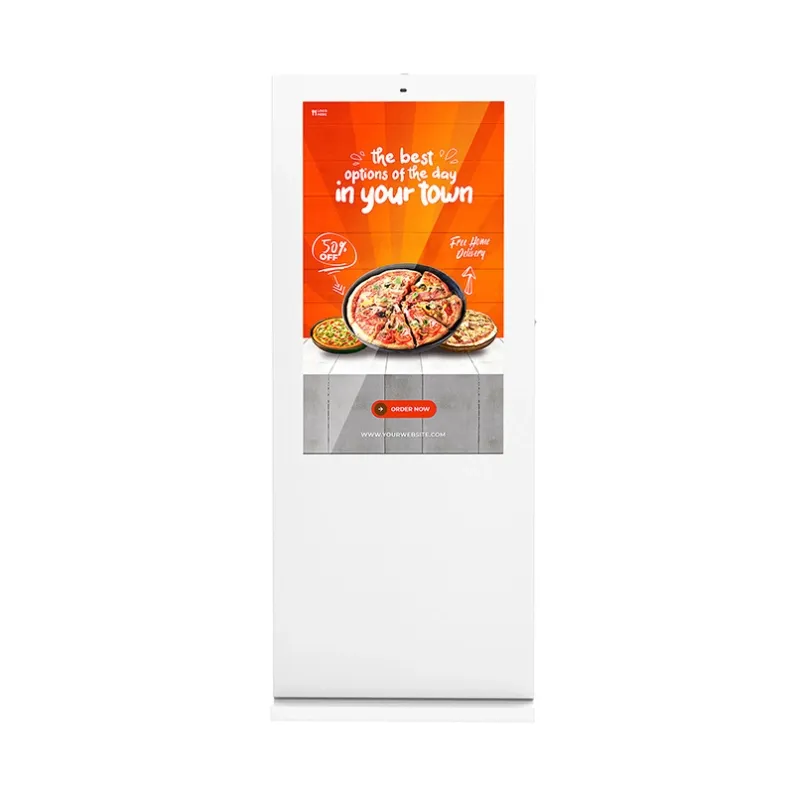

The product image shows a compact light-colored cabinet with an orange-toned screen image and a visibly broader lower body. Its proportions distinguish it from a thin indoor digital poster.
This model is also double-sided. The 32 Inch Double Sided Outdoor Digital Signage unit carries two display faces within one freestanding outdoor enclosure and uses built-in air conditioning for internal thermal management.
Its listed specifications include 2500-nit brightness and IP65 protection.
32 Inch Outdoor floor standing digital signage with air conditioner specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 697*392mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 800W | |
Mechanical parameters | Whole device dimension H*W*D | 1750*760*320mm |
Whole device net.weight(kg) | 130kg | |
Package dimension H*W*D(mm) | Machine 990*1900*570
AC 810*810*350 | |
Gross packing(kg) | Machine140 kg AC35kg | |
Why Use a Double-Sided 32-Inch Display?
A 32-inch screen is not intended to replace a large primary menu board containing dozens of products. Its strength is focused communication at short viewing distances.
At an outdoor drive-thru or roadside service location, the two sides can perform different jobs:
- The approach-facing side can promote a featured product.
- The lane-facing side can show a short ordering message.
- One face can identify the correct vehicle route.
- The reverse screen can present exit information.
- A pedestrian-facing side can advertise nearby outdoor services.
This structure allows the cabinet to communicate with more than one audience without occupying the space required by two independent machines.
Reading the Product’s Physical Form
The product image shows a light-colored body with a wider base. This gives the small screen a more stable visual presence and makes the unit look like permanent outdoor equipment rather than a portable sign.

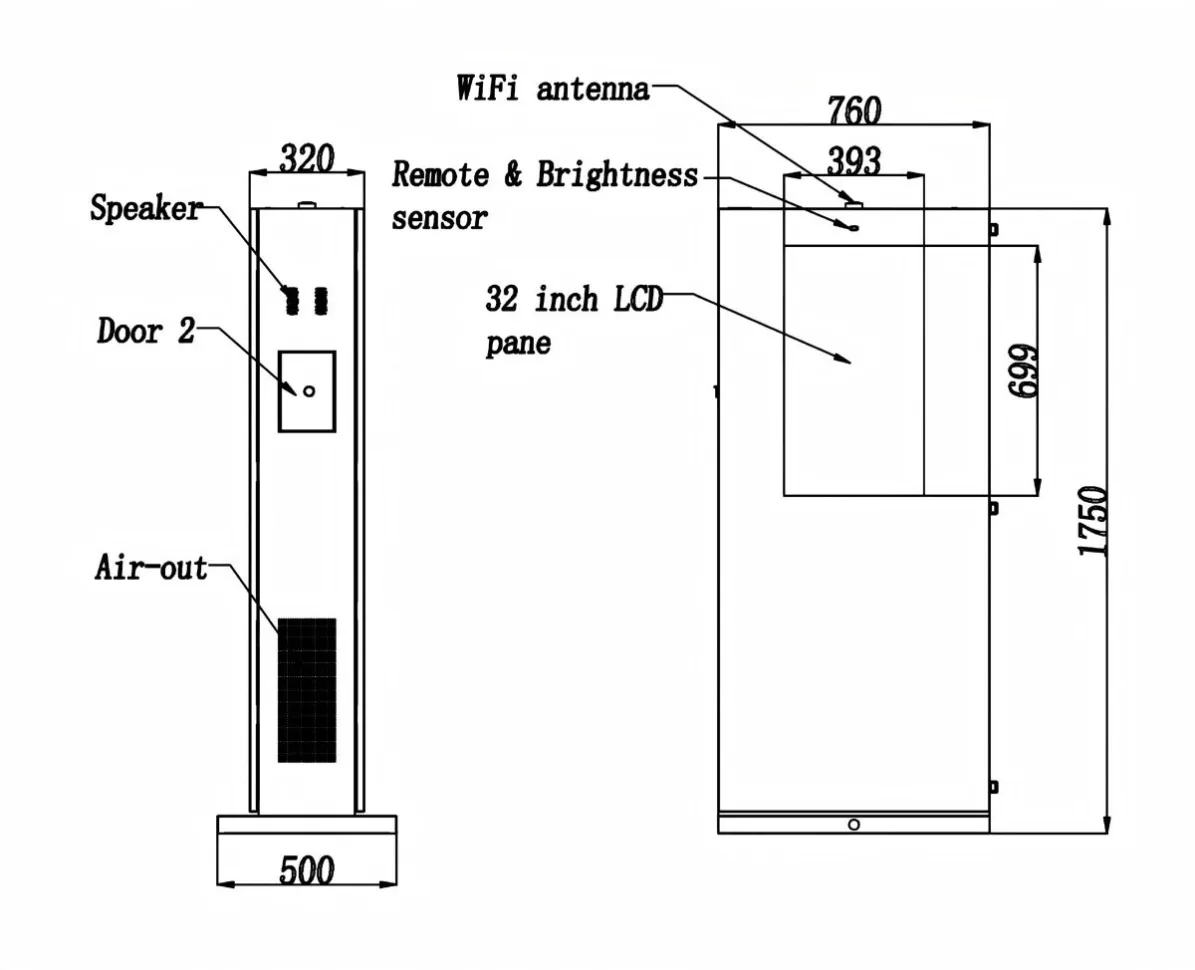

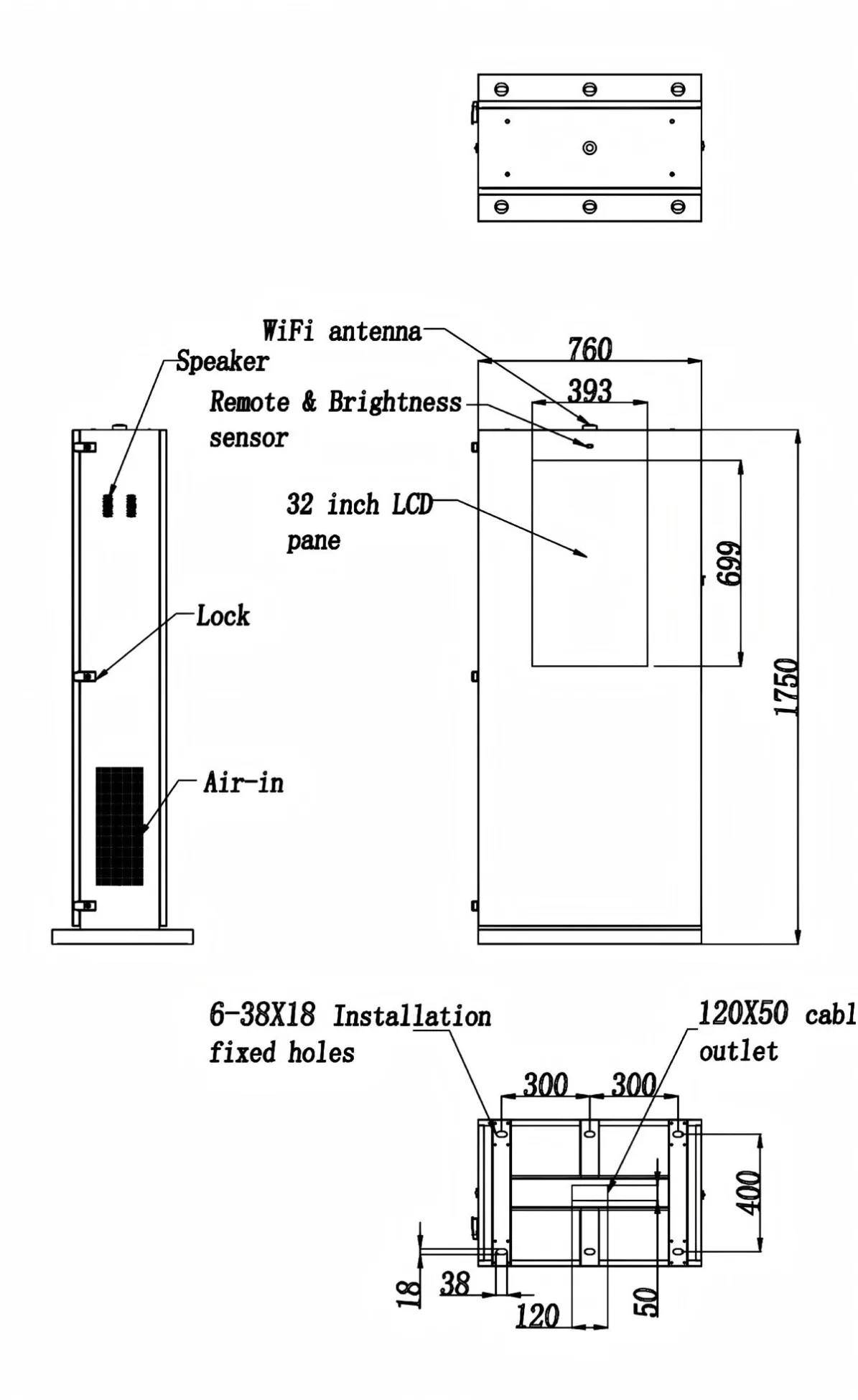

Because this is a double-sided air-conditioned model, its physical depth is likely to be greater than a single-screen 32-inch kiosk. Exact dimensions must be obtained from the technical drawing.
The cabinet should not be installed based only on the visible screen width. Foundation size, service access and the space required around the cooling system all need to be considered.
The light enclosure shown in the image may suit outdoor restaurant façades or service areas with pale architectural finishes. Custom color availability requires confirmation.
Selecting the Right Outdoor Position
The 32 Inch Double Sided Outdoor Digital Signage unit should be positioned where customers pass relatively close to both display faces.
Possible locations include:
- Outdoor drive-thru lane entrances
- Vehicle queue decision points
- Outdoor restaurant pickup zones
- Roadside service areas
- Open-air parking payment points
- Exterior pedestrian ordering routes
- Outdoor attraction entrances
The unit should not block vehicle sightlines, curb clearance or pedestrian movement. Protective bollards may be appropriate where the cabinet is exposed to vehicles, but they must not cover either screen.
Content Should Remain Focused
A 32-inch display has limited space compared with 55- or 75-inch menu screens. Content should therefore emphasize one decision at a time.
Suitable material includes a product promotion, lane direction, pickup instruction, opening notice or simple price message. A complete restaurant menu containing small text is unlikely to perform well at vehicle viewing distance.
Each face can be designed for its own audience. Drivers approaching the site may need a large directional arrow, while customers leaving may see a loyalty promotion or return message.
Independent content on both screens requires compatible media hardware. This function should not be assumed from the double-sided cabinet alone.
Outdoor Brightness on Both Faces
The product is listed at 2500 nits. The final specification should confirm the brightness provided by each screen.
Even when the two faces use identical LCD panels, they may not look identical on site because their sun exposure differs. Content designers should test both viewing directions and avoid low-contrast creative material.
At night, the screen output may need to be reduced to prevent glare. Scheduled or sensor-controlled brightness depends on the selected control system.
Air-Conditioned IP65 Cabinet
The IP65 enclosure provides dust protection and resistance to water jets when correctly installed. Cable entries, cabinet access points and foundation openings need proper outdoor sealing.
Built-in air conditioning provides active cabinet cooling. The final documentation should identify the supported operating conditions, cooling capacity and maintenance requirements.
Filters, air paths or other specified components may require inspection. Service personnel need access that does not place them directly in an active vehicle lane.
FAQ
Can this 32-inch unit replace a full outdoor drive-thru menu board?
It is better suited to short menus, promotions and directional information. A large multi-category menu may require a larger screen or several displays.
Are both sides high-brightness displays?
The product is listed with 2500-nit brightness, but the specification for both faces should be confirmed in the quotation.
Can different advertisements run on each side?
This depends on the media-player and signal configuration. Independent playback should be requested as a project requirement.
Why does a small 32-inch screen need air conditioning?
Outdoor brightness and enclosed electronics generate heat. Built-in air conditioning provides active internal temperature control, but the required cooling solution depends on the installation environment.
Is the cabinet weatherproof after installation?
IP65 protection depends on correct installation. Unsealed cable openings or improper service work can reduce the enclosure’s environmental protection.
The 32 Inch Double Sided Outdoor Digital Signage model is a specialized outdoor communication point rather than a reduced-size billboard. Its value comes from close-range visibility, two viewing directions and an actively cooled enclosure.
