Built-in Fan Version
Weatherproof Digital Signage for 98 Inch Bus Station Wayfinding, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE980W
98 Inch Weatherproof Digital Signage for Outdoor Bus Station Wayfinding
The product image shows a very large portrait display inside a light-colored enclosure with a visible lower cabinet. Its height and relatively broad screen area make it more suitable for an outdoor transport plaza than a narrow roadside stop.
This 98 Inch Weatherproof Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. It can present large-scale wayfinding and passenger information at open-air bus terminals and exterior station approaches.
98 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 2159*1215 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |

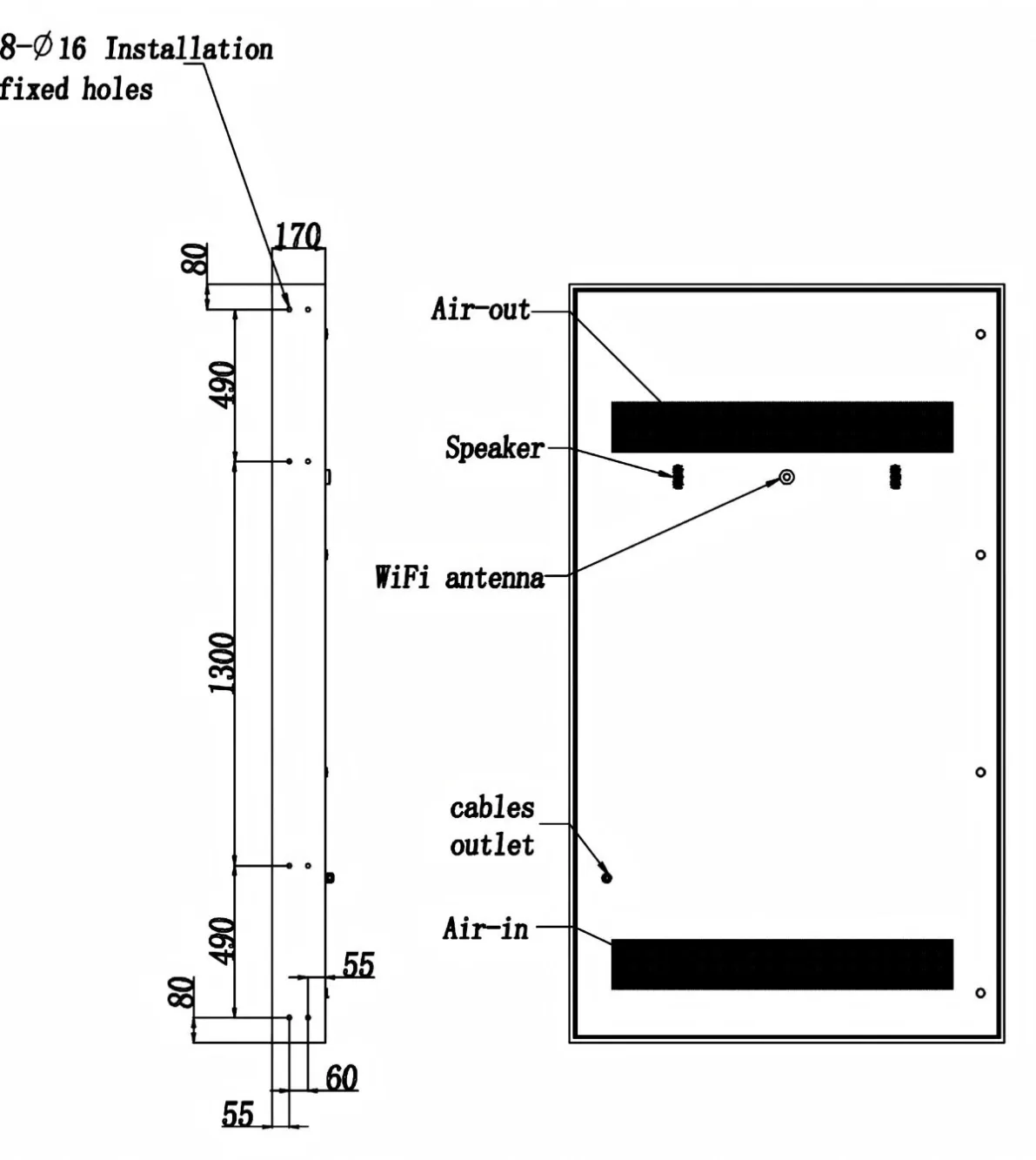

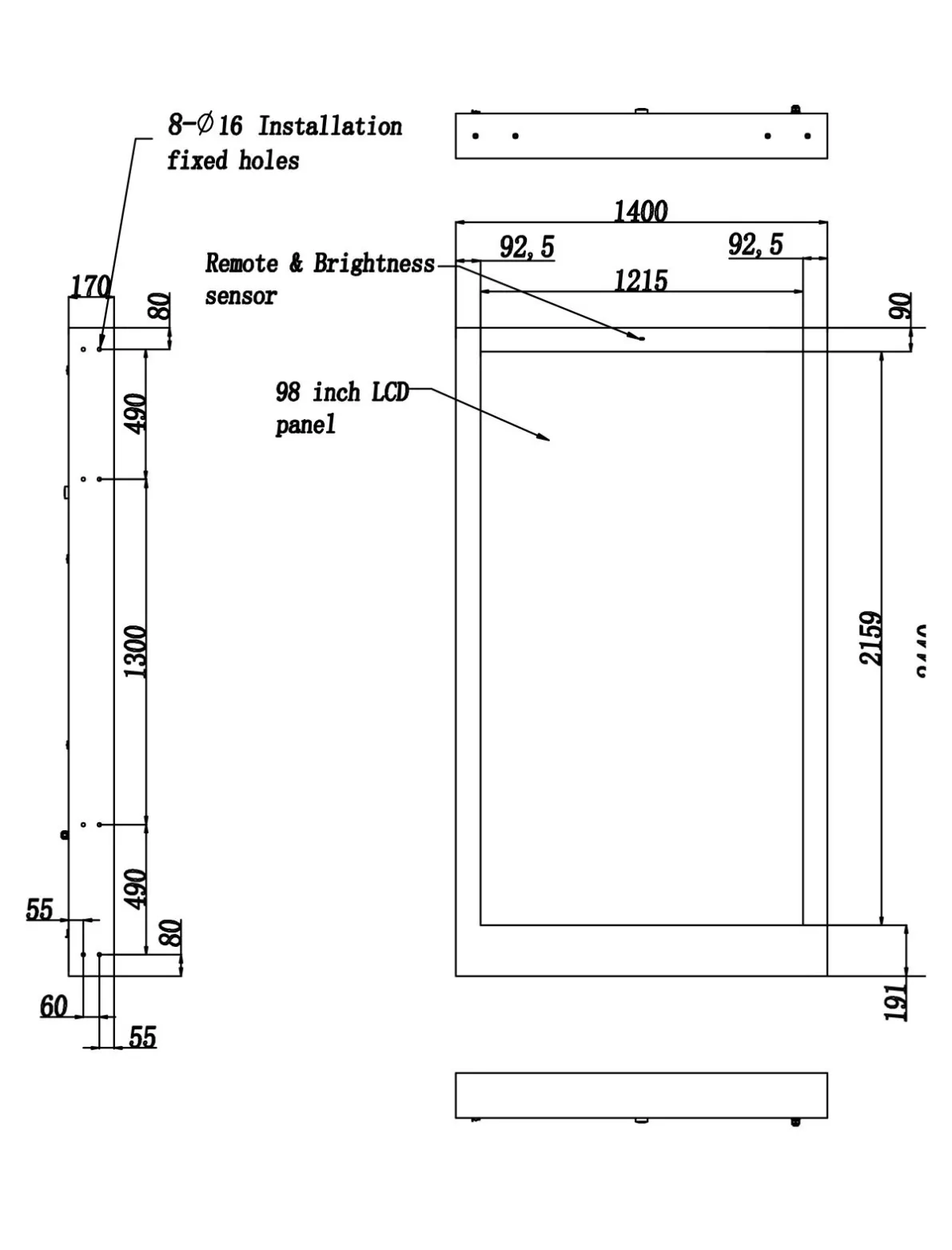

Mechanical Para | Machine seize H*W*D(mm) | 2440*1400*170 |
Net weight(Kg) | 320 | |
Package size H*W*D(mm) | 1650*2590*320 | |
Gross weight(Kg) | 390 | |
Large Information Visible Across an Outdoor Plaza
A 98-inch screen can display destination names, platform directions and major service notices at a size visible from a greater distance. It is useful where passengers need guidance before reaching an entrance or boarding area.
The additional screen area should not be filled with several small timetables. A better hierarchy is:
- Destination or station zone
- Large directional arrow
- Bay or platform number
- Temporary service notice
- Accessibility information
Commercial advertising should not compete with emergency or operational messages.
Understanding the Cabinet Scale
The product thumbnail shows a substantial enclosed structure rather than a thin indoor panel. Exact cabinet height, width, depth and weight must be obtained before the foundation is designed.
Delivery planning is also important. Lifting equipment, vehicle access and temporary installation space may be required for a display of this size.
The light-colored body shown in the image may reduce the visual weight of the cabinet in an outdoor passenger plaza. Final coating and color require confirmation.
Outdoor Visibility and Maintenance
The 2500-nit panel supports daylight viewing. Both direct sunlight and nighttime glare should be assessed at the proposed position.
IP65 protection helps prevent dust ingress and protects against water jets when installed correctly. Built-in fan cooling manages internal heat, while road dust makes routine ventilation inspection necessary.
FAQ
Is 98 inches suitable for a small roadside bus stop?
Usually the format is better suited to larger outdoor terminals, station entrances or transport plazas with sufficient viewing distance.
Does it provide live bus arrival information?
Live information requires compatible data, software and a media player. It is not confirmed by the screen specification alone.
The 98 Inch Weatherproof Digital Signage model is intended for large outdoor transport sites that can support its viewing distance, foundation and maintenance requirements.
