Built-in Fan Version
Weatherproof Digital Signage 21.5 Inch Horizontal Fan Cooling for Bus Station Wayfinding
Material:Aluminum alloy,tempered glass Material:Metal Case + Toughened Glass Panel Material:304 Stainless steel/SGCC Galvanized plate Touch screen:Mesh metal touch/G+G cap touch
Specifications
- SKU
- ZXTLCD-OUTFHE215W
21.5 Inch Outdoor Bus Stop Display for Close-Range Passenger Information
Large screens can be seen across a station, but they are unnecessary when passengers already stand beside the information point. This 21.5 Inch Outdoor Bus Stop Display is designed for route, stop and directional information viewed at close range.
The product image shows a compact landscape screen in a low-profile dark enclosure. It can be integrated into a bus shelter, timetable structure or purpose-built outdoor information cabinet without occupying additional pavement space.
21.5 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 478*269 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

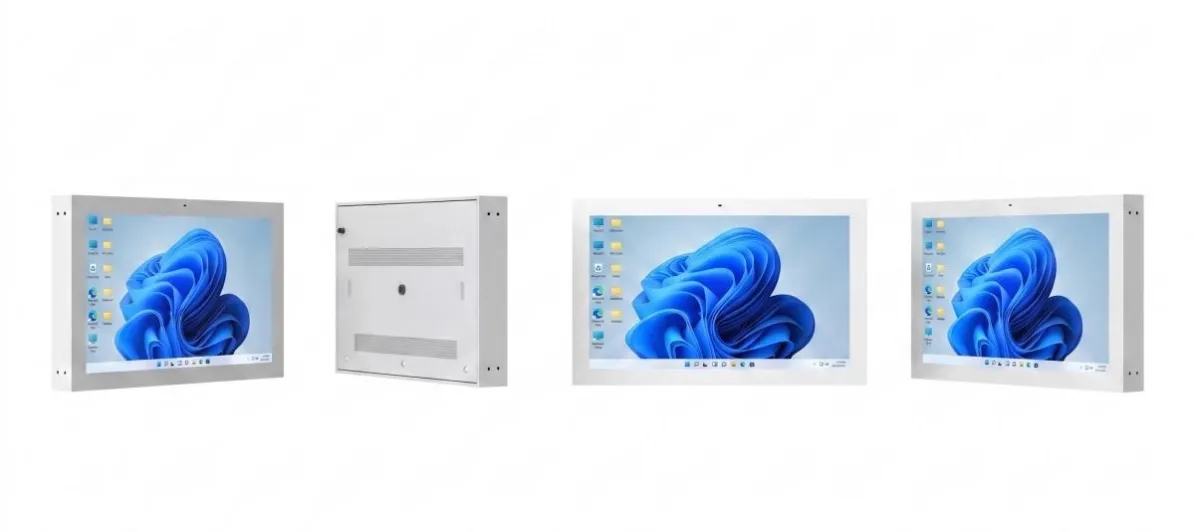

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤180W | |

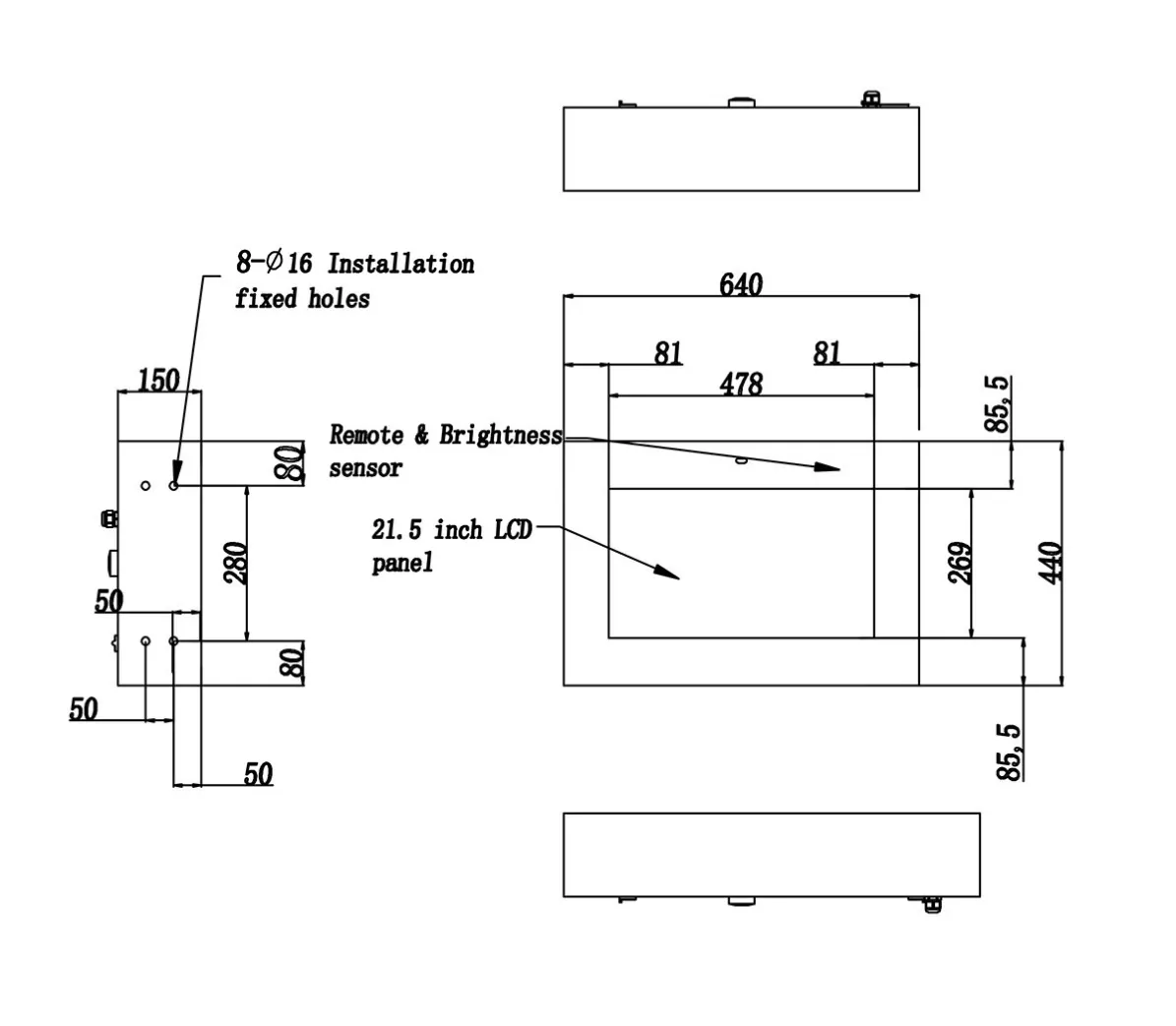

Mechanical Para | Machine seize H*W*D(mm) | 440*640*150 |
Net weight(Kg) | 30 | |
Package size H*W*D(mm) | 640*940*300 | |
Gross weight(Kg) | 50 | |
What Belongs on a 21.5-Inch Screen?
This size works best when the content has one clearly defined purpose. Suitable information includes:
- Stop name and route number
- Direction of travel
- Next major destinations
- Temporary boarding changes
- Service contact details
- A QR code for complete timetables
A full regional transport map would contain too much detail. The screen should help passengers answer the immediate question: “Am I waiting at the correct stop?”
Readability Matters More Than Content Volume
The 21.5 Inch Outdoor Bus Stop Display will normally be viewed from one or two metres away. Route numbers can be prominent, while secondary information remains smaller but readable.
Animated transitions should be limited. If essential directions disappear every few seconds to make room for promotion, passengers may miss the information they need.
Integrating the Display into a Shelter

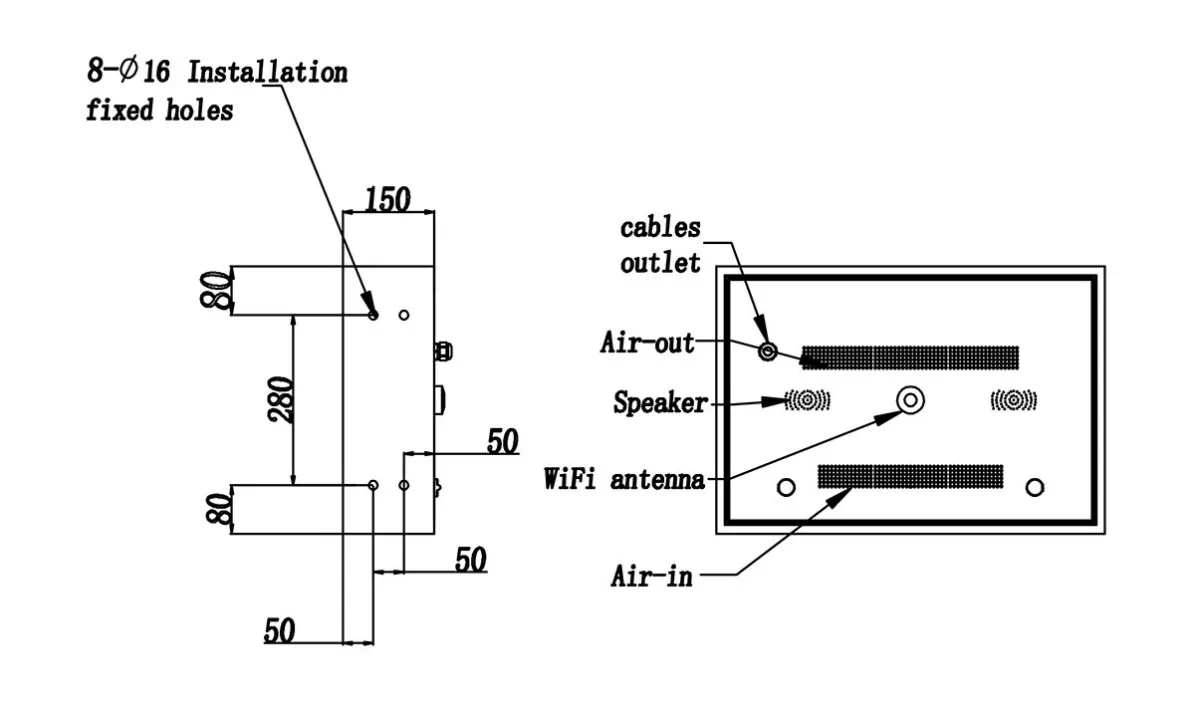

Before fabrication, the shelter contractor needs the cabinet dimensions, viewing area, cable location and ventilation requirements. The unit uses built-in fan cooling, so it cannot be enclosed inside an unventilated compartment.
Water runoff from the shelter roof must also be directed away from cable entries and service openings.
Keep Basic Information Available Offline
If the 21.5 Inch Outdoor Bus Stop Display receives updates through a network connection, a locally stored fallback page should remain available during a communication failure. The stop name, route direction and operator contact details should never depend entirely on a live connection.
This compact screen is not intended to replace a large station display. Its role is to deliver precise information at the exact place where a passenger needs it.
